UNDERHOOD Junction Block - Engine

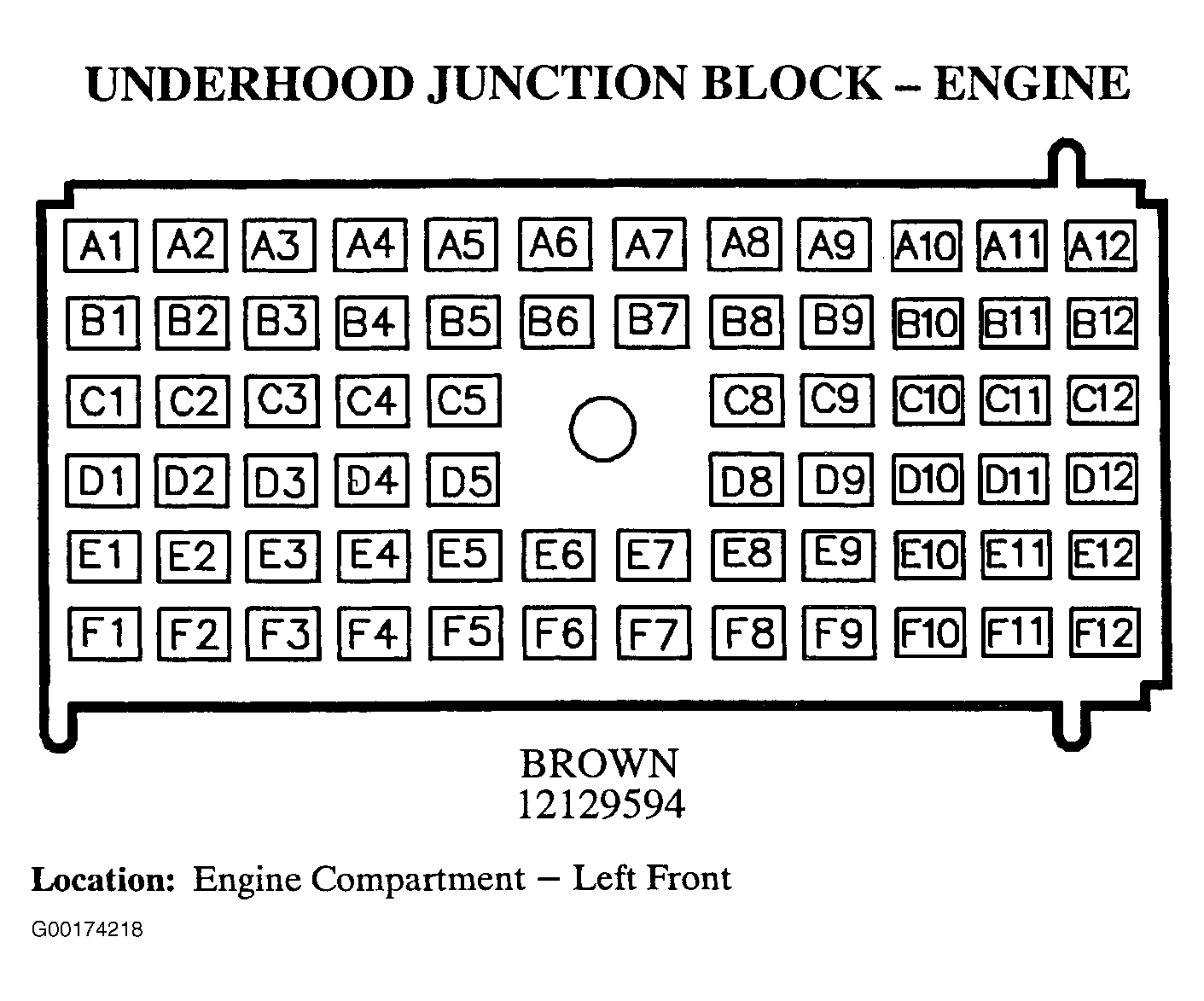

Fig 1: Underhood Junction Block - Engine (Connector) - 68-Pin Connector (12129594) - Brown (1 Of 4)
Courtesy of GENERAL MOTORS CORP.

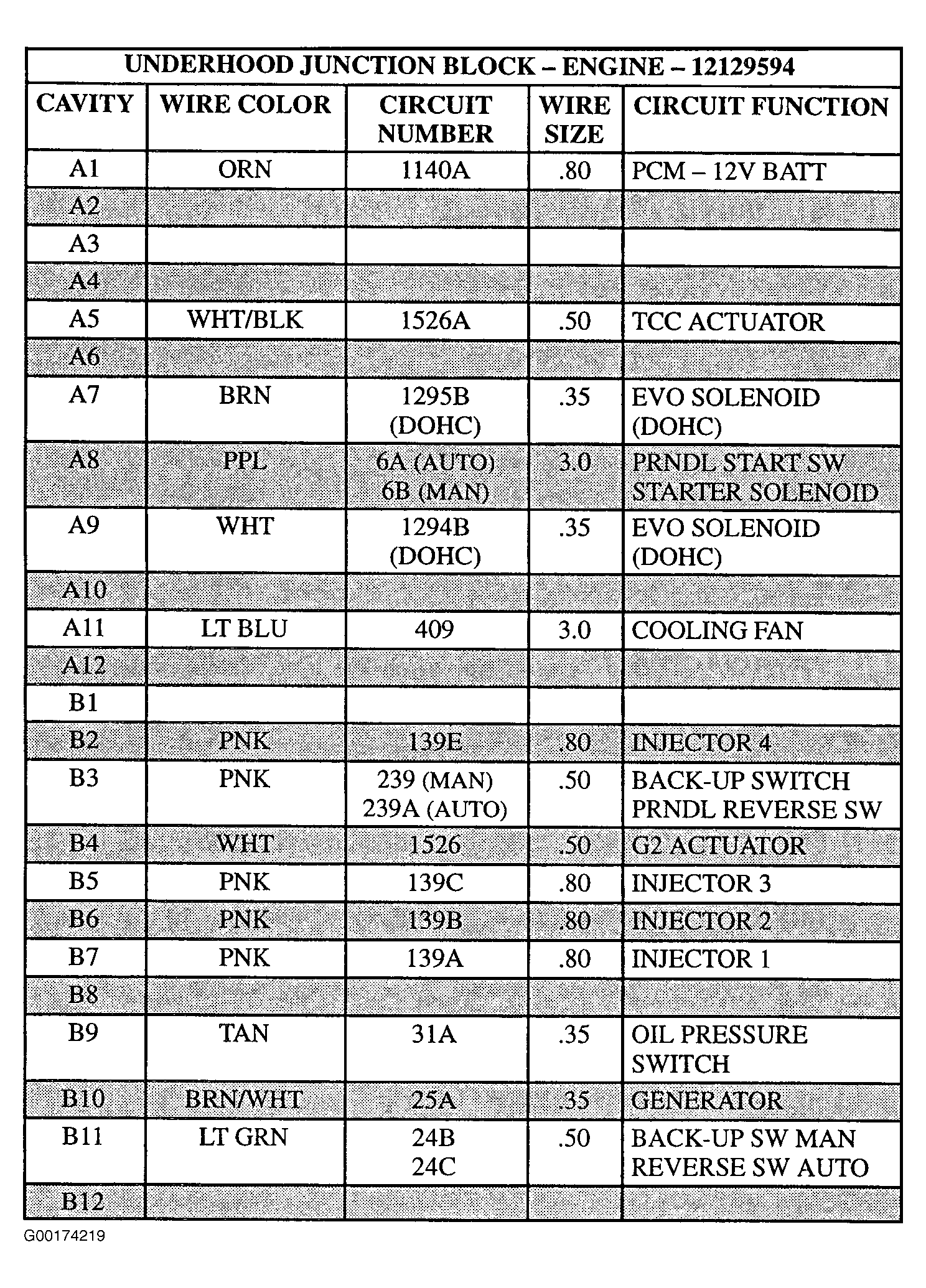

Fig 2: Underhood Junction Block - Engine (Chart) - 68-Pin Connector (12129594) - Brown (2 Of 4)
Courtesy of GENERAL MOTORS CORP.

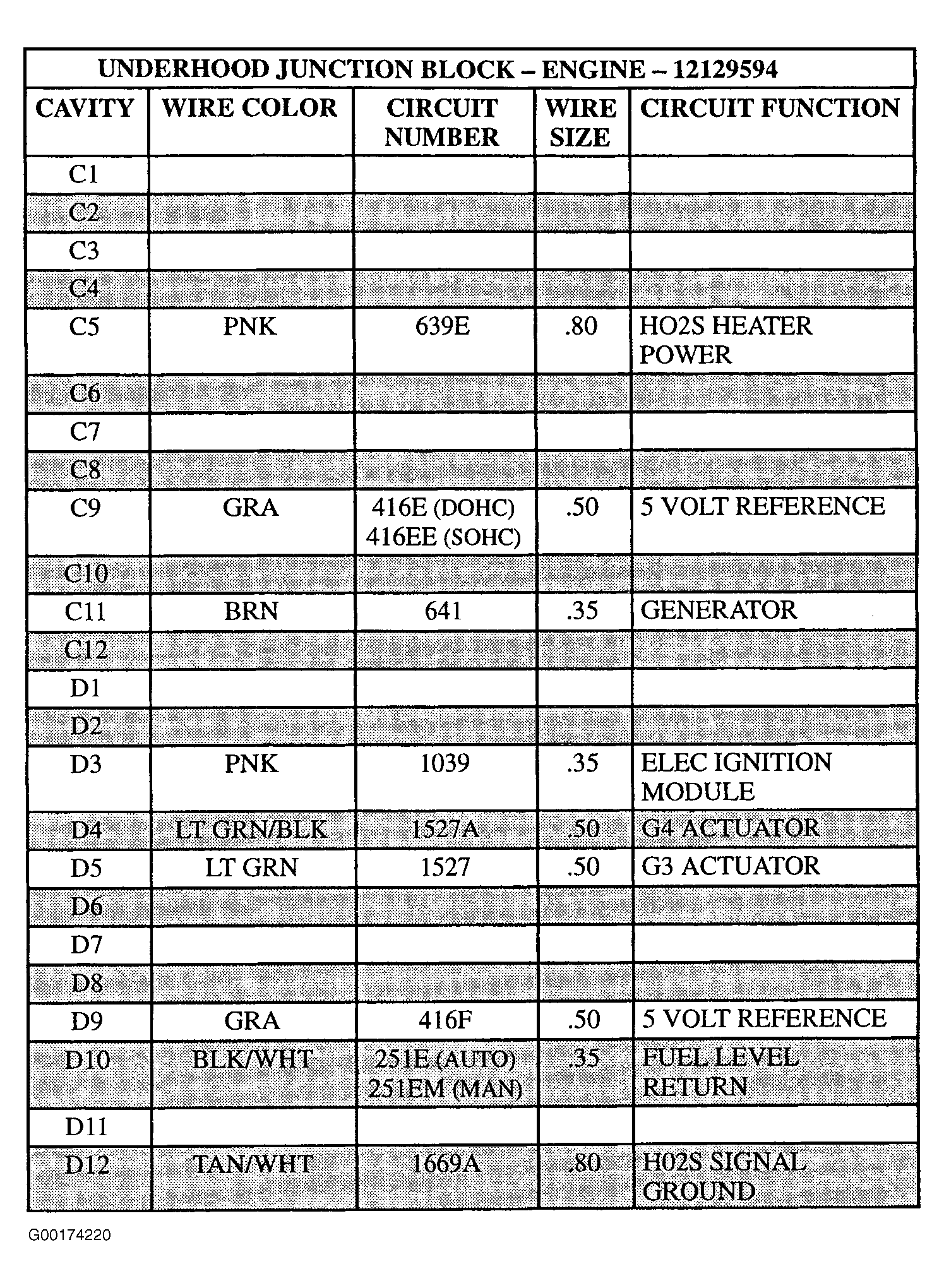

Fig 3: Underhood Junction Block - Engine (Chart) - 68-Pin Connector (12129594) - Brown (3 Of 4)
Courtesy of GENERAL MOTORS CORP.

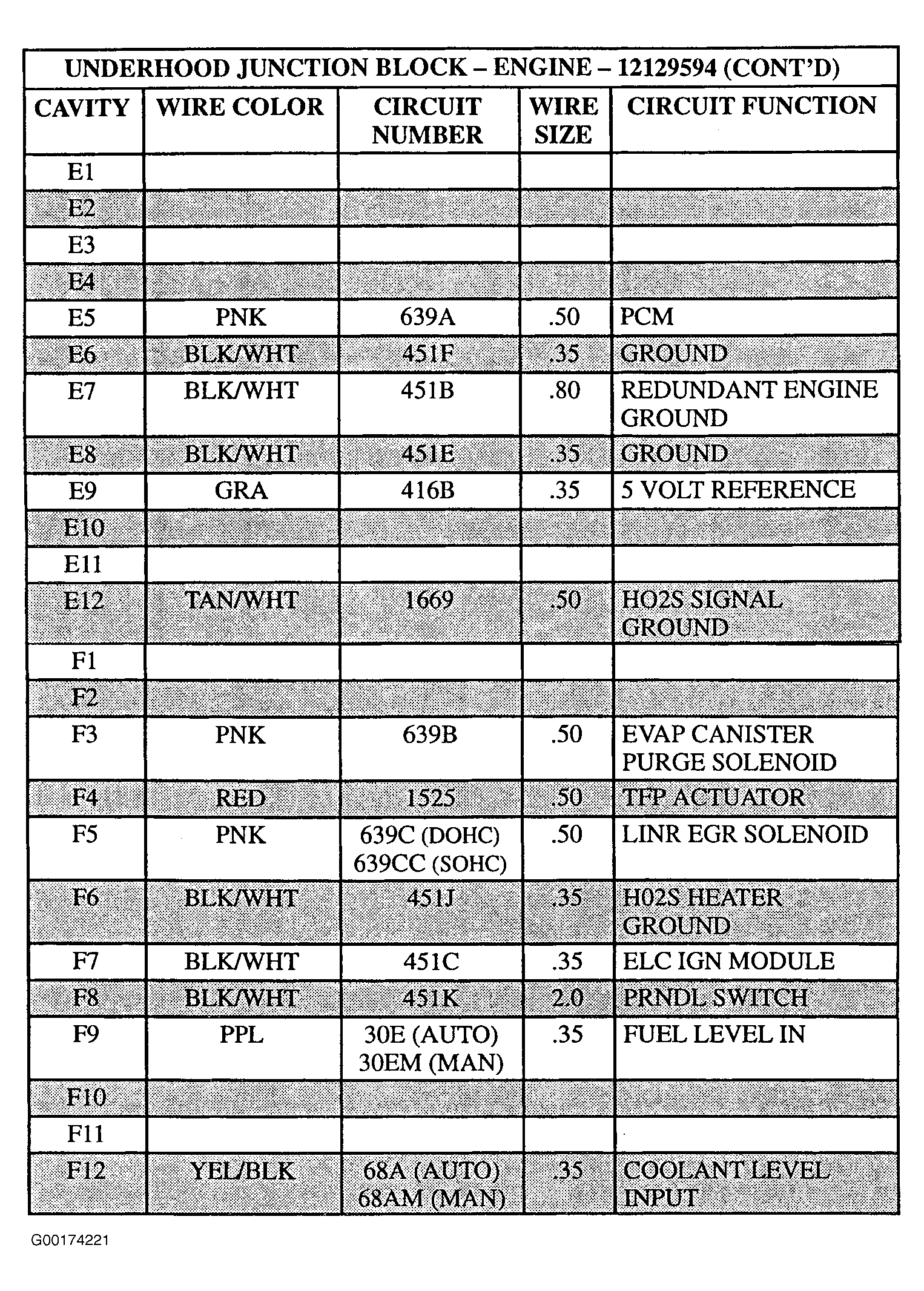

Fig 4: Underhood Junction Block - Engine (Chart) - 68-Pin Connector (12129594) - Brown (4 Of 4)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
