UNDERHOOD Junction Block - I/P

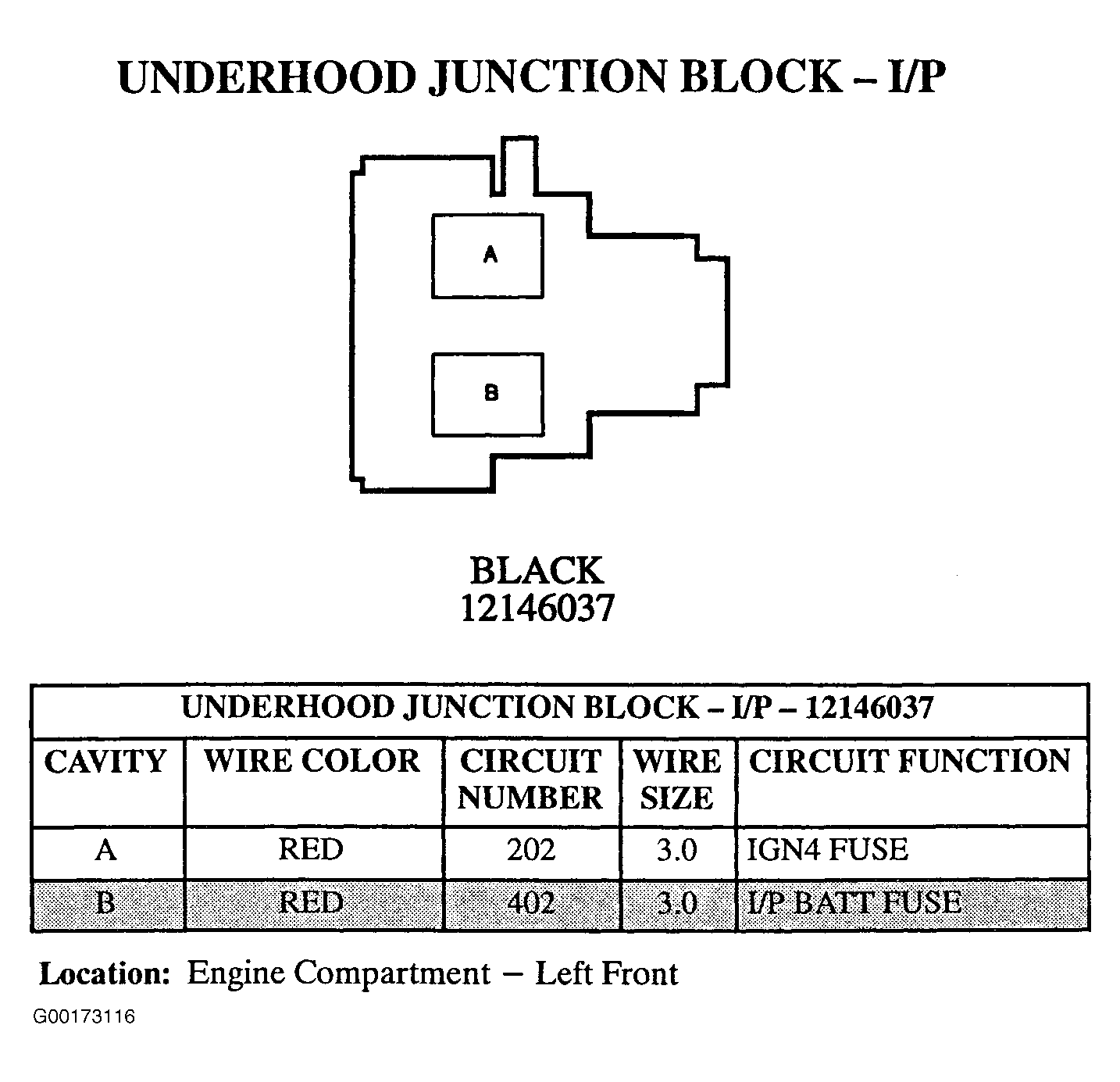

Fig 1: Underhood Junction Block (I/P) - 2-Pin Connector (12146037) - Black
Courtesy of GENERAL MOTORS CORP.

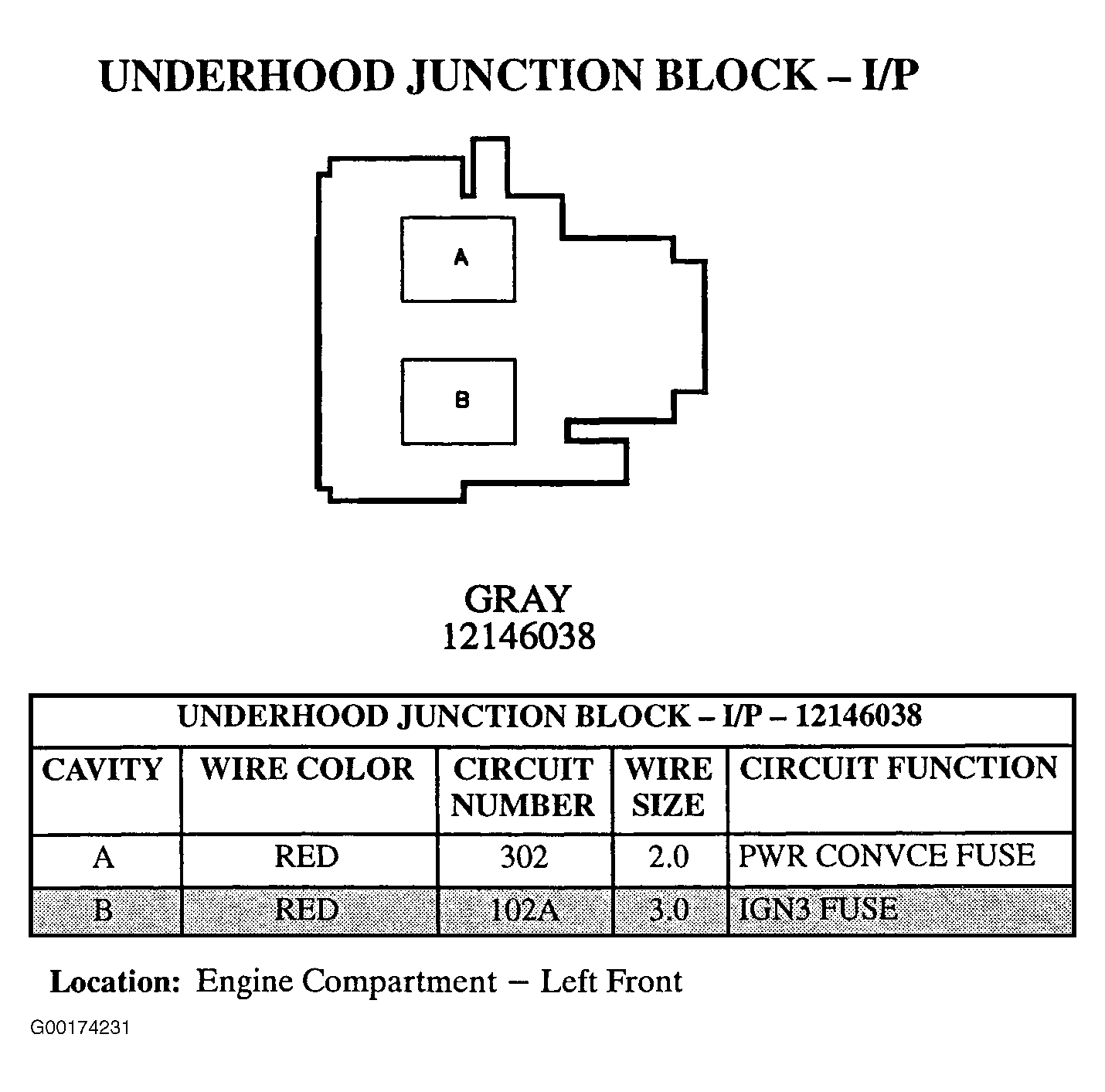

Fig 2: Underhood Junction Block (I/P) - 2-Pin Connector (12146038) - Gray
Courtesy of GENERAL MOTORS CORP.

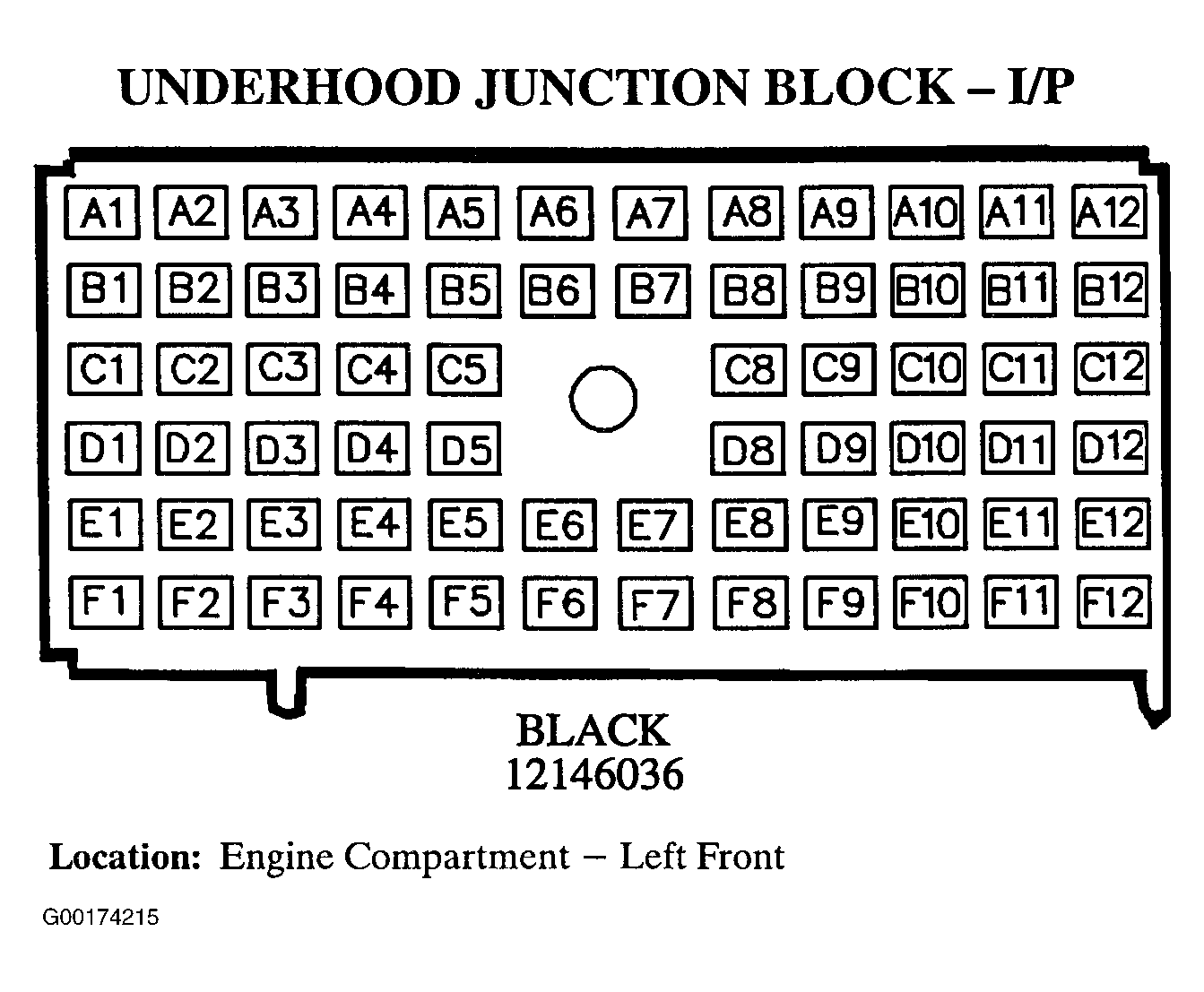

Fig 3: Underhood Junction Block - I/P (Connector) - 68-Pin Connector (12146036) - Black (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

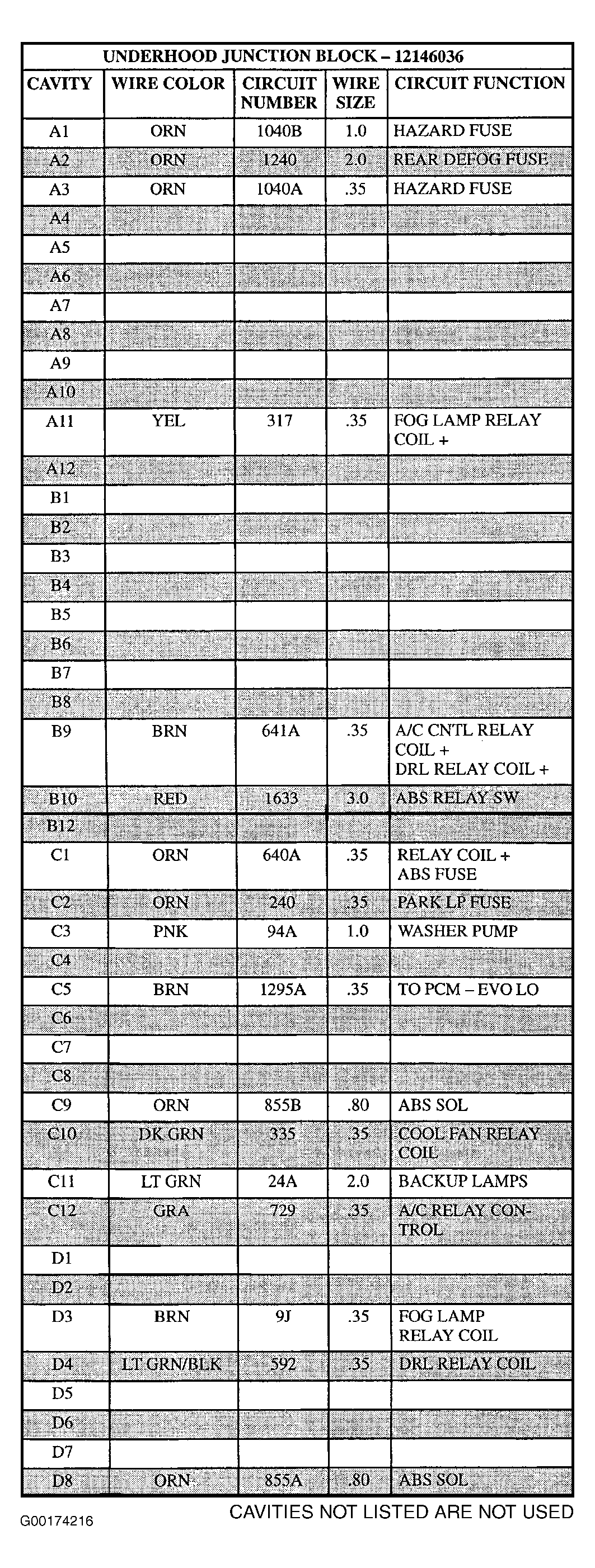

Fig 4: Underhood Junction Block - I/P (Chart) - 68-Pin Connector (12146036) - Black (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

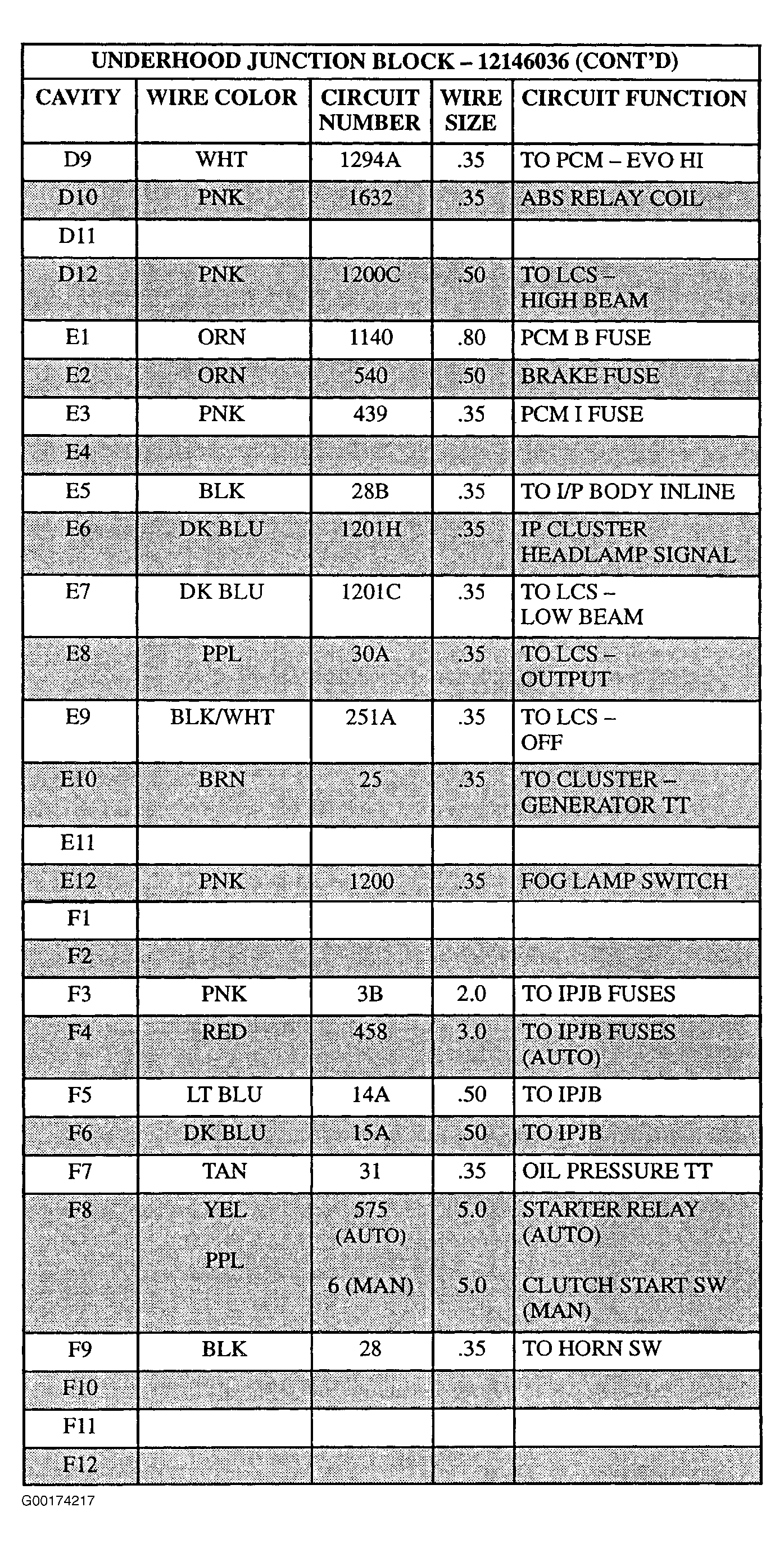

Fig 5: Underhood Junction Block - I/P (Chart) - 68-Pin Connector (12146036) - Black (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
