Powertrain Control Module (PCM) Connector J4 (W/Auto. Trans.)

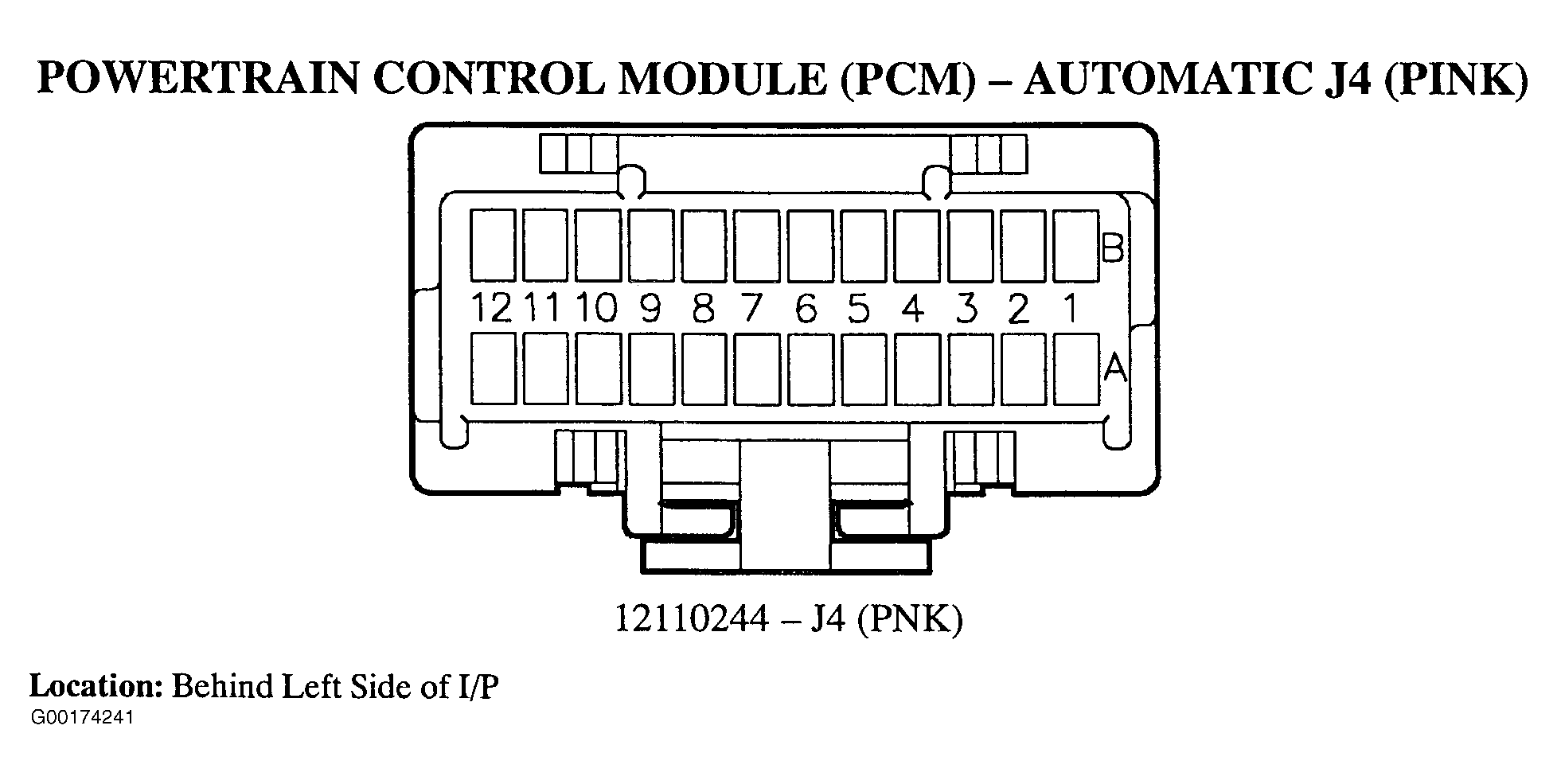

Fig 1: Powertrain control Module (PCM) J4 - Automatic Connector - 24-Pin Connector (12110244) - Pink (1 Of 2)
G00174241Courtesy of GENERAL MOTORS CORP.

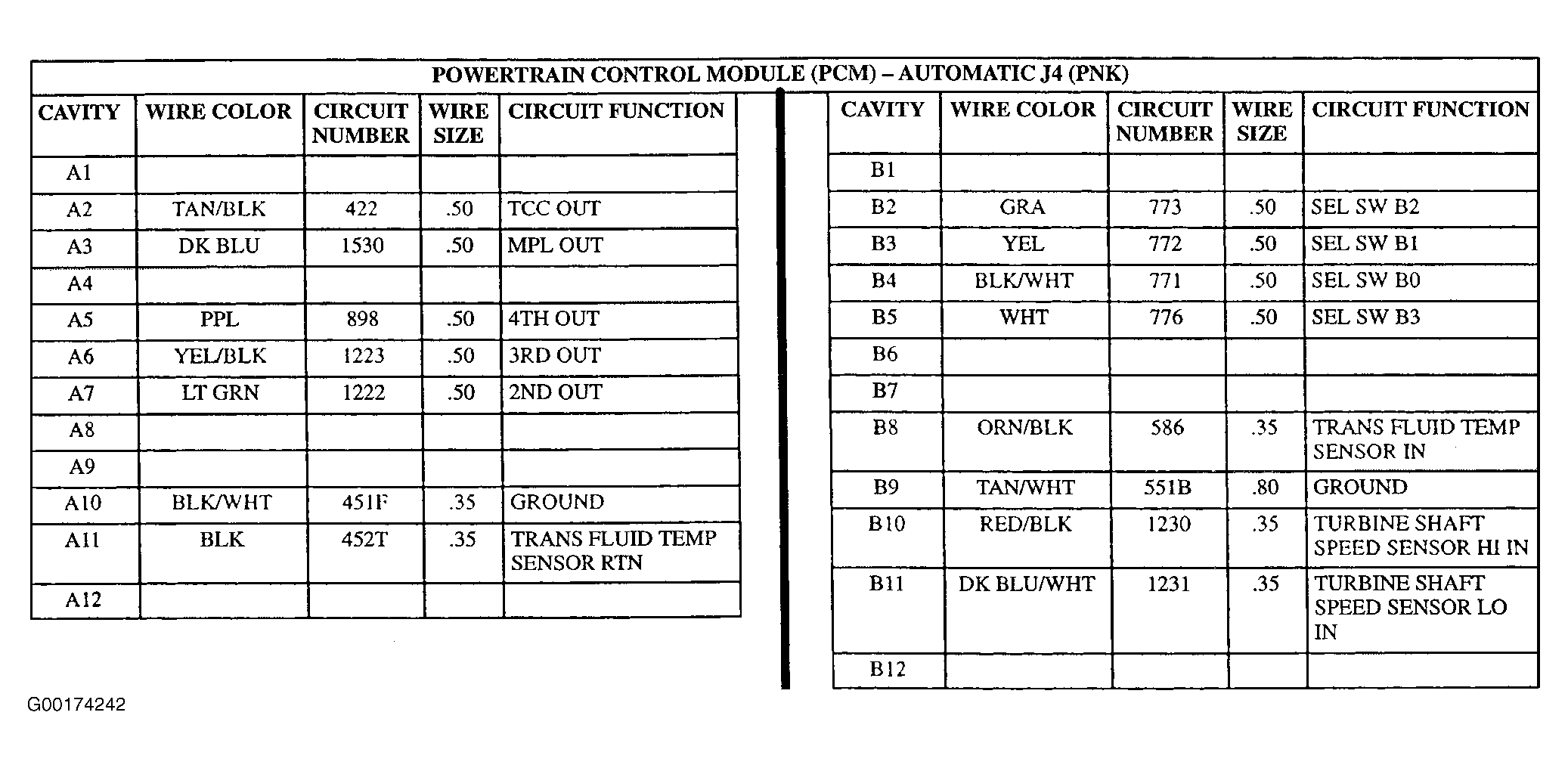

Fig 2: Powertrain Control Module (PCM) J4 - Automatic (Circuit Identification Chart) - 24-Pin Connector (12110244) - Pink (2 Of 2)
G00174242Courtesy of GENERAL MOTORS CORP.
