Coolant Level Switch

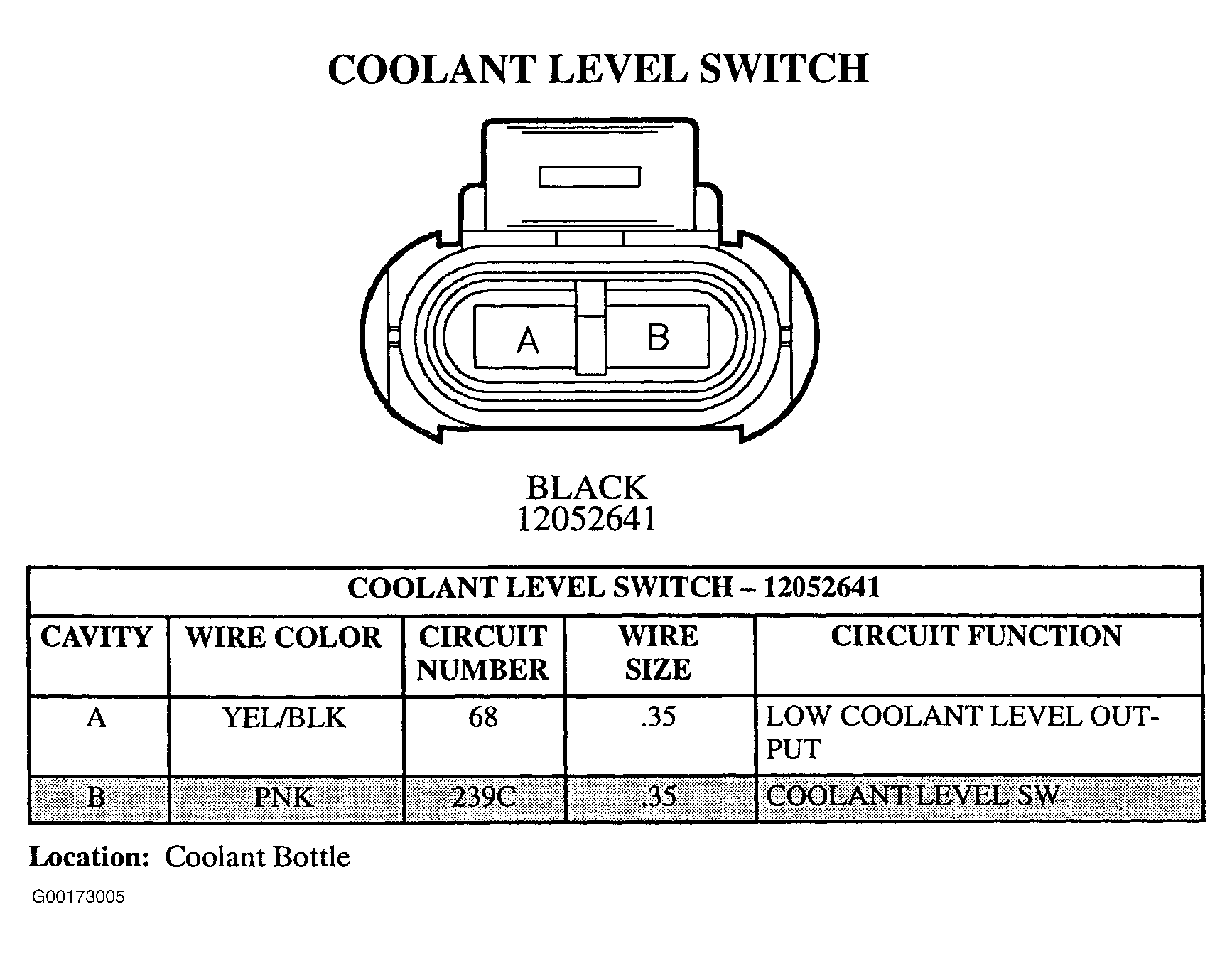

Fig 1: Coolant Level Switch - 2-Pin Connector (12052641) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
