Crankshaft Position Sensor

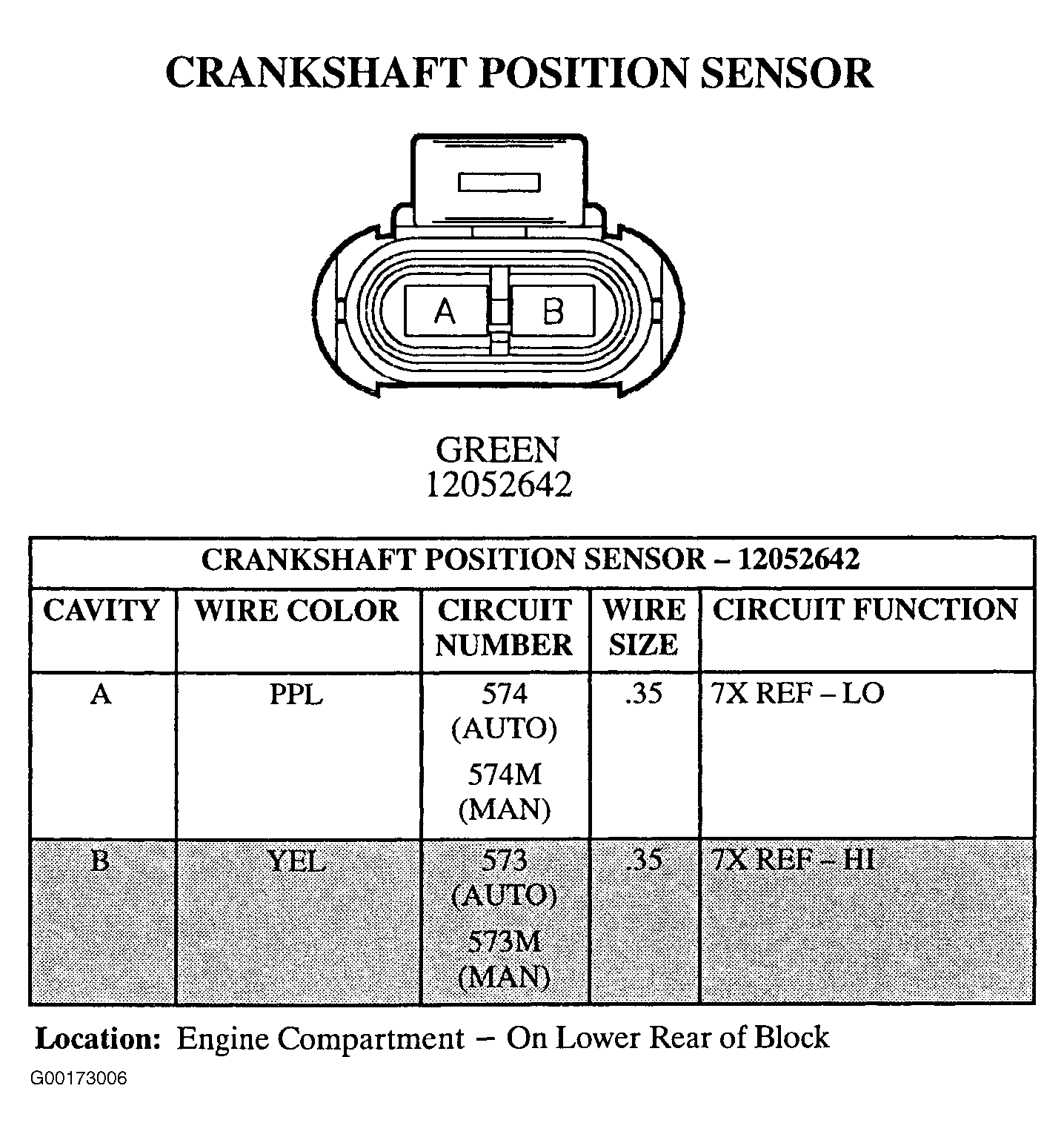

Fig 1: Crankshaft Position Sensor - 2-Pin Connector (12052642) - Green
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
