Instrument Panel Cluster

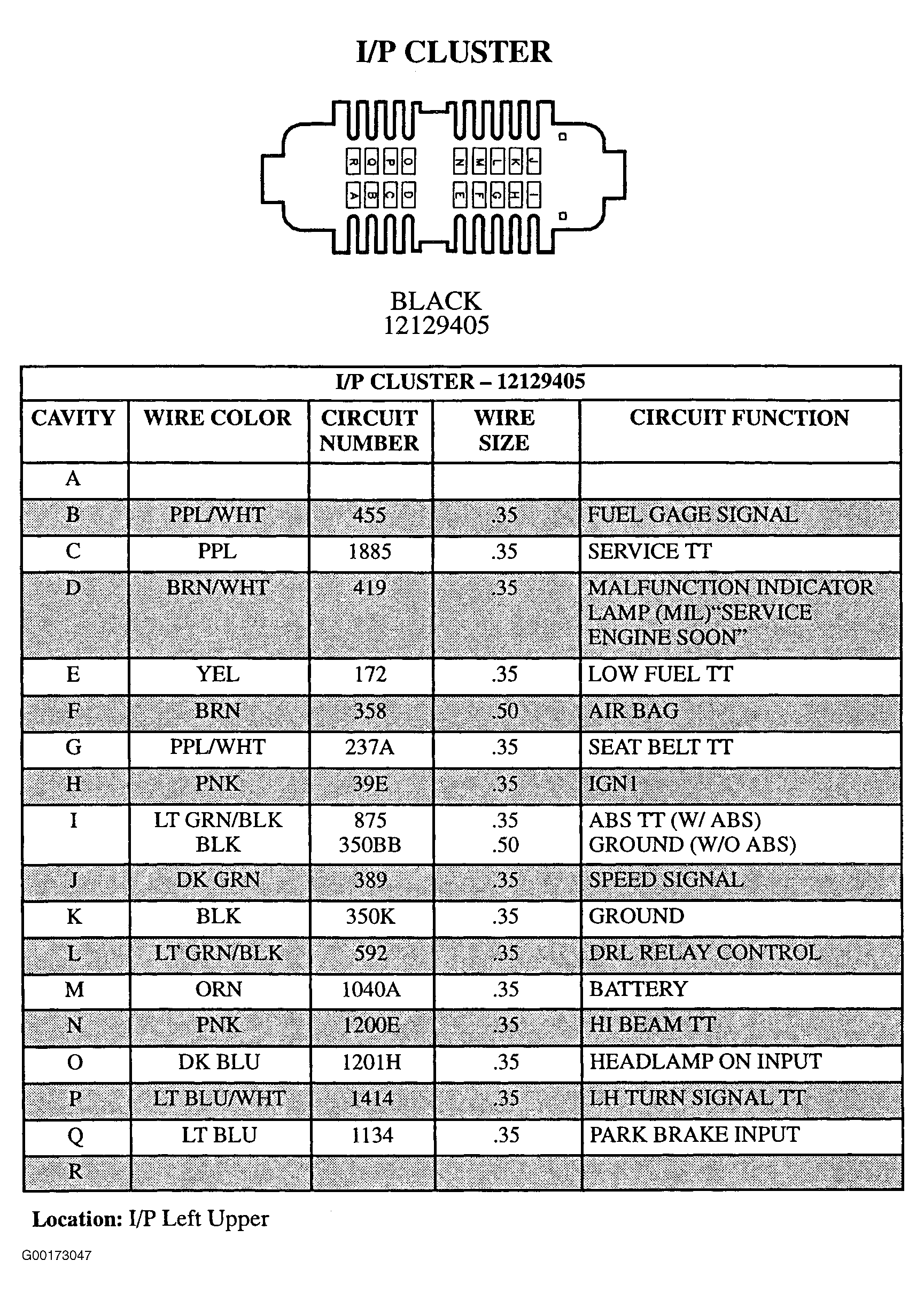

Fig 1: Instrument Panel Cluster - 18-Pin Connector (12129405) - Black (1 Of 2)
G00173047Courtesy of GENERAL MOTORS CORP.

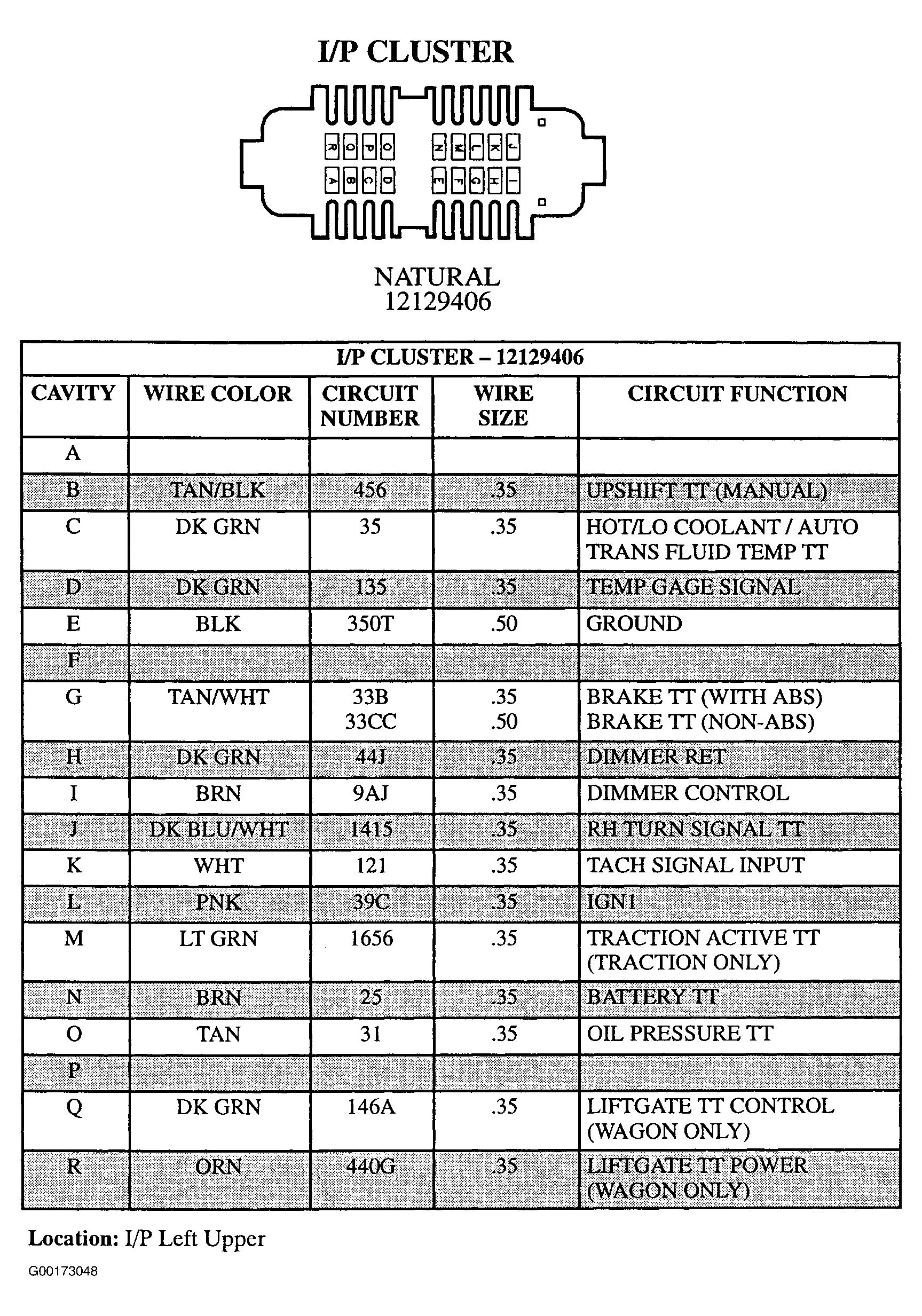

Fig 2: Instrument Panel Cluster - 18-Pin Connector (12129406) - Natural
G00173048Courtesy of GENERAL MOTORS CORP.
