Transaxle Actuators

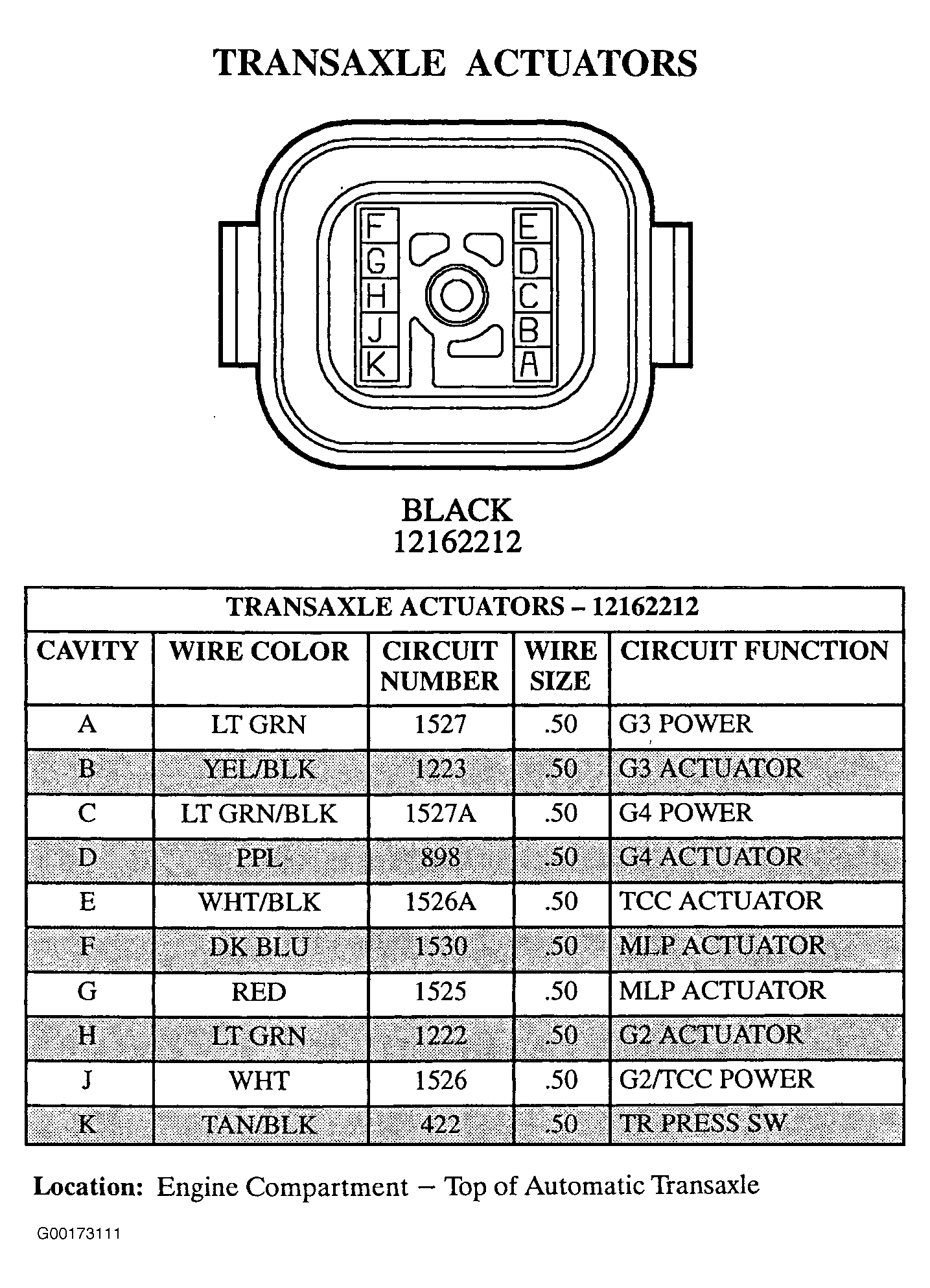

Fig 1: Transaxle Actuators - 10-Pin Connector (12162212) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
