Vehicle Speed Sensor (VSS)

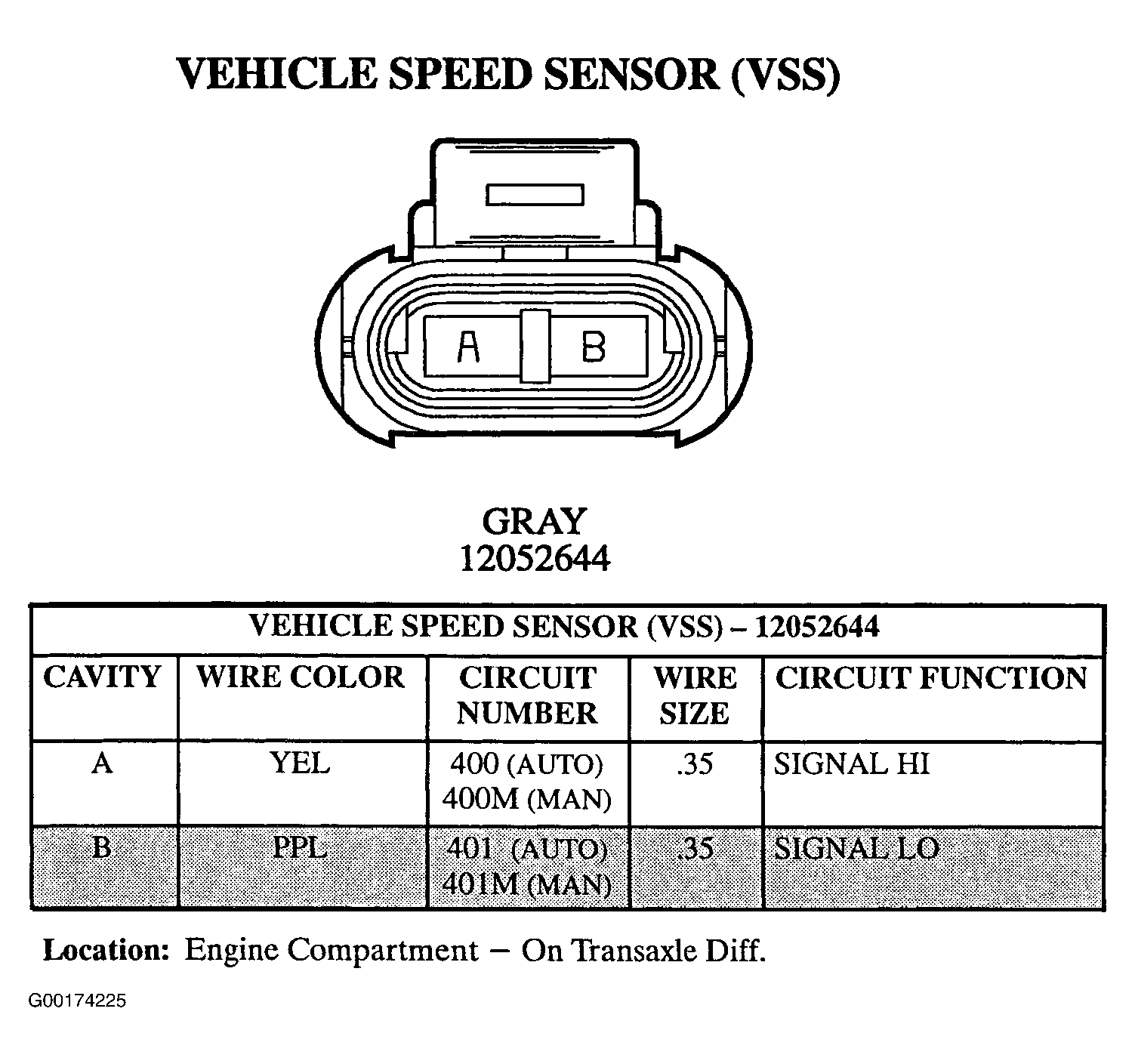

Fig 1: Vehicle Speed Sensor (VSS) - 2-Pin Connector (12052644) - Gray
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
