Washer Pump

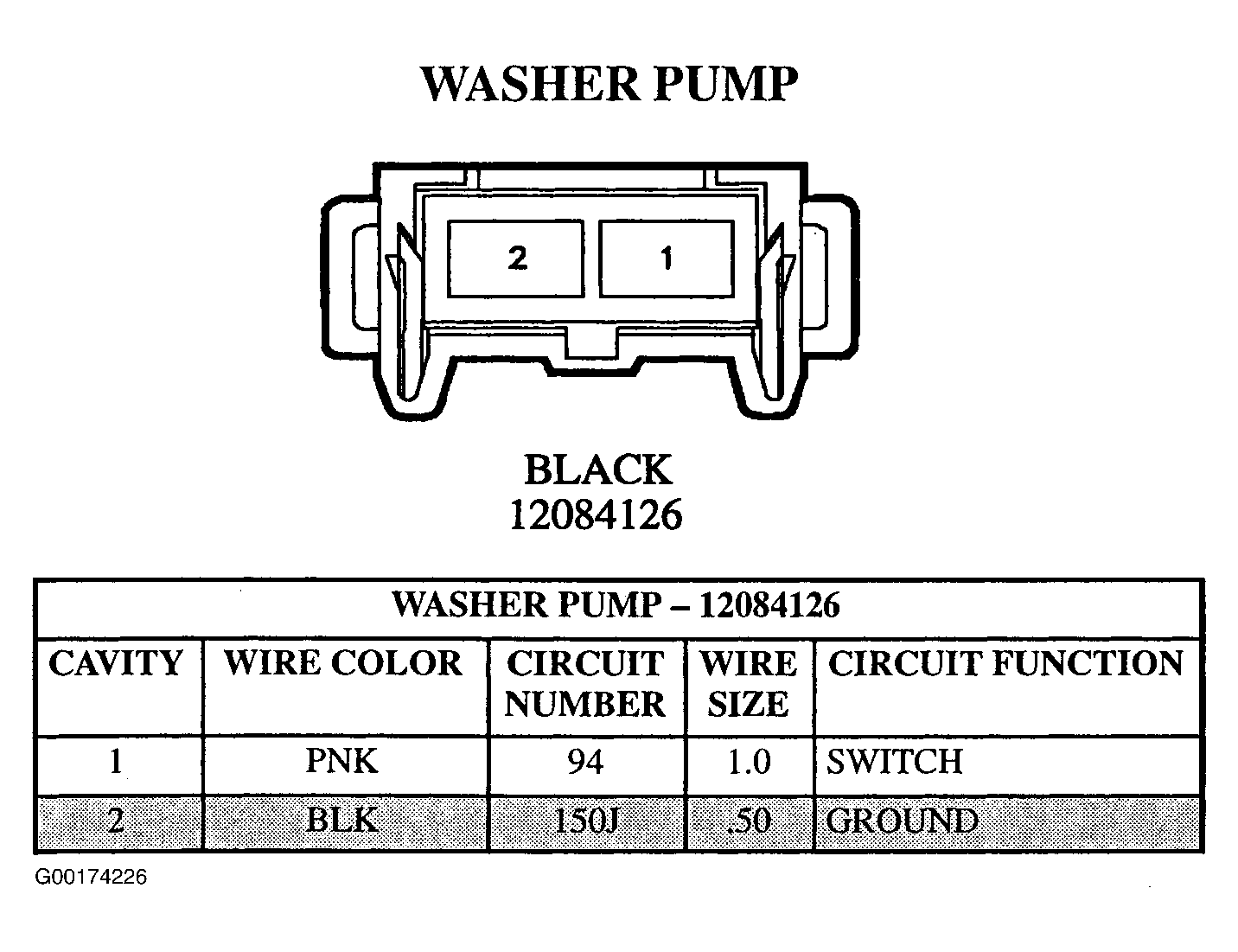

Fig 1: Washer Pump - 2-Pin Connector (12084126) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
