Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component |
Component Location |
| A/C Diode |
In underhood junction block. |
| I/P Junction Block |

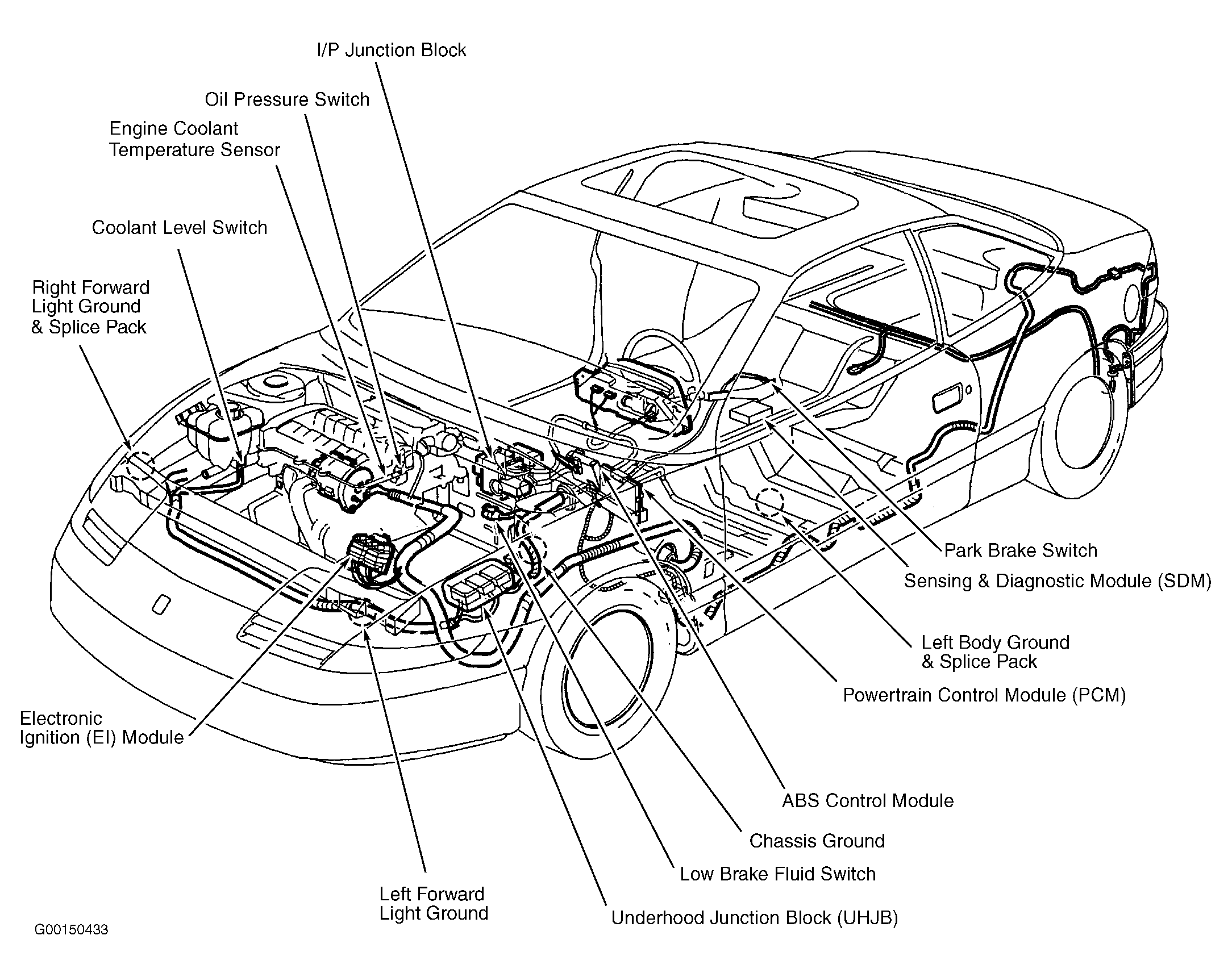

Behind center of dash. See Figure
. |
| Underhood Junction Block (UHJB) |
On left side of engine compartment, near battery. See Figure
. |
