Electronic Brake Traction Control Module

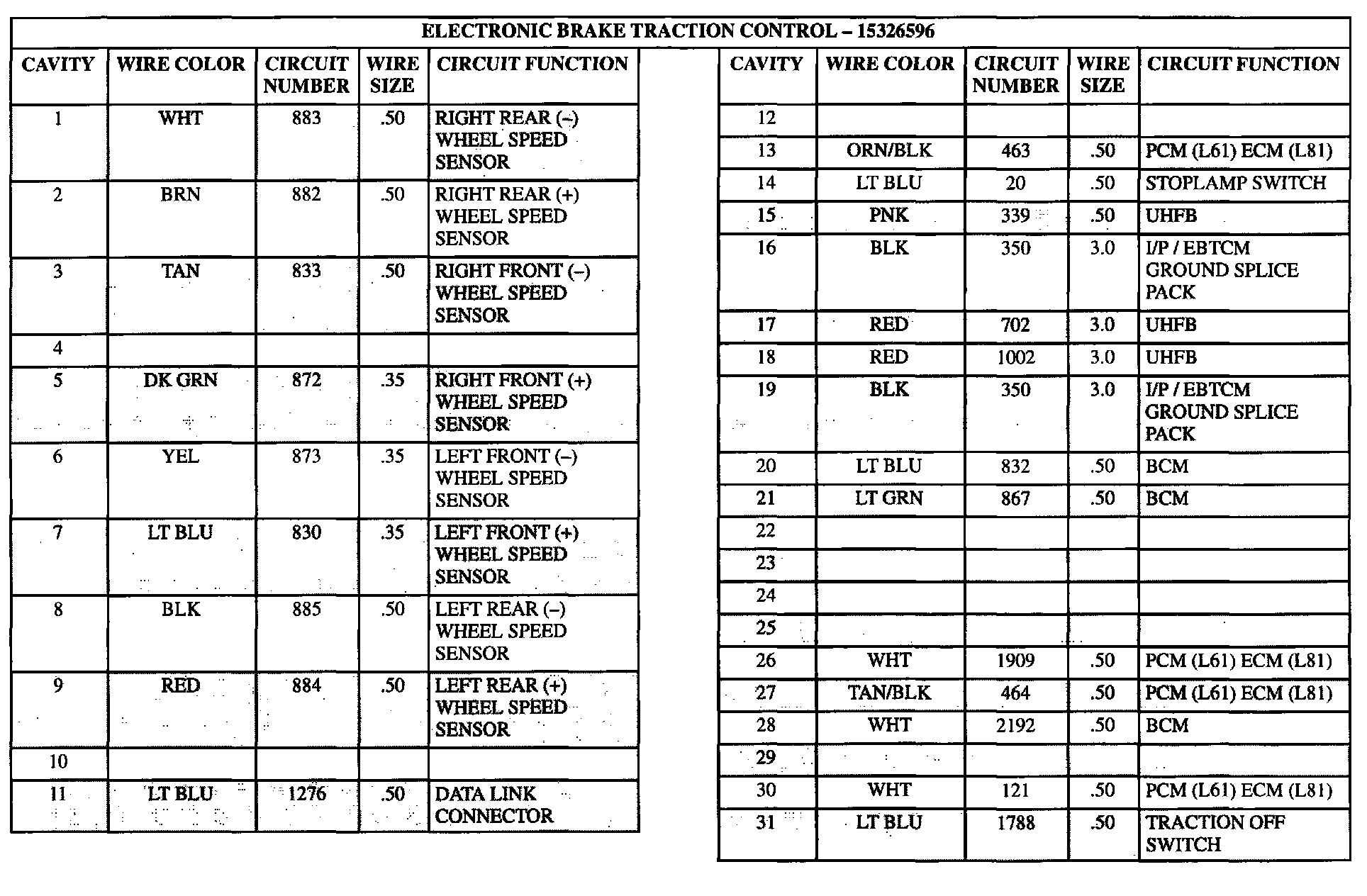

Electronic Brake Traction Control Module (Part 1 Of 2):

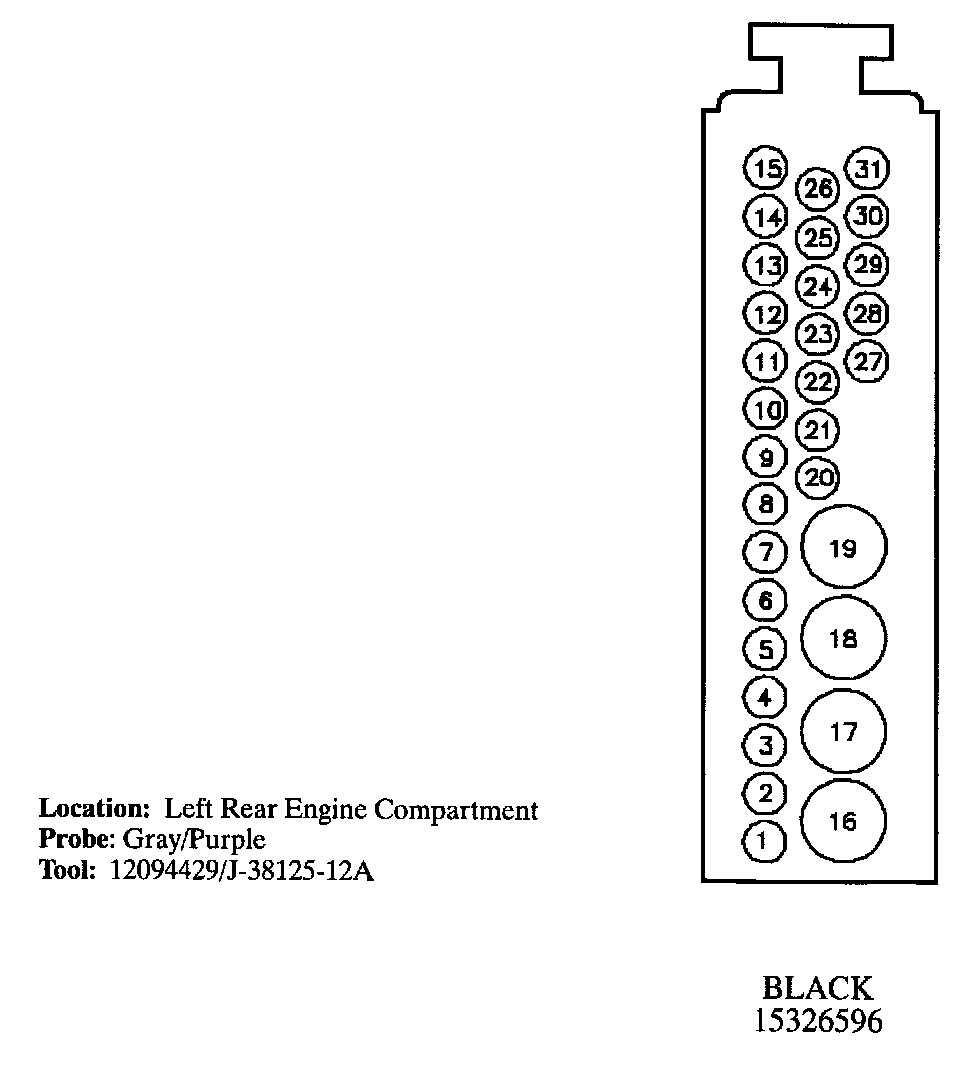

Electronic Brake Traction Control Module (Part 2 Of 2):
