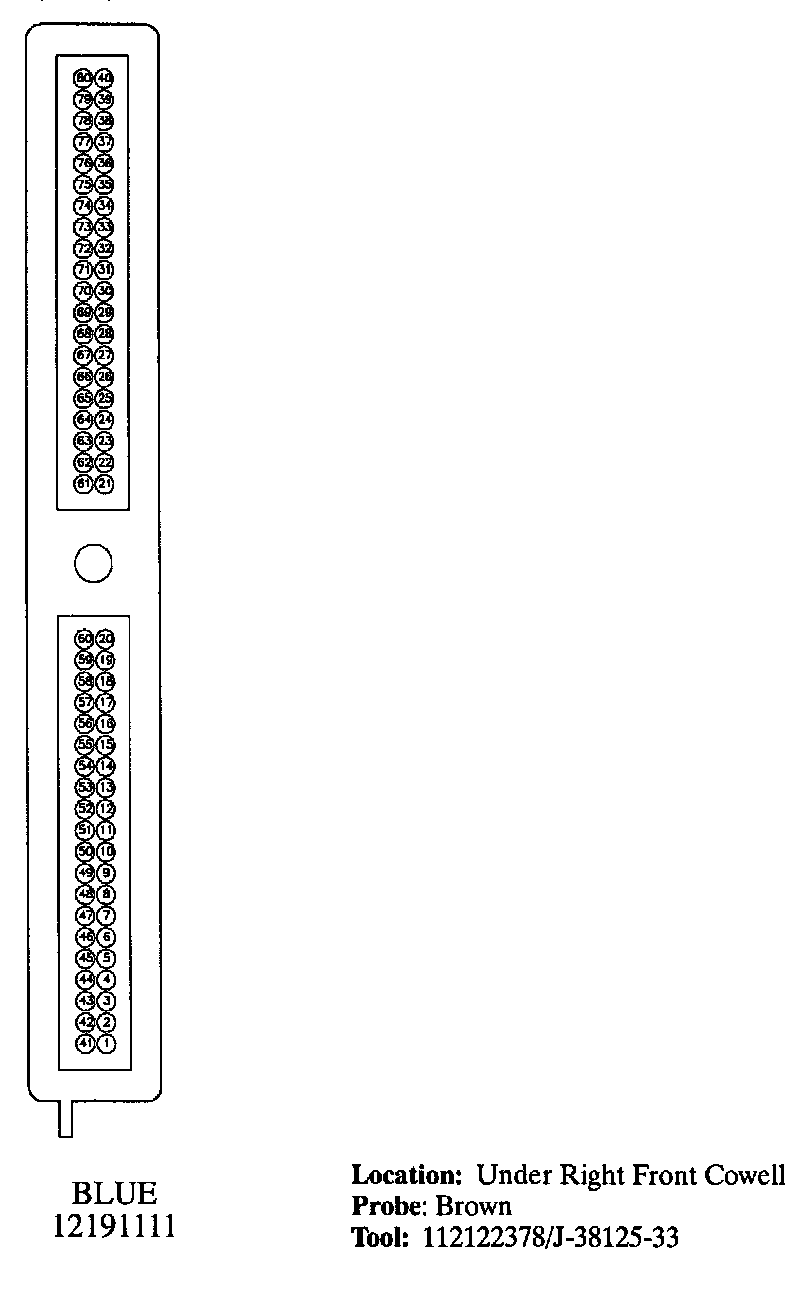

J1

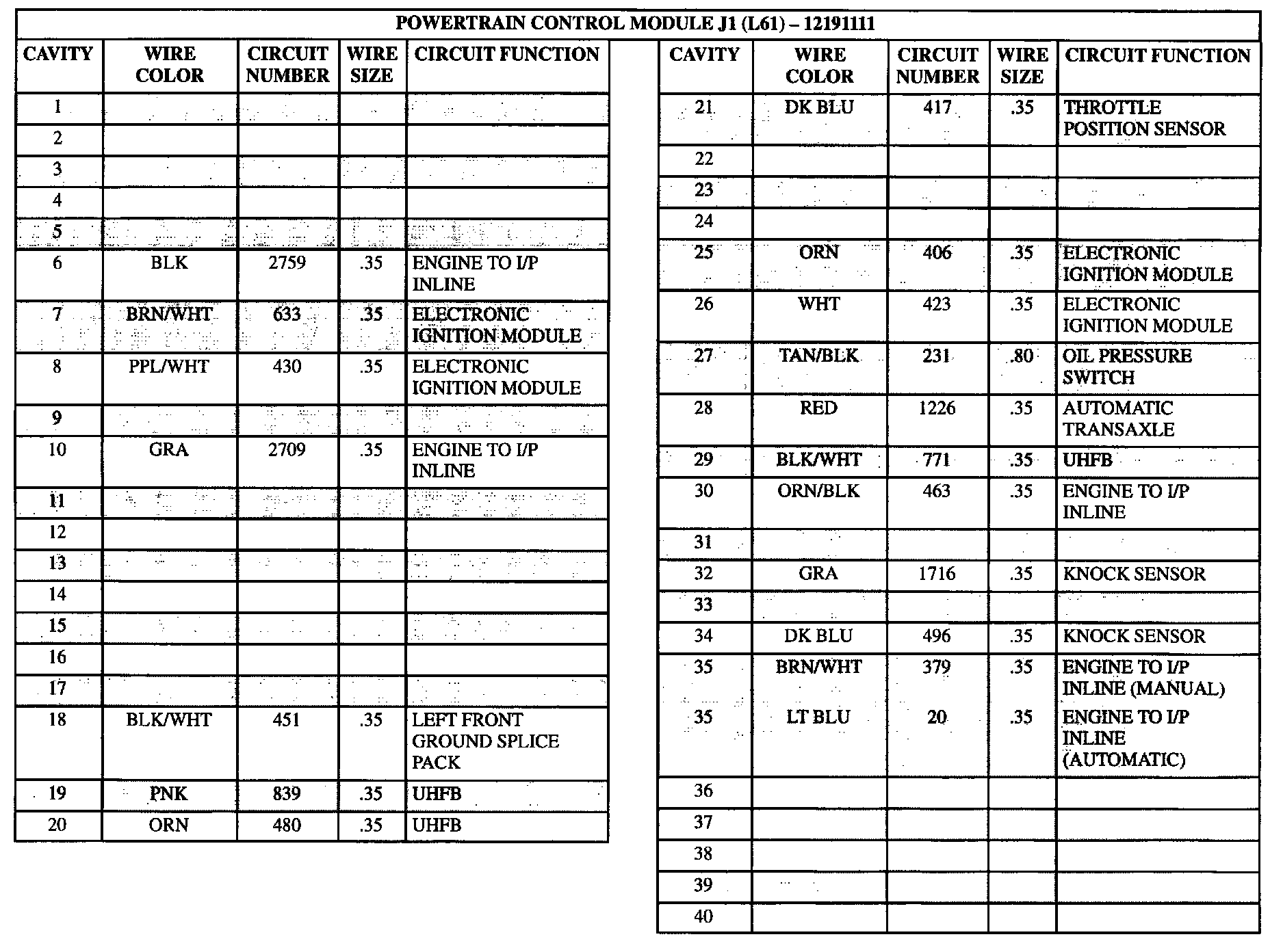

Powertrain Control Module J1 (Part 1 Of 3):

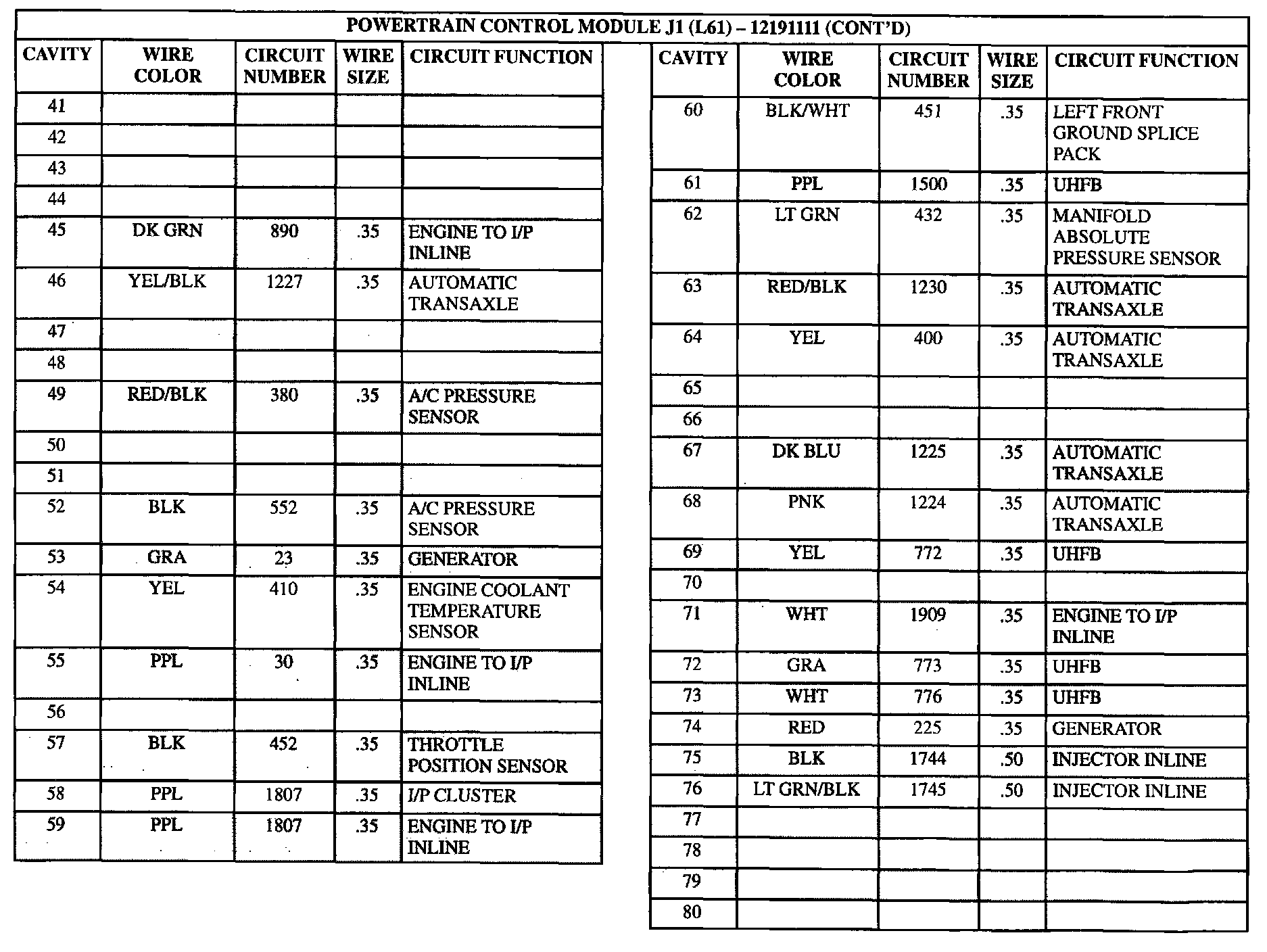

Powertrain Control Module J1 (Part 2 Of 3):
Powertrain Control Module J1 (Part 3 Of 3):
