Right I/P Fuse Block - I/P

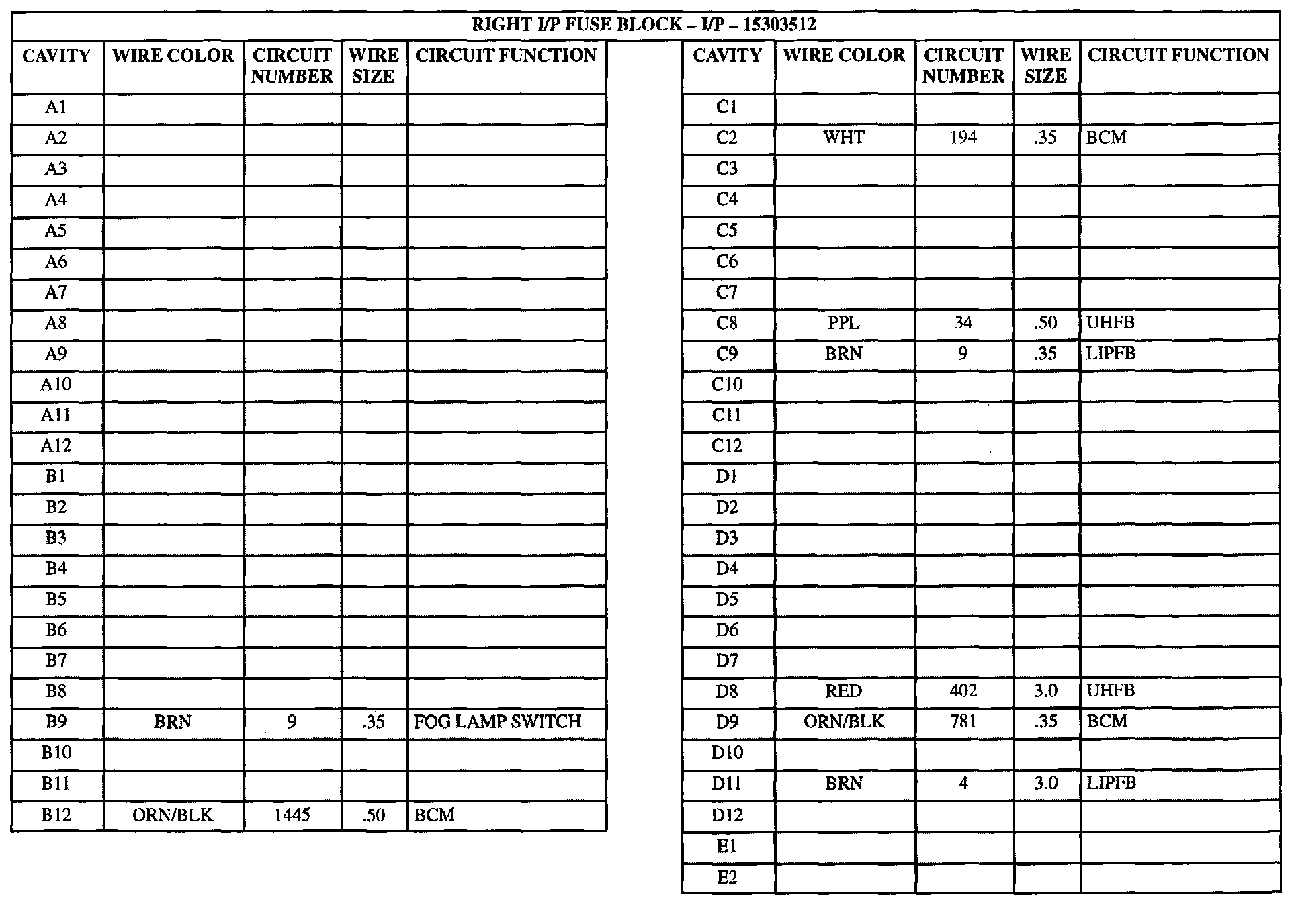

Right I/P Fuse Block - I/P (Part 1 Of 3):

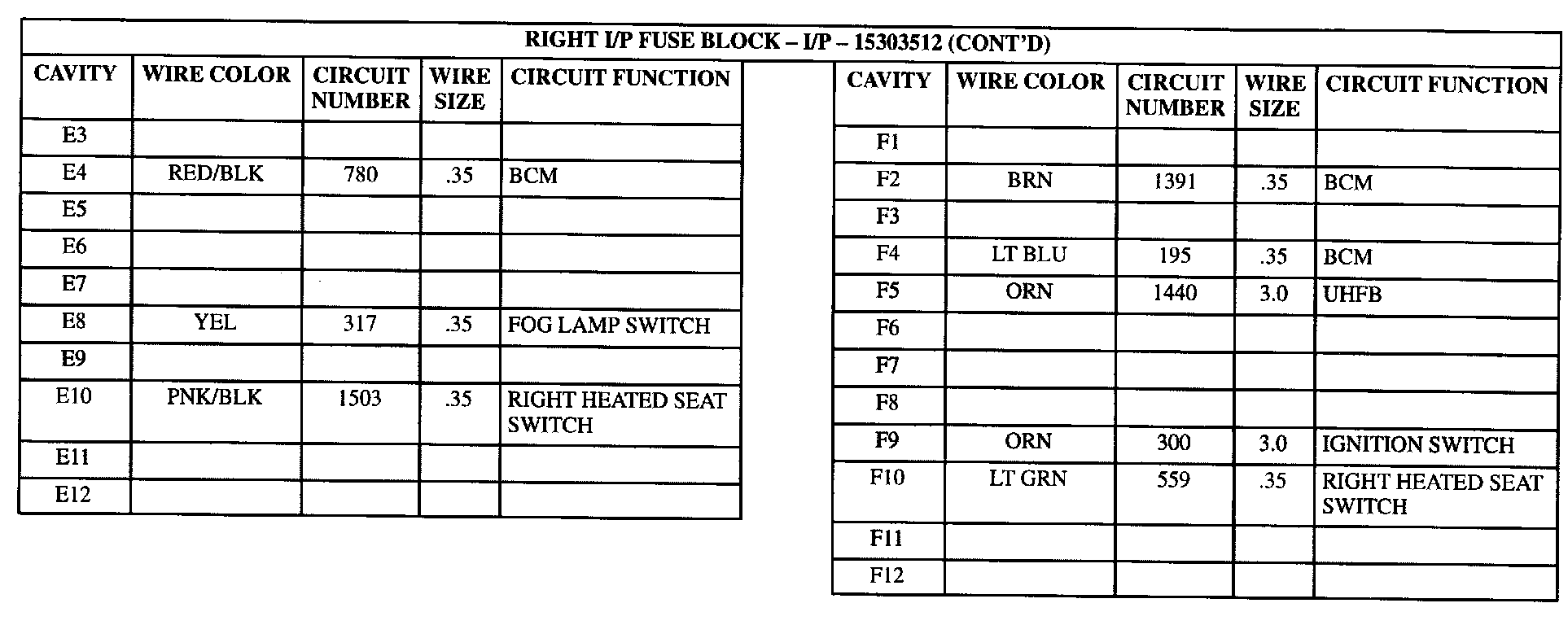

Right I/P Fuse Block - I/P (Part 2 Of 3):

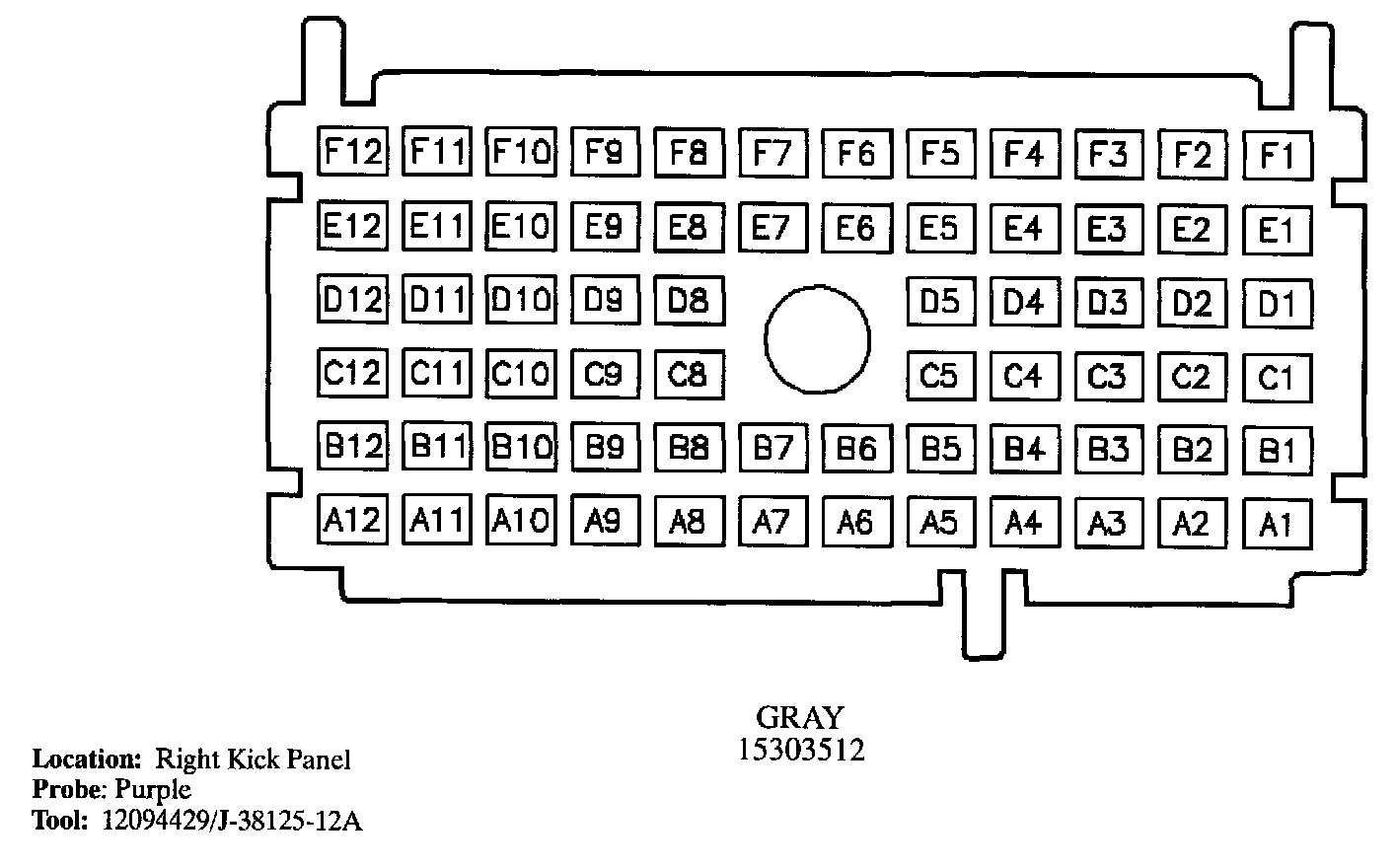

Right I/P Fuse Block - I/P (Part 3 Of 3):
