Remote Keyless Entry (RKE)/Security System - Schematics

Remote Keyless Entry (RKE)/Security System - Schematics (Part 1 Of 2):

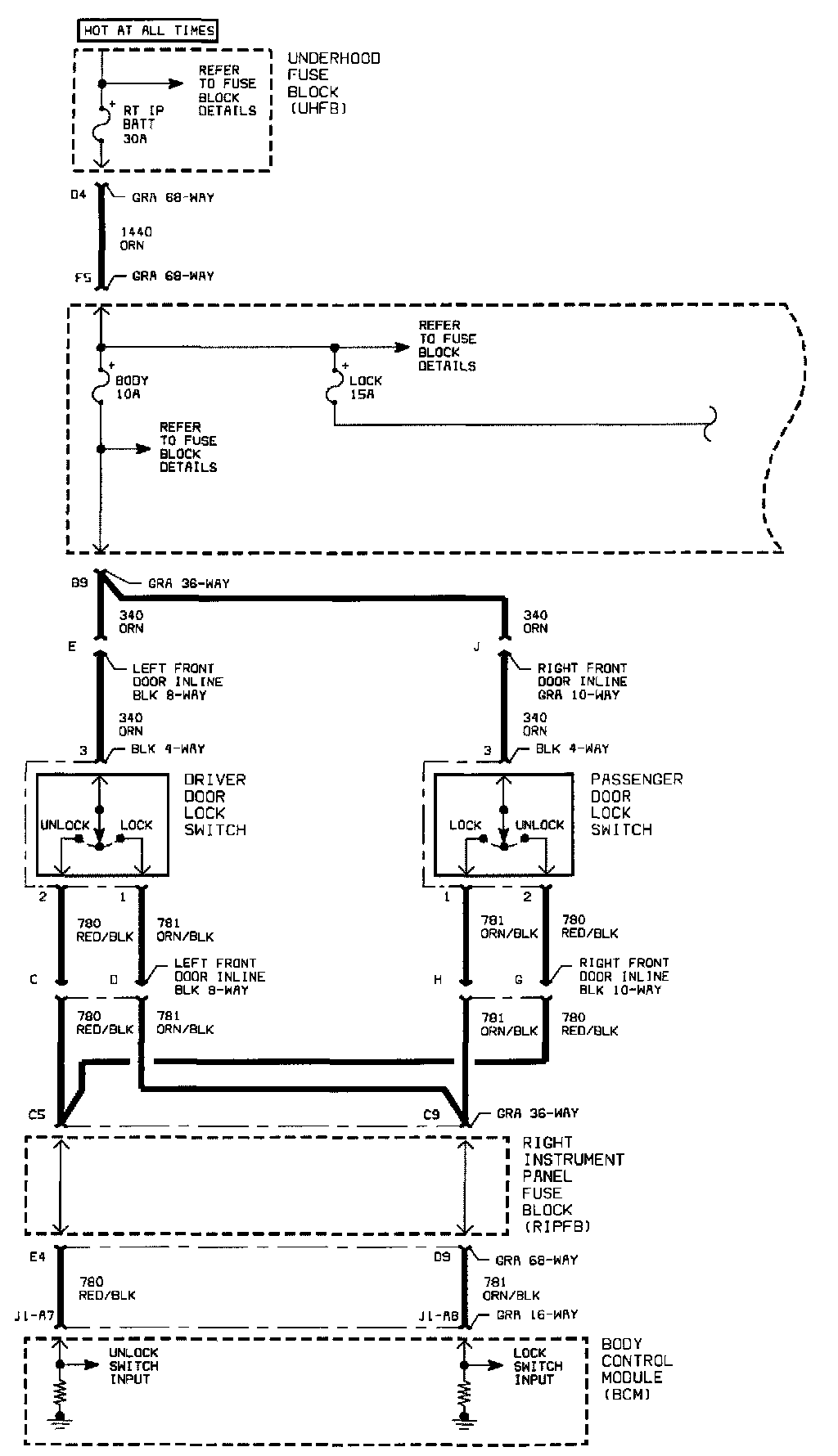

Remote Keyless Entry (RKE)/Security System - Schematics (Part 2 Of 2):
