Powertrain Control Module (PCM)

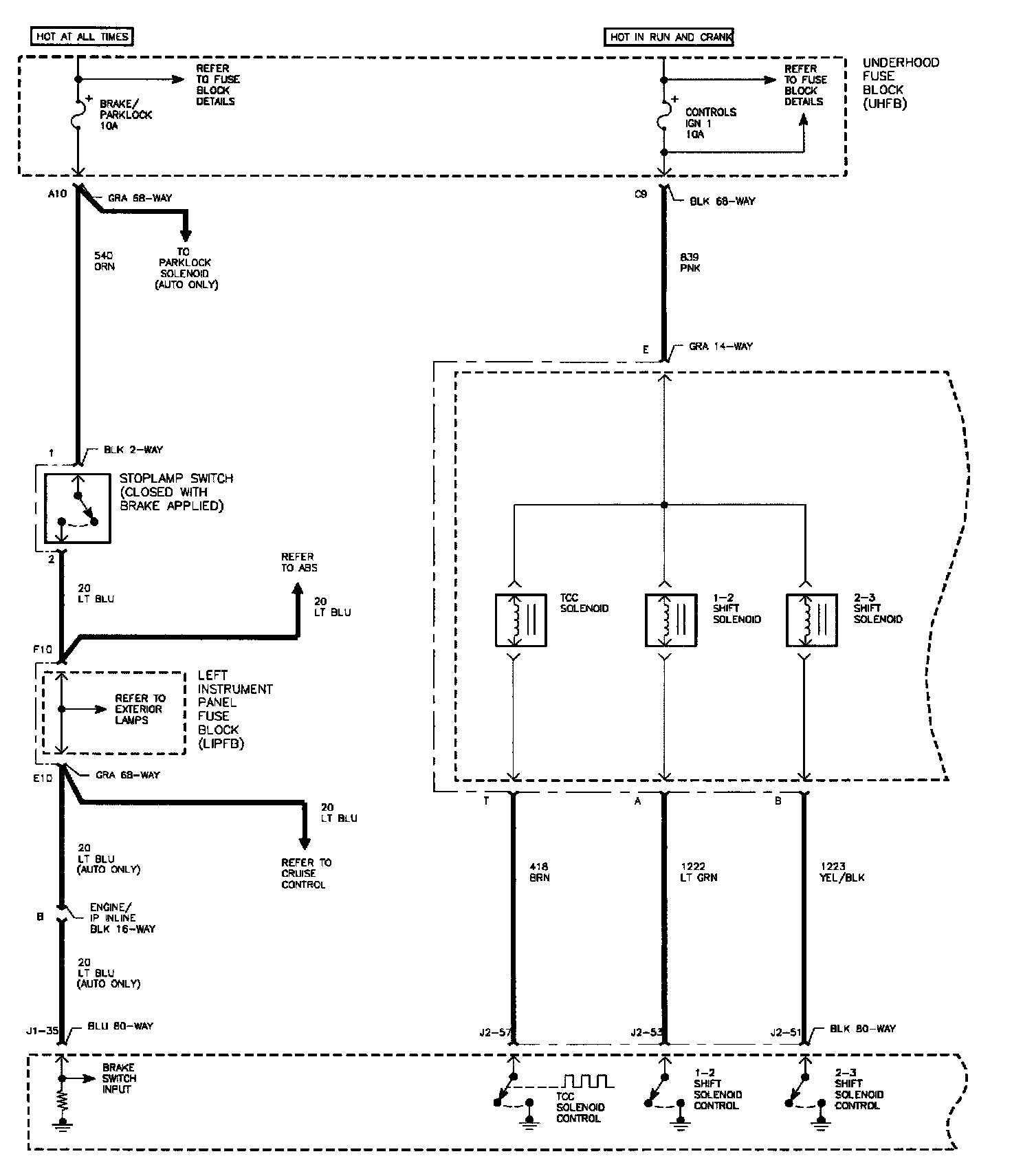

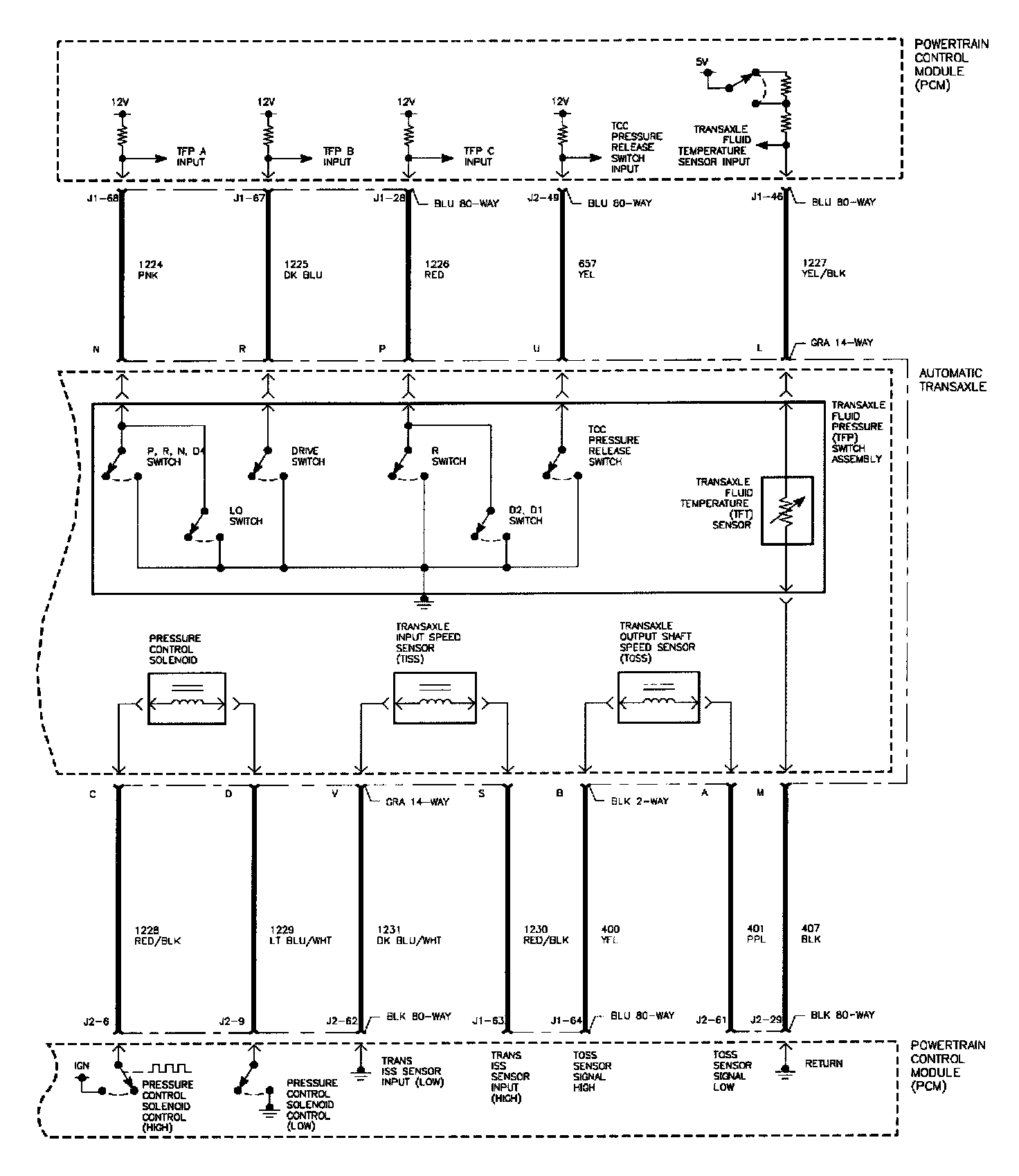

Powertrain Control Module (PCM) Schematics (Part 1 Of 12):

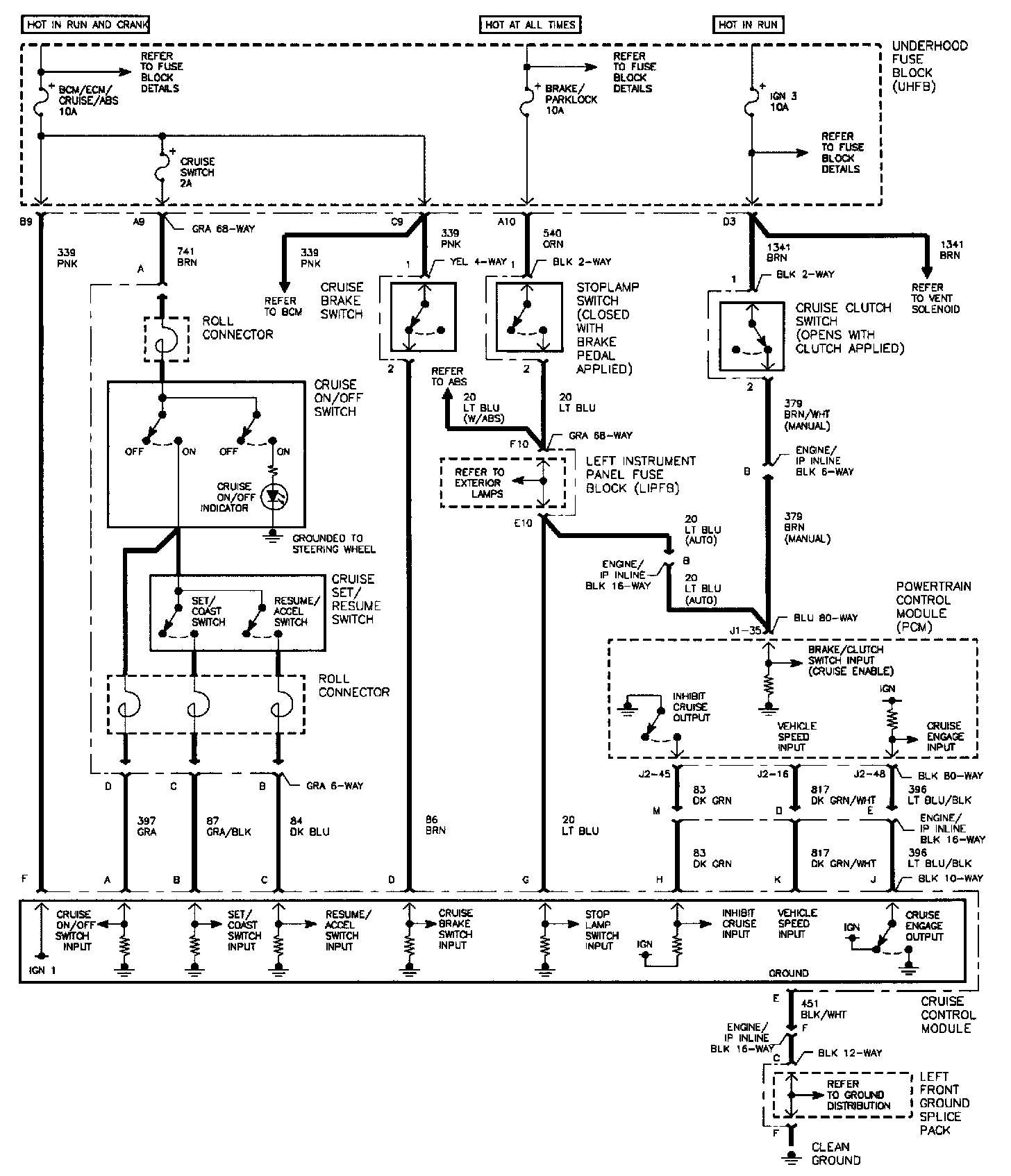

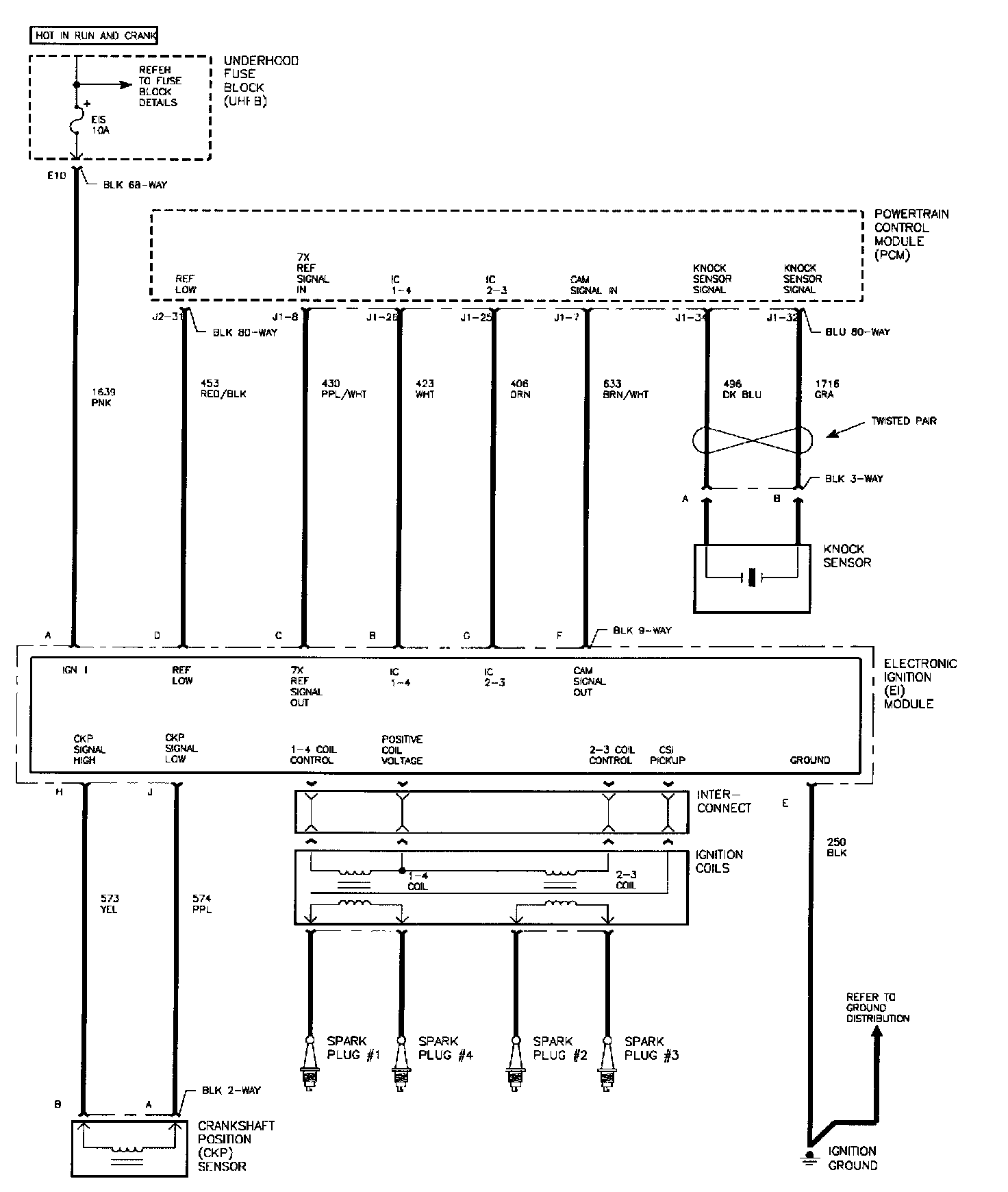

Powertrain Control Module (PCM) Schematics (Part 2 Of 12):

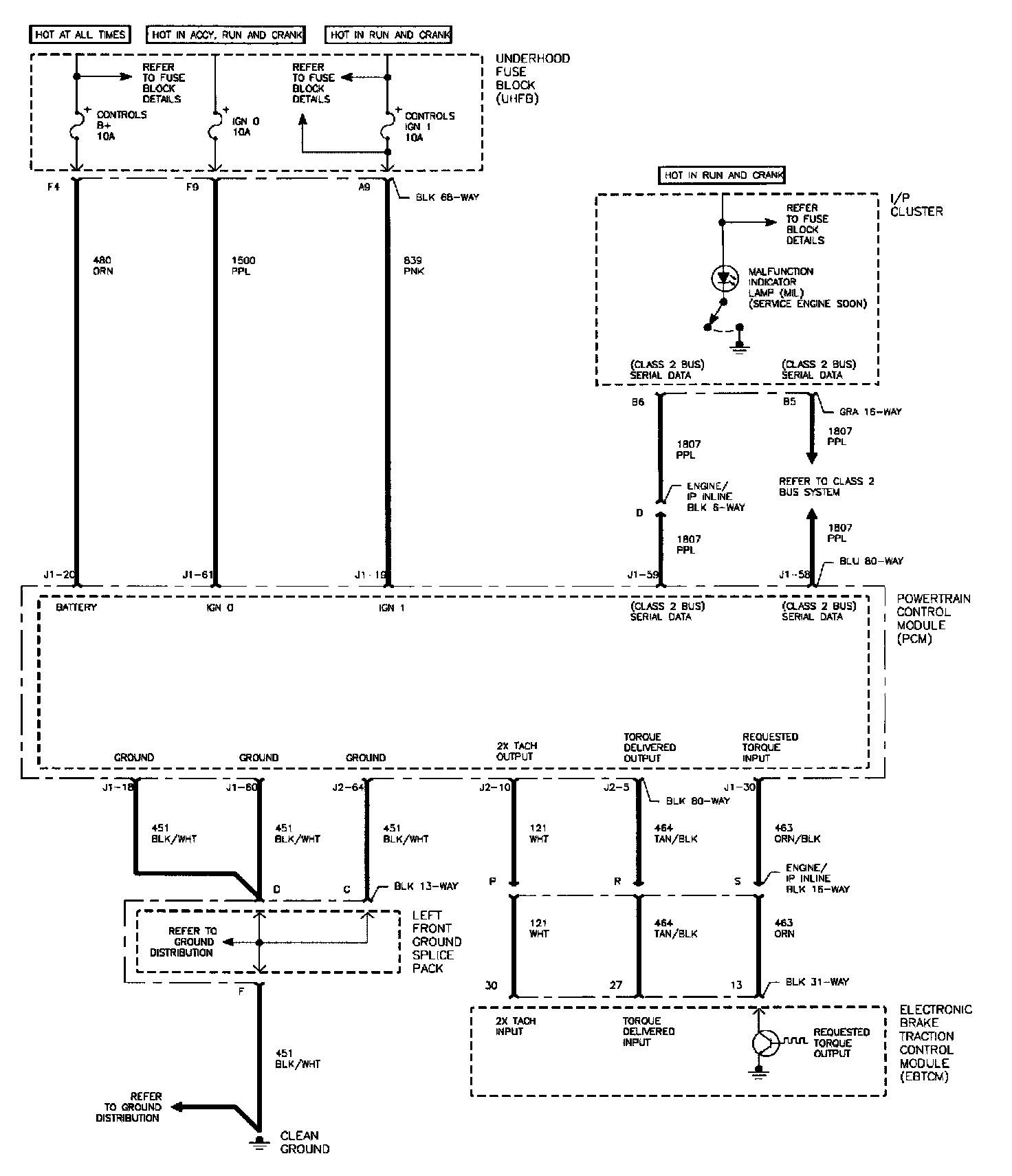

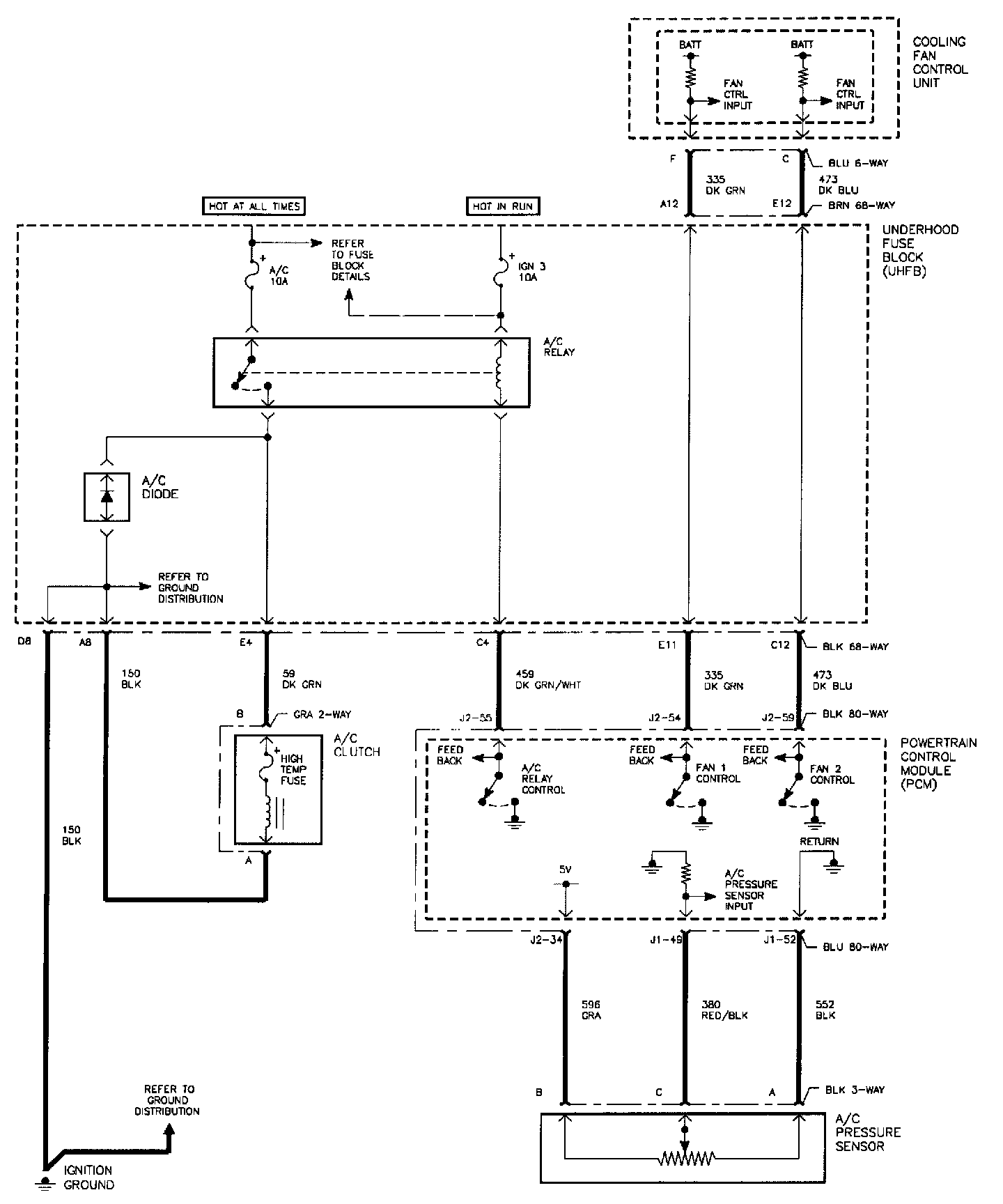

Powertrain Control Module (PCM) Schematics (Part 3 Of 12):

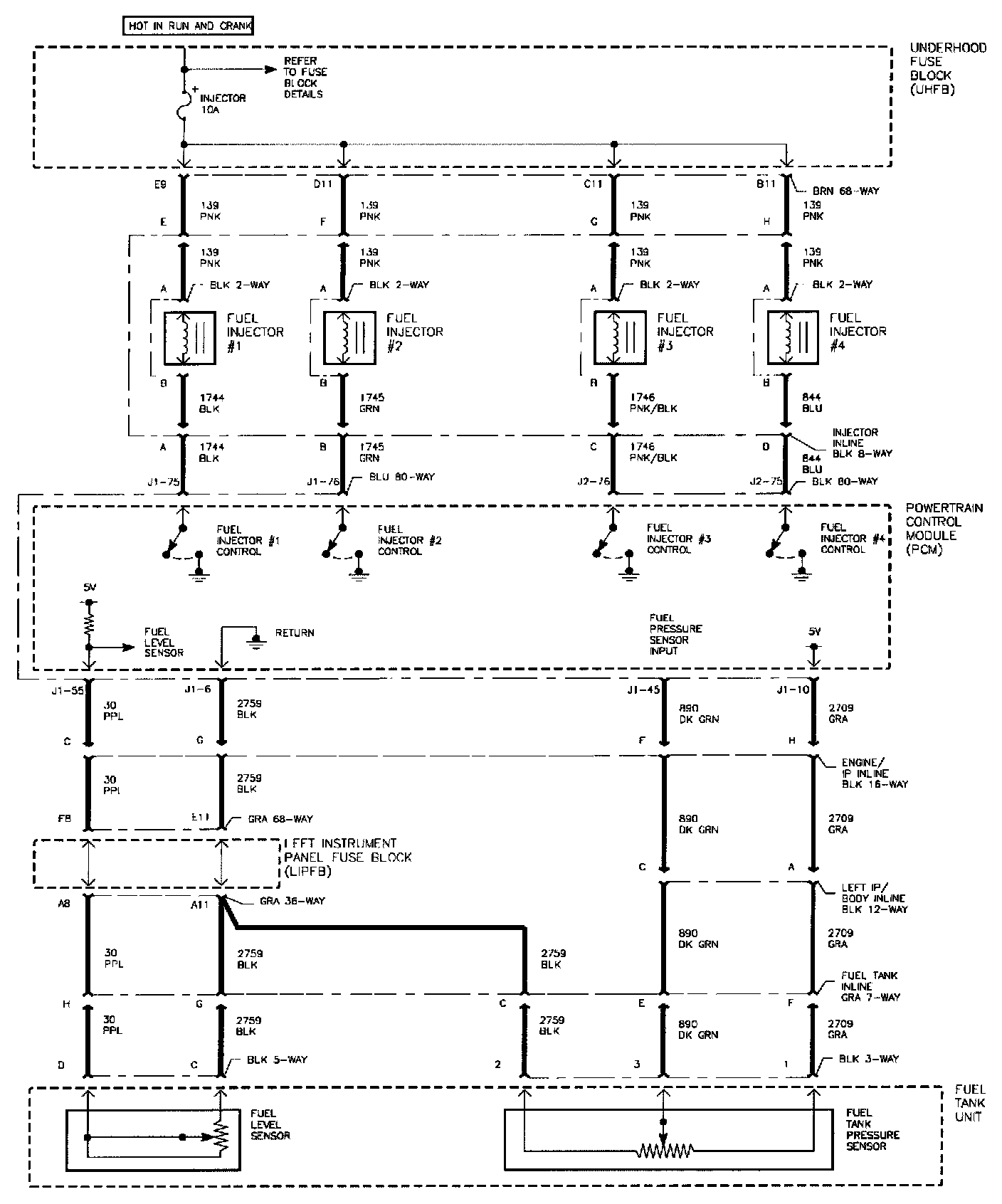

Powertrain Control Module (PCM) Schematics (Part 4 Of 12):

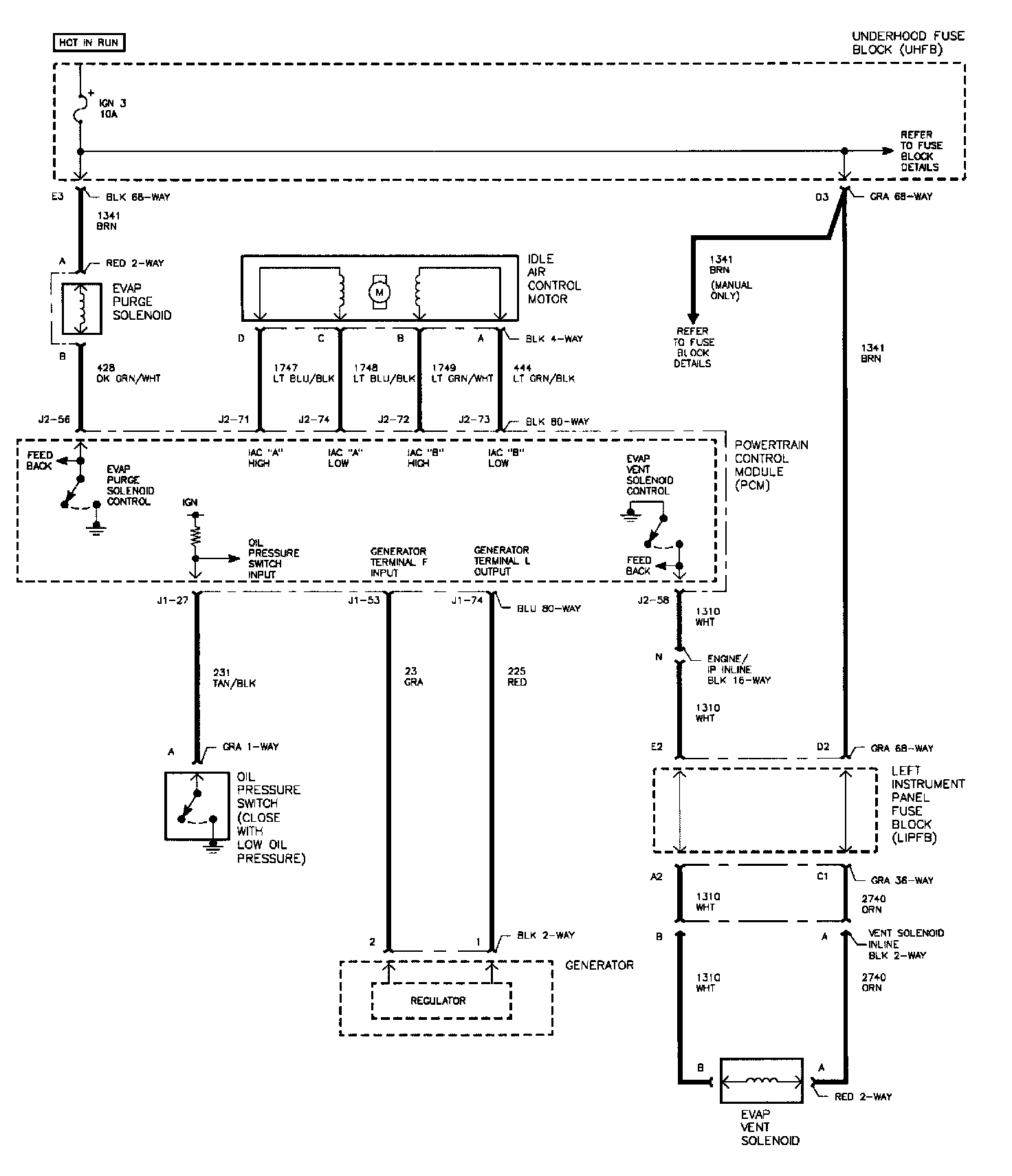

Powertrain Control Module (PCM) Schematics (Part 5 Of 12):

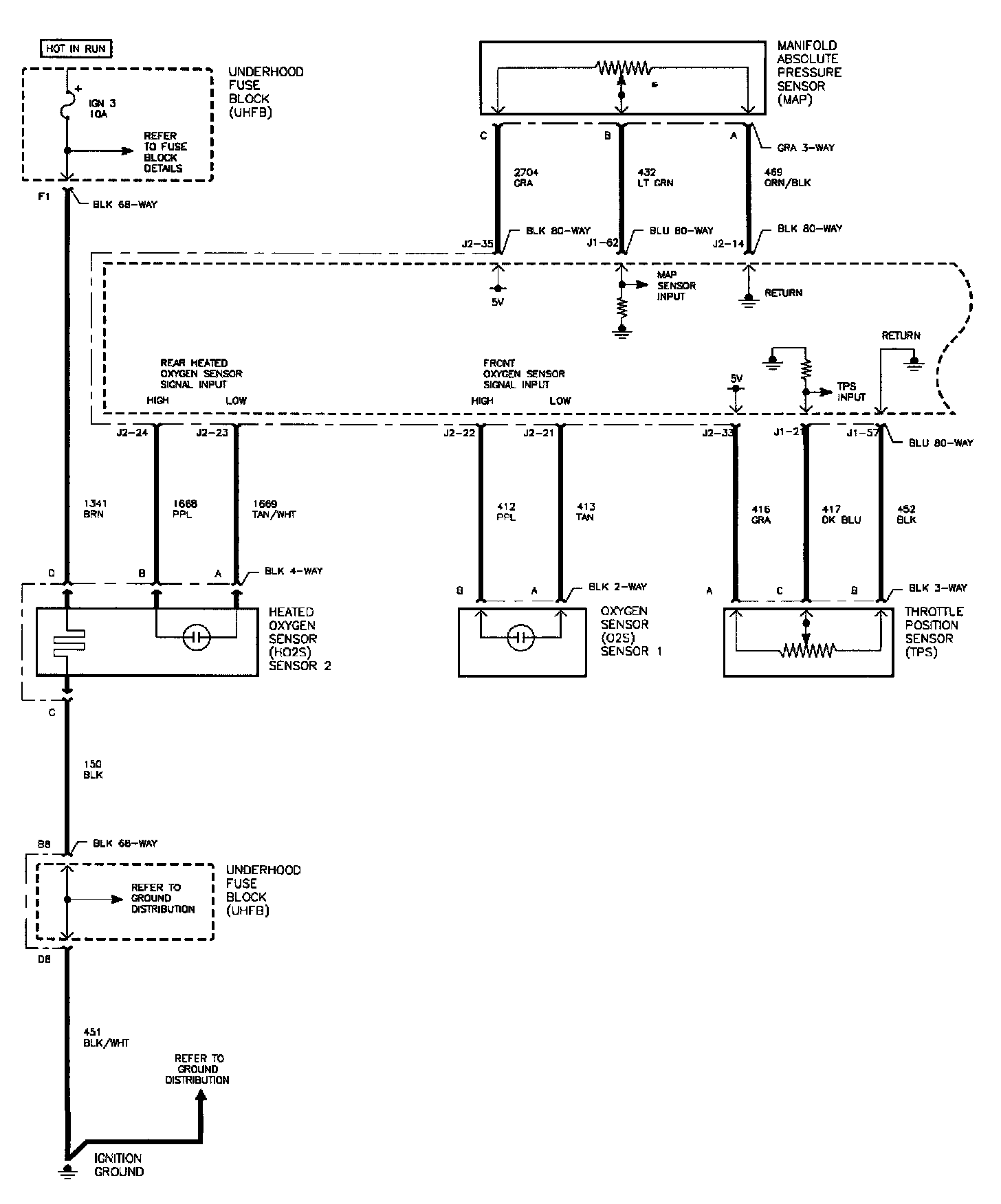

Powertrain Control Module (PCM) Schematics (Part 6 Of 12):

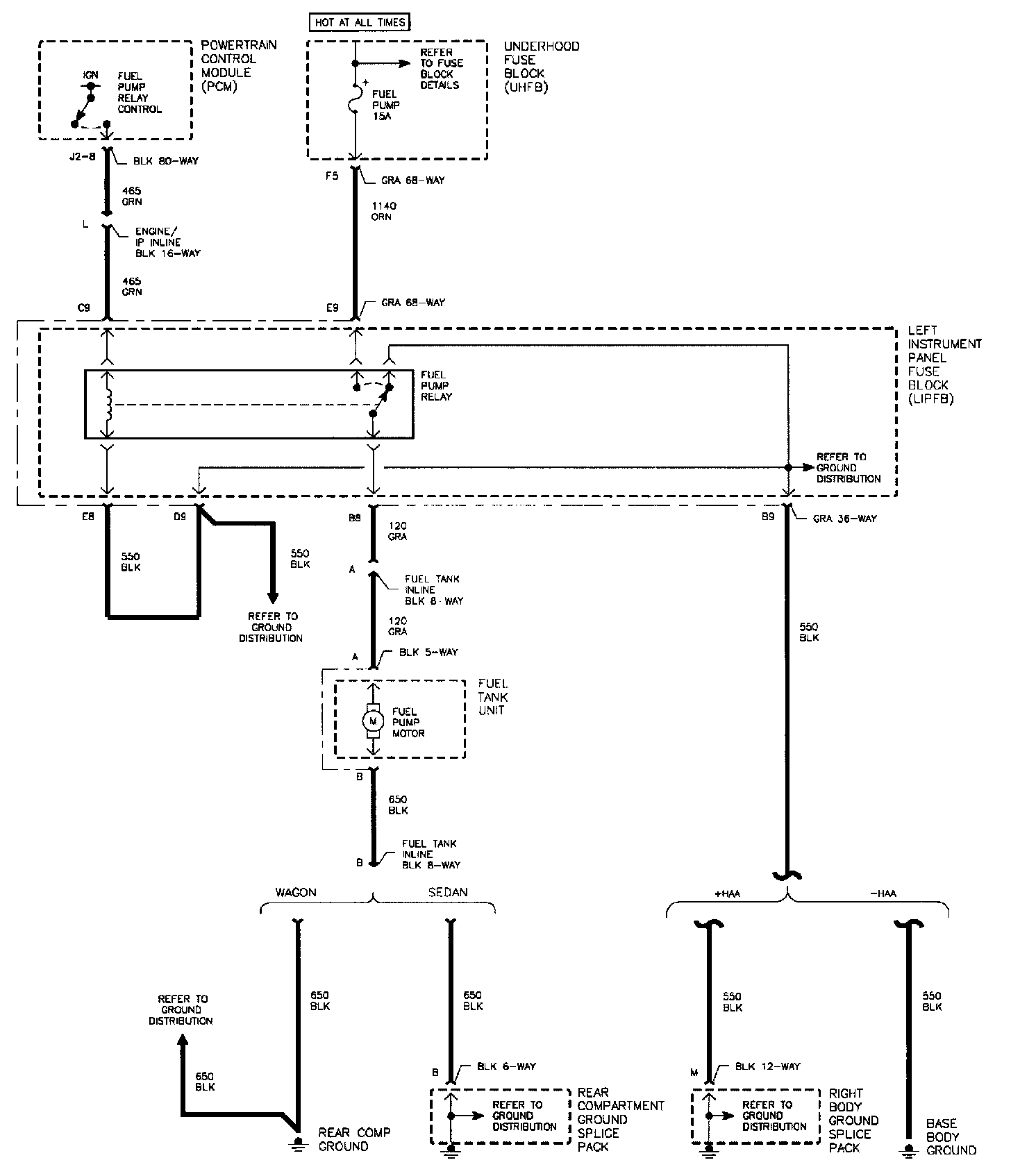

Powertrain Control Module (PCM) Schematics (Part 7 Of 12):

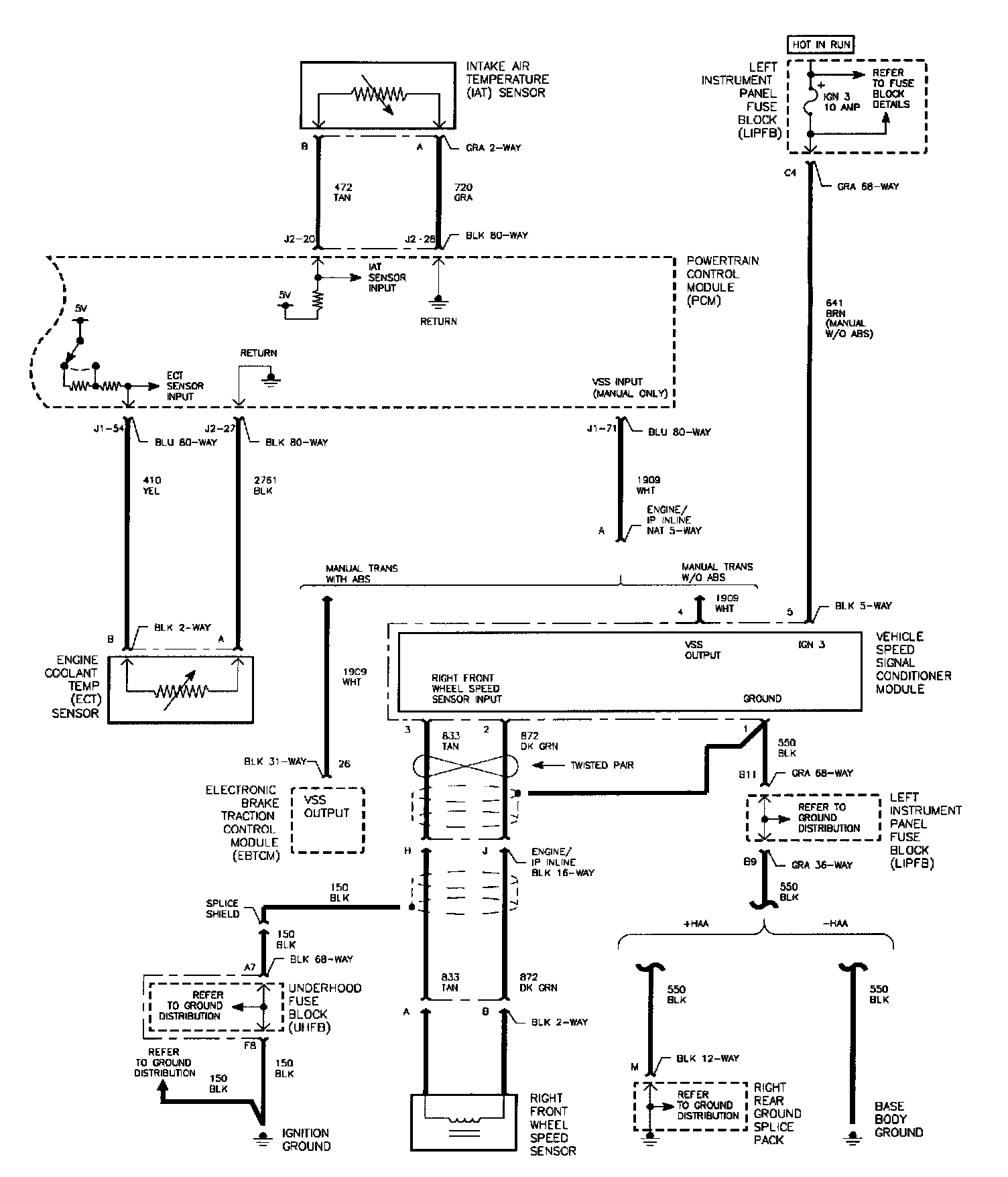

Powertrain Control Module (PCM) Schematics (Part 8 Of 12):




Powertrain Control Module (PCM) Schematics (Part 9 Of 12):




Powertrain Control Module (PCM) Schematics (Part 10 Of 12):




Powertrain Control Module (PCM) Schematics (Part 11 Of 12):




Powertrain Control Module (PCM) Schematics (Part 12 Of 12):
