Bulbs

REMOVAL




1. Remove control head.

NOTE: Use care not to touch bulbs with bare fingers.

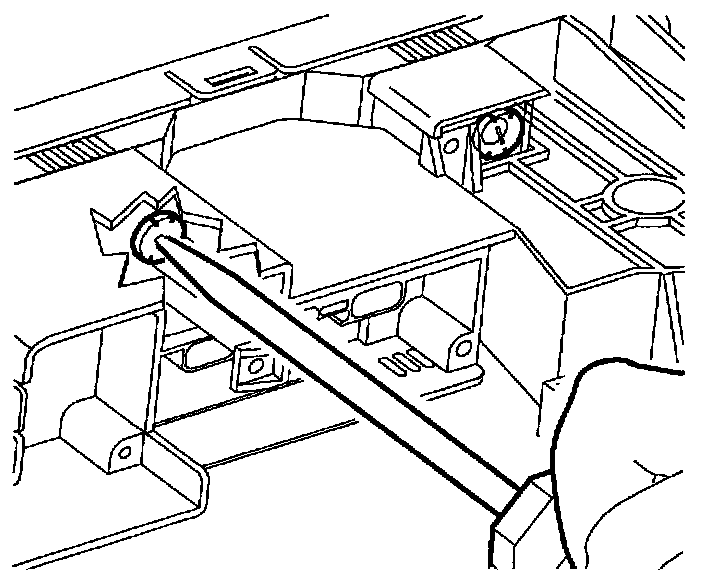

2. Use small flat blade screwdriver to rotate bulb base counter-clockwise.

INSTALLATION




1. Use small flat blade screwdriver to rotate bulb base clockwise.
2. Install Control Head.
