Face Plate/Knobs/Buttons

REMOVAL




1. Remove control head.

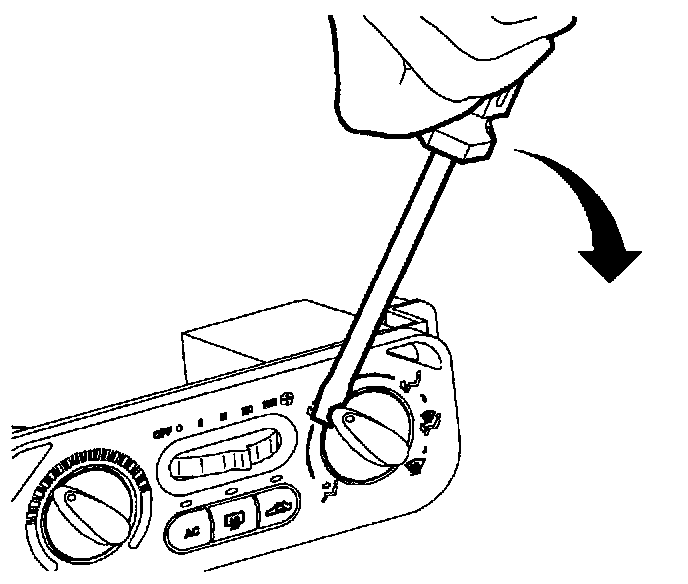

2. Remove temperature and mode knobs by carefully lifting edge of knob with small flat blade screwdriver.
3. Remove A/C, rear defog and recirculation buttons by gently prying each outward with a small flat blade screwdriver.

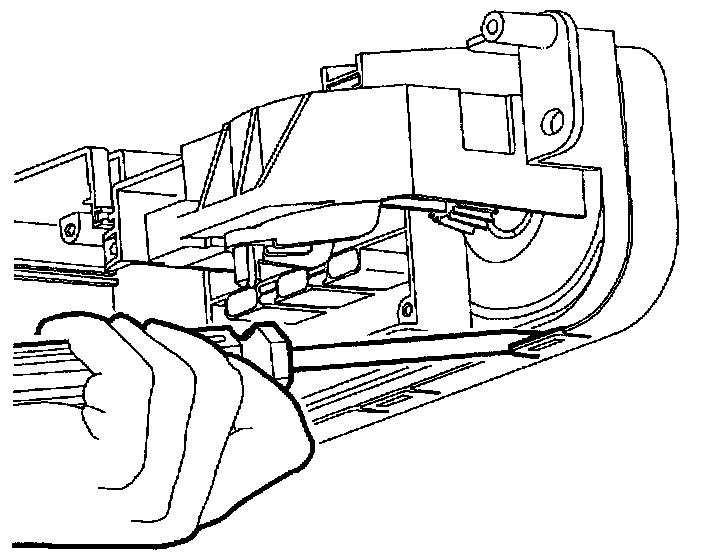

4. Use flat blade screwdriver to lift face plate tabs over barbs and rotate face plate off of control head.

INSTALLATION




1. Press face plate onto control head until retaining barbs are seated.

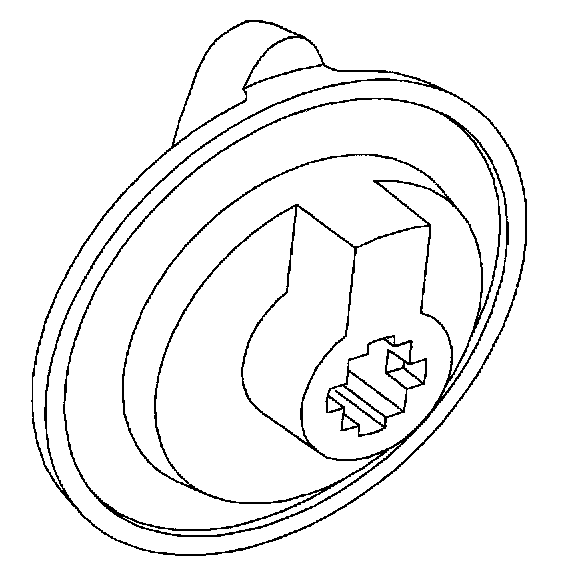

2. Install temperature and mode knobs by aligning knob with shaft pattern. Knobs should fit flush with face plate. If not, remove and rotate 180 degrees.

IMPORTANT: Buttons are interchangeable. Proper order from left to right: A/C - rear defog - recirculation.

3. Install A/C, rear defog and recirculation buttons.
4. Install control head.
