Oil Pressure Sensor: Service and Repair




REMOVAL

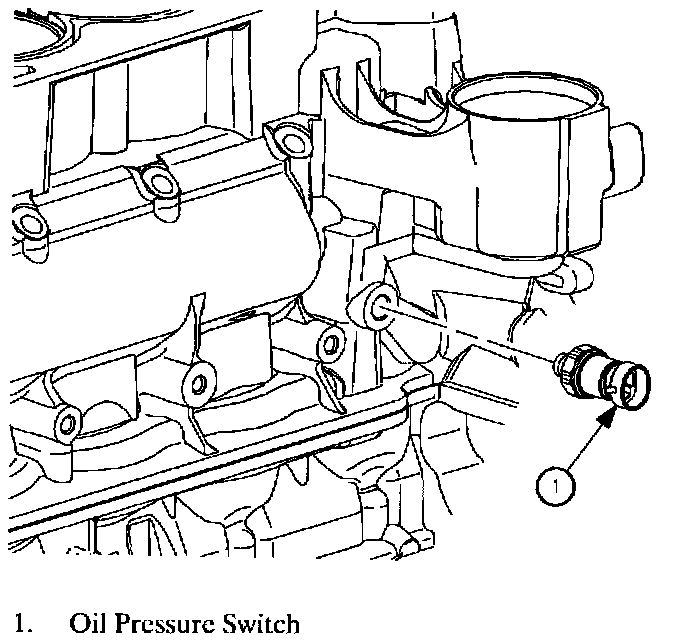

1. Disconnect oil pressure switch electrical connector.
2. Remove oil pressure switch (use 1 1/16 inch deep well socket).

INSTALLATION
1. Install oil pressure switch.

Torque: 10 N.m (89 in-lbs)

2. Connect oil pressure switch electrical connector.
