Scan Tool Testing and Procedures

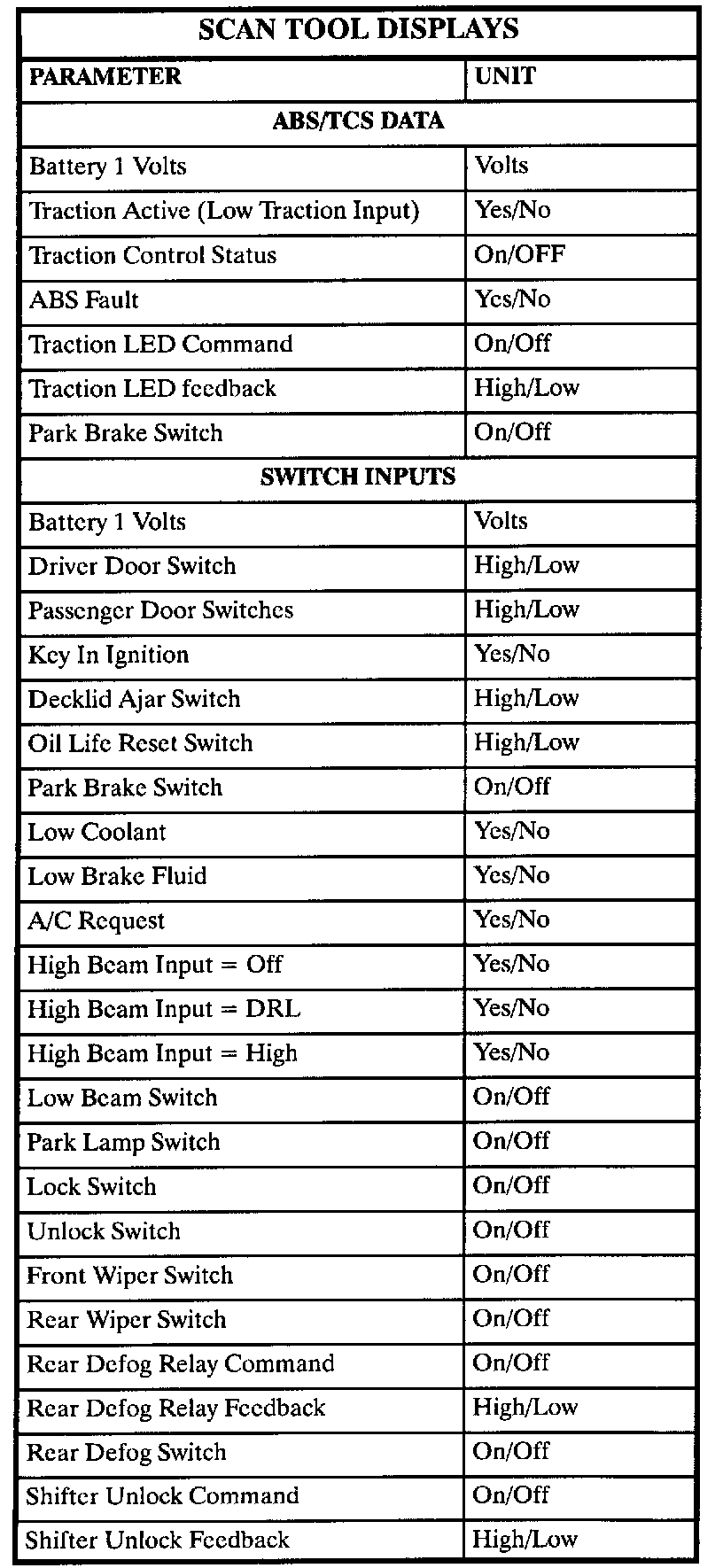

Scan Tool Displays (Part 1 Of 4):

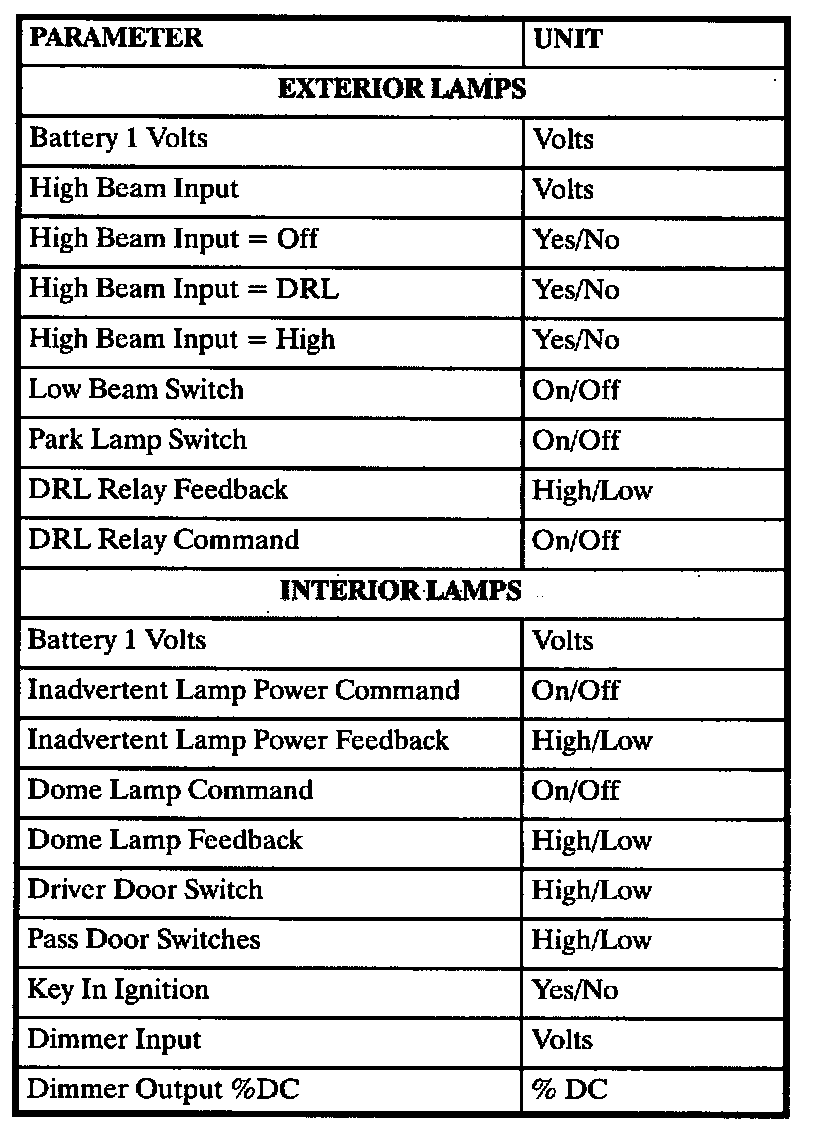

Scan Tool Displays (Part 2 Of 4):

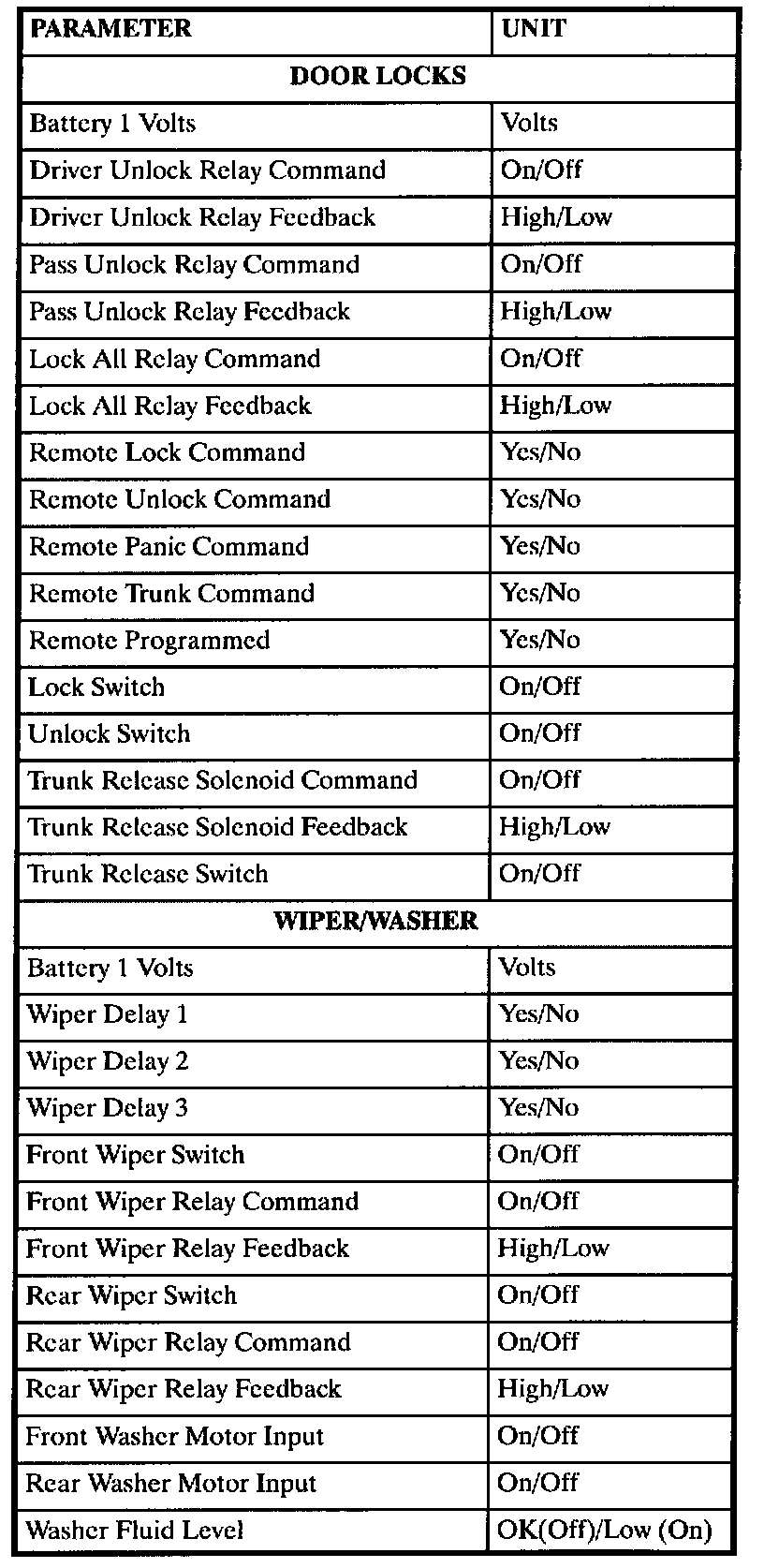

Scan Tool Displays (Part 3 Of 4):

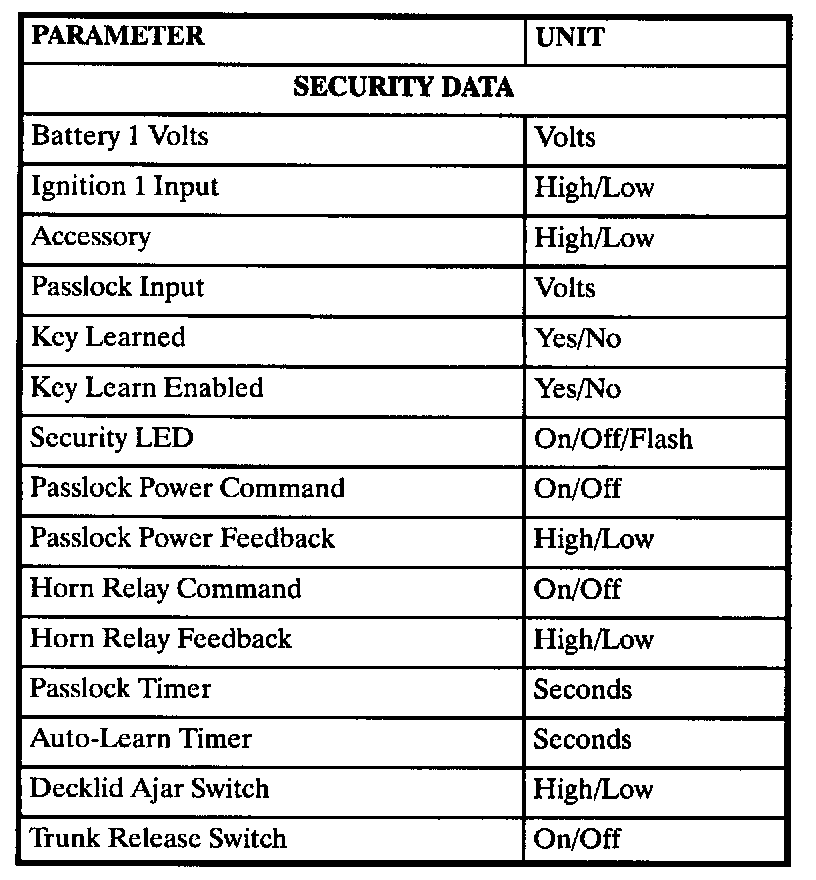

Scan Tool Displays (Part 4 Of 4):




The table lists the parameters displayed by the Scan tool. The parameters are displayed by ABS/TCS data, switch inputs, exterior lamps, interior lamps, door locks, wiper/washer and security data groups.
