Coolant Temperature Sensor/Switch (For Computer)

Temperature Vs Resistance:

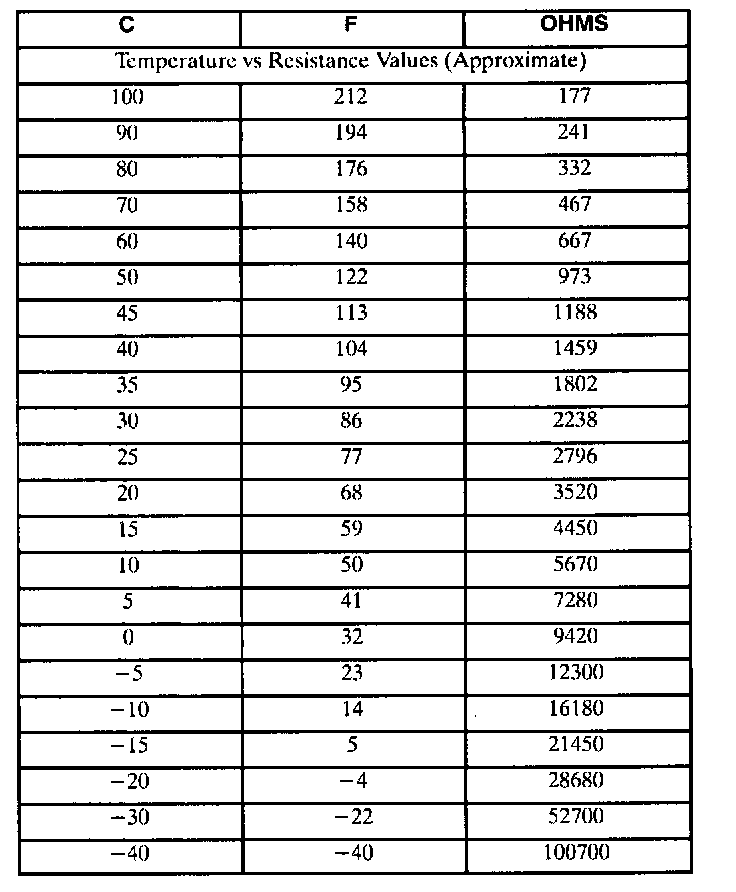

The following chart lists the resistances of engine coolant temperature sensor as compared to temperature.
