Left I/P Fuse Block - Body

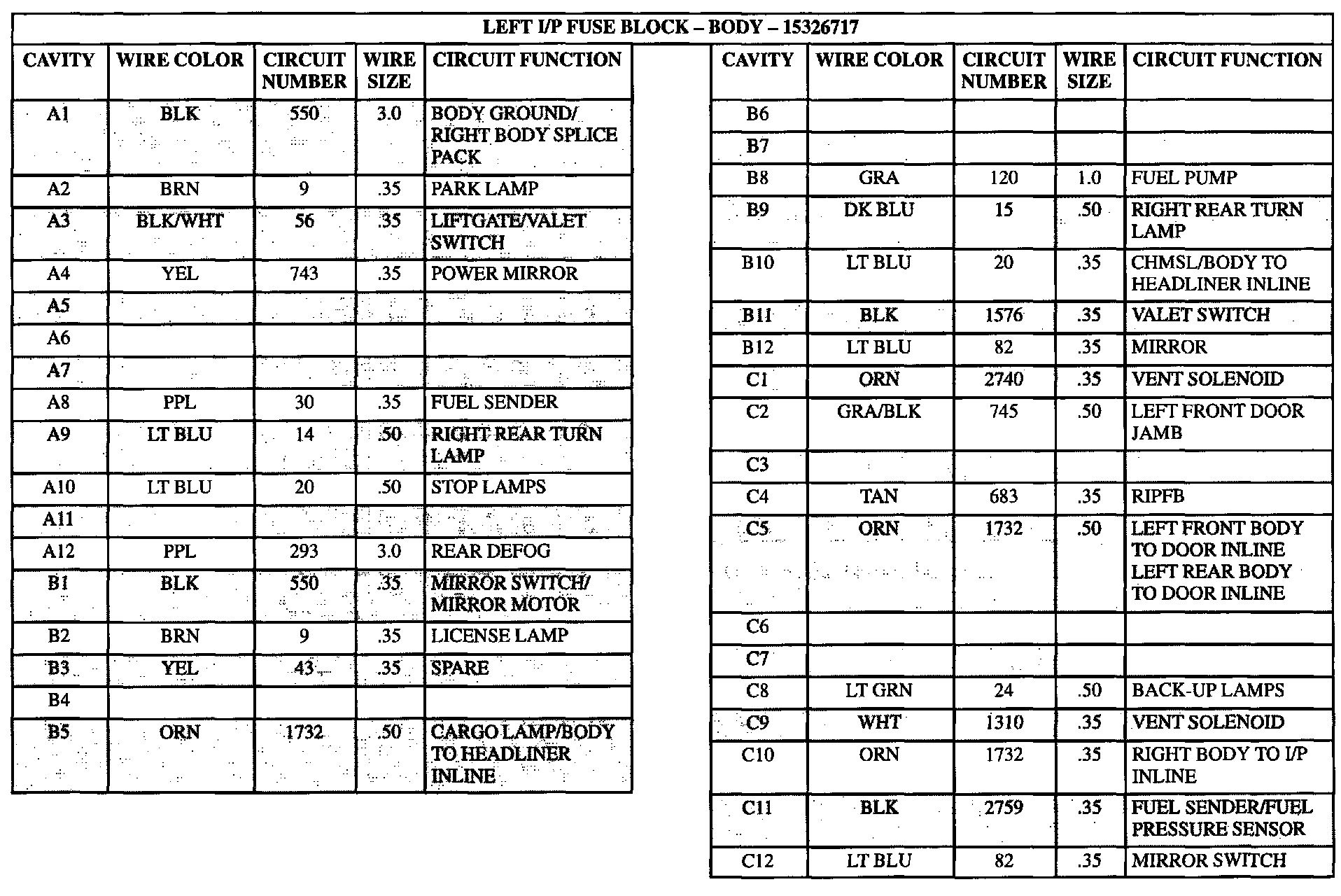

Left I/P Fuse Block - Body (Part 1 Of 2):
Left I/P Fuse Block - Body (Part 2 Of 2):
