Diagnosing Fuel Fill Problems

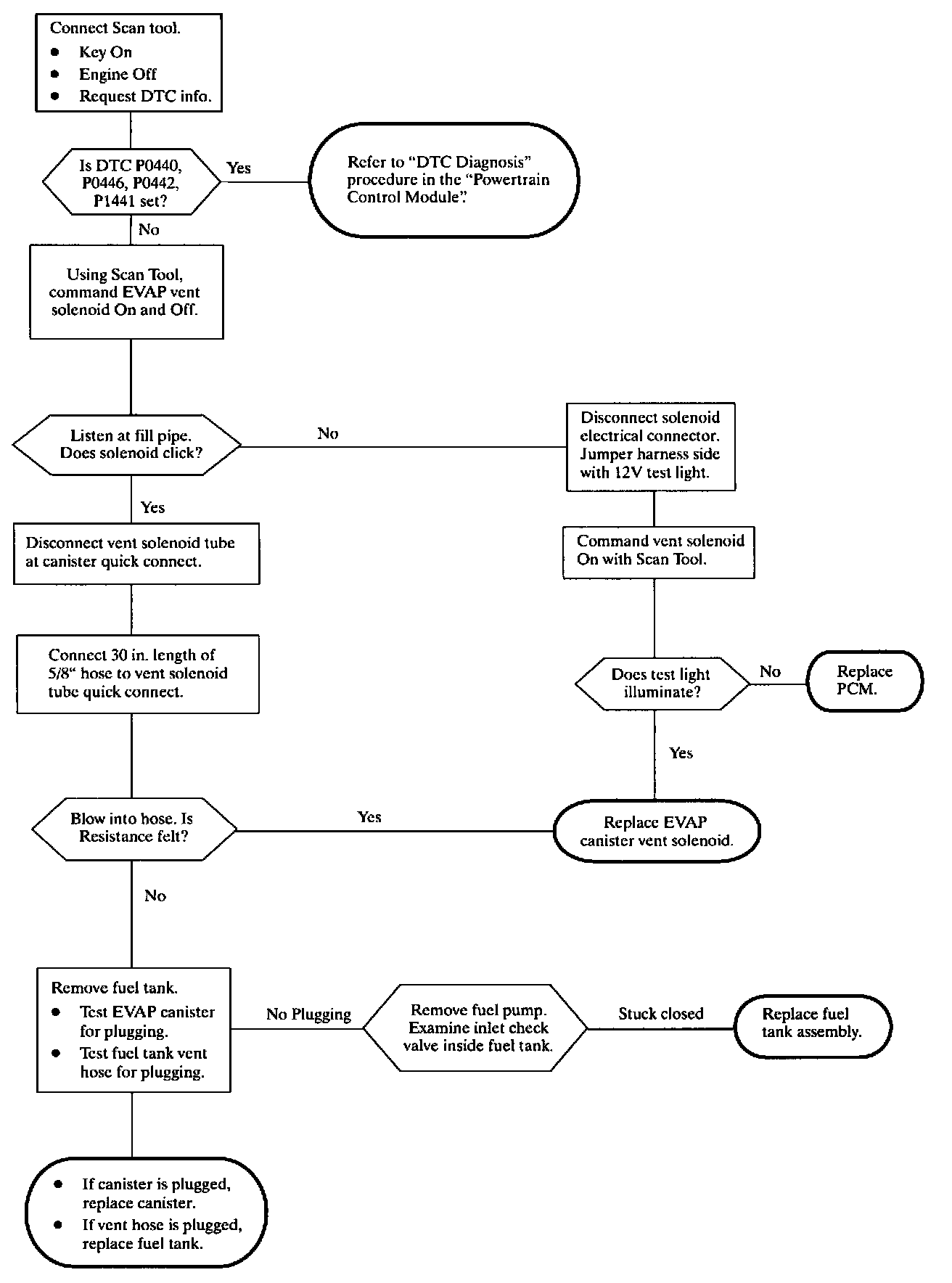

Diagnostic Chart:

Problems associated with refueling the vehicle such as pre-mature shutoffs of the fill nozzle or inability to dispense fuel at a high rate are related to two areas:
^ Either a blocked inlet such as the fill pipe
- OR -
^ The primary vent path is blocked or severely restricted.
