Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

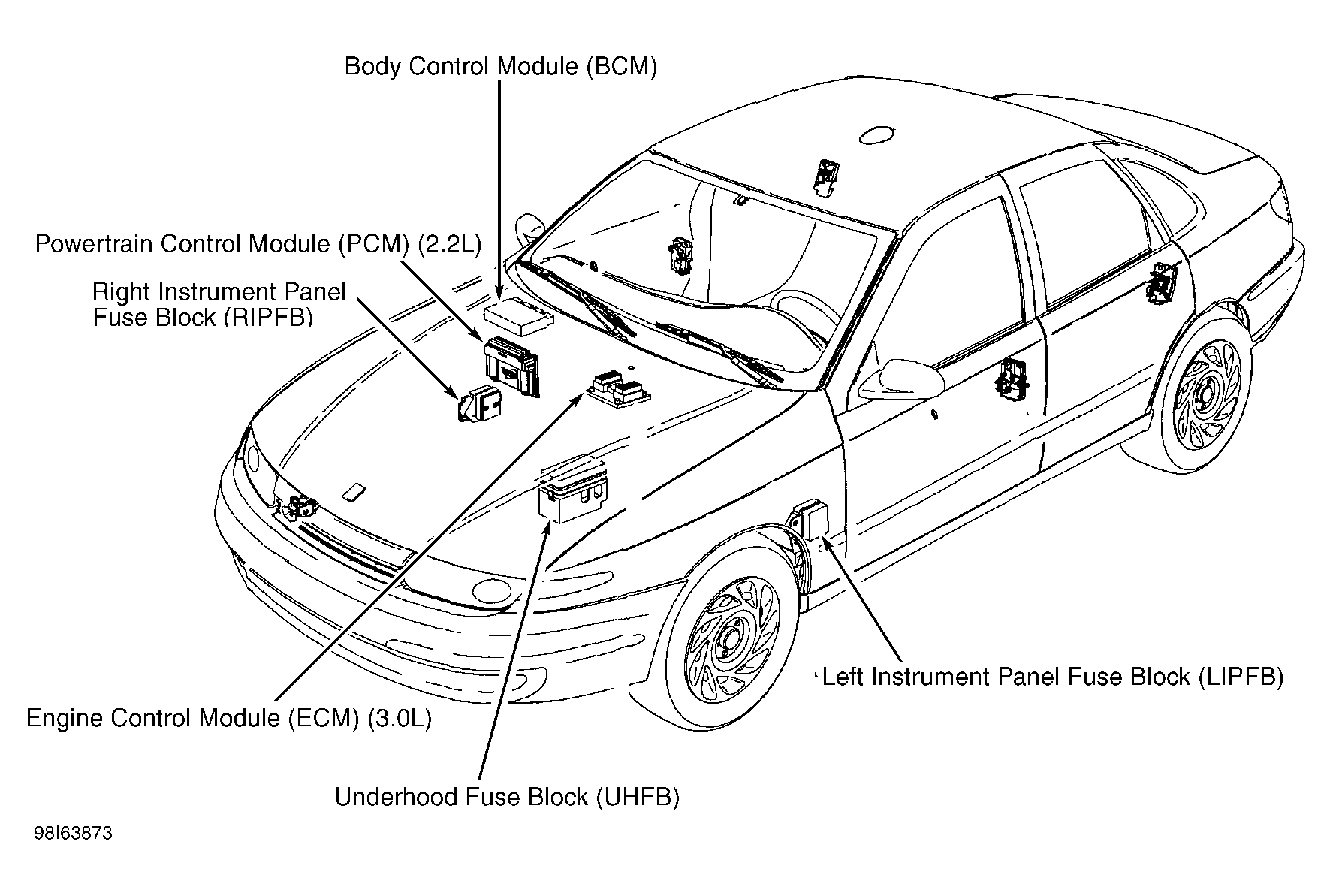

| Body Control Module (BCM) | Mounted to top of glove box. See Figure . |
| Cooling Fan Control Unit | Near battery. |
| Cruise Control Module | Attached to frame rail, near brake booster. |
| Electronic Brake Traction Control Module (EBTCM) | At left rear of engine compartment. |

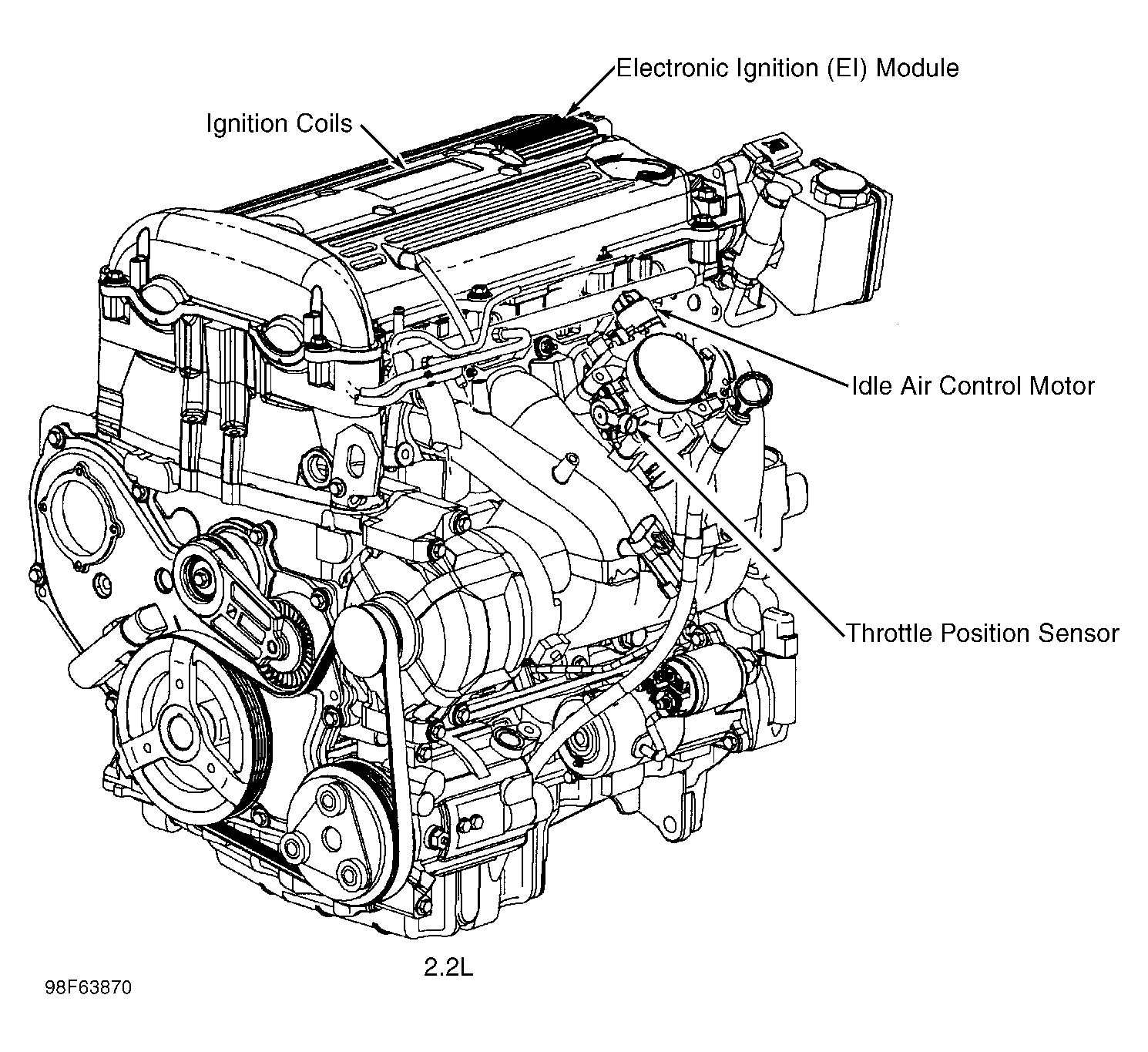

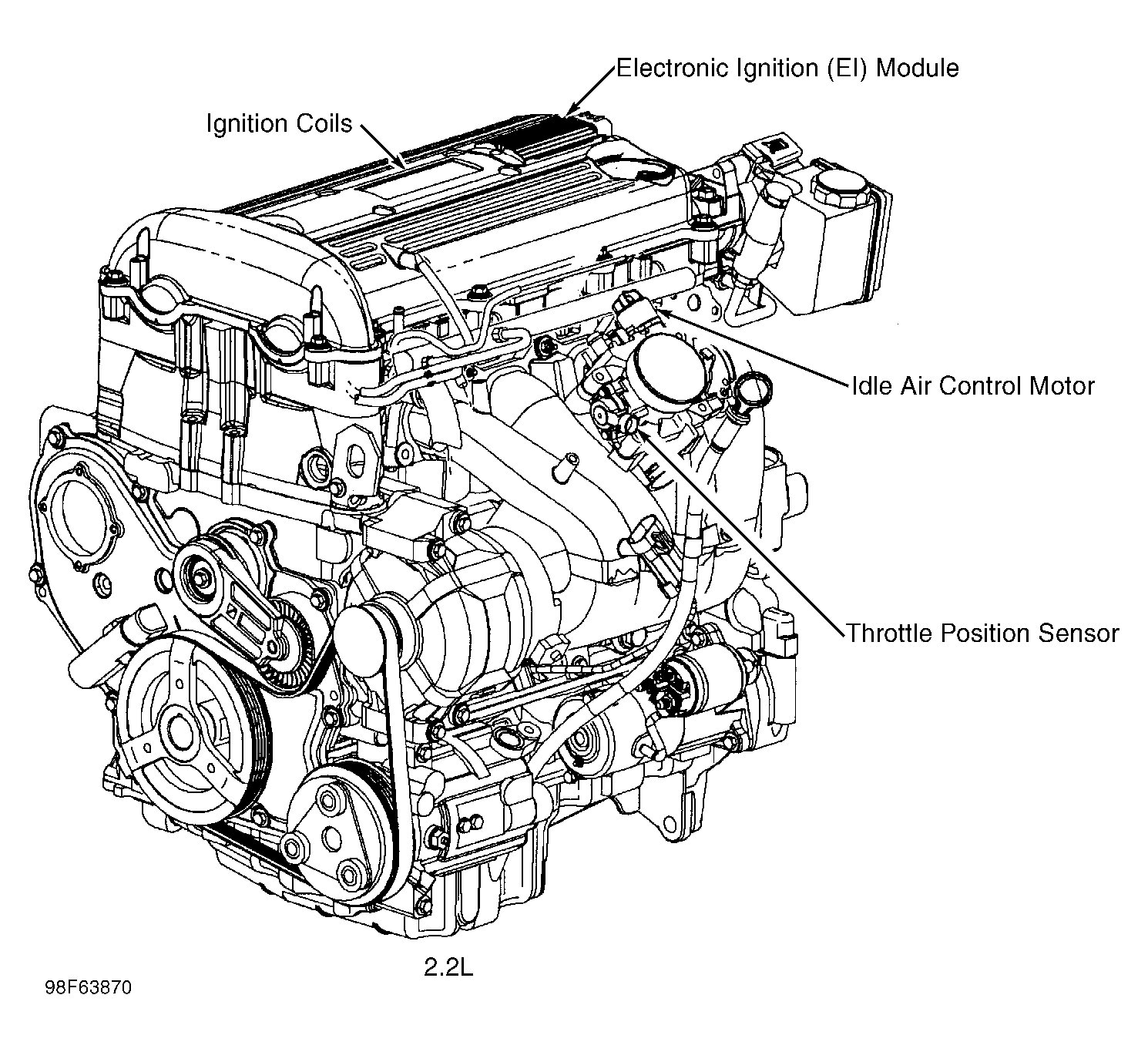

| Electronic Ignition (EI) Module (2.2L) | On top of engine, attached to ignition coil housing. See Figure . |

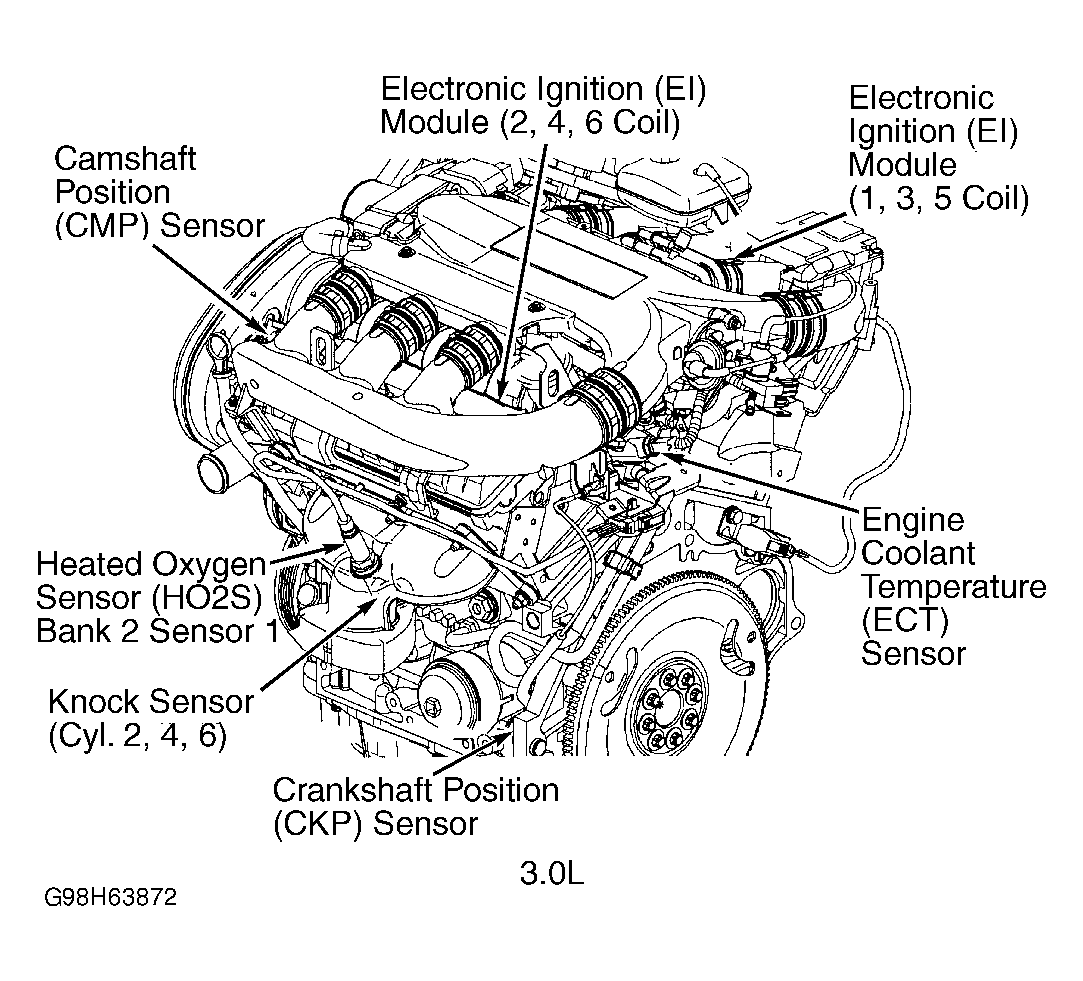

| Electronic Ignition (EI) Module (1, 3, 5 Coil) (3.0L) | Under right side of upper intake manifold runner. See Figure . |
| Electronic Ignition (EI) Module (2, 4, 6 Coil) (3.0L) | Under left side of upper intake manifold runner. See Figure . |
| Engine Control Module (ECM) (3.0L) | On top right rear of engine. See Figure . |
| Powertrain Control Module (PCM) (2.2L) | Behind passenger side air bag. See Figure . |
| Sensing & Diagnostic Module (SDM) | Under rear of floor console. |
| Transaxle Control Module (TCM) (3.0L) | At right rear corner of engine compartment, behind strut tower. |
| Vehicle Speed Signal Conditioner Module (2.2L) | Behind left side of dash, above hood release. |
