Body Control Module (BCM): Installation
WARNING: This page is about a different car, the 2000 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

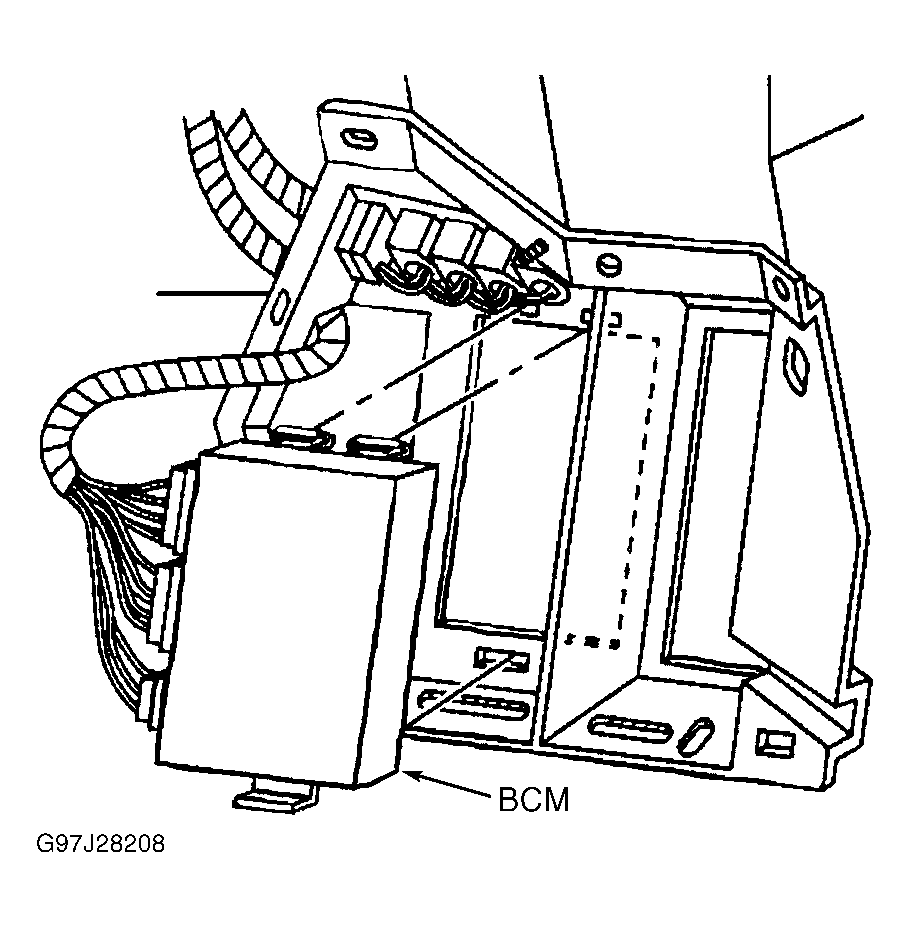

Ensure ignition is off. Reconnect harness connectors. Position upper mounting tabs of BCM into slots in bracket. Push lower mounting tab into bracket, and snap BCM into place. Reinstall floor board panel. Reconnect negative battery cable. If a new BCM is being installed, reprogram BCM. See BCM PROGRAMMING/RPO CONFIGURATION under PROGRAMMING.
