Control Cable
CAUTION:
Misadjusted shift linkage could cause transmission clutch and/or band failure.

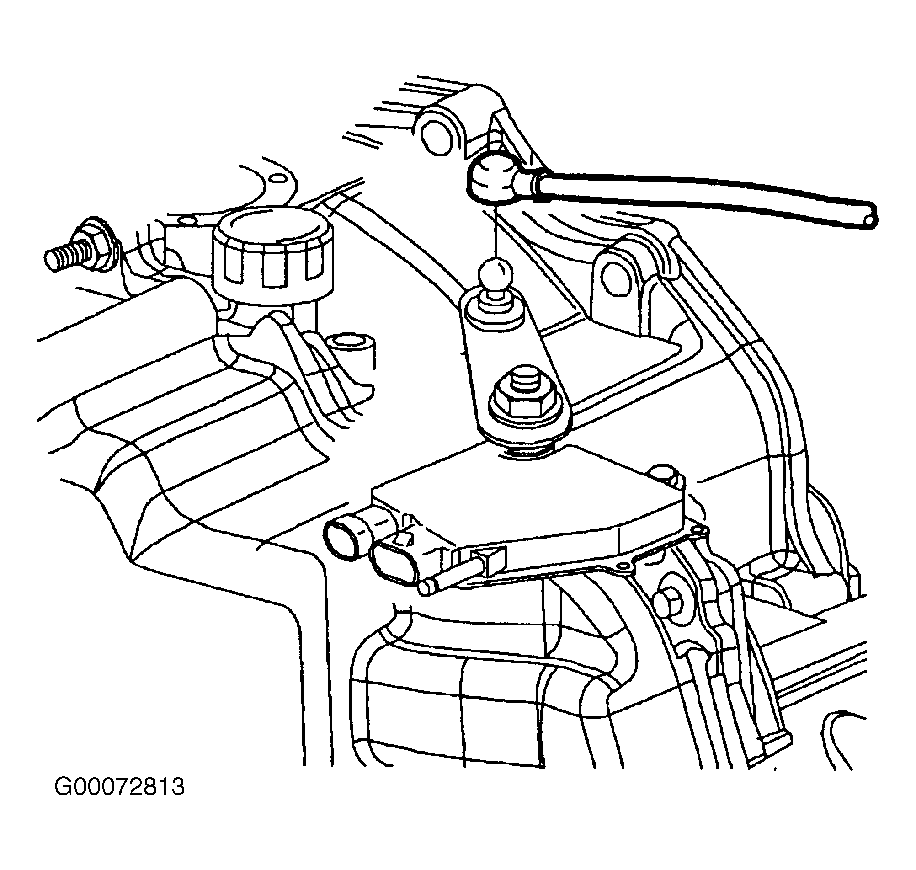

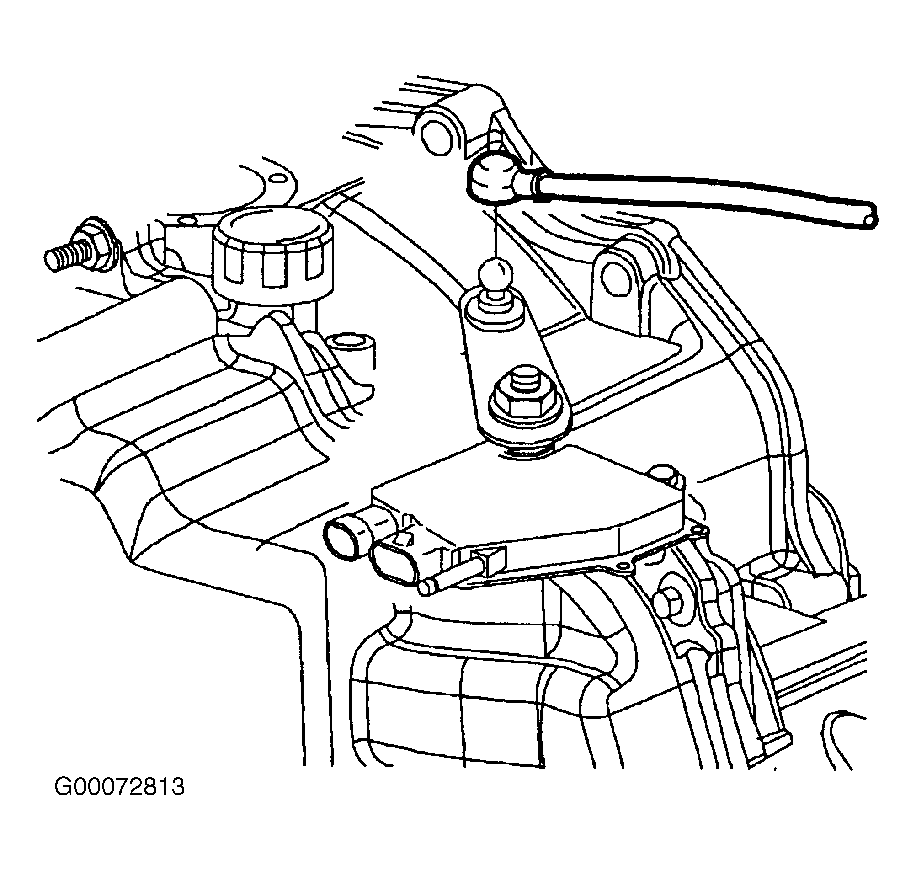

- Move control assembly into Park position. Disconnect control cable from transaxle range switch lever. See Fig 1.
- Make sure transaxle range switch lever is in Park position by moving lever counterclockwise (away from dash panel) until it clicks and cannot be moved any further.

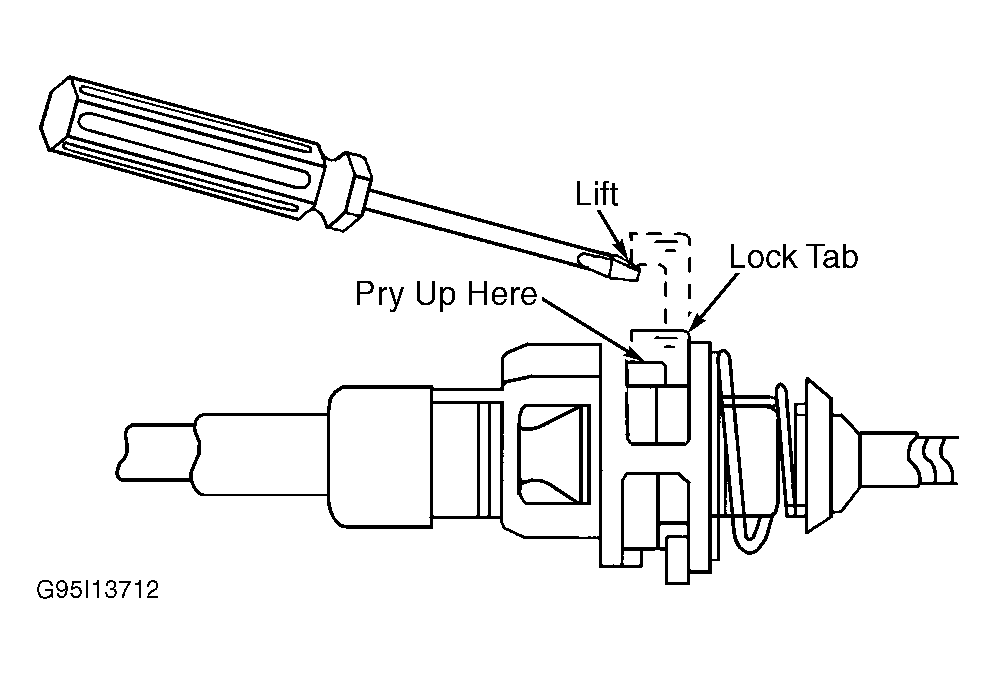

- Release control cable assembly adjustment lock tab at control cable bracket on rear powertrain mount. Use a screwdriver, awl, or pick to pry up lock tab and lift. See Fig 2.
- Reconnect control cable end to transaxle range switch lever. Depress lock tab on control cable assembly. Verify proper operation.
