Removal & Installation
WARNING: This page is about a different car, the 2000 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

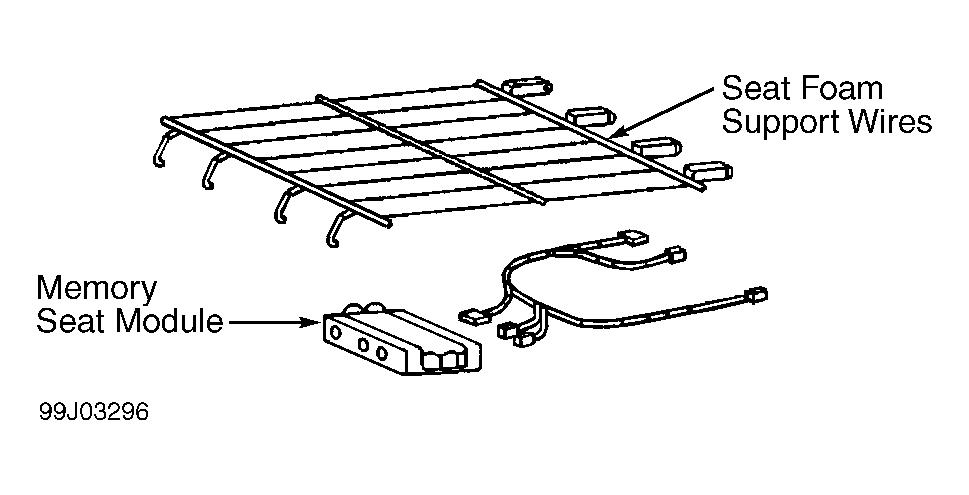

Remove front seat. See POWER SEAT under REMOVAL & INSTALLATION in POWER SEATS - CORVETTE article. Position seat to access underside of lower seat cushion. Remove retainers attaching module to seat foam support wires. See Fig 1 . Disconnect seat control module connectors. To install, reverse removal procedure.
