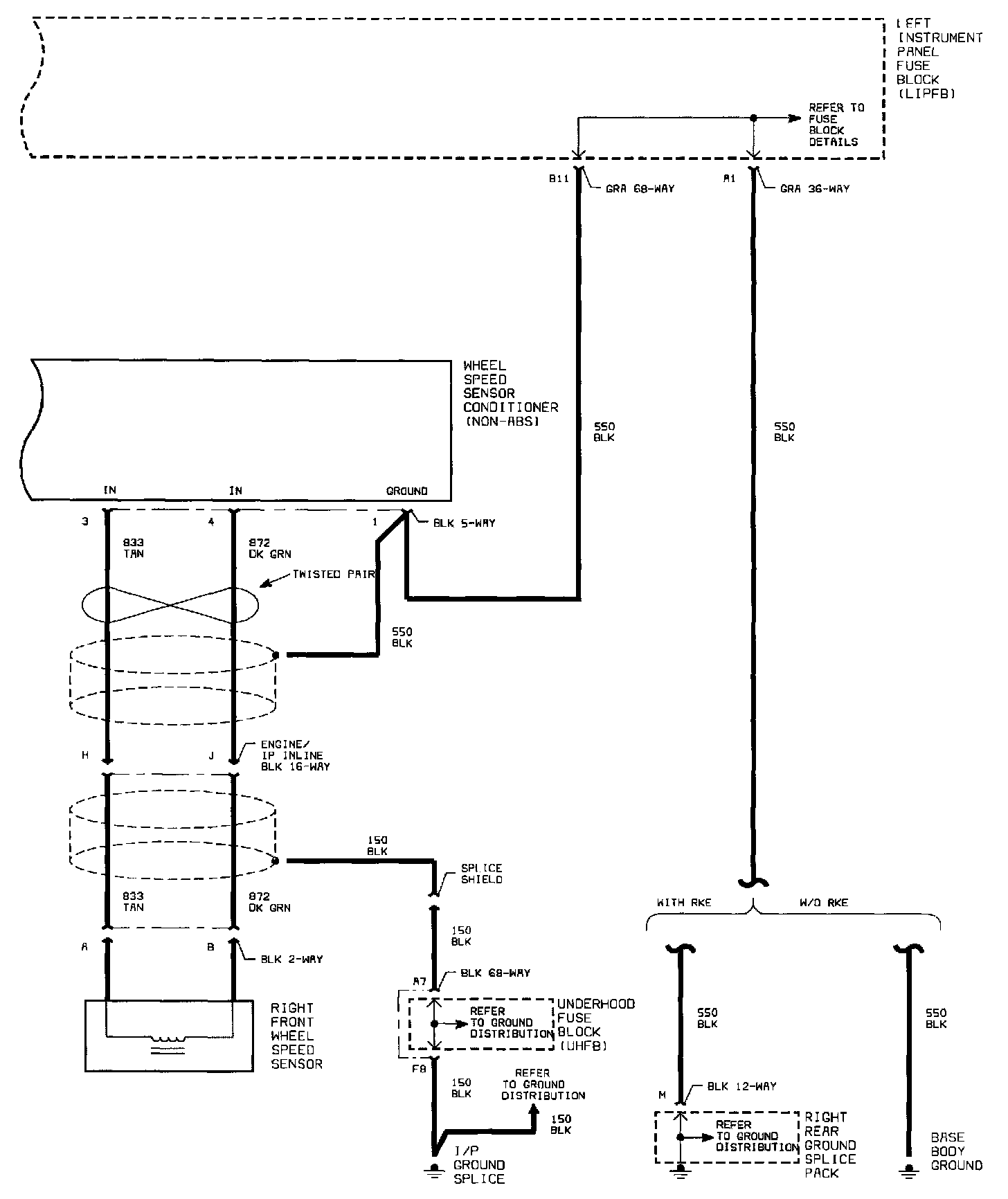

Engine Control Module (ECM)

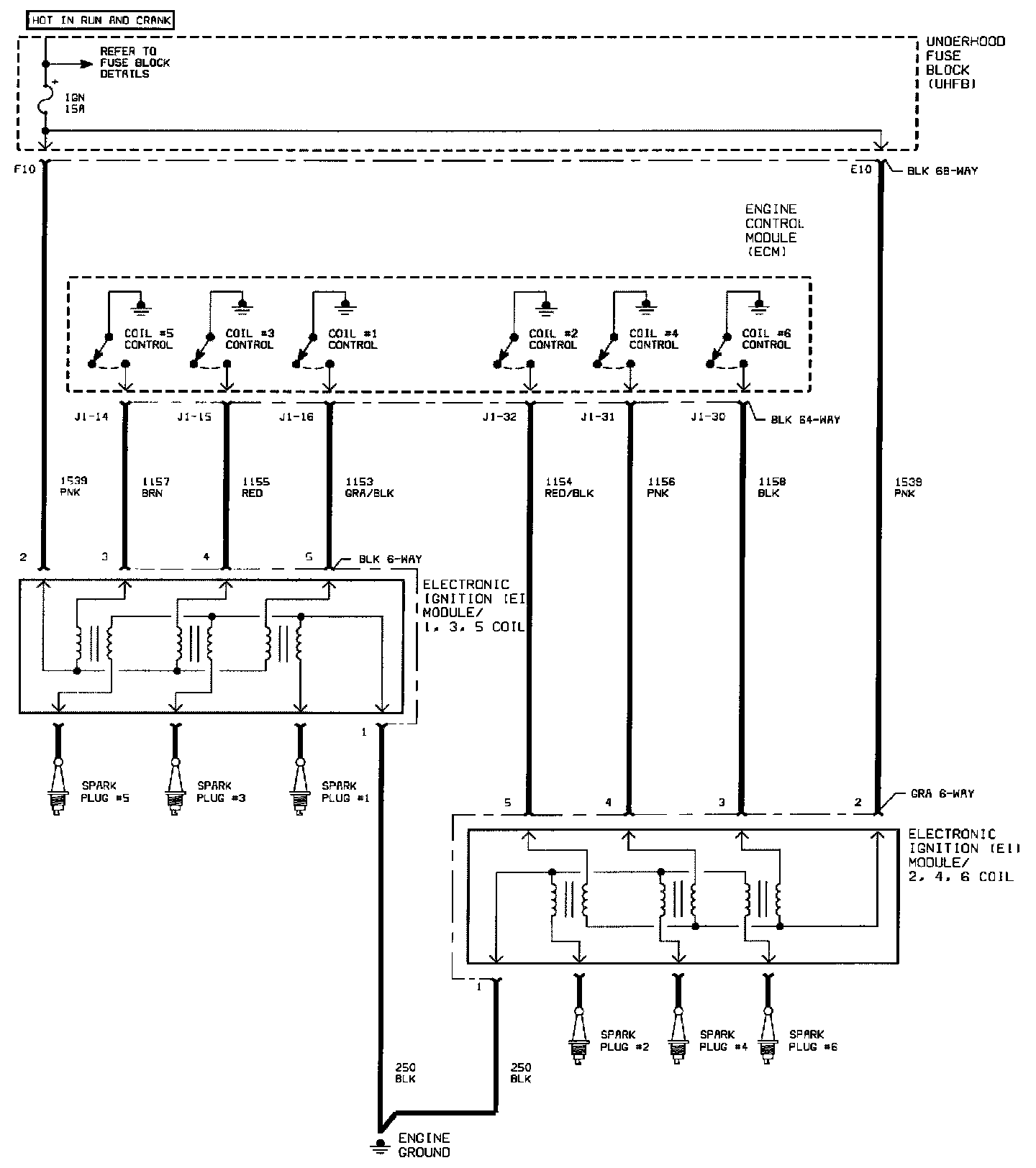

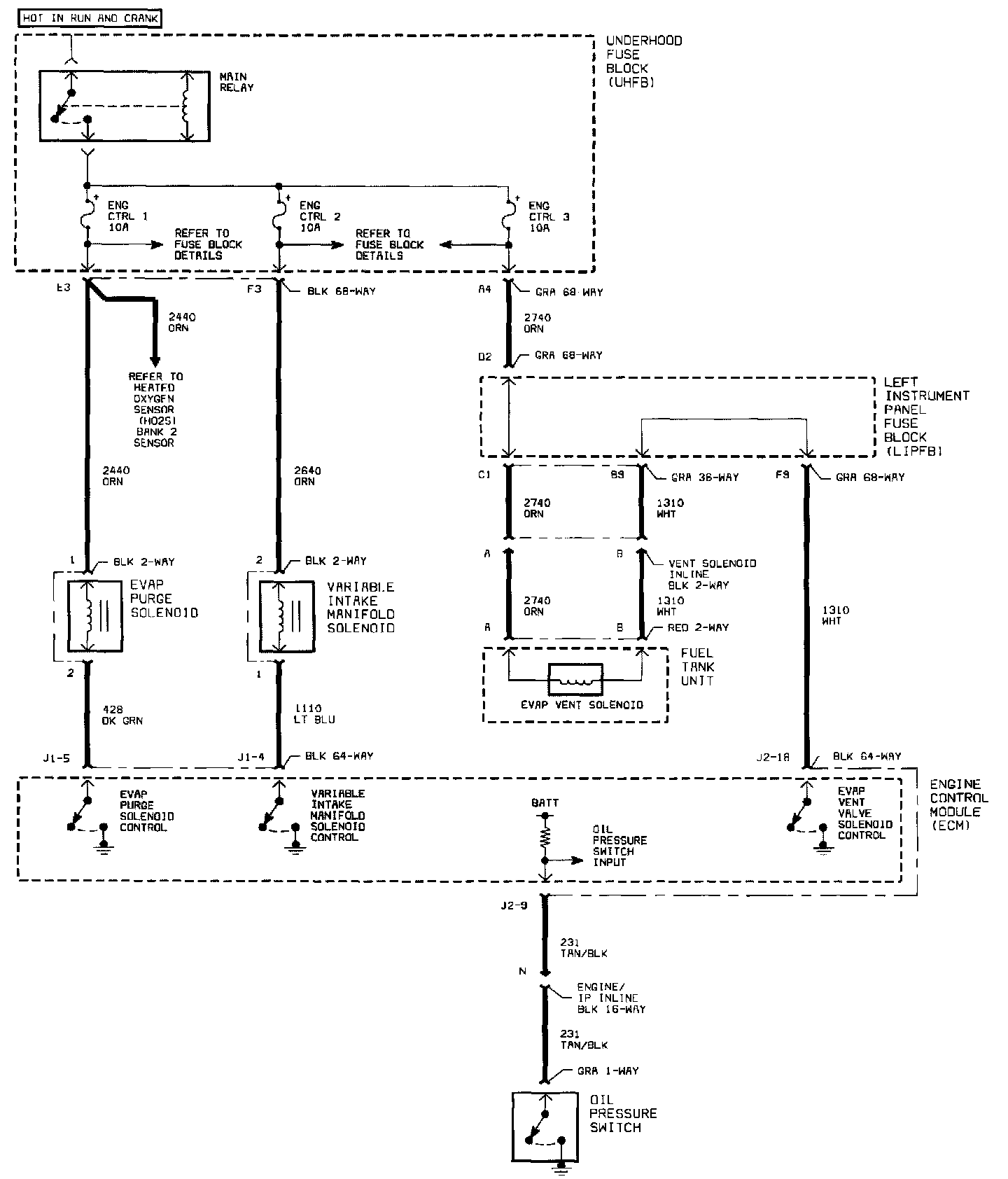

Engine Control Module (ECM) Schematics (Part 1 Of 16):

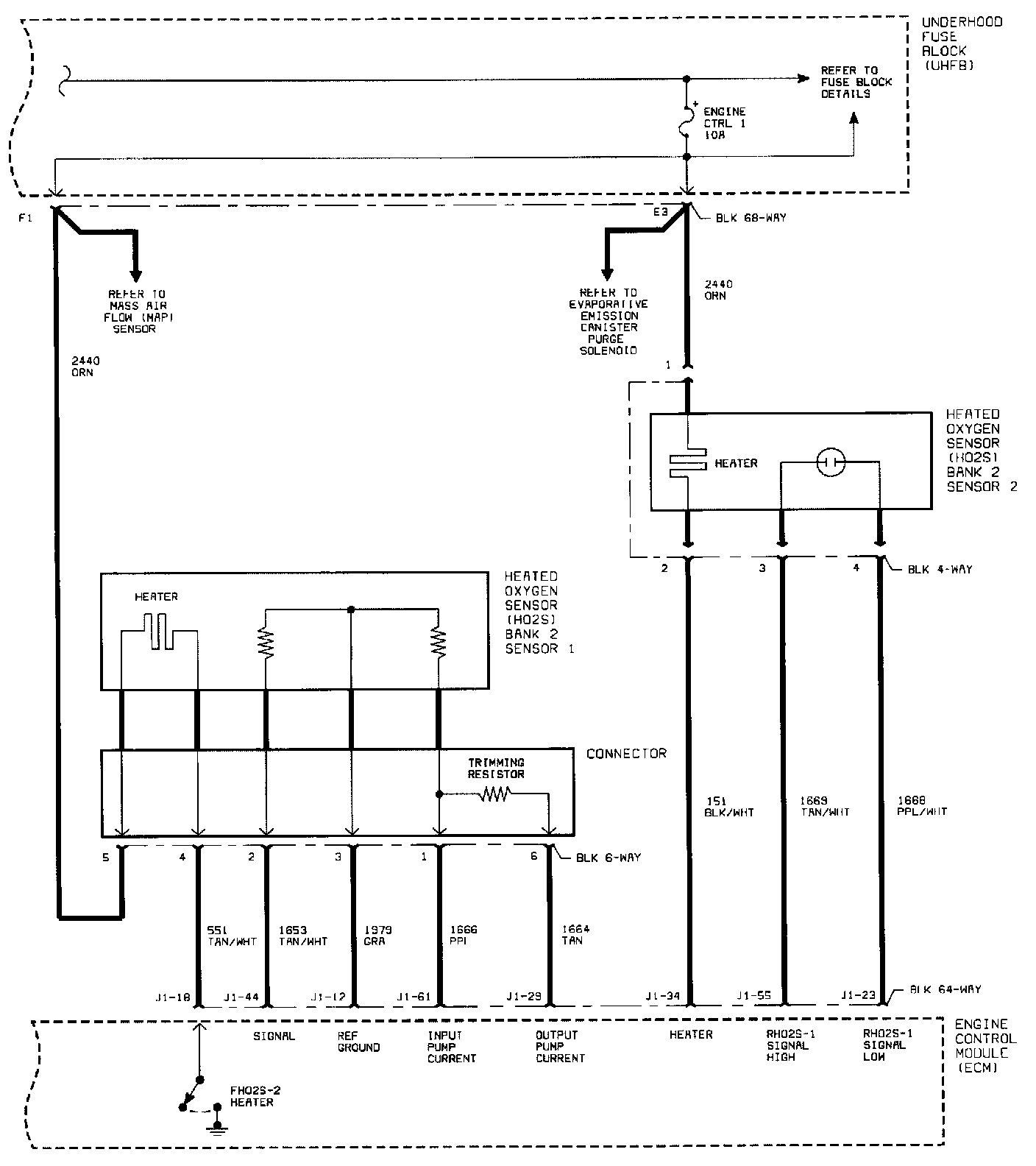

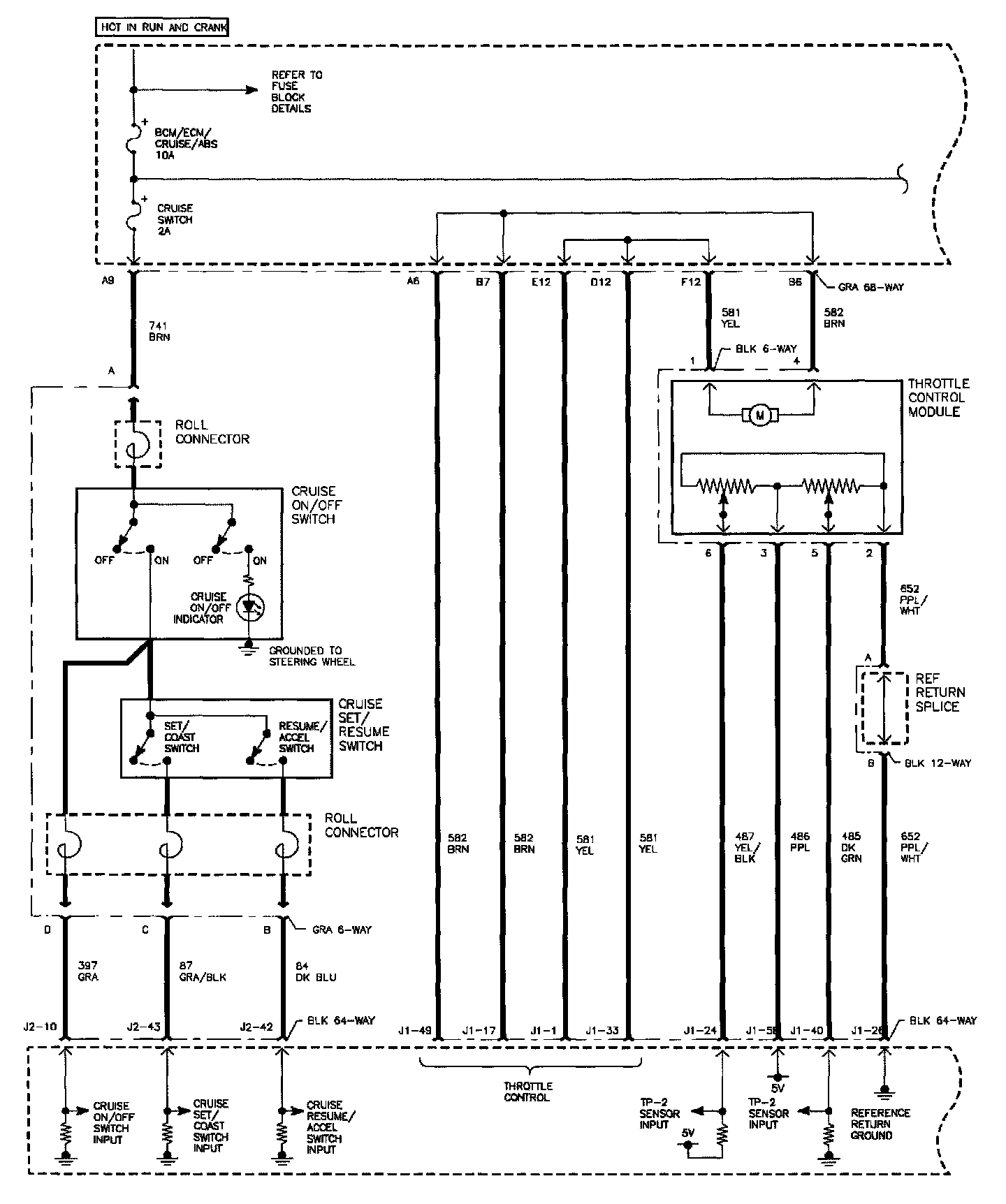

Engine Control Module (ECM) Schematics (Part 2 Of 16):

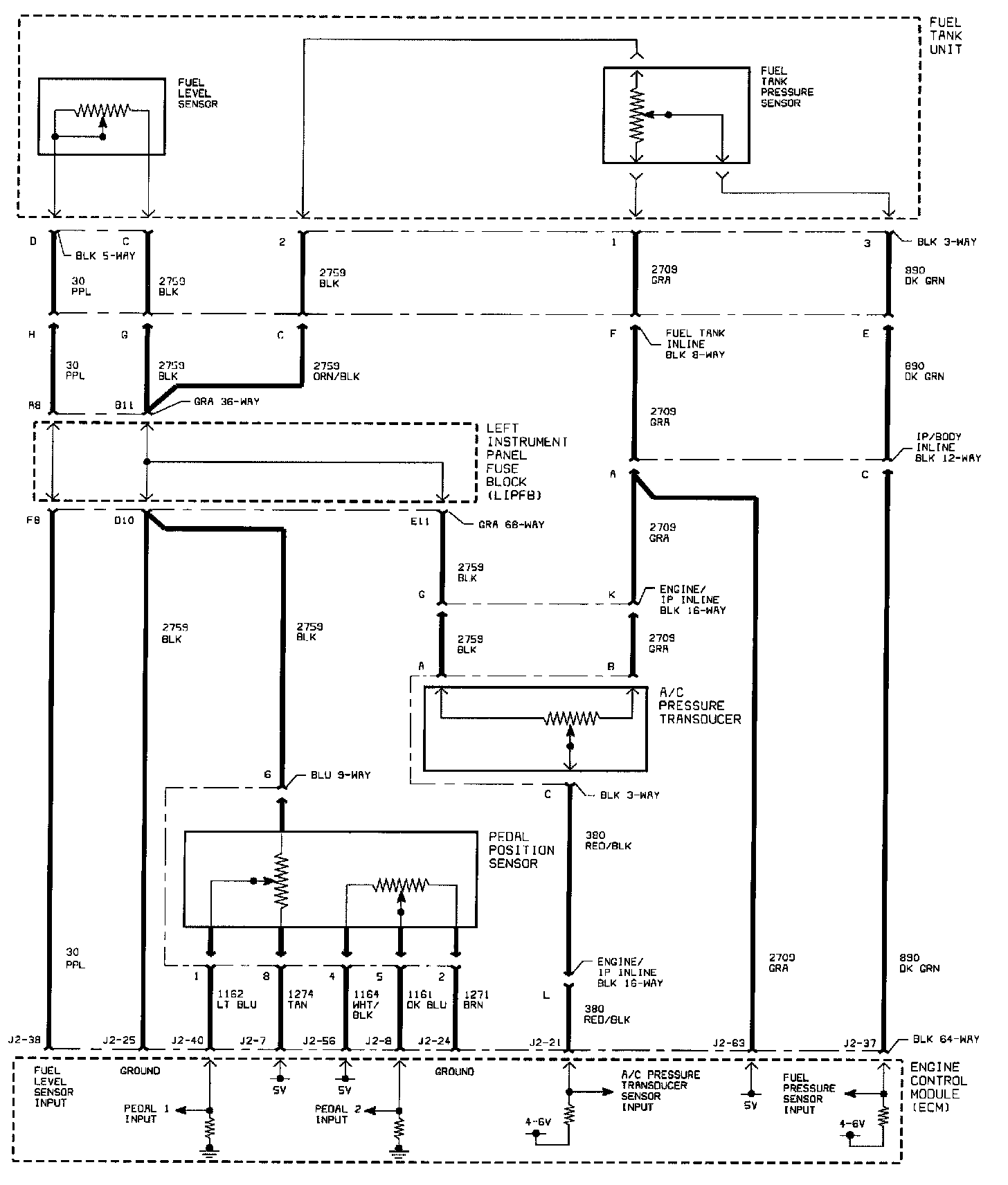

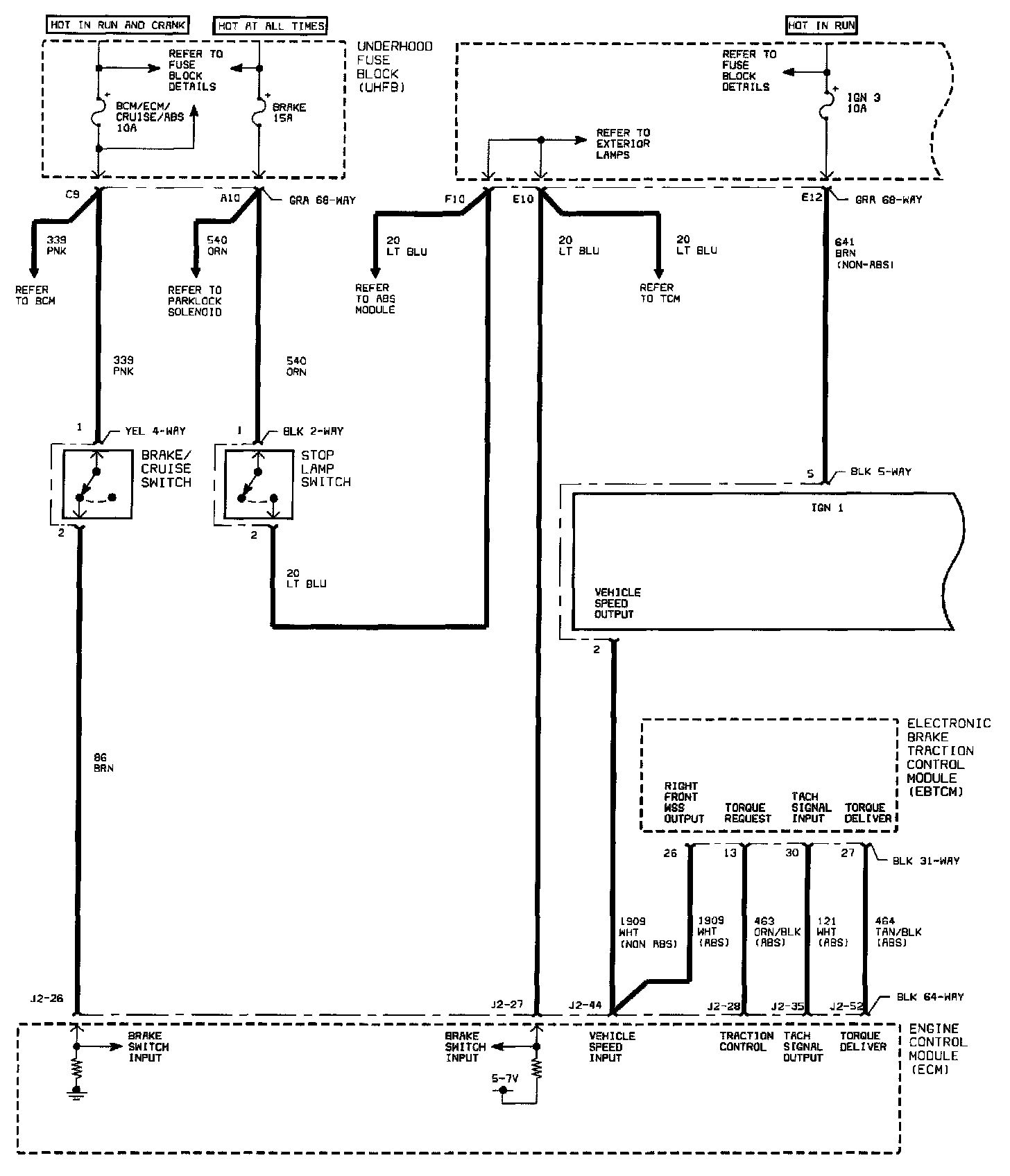

Engine Control Module (ECM) Schematics (Part 3 Of 16):

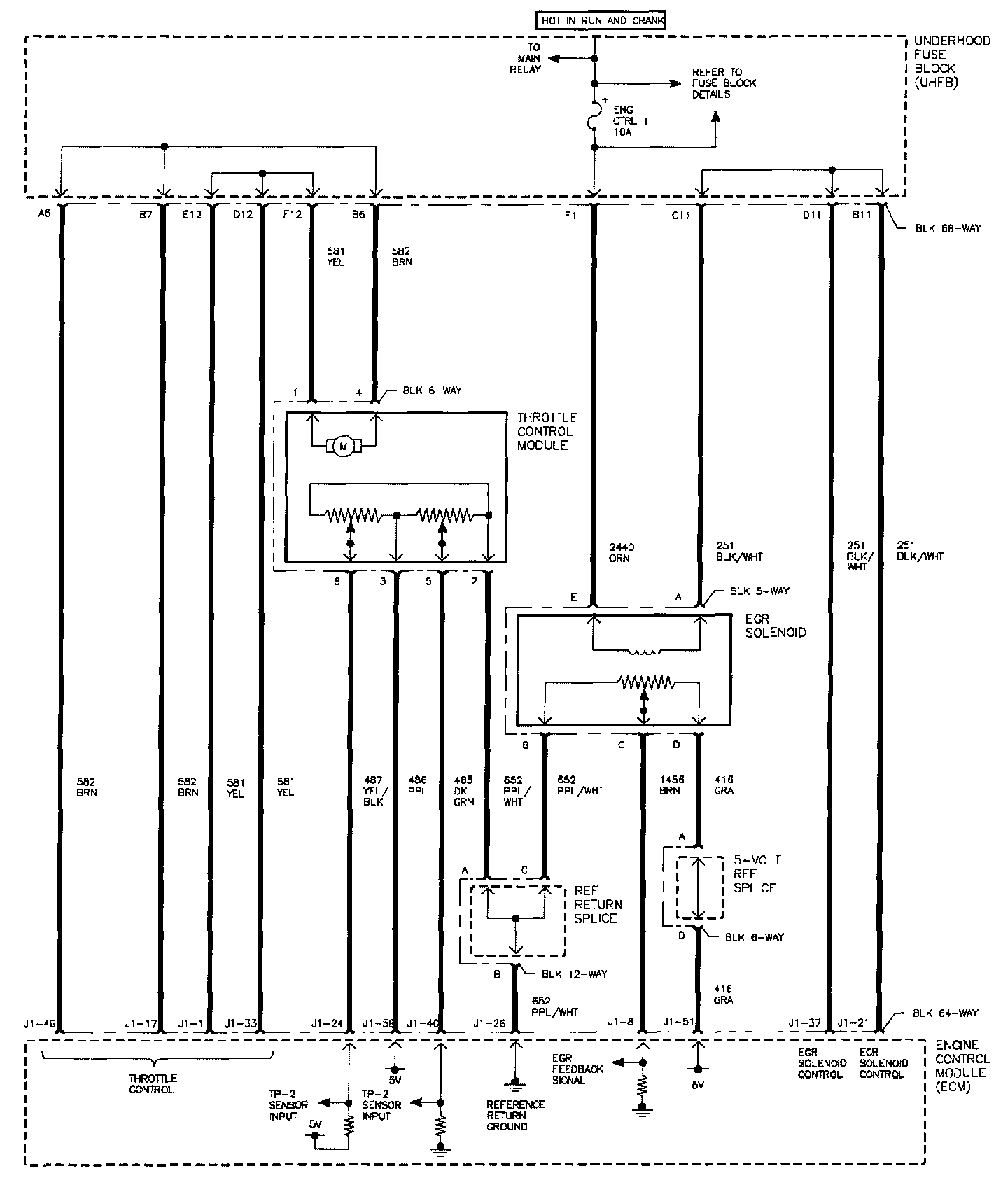

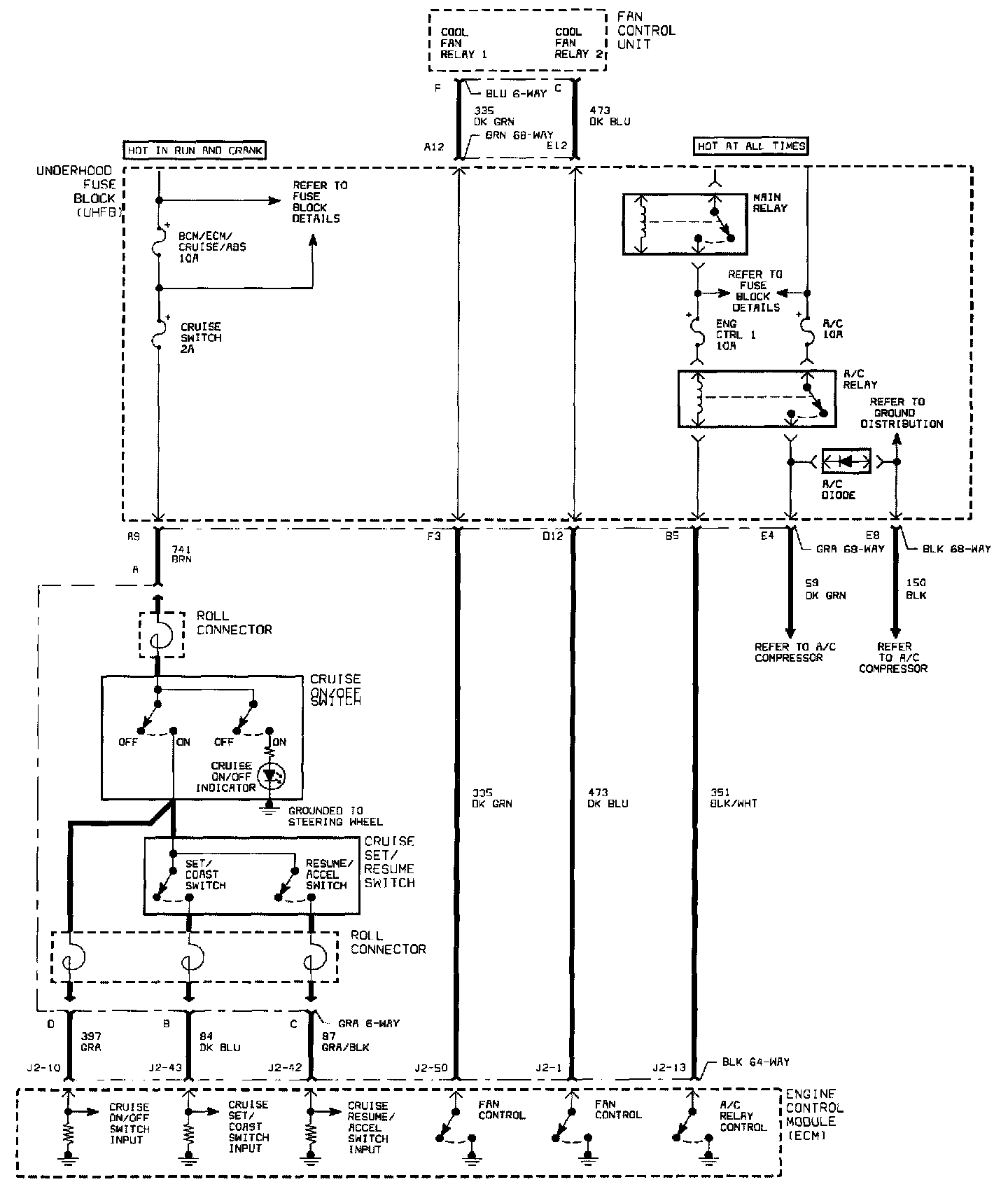

Engine Control Module (ECM) Schematics (Part 4 Of 16):

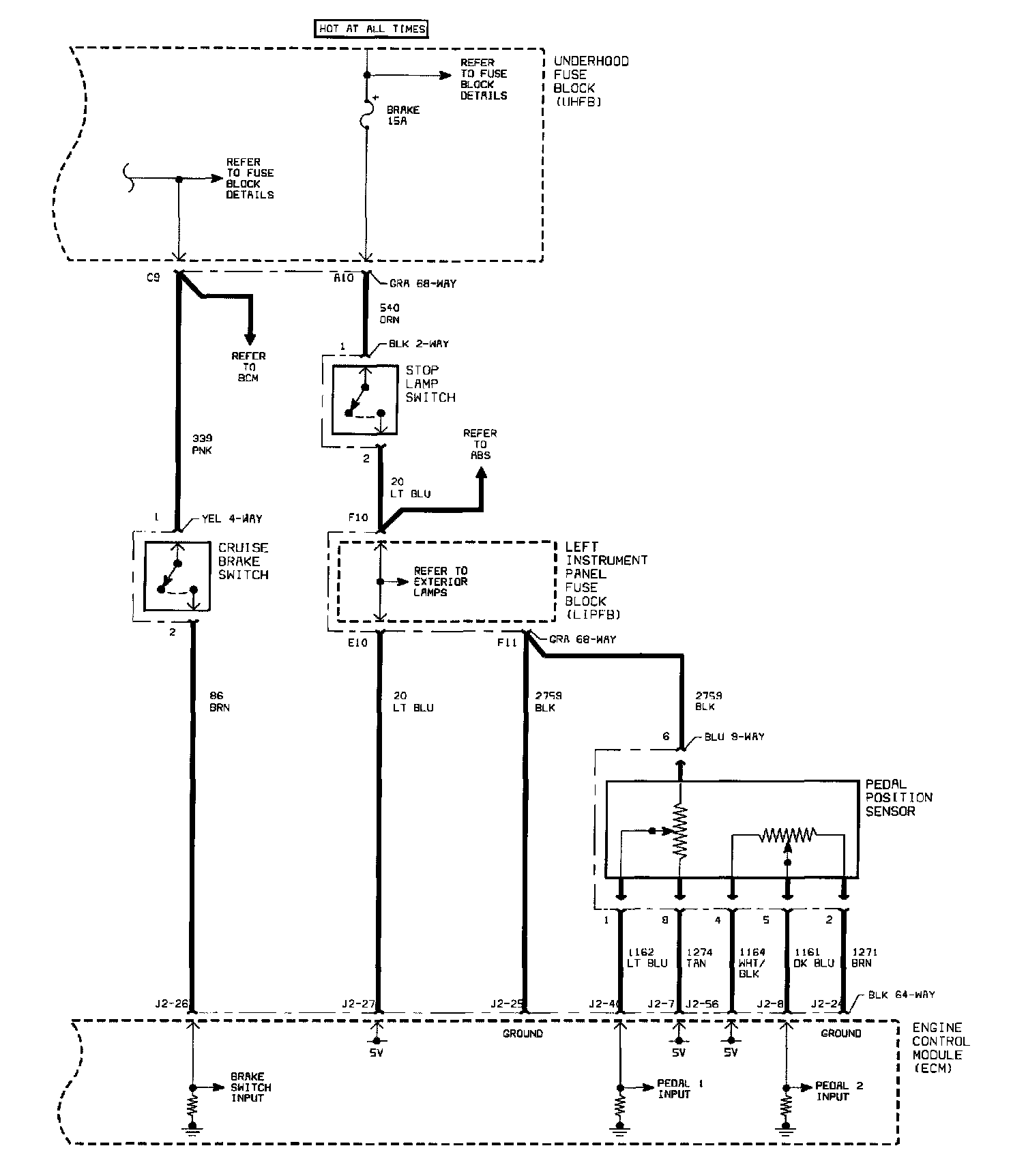

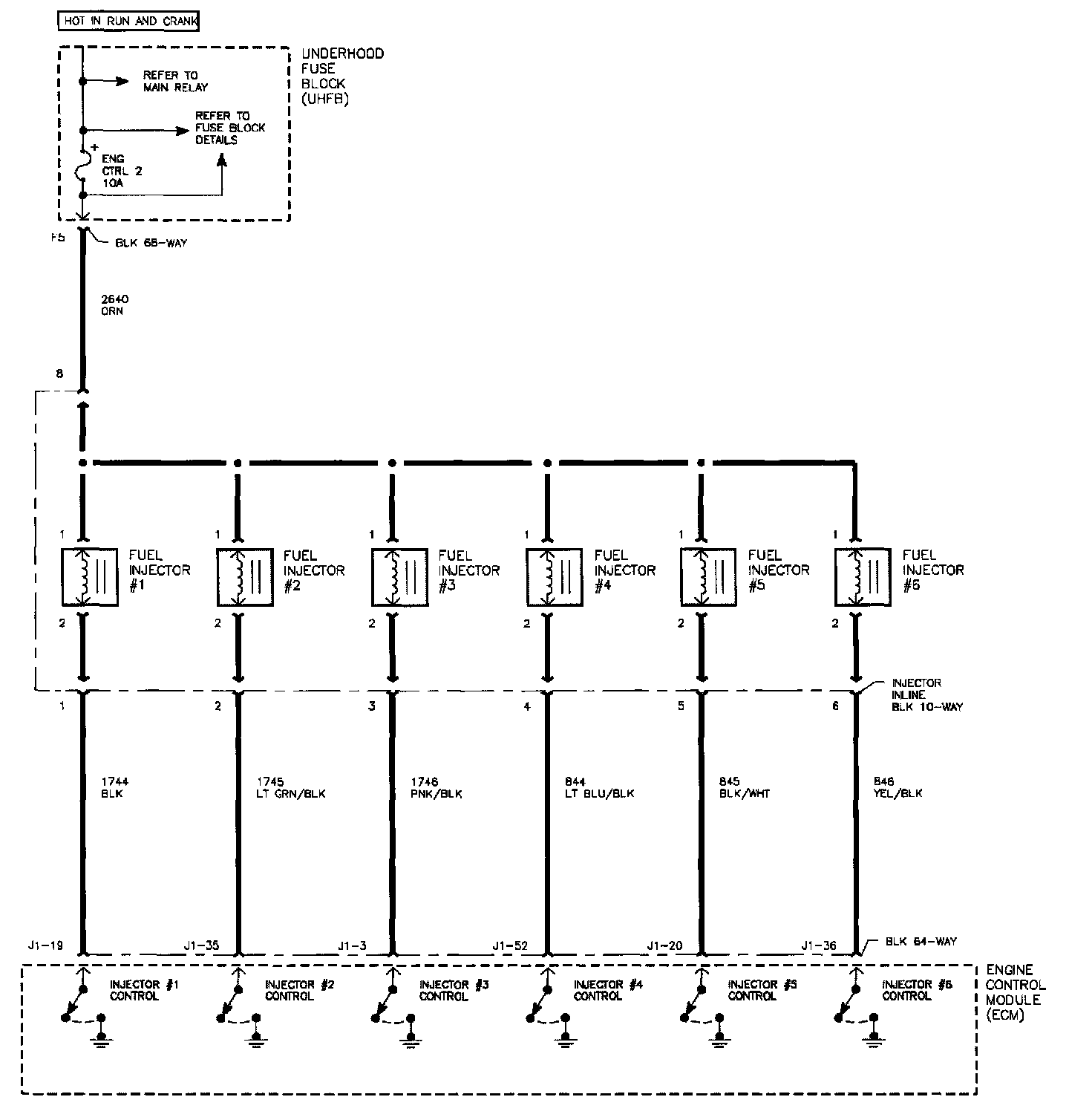

Engine Control Module (ECM) Schematics (Part 5 Of 16):

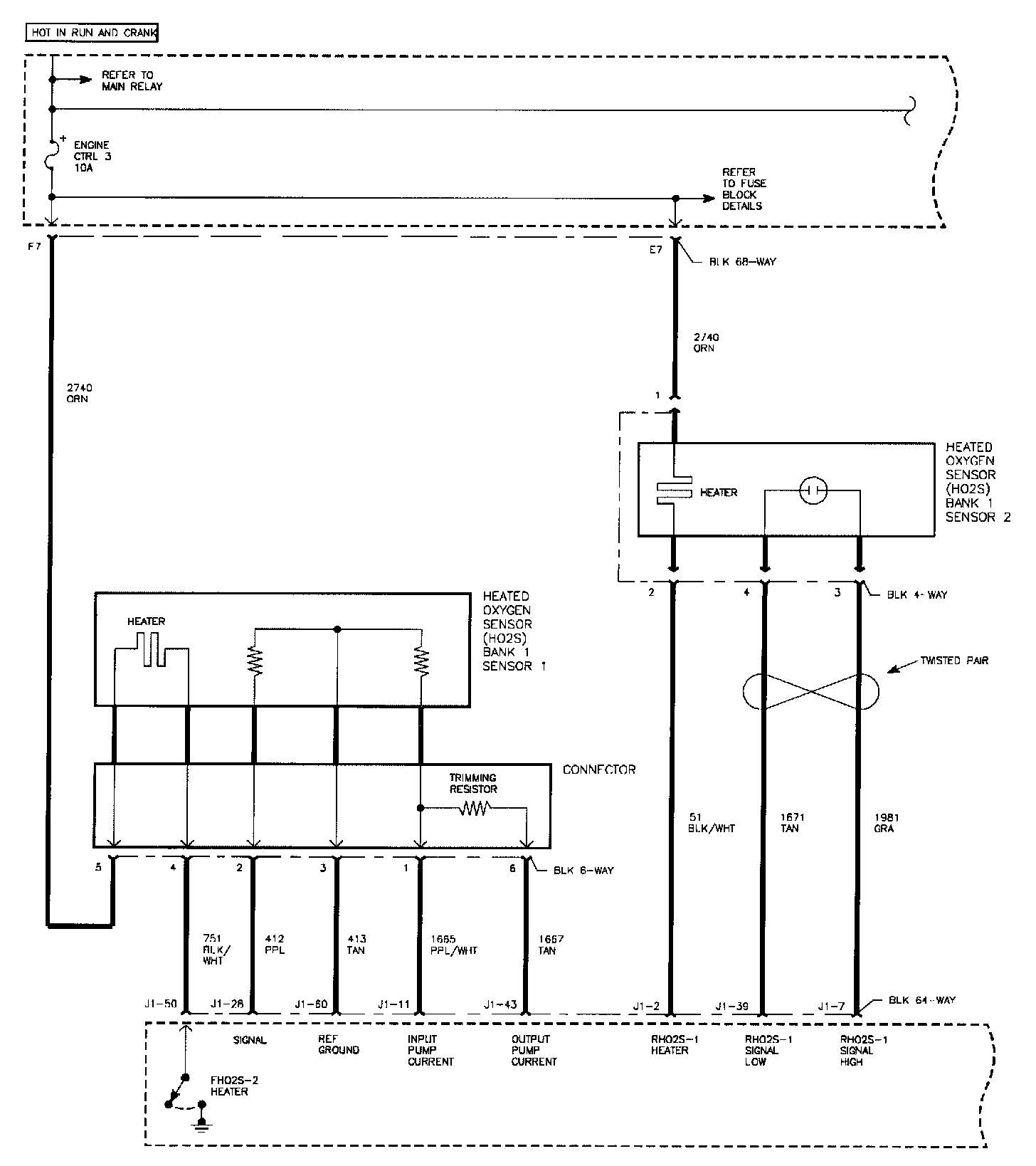

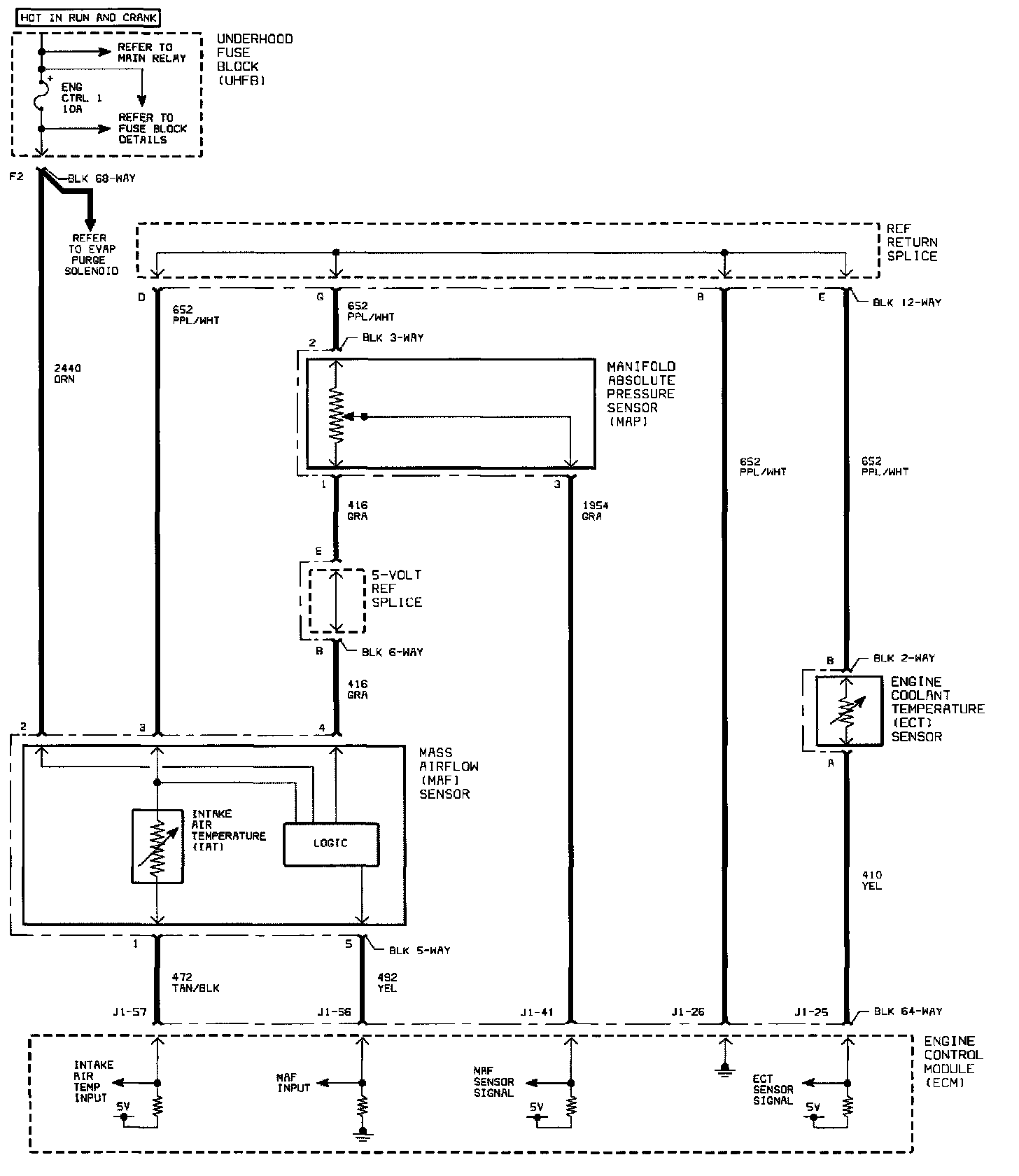

Engine Control Module (ECM) Schematics (Part 6 Of 16):

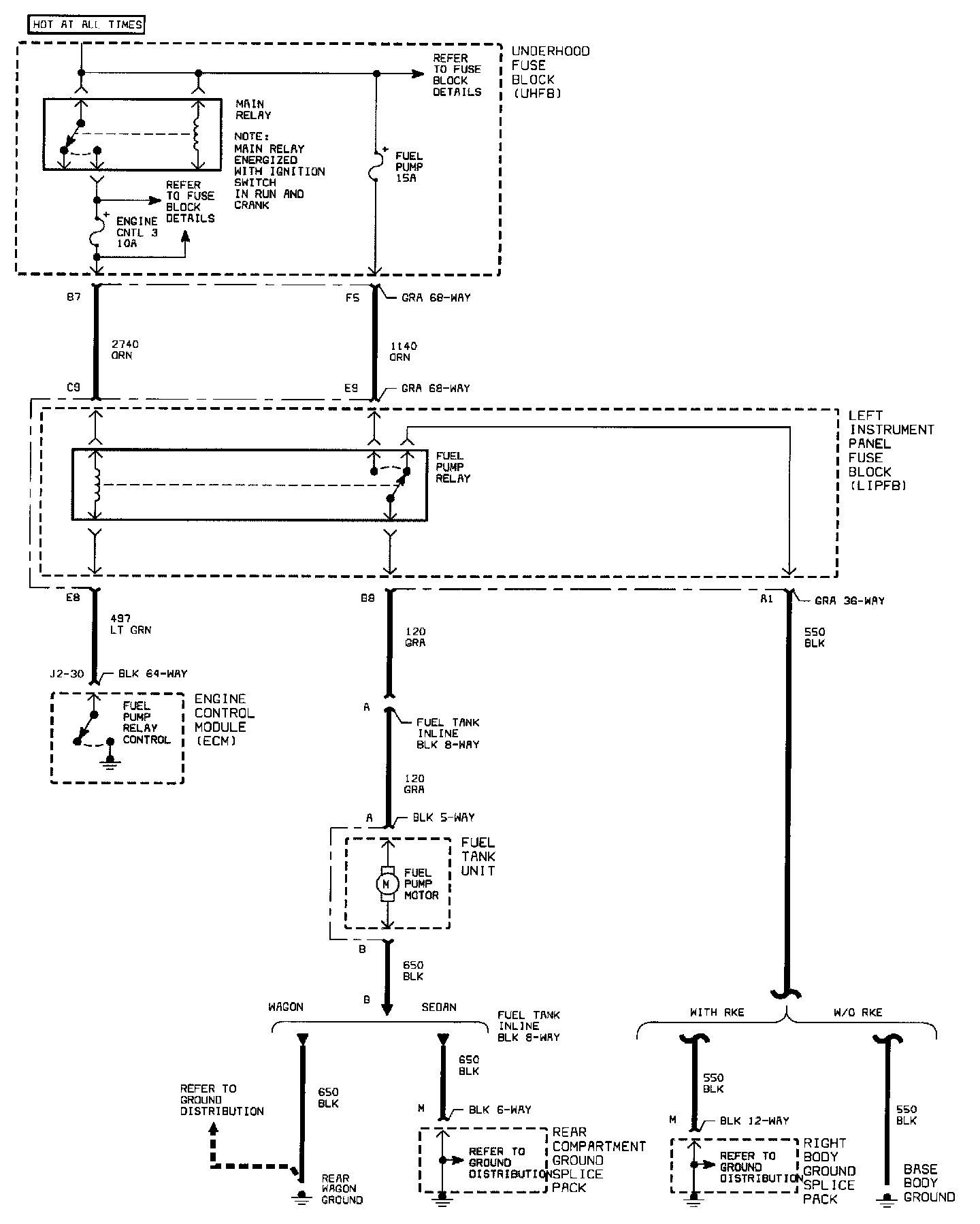

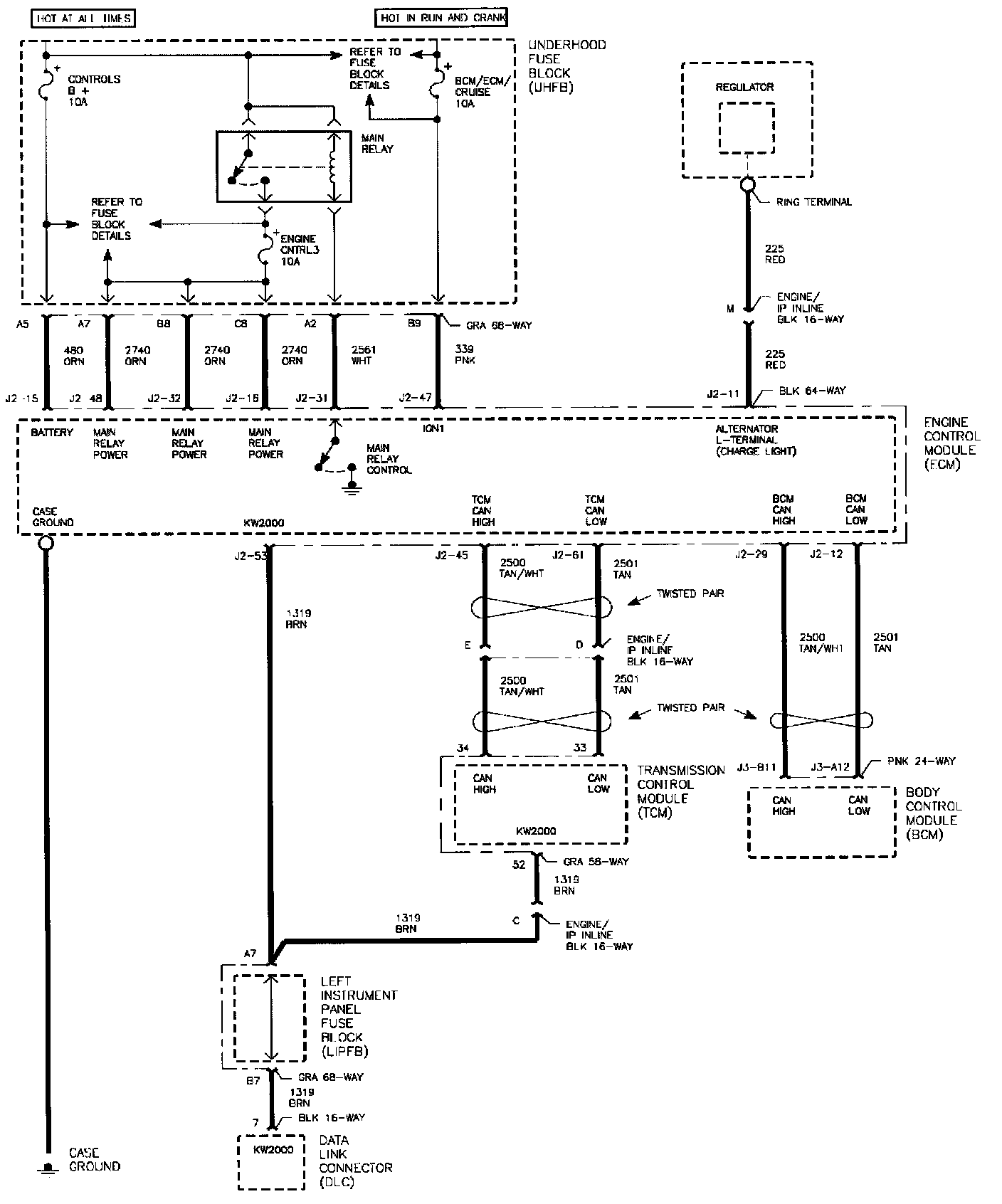

Engine Control Module (ECM) Schematics (Part 7 Of 16):

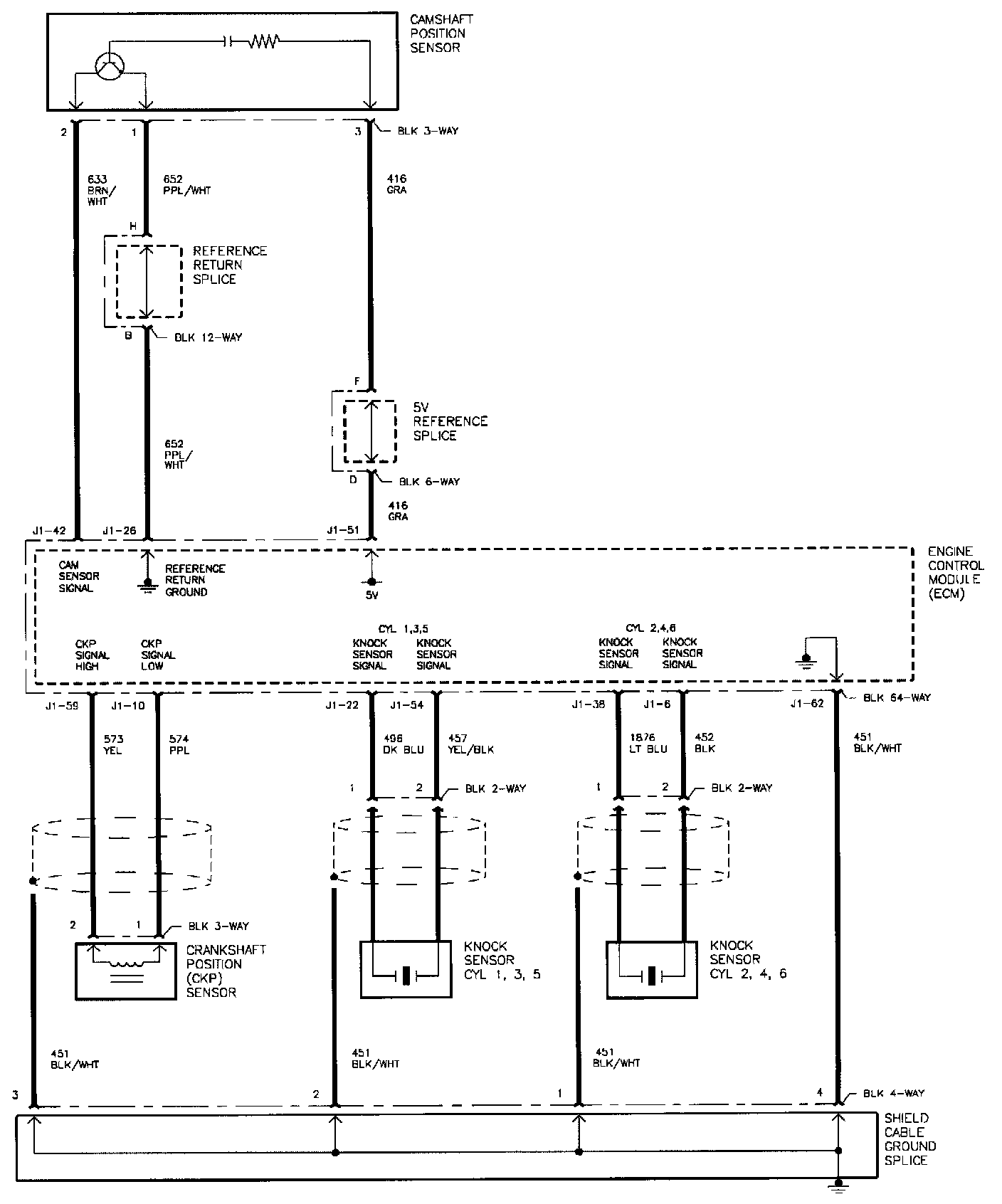

Engine Control Module (ECM) Schematics (Part 8 Of 16):

Engine Control Module (ECM) Schematics (Part 9 Of 16):

Engine Control Module (ECM) Schematics (Part 10 Of 16):

Engine Control Module (ECM) Schematics (Part 11 Of 16):

Engine Control Module (ECM) Schematics (Part 12 Of 16):

Engine Control Module (ECM) Schematics (Part 13 Of 16):

Engine Control Module (ECM) Schematics (Part 14 Of 16):

Engine Control Module (ECM) Schematics (Part 15 Of 16):

Engine Control Module (ECM) Schematics (Part 16 Of 16):
