Ignition Control Module



Ignition Control Module Replacement

Installation Procedure






1. Install the spark plugs. Tighten the spark plugs to 25 Nm (18 lb ft).

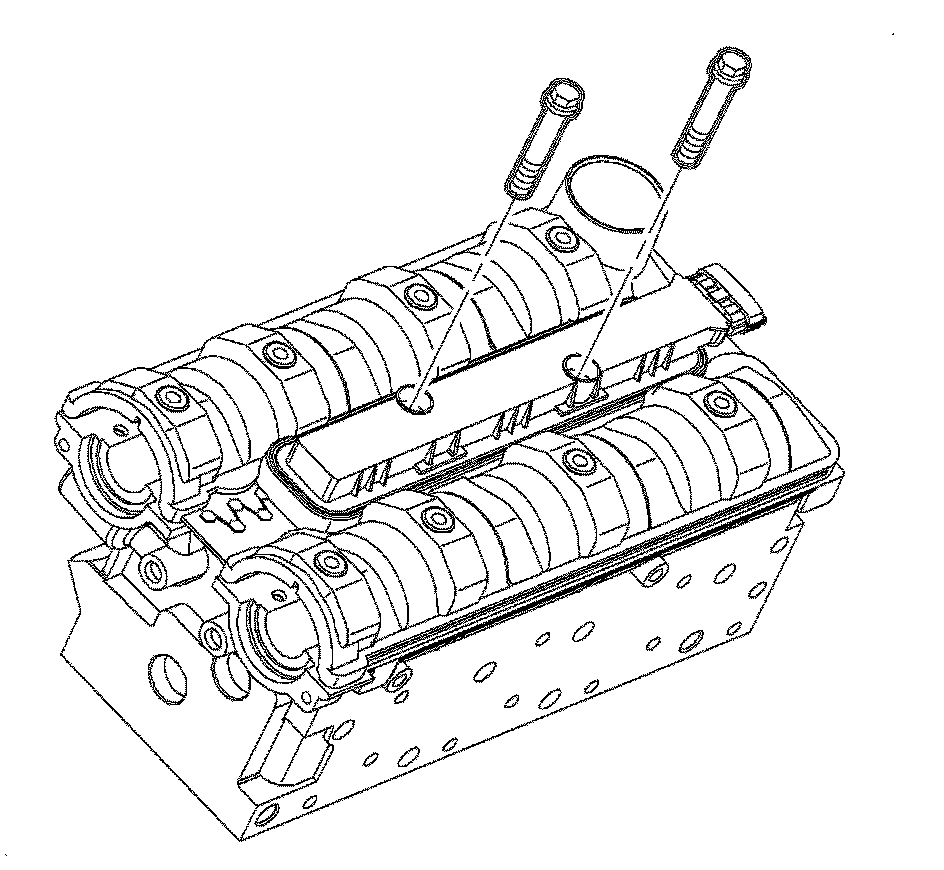

2. Install the ignition module.
3. Install the ignition module bolts. Tighten the ignition module bolts to 8 Nm (71 lb in).
