Engine Control Module: Service and Repair

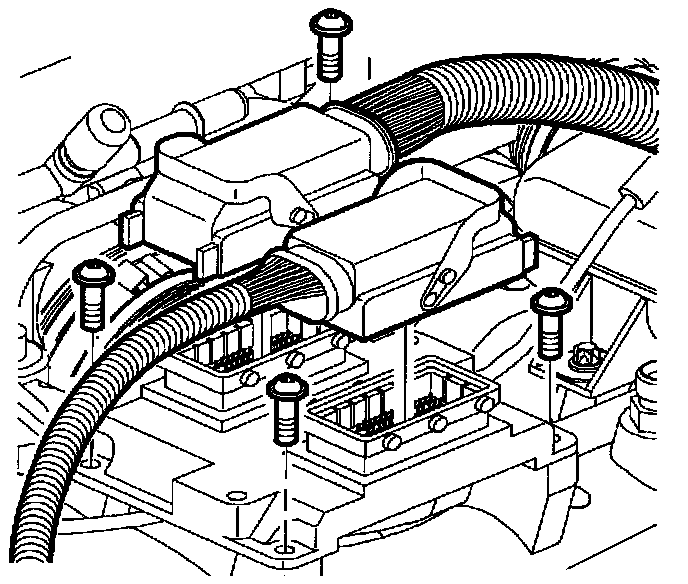

REMOVAL
1. Turn ignition Off.
2. Disconnect J1 and J2 ECM electrical connectors.
3. Remove ECM bolts.
4. Remove ECM.

INSTALLATION
1. Install ECM.
2. Install ECM bolts.

Torque: 8 N.m (71 in-lbs)

3. Connect J1 and J2 ECM electrical connectors.
4. Program ECM by following directions. Programming and Relearning
5. Learn Passlock password by following directions. Programming and Relearning
6. Turn Ignition On, Engine Off for 1 minute to learn throttle position.
