System Diagram

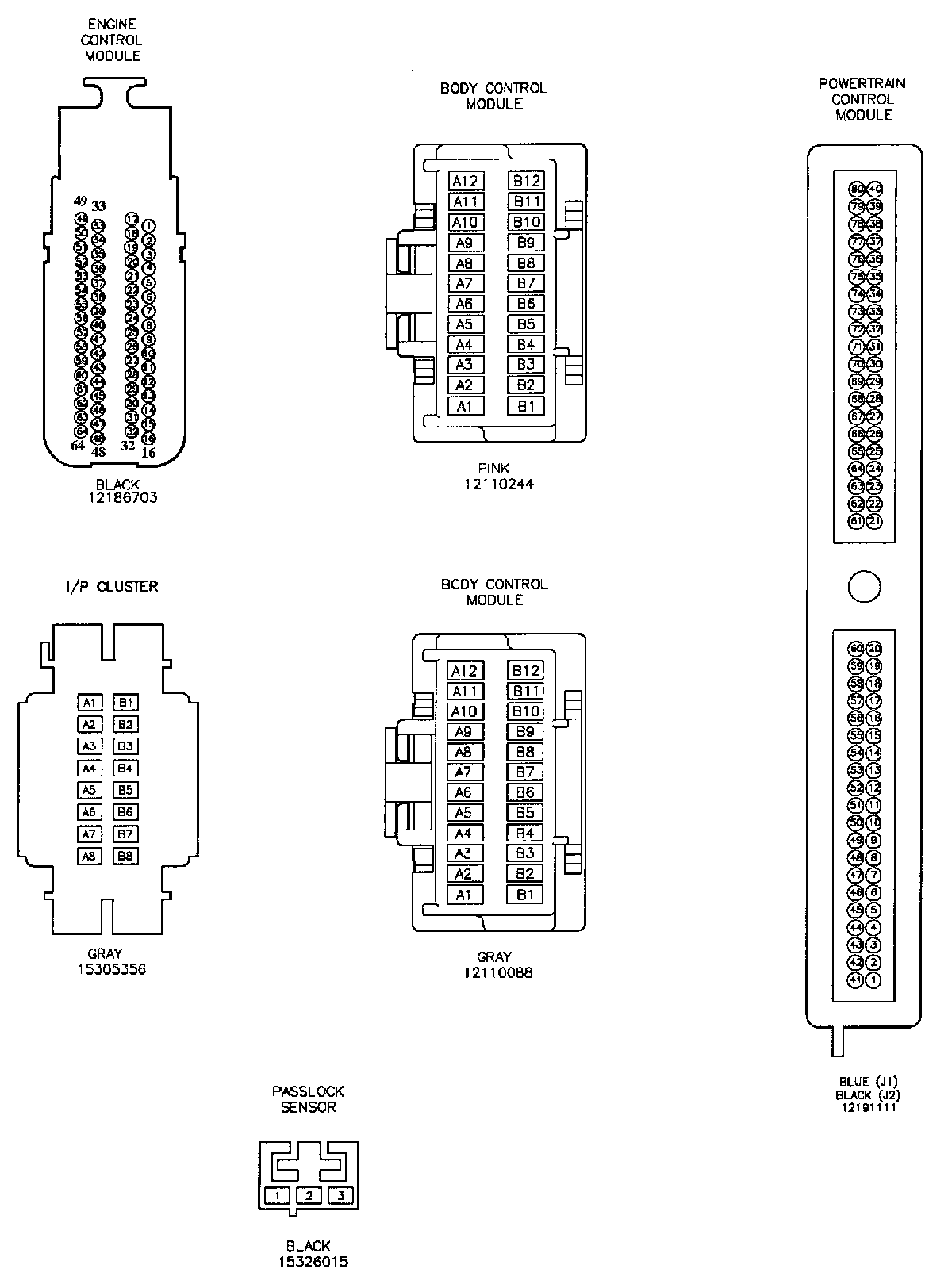

Passlock Connector Face Views:

NOTE: For complete Connector/Wire Information, refer to Wiring System.
