Push-to-Seat Connectors

IMPORTANT: Cut leads with terminals are available from Saturn Service Parts for terminal replacement.




Terminal Removal
1. Remove any terminal position assurance (TPA) locks.

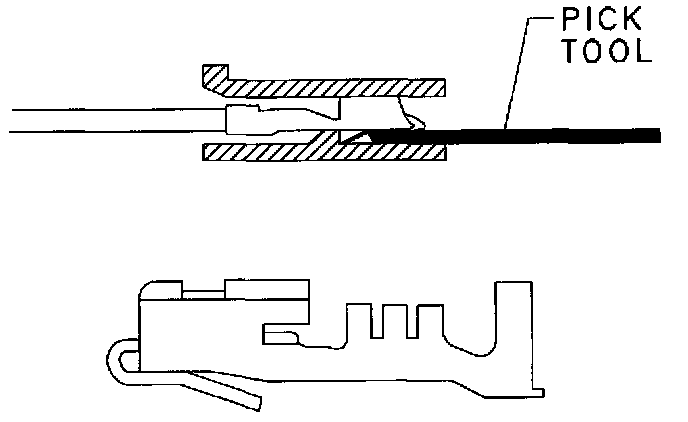

2. Insert the terminal lock release tool into the front of the connector cavity. Pull the wires and terminal out of the back of the connector.
