Muffler (Service Replacement): Installation
- Loosely install muffler clamp over service replacement muffler inlet.

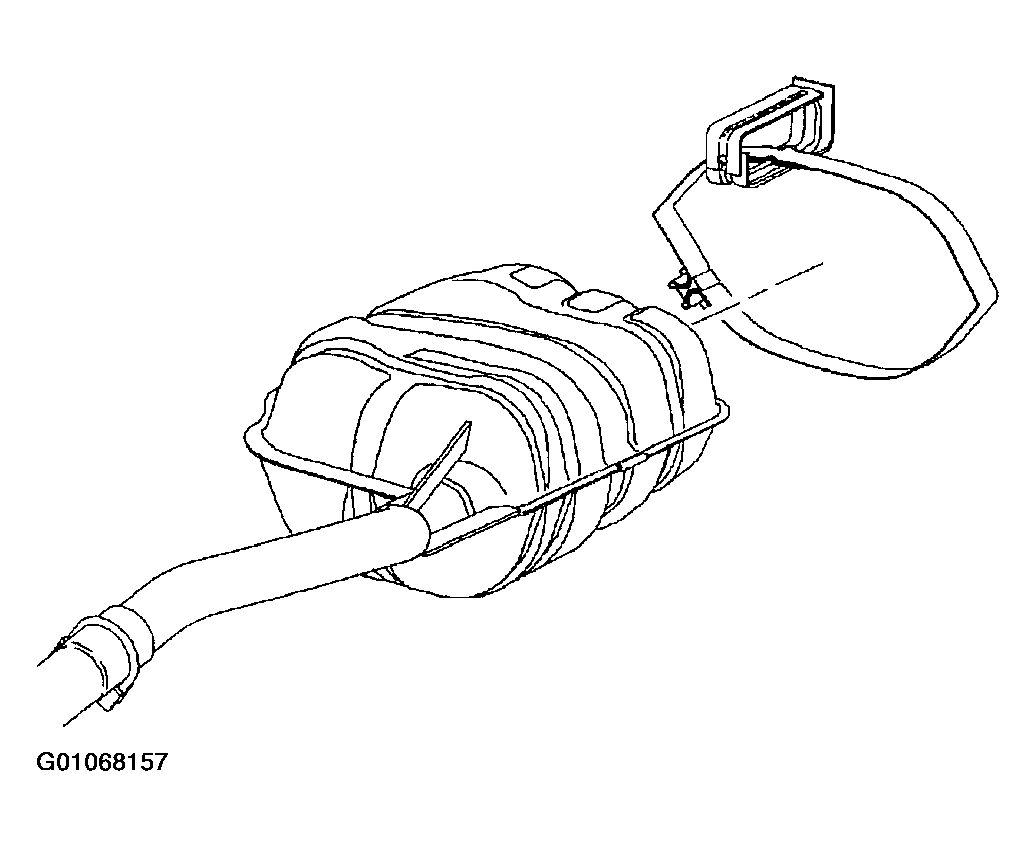

- Load replacement muffler to vehicle, sliding muffler inlet pipe over cut section of intermediate pipe.
- Hold muffler in location to muffler strap and tighten clamp. Locate muffler strap between stamped channel in the muffler.
Torque:
Muffler Strap around Muffler: 22 N.m (16 ft-lbs)

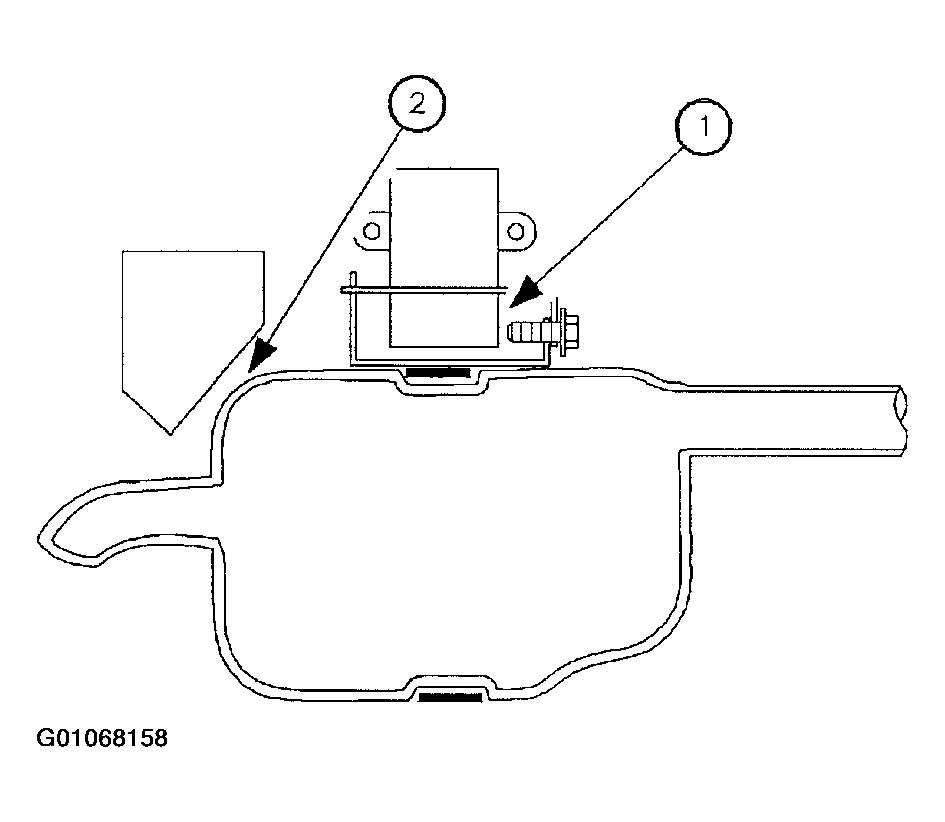

NOTE: Make sure that after installing the replacement exhaust sections that the system has not shifted rearward allowing contact between the hanger bracket screw (1) and the hanger block. This will cause noise; loosen the muffler strap and shift forward on muffler to eliminate contact - retighten.Torque:
Muffler Strap around Muffler: 22 N.m (16 ft-lbs)

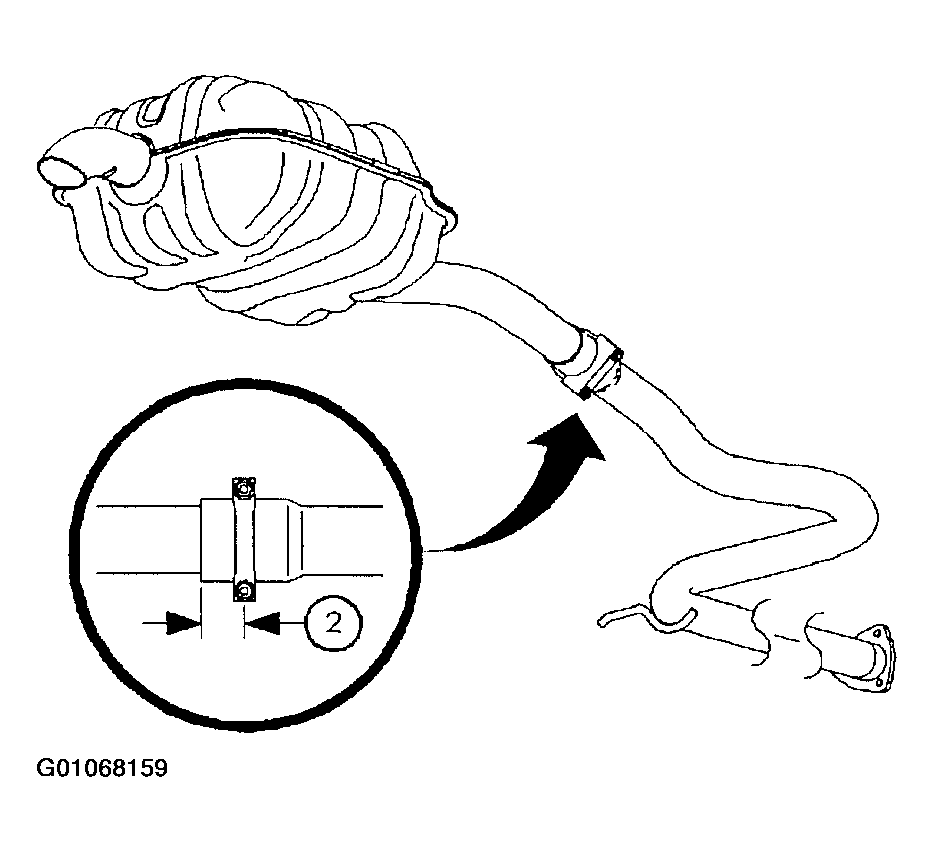

NOTE: Position the muffler to ensure that there is 19 mm (3/4 in.) (2) of clearance between the muffler and muffler ramp. If proper clearance can be obtained, the intermediate pipe must be shortened.NOTE: Locate muffler clamp 25 mm (1.0 in.) (2) from the end of the muffler inlet pipe and position clamp with U-bolt facing away from fuel tank. - Make sure muffler clamp is properly located and aligned; tighten clamp.
Torque:
Intermediate Pipe: 41 N.m (30 ft-lbs)

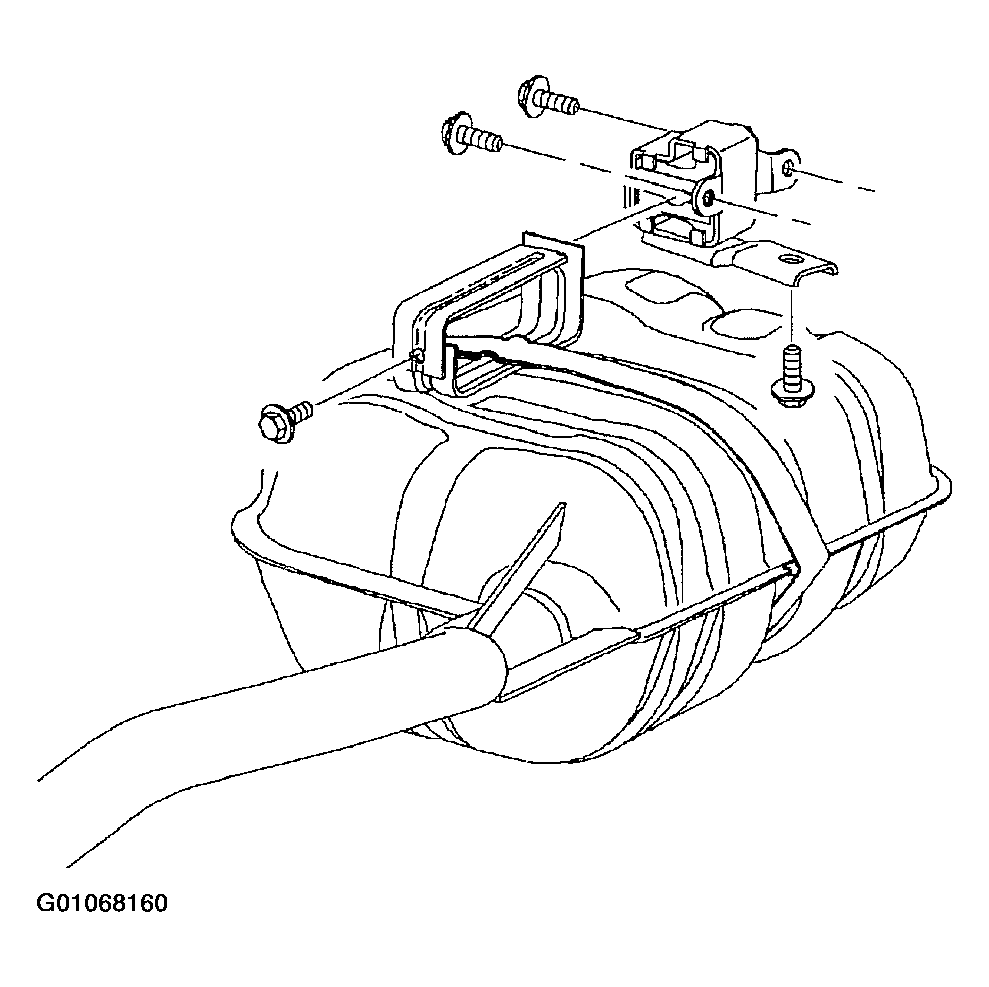

- Check the entire exhaust system for alignment, clearance to heat shields, and leaks. The muffler body band clamp blade must be free to move in the hanger or vibrations will be transmitted from the exhaust system into the body. The muffler can be moved both vertically and horizontally in the isolator block. The muffler should move 1/16 in. vertically and 1/8 in. horizontally minimum in the isolator block.NOTE: If muffler movement cannot be obtained, or muffler isolator block is damaged, the exhaust system will have to be carefully lowered for adjustment or replacement of the muffler isolator block. Washers may have to be installed between the muffler block bolt and frame rail to along the hanger parallel with the muffler.
- Tighten muffler isolator block.
Torque:
Muffler Isolator Block-to-Body: 25 N.m (19 ft-lbs)
