Removal & Installation
WARNING: This page is about a different car, the 2000 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

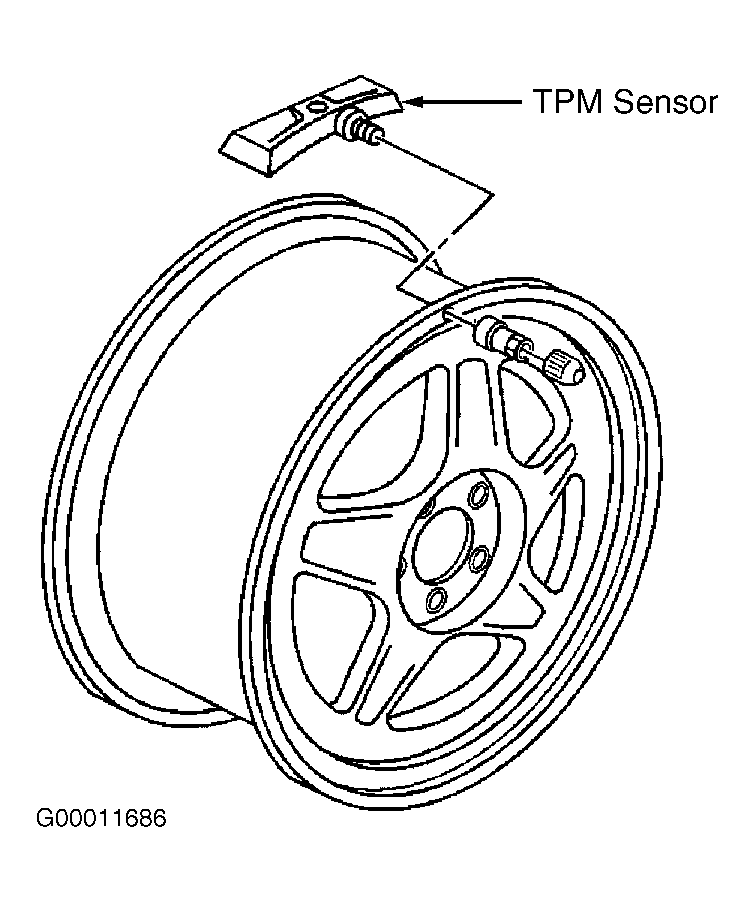

Raise and support vehicle. Remove wheel and tire from vehicle. Dismount tire from wheel using care not to strike TPM sensor, which is part of valve stem. Remove retaining nut from front side of wheel and remove TPM sensor from back side of wheel. See Fig 1 . To install, reverse removal procedure. Tighten retaining nut to 106 INCH lbs. (12 N.m).
