Audible Warning Chime Distorted-Install Foam Block Tape In Body Control Module (01-T-59)

Publication date: 2001-12-01
Reference number: 01-T-59

AUDIBLE WARNING CHIME DISTORTED-INSTALL FOAM BLOCK TAPE IN BODY CONTROL MODULE

TECHNICAL SERVICE BULLETIN

Reference Number(s): 01-T-59, Date of Issue: December, 2001

SATURN:	2000-2002 S-Series vehicles equipped with remote keyless entry (RKE) (RPO AUO)
SECTION:	10-Electrical

DESCRIPTION

Audible Warning Chime Distorted (Install Foam Block Tape In Body Control Module (BCM)).

Some customers may comment that the audible warning chime sounds distorted. This condition is most noticeable when the ignition switch is turned On after the vehicle interior has been exposed to high ambient temperatures and/or direct sunlight.

BULLETIN CONTENT

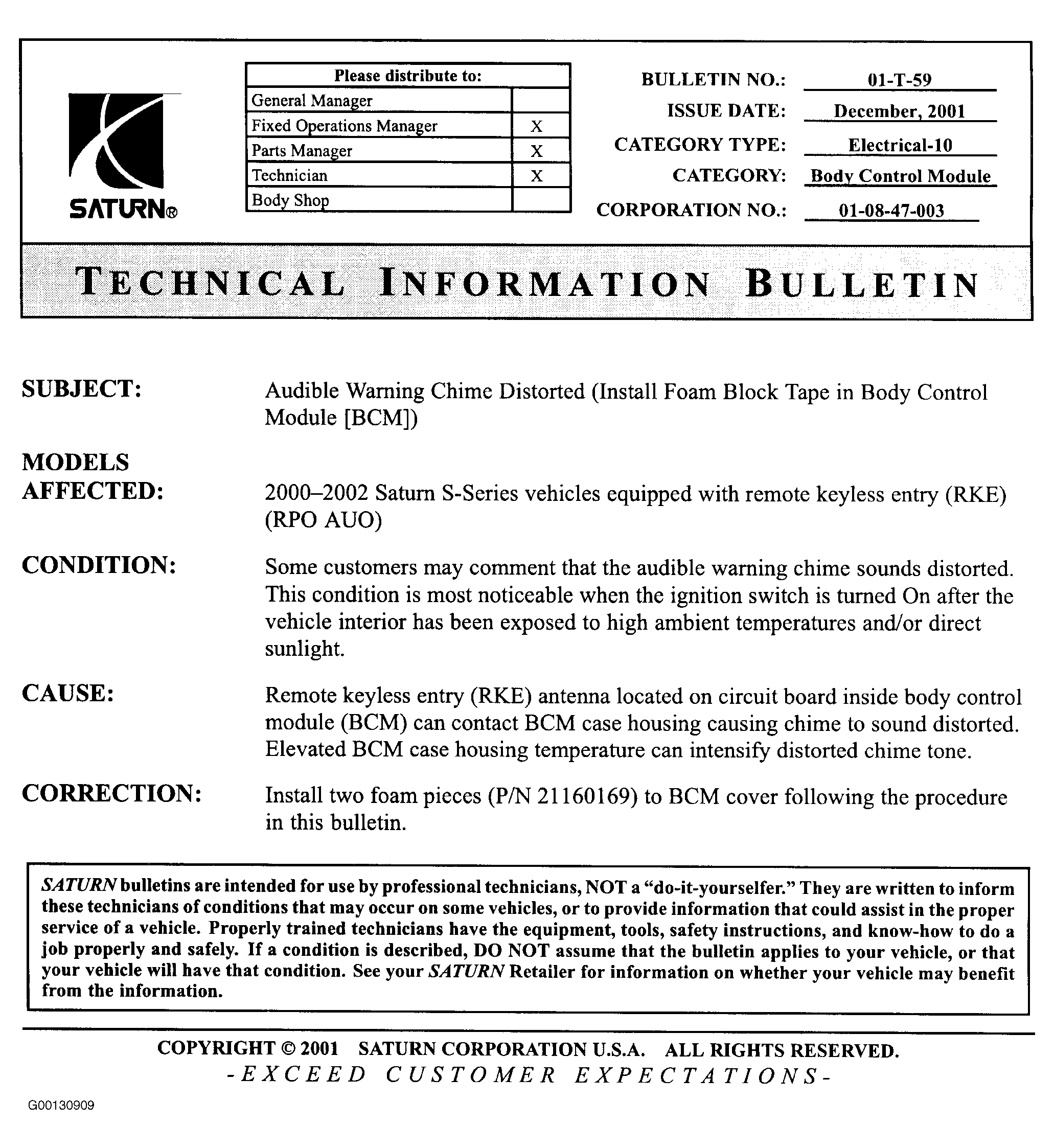

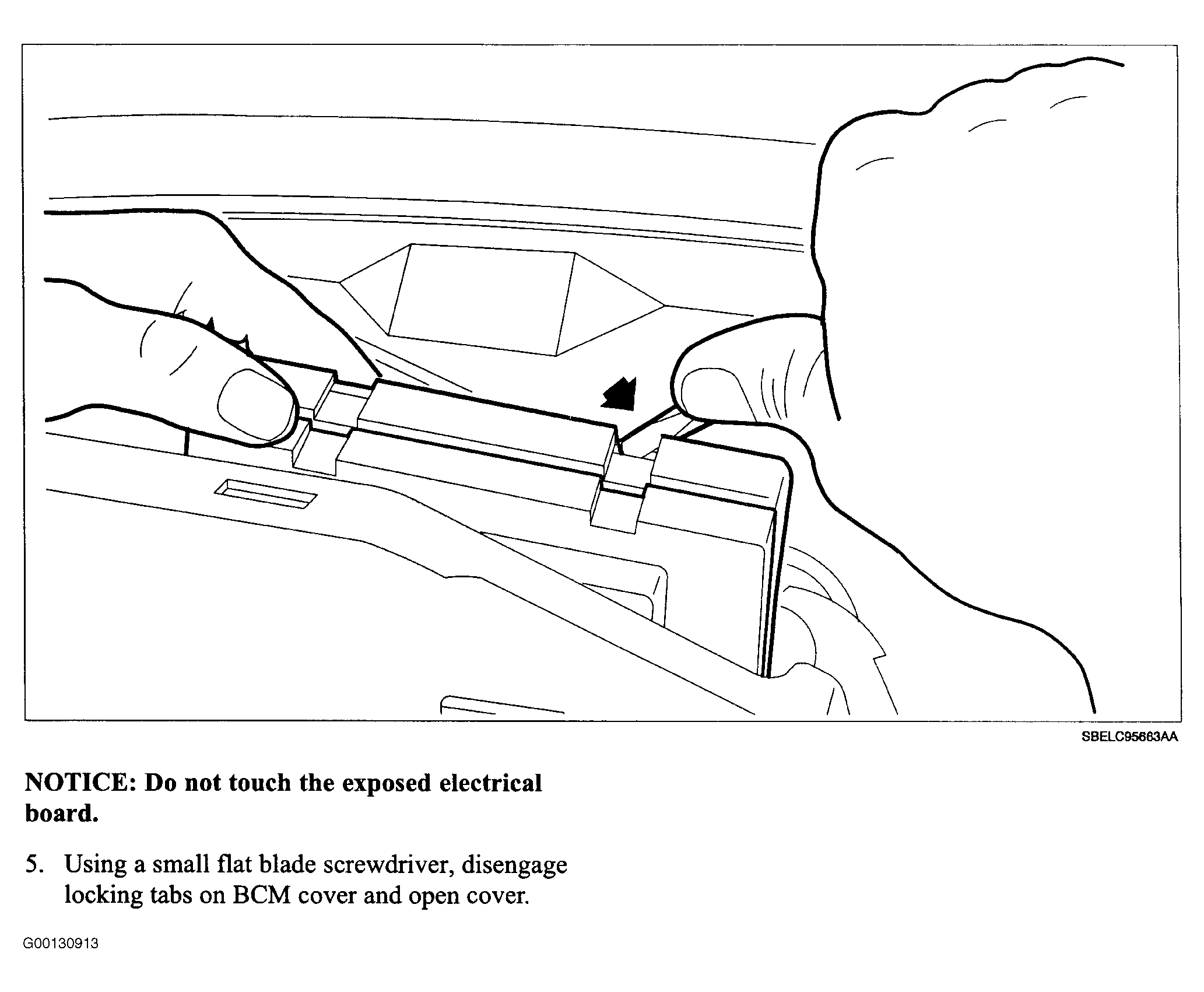

Fig 1: Page 1 of Bulletin

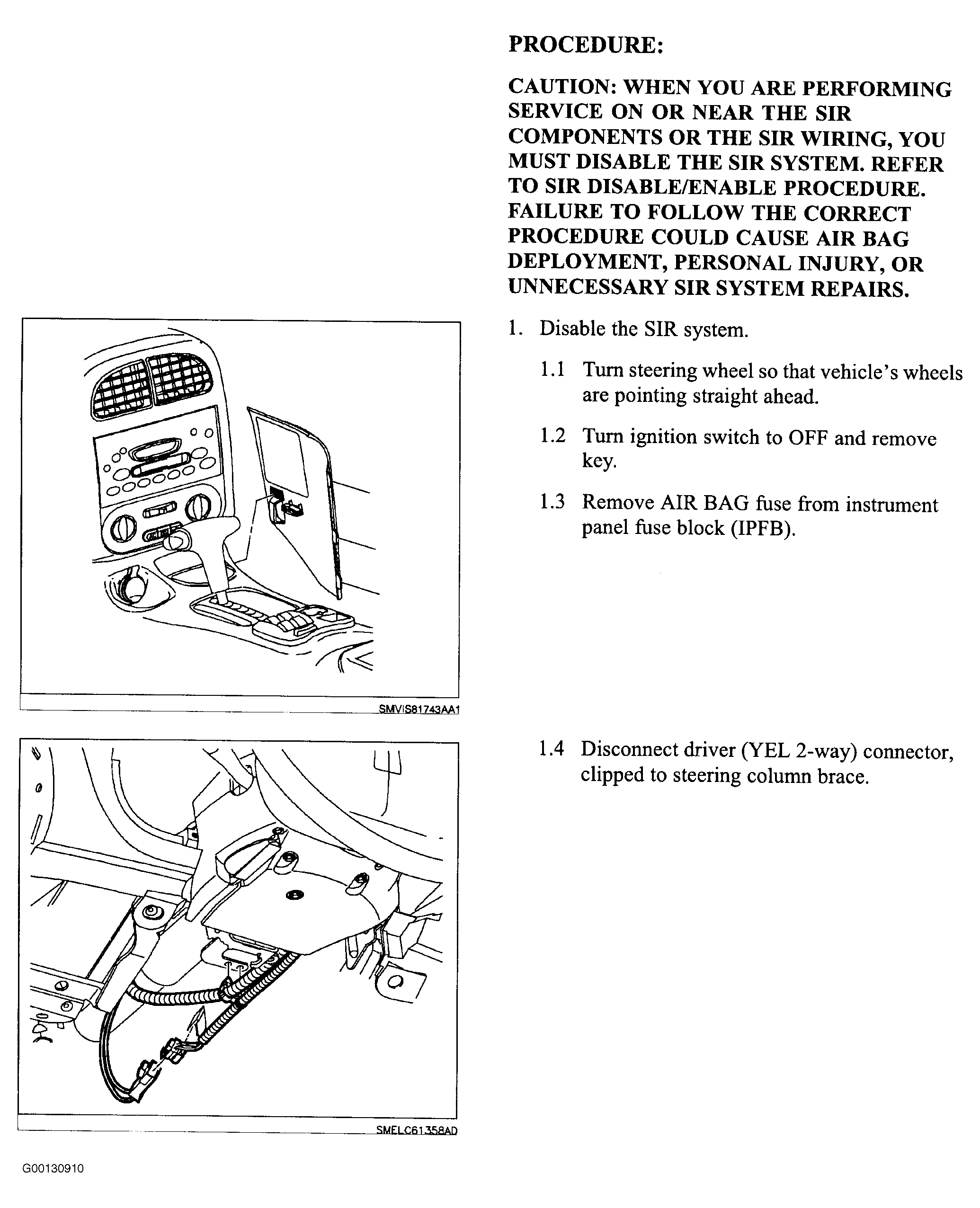

Fig 2: Page 2 of Bulletin

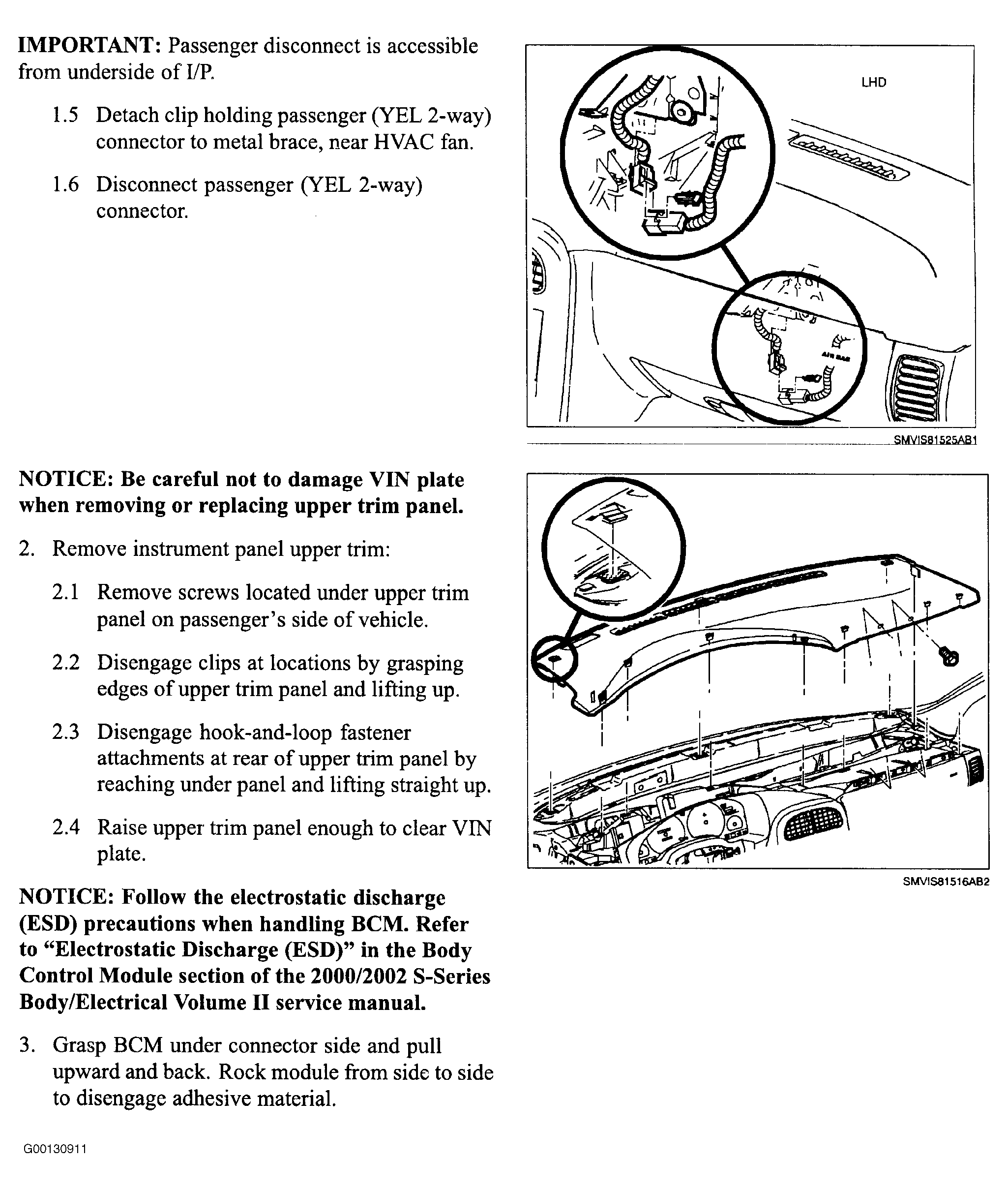

Fig 3: Page 3 of Bulletin

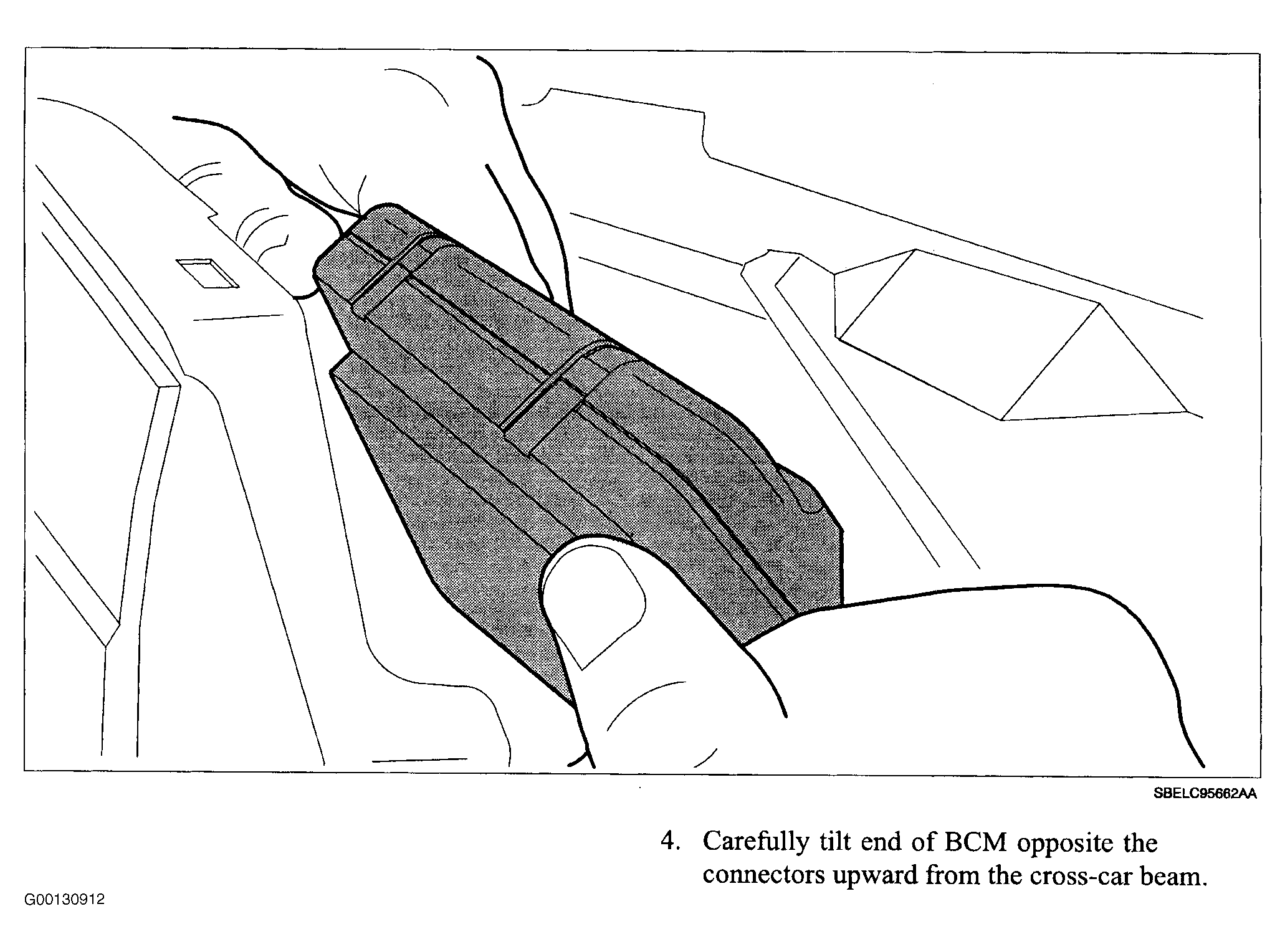

Fig 4: Page 4 of Bulletin

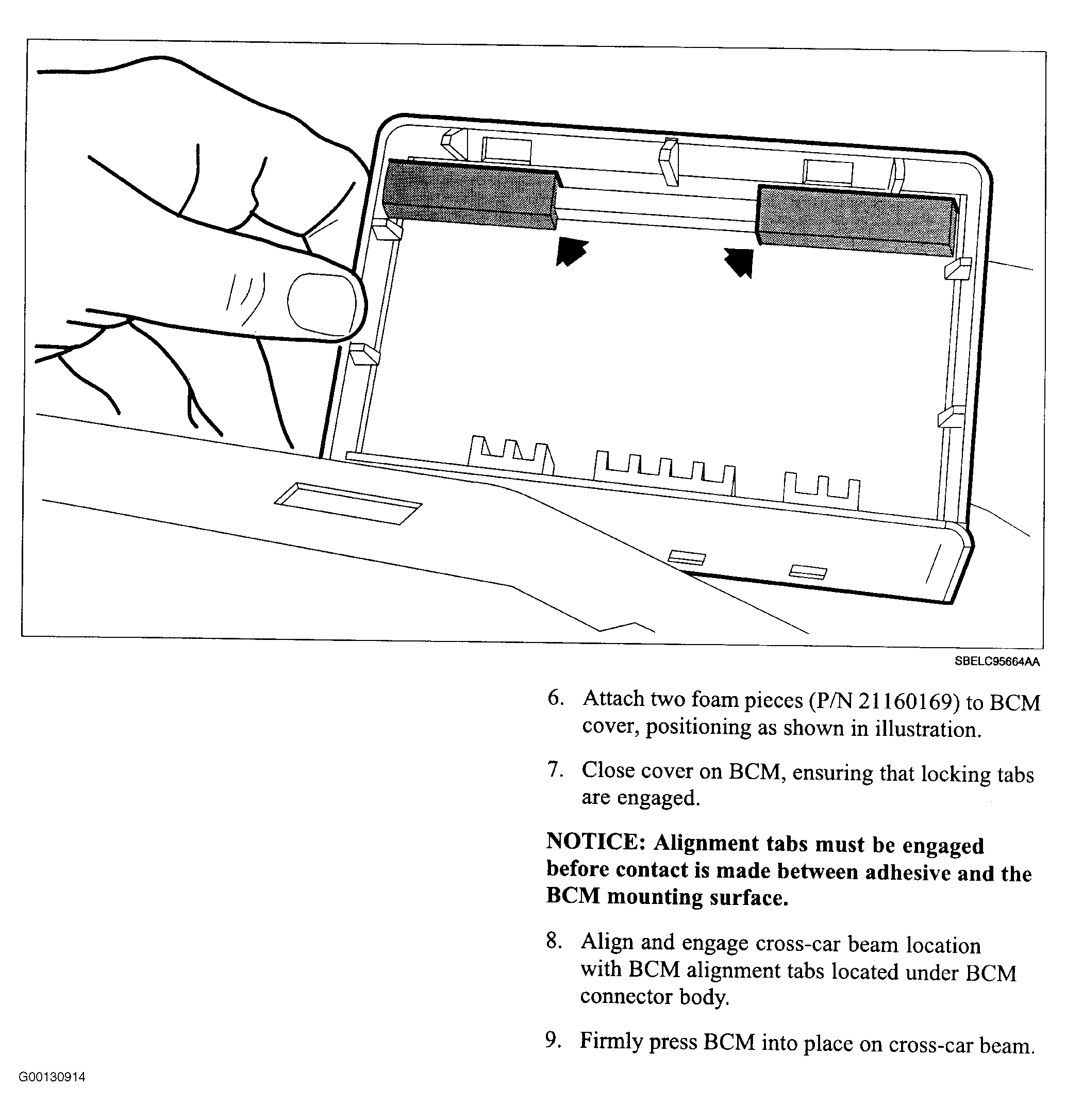

Fig 5: Page 5 of Bulletin

Fig 6: Page 6 of Bulletin

Fig 7: Page 7 of Bulletin

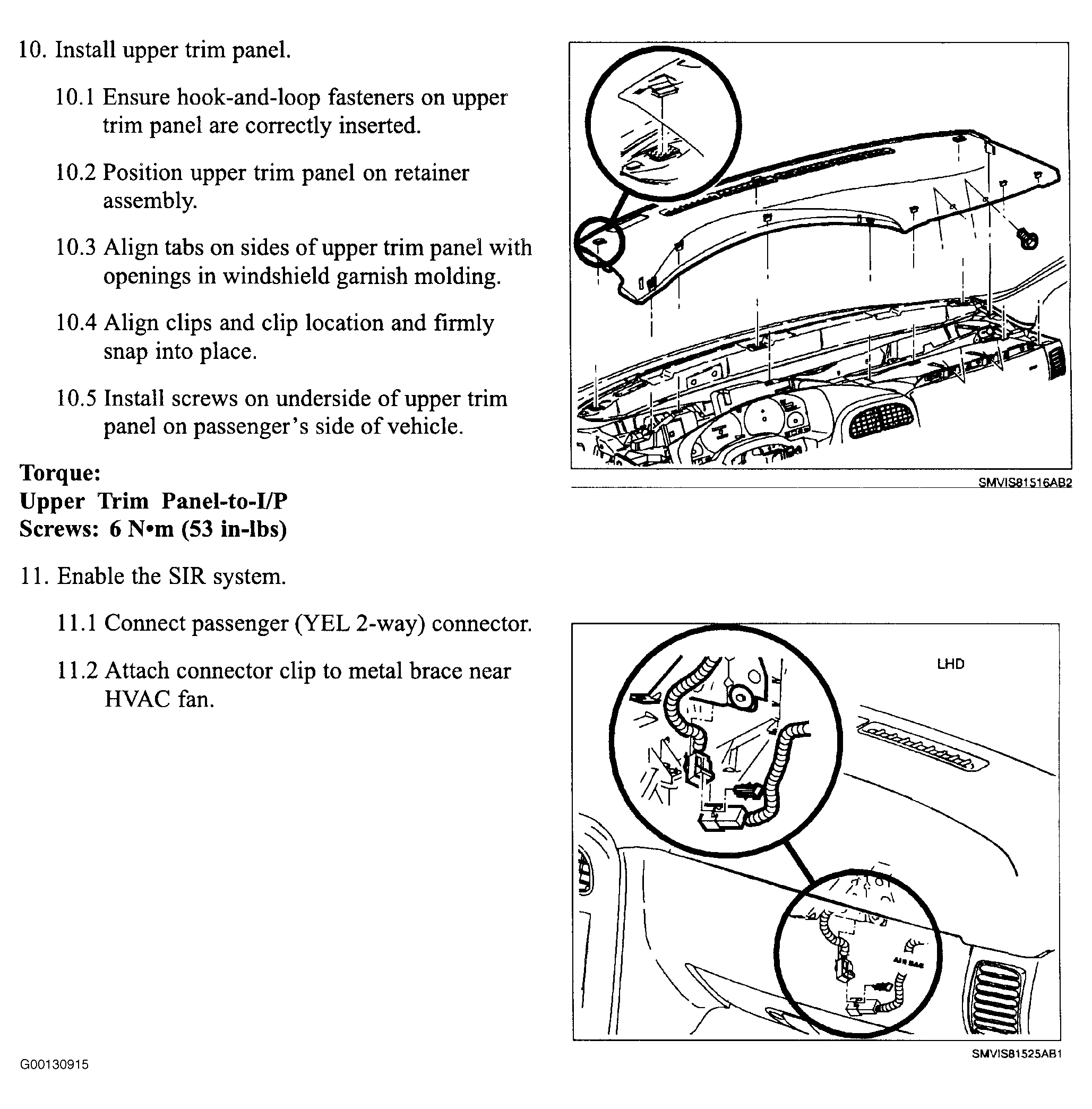

Fig 8: Page 8 of Bulletin

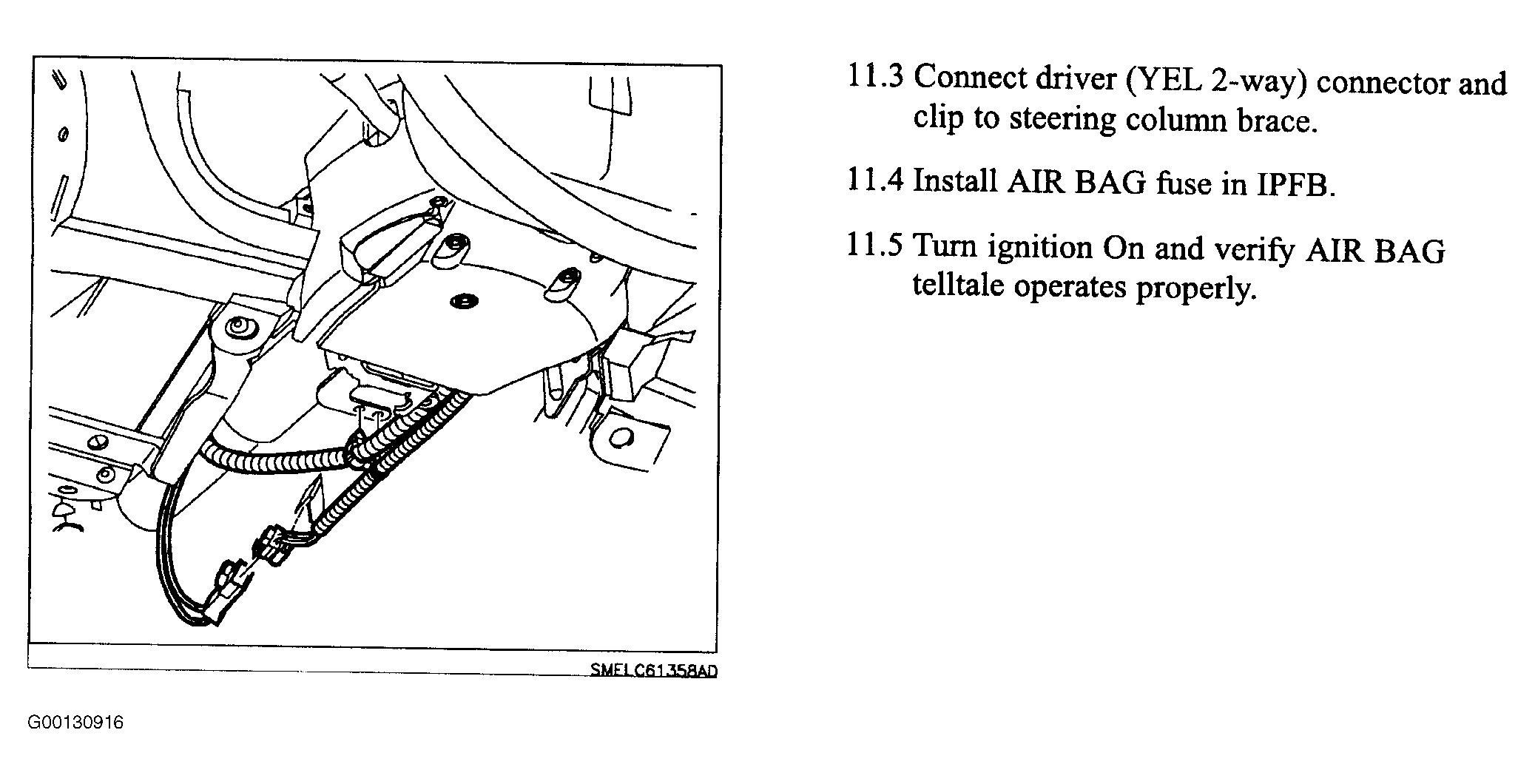

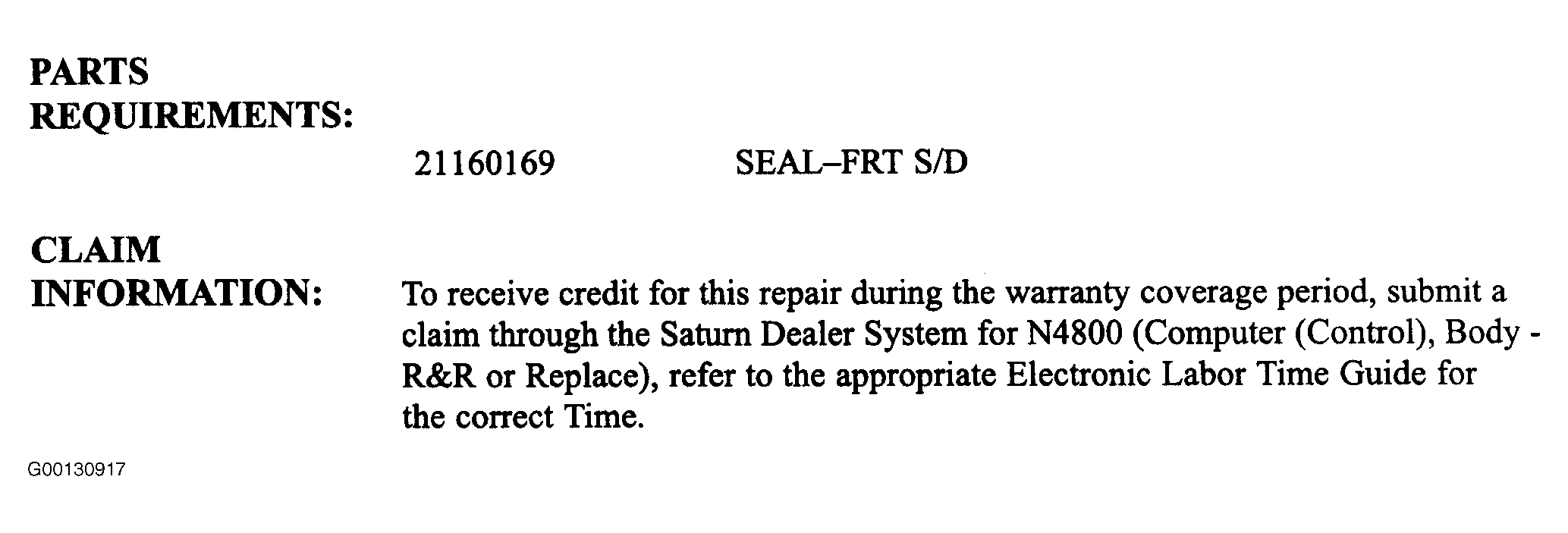

Fig 9: Page 9 of Bulletin
