Test 13: 4.6L

Use CHART C-1 for EGR function testing. See Fig 1.

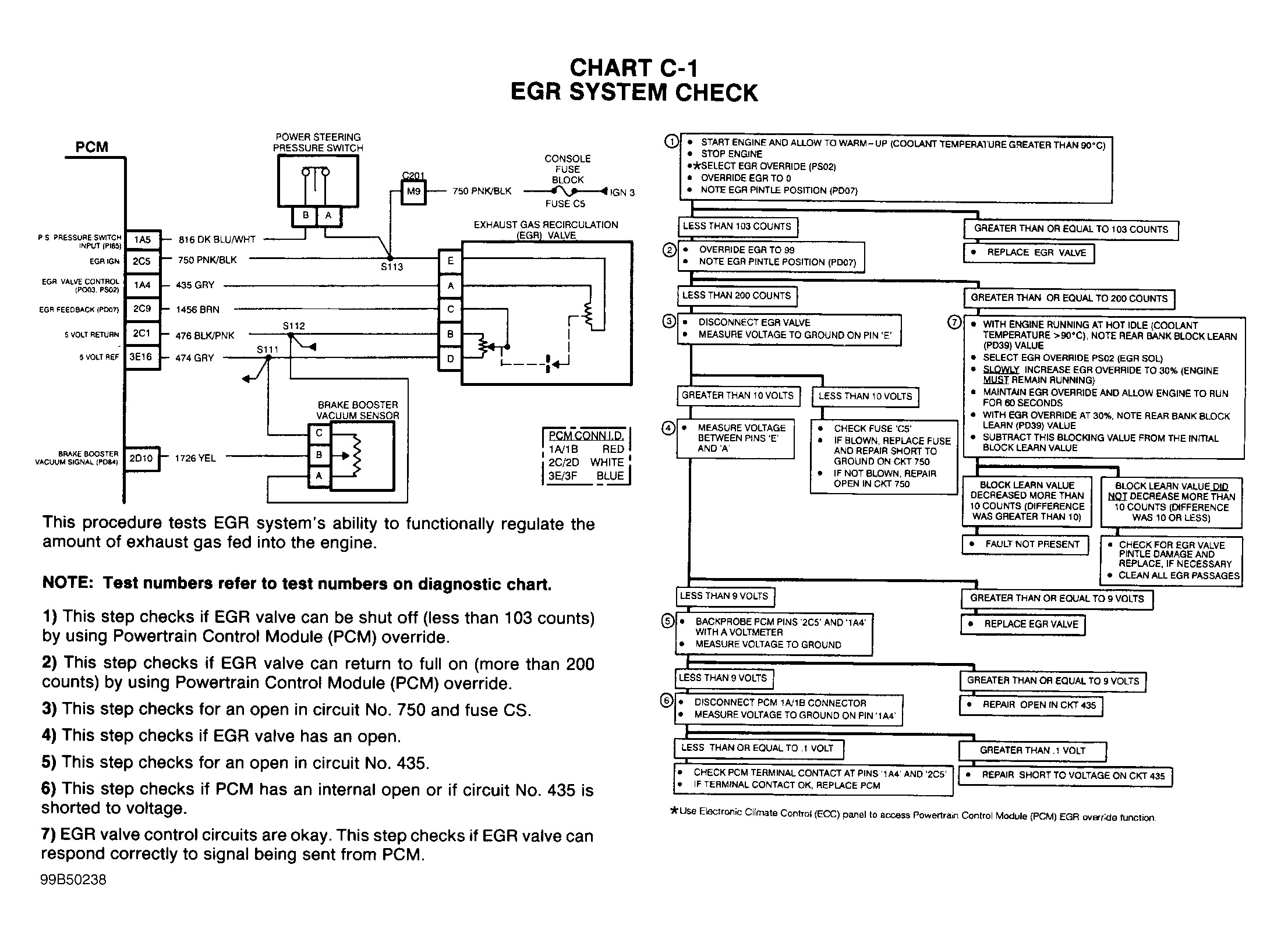

Fig 1: EGR System Function Check (4.6L)
G99B50238Courtesy of GENERAL MOTORS CORP.
