Input Shaft - Component Locations

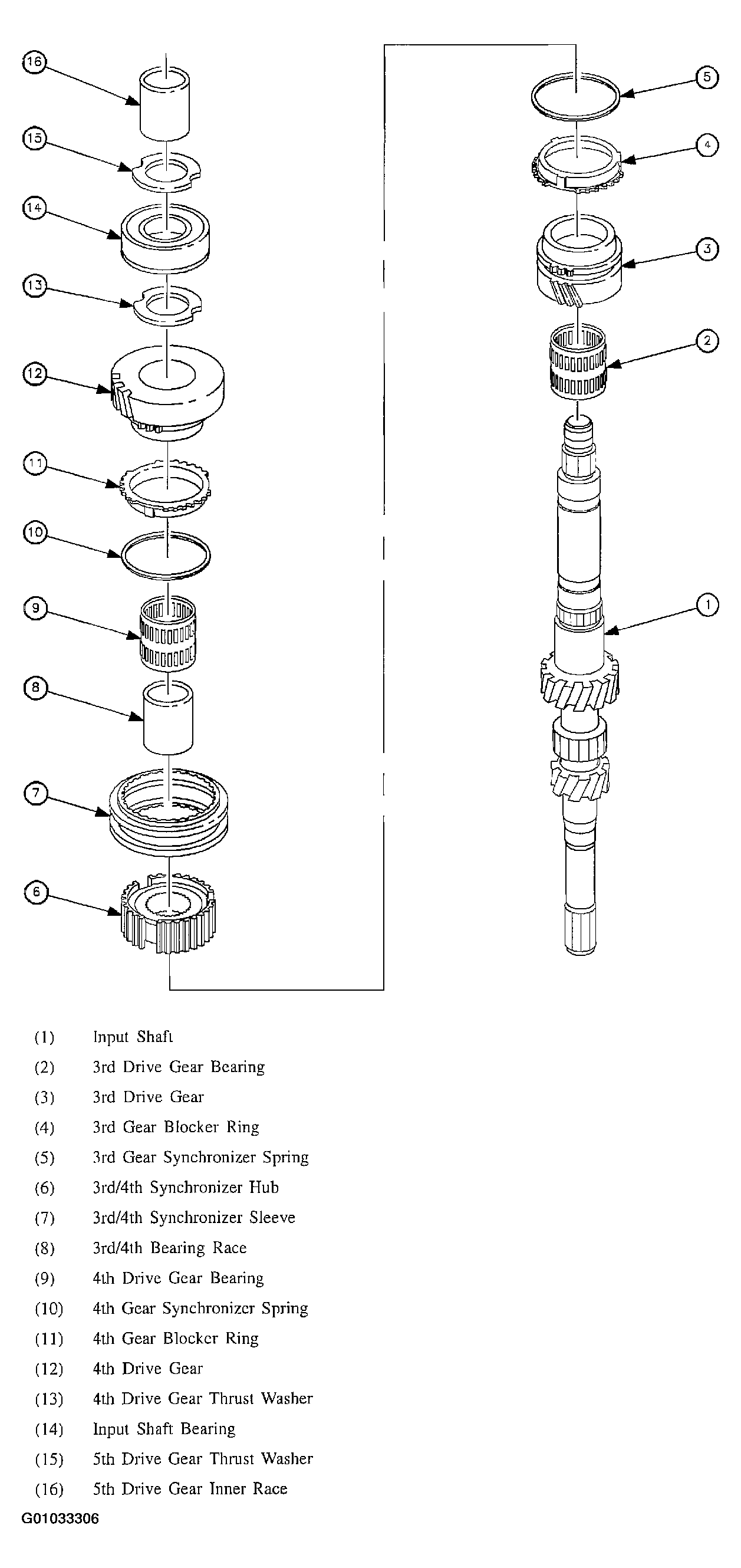

Fig 1: Exploded View Of Input Shaft
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
