Front Cover Oil Seal Replacement

TOOLS REQUIRED:  SA9104E Front Crank Seal Replacer

1. Using a punch or a screwdriver, knock out the oil seal.
   1. Clean the seal bore and oil drain back passage.
   2. Make sure the oil drain back passage is free of RTV and debris.

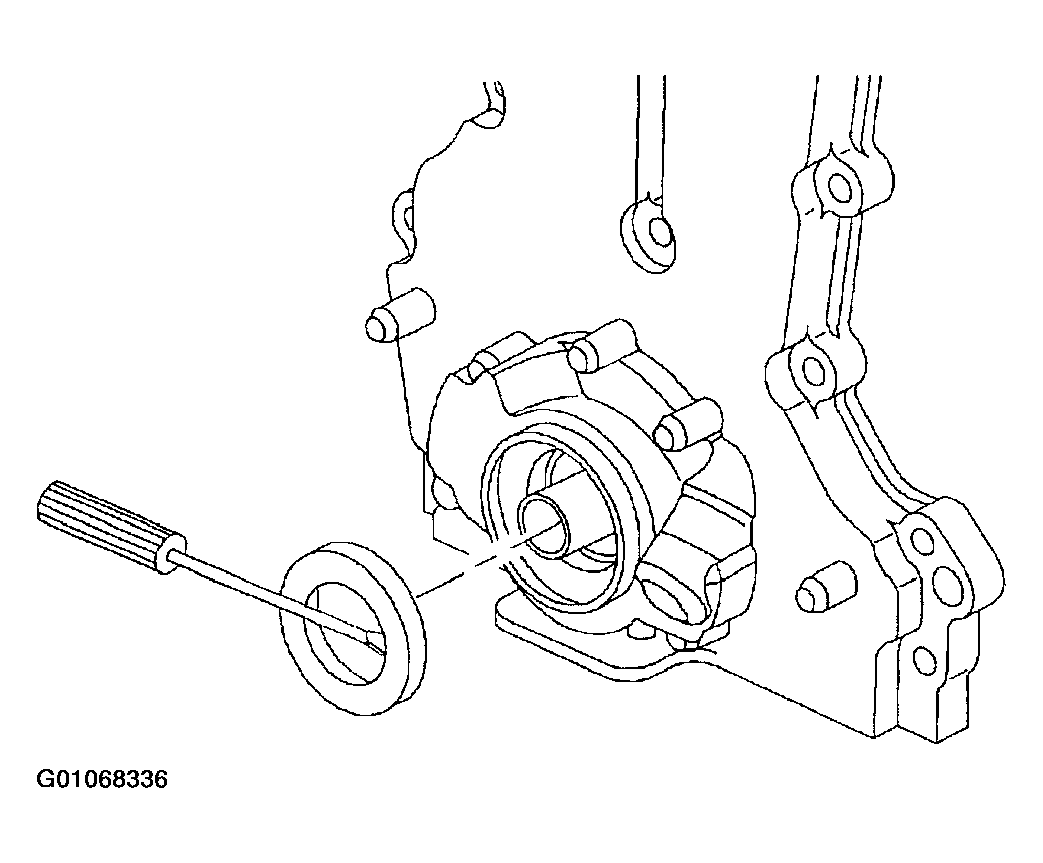

      Fig 1: Knocking Out The Oil Seal

      Courtesy of GENERAL MOTORS CORP.
2. Install oil seal:
   1. Using Front Crank Seal Replacer SA9104E and an arbor press, install a new oil seal. Never tap on the seal or seal installer with a hammer.
   2. Apply a thin film of oil to the new seal lip.

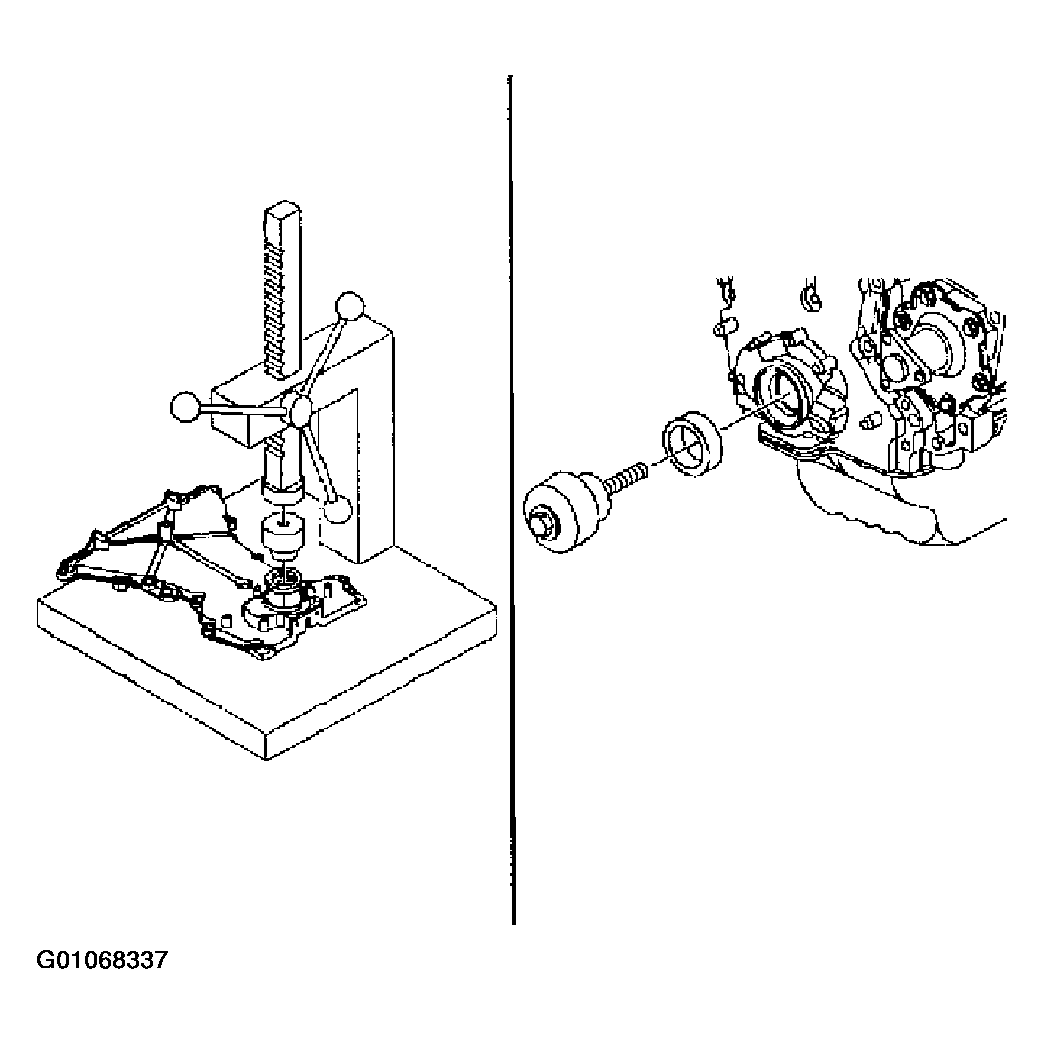

      Fig 2: Installing A New Oil Seal

      Courtesy of GENERAL MOTORS CORP.
