GMLAN (Can)

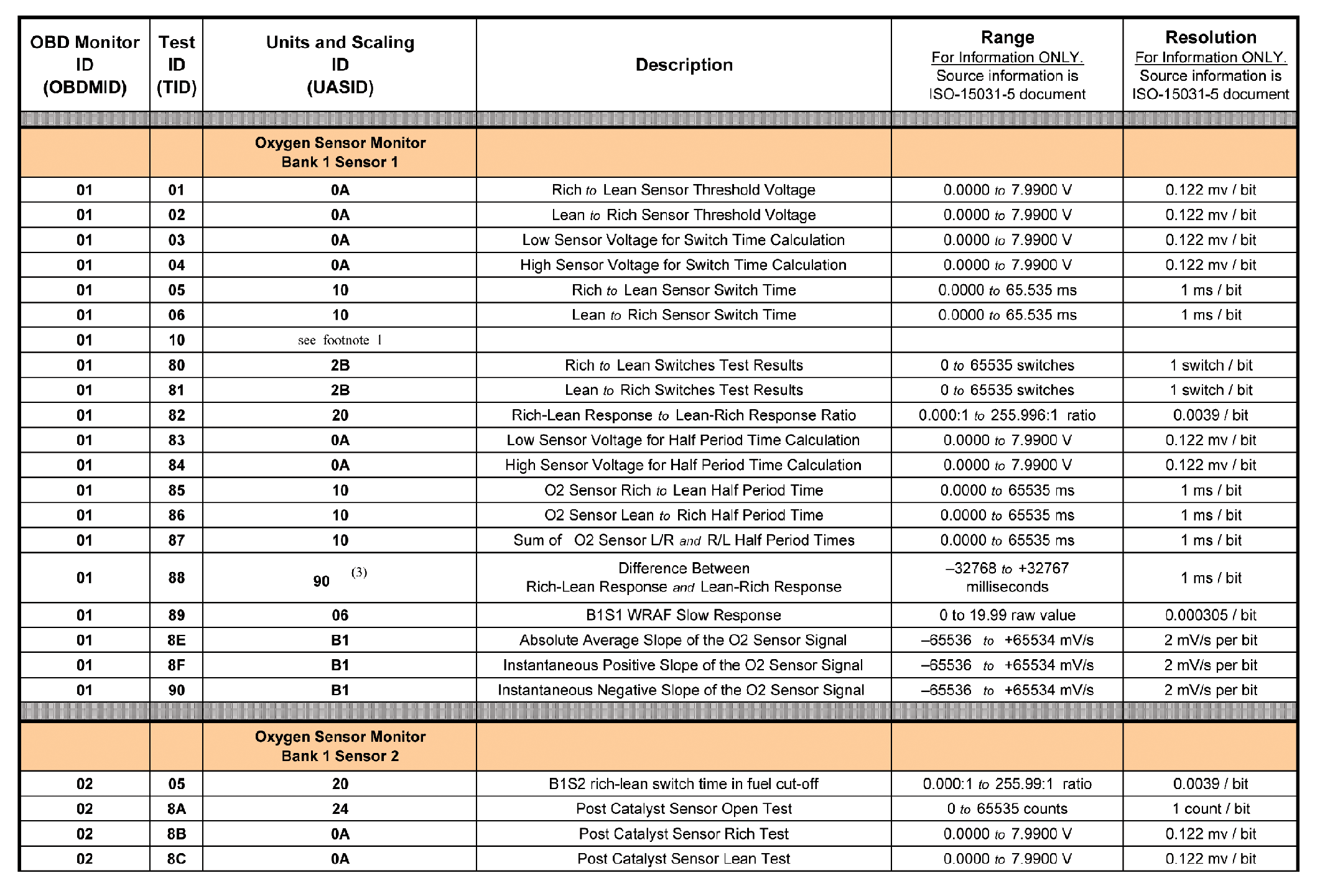

Fig 1: Mode $06 Data Definitions Using GMLAN Diagnostic Data Link (1 Of 9)

Courtesy of GENERAL MOTORS CORP.

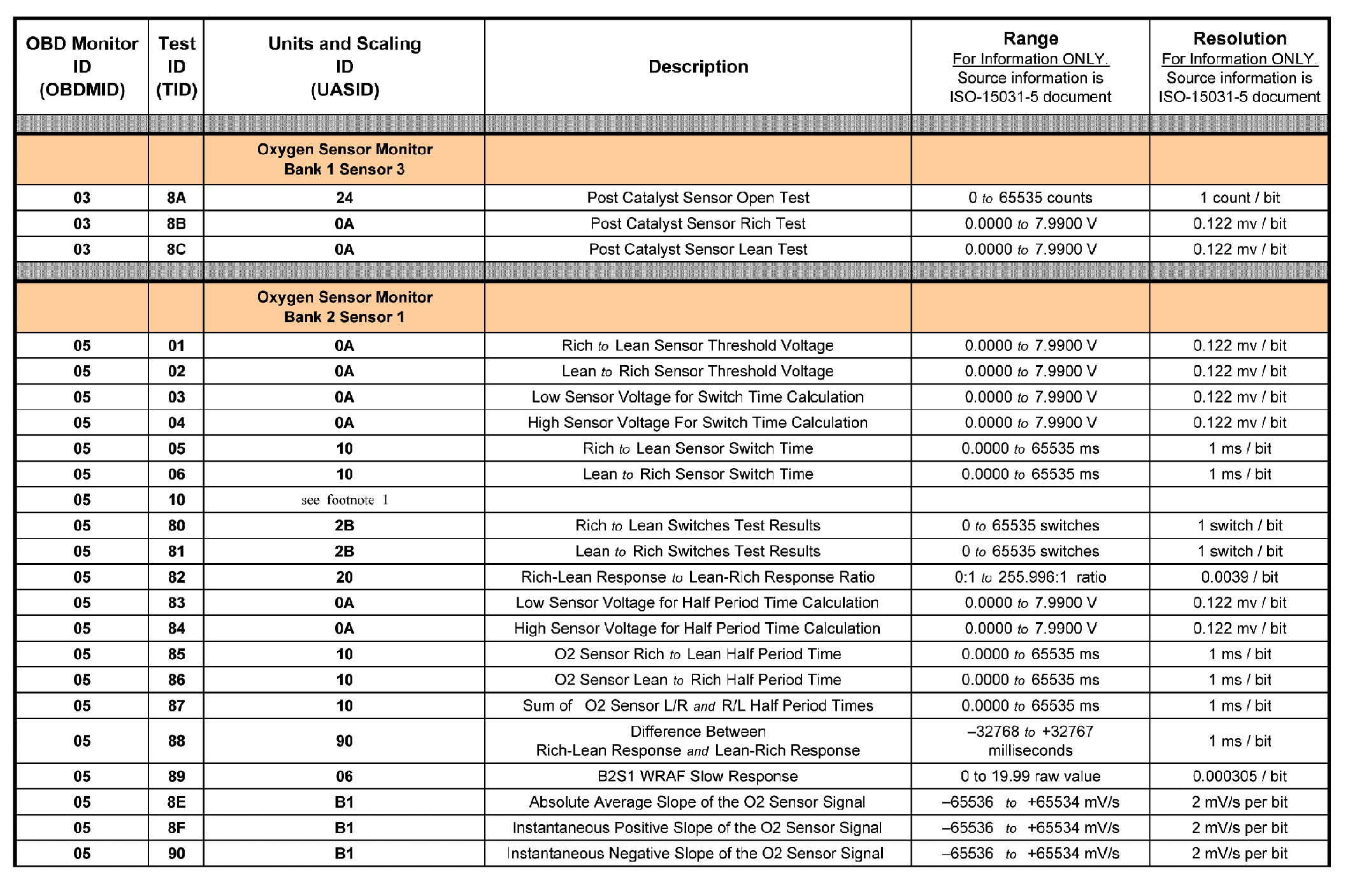

Fig 2: Mode $06 Data Definitions Using GMLAN Diagnostic Data Link (2 Of 9)

Courtesy of GENERAL MOTORS CORP.

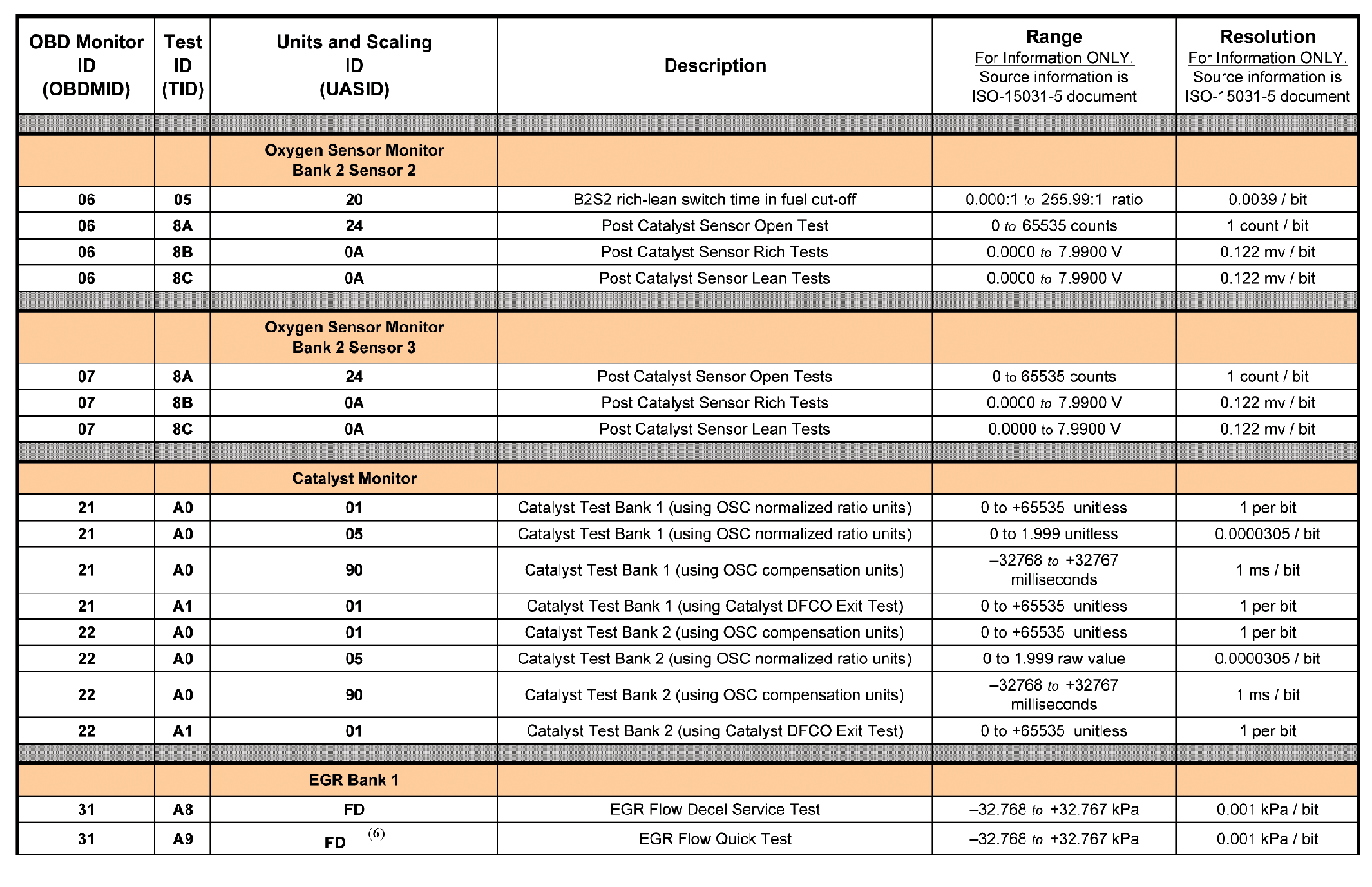

Fig 3: Mode $06 Data Definitions Using GMLAN Diagnostic Data Link (3 Of 9)

Courtesy of GENERAL MOTORS CORP.

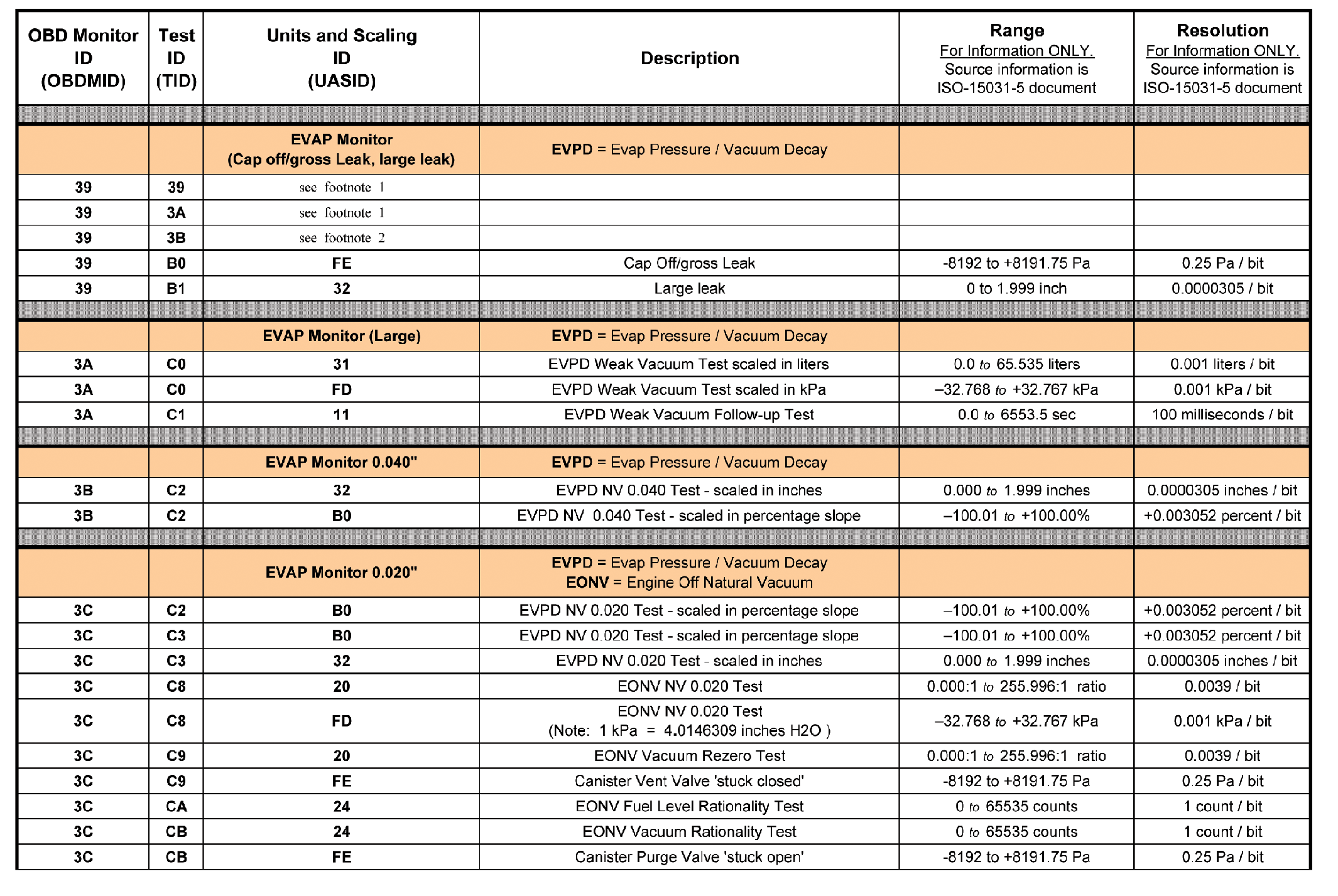

Fig 4: Mode $06 Data Definitions Using GMLAN Diagnostic Data Link (4 Of 9)

Courtesy of GENERAL MOTORS CORP.

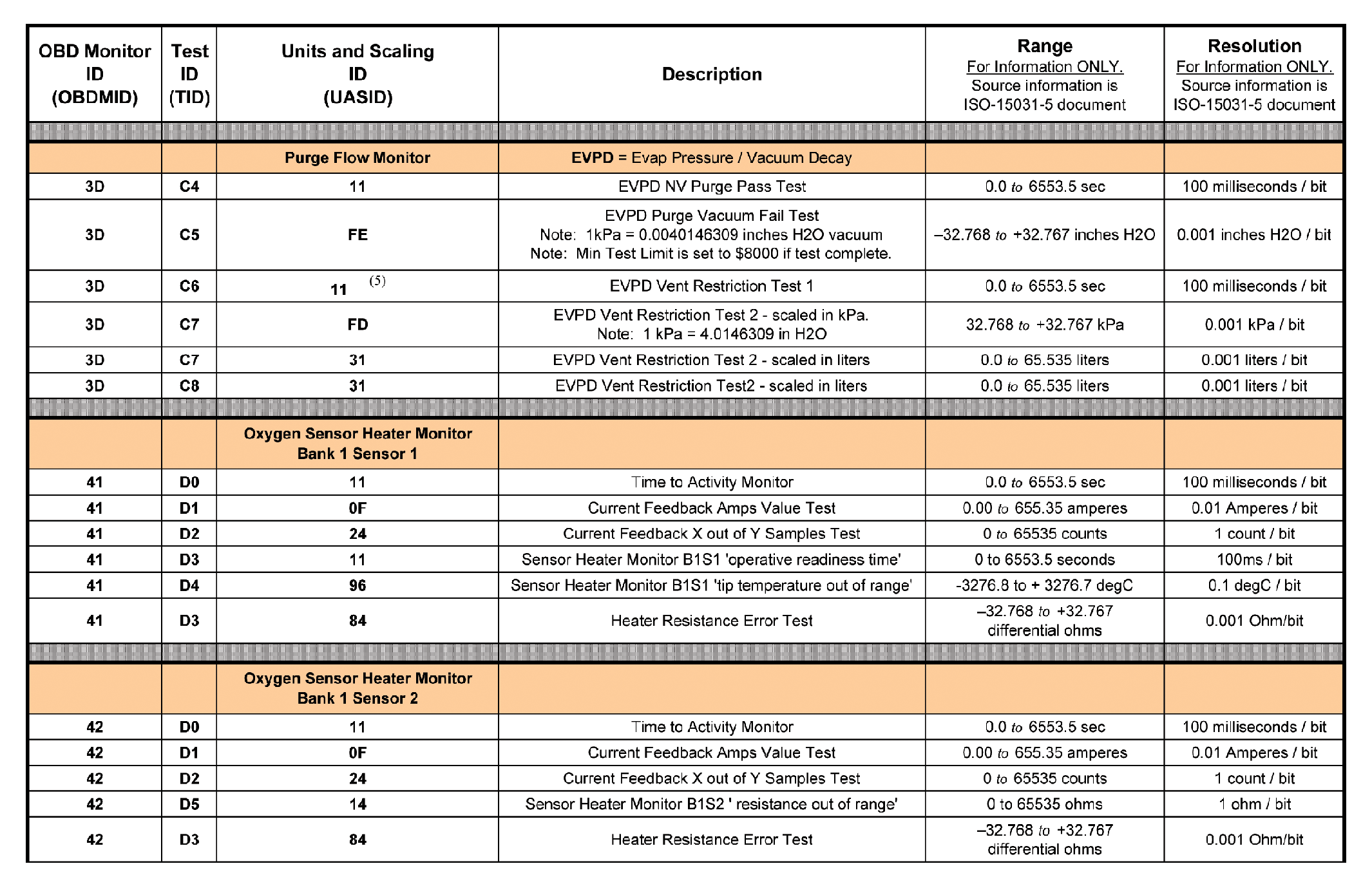

Fig 5: Mode $06 Data Definitions Using GMLAN Diagnostic Data Link (5 Of 9)

Courtesy of GENERAL MOTORS CORP.

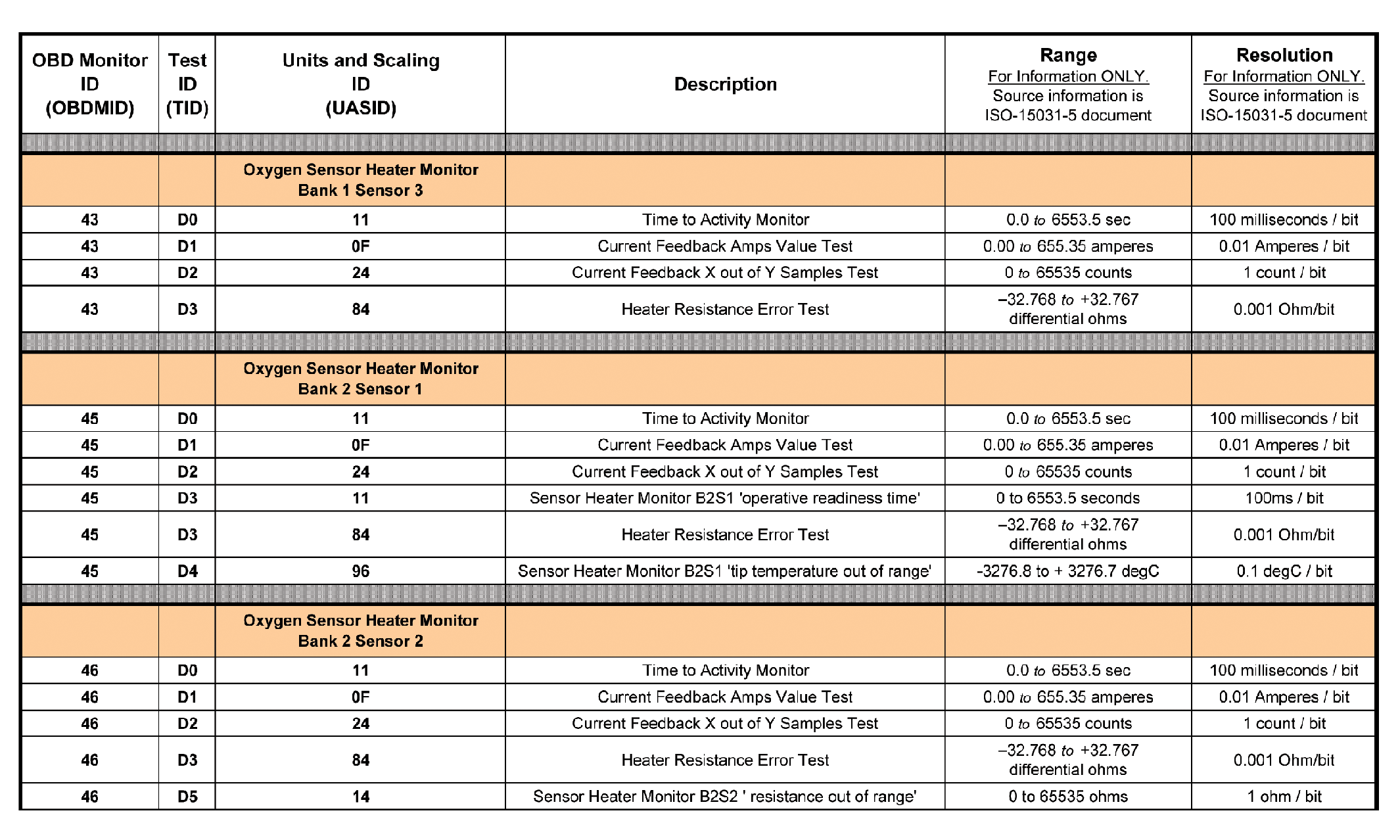

Fig 6: Mode $06 Data Definitions Using GMLAN Diagnostic Data Link (6 Of 9)

Courtesy of GENERAL MOTORS CORP.

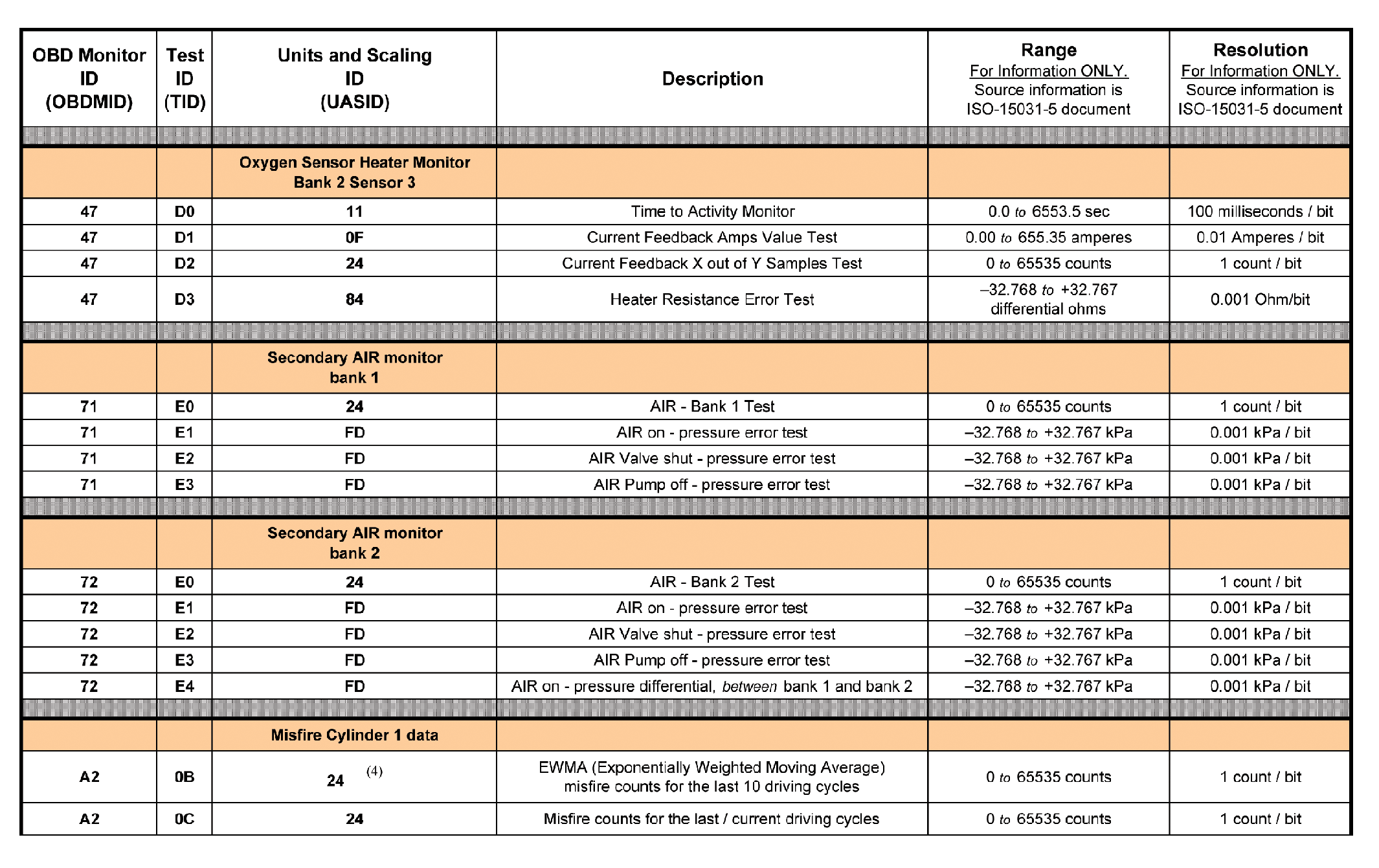

Fig 7: Mode $06 Data Definitions Using GMLAN Diagnostic Data Link (7 Of 9)

Courtesy of GENERAL MOTORS CORP.

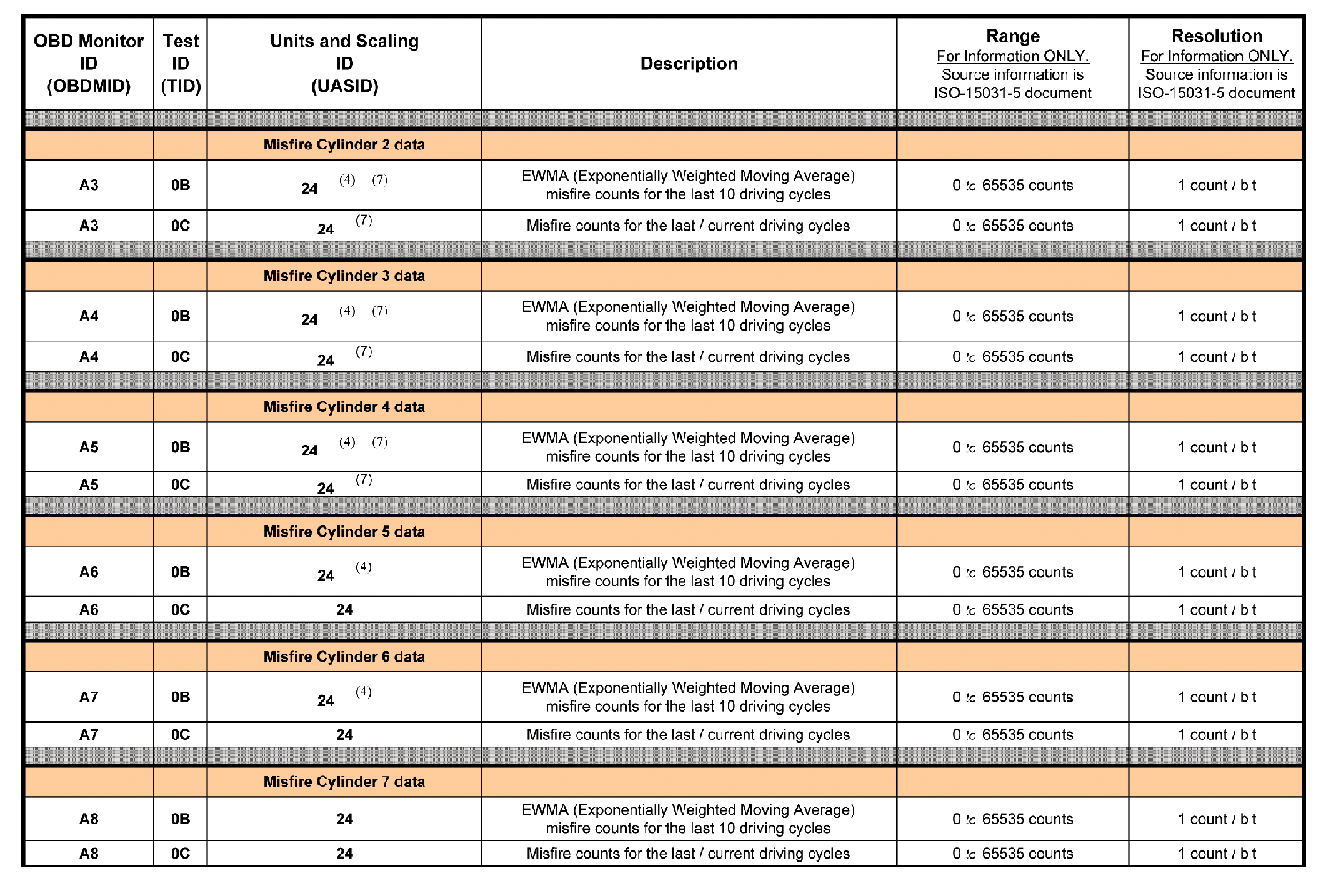

Fig 8: Mode $06 Data Definitions Using GMLAN Diagnostic Data Link (8 Of 9)

Courtesy of GENERAL MOTORS CORP.

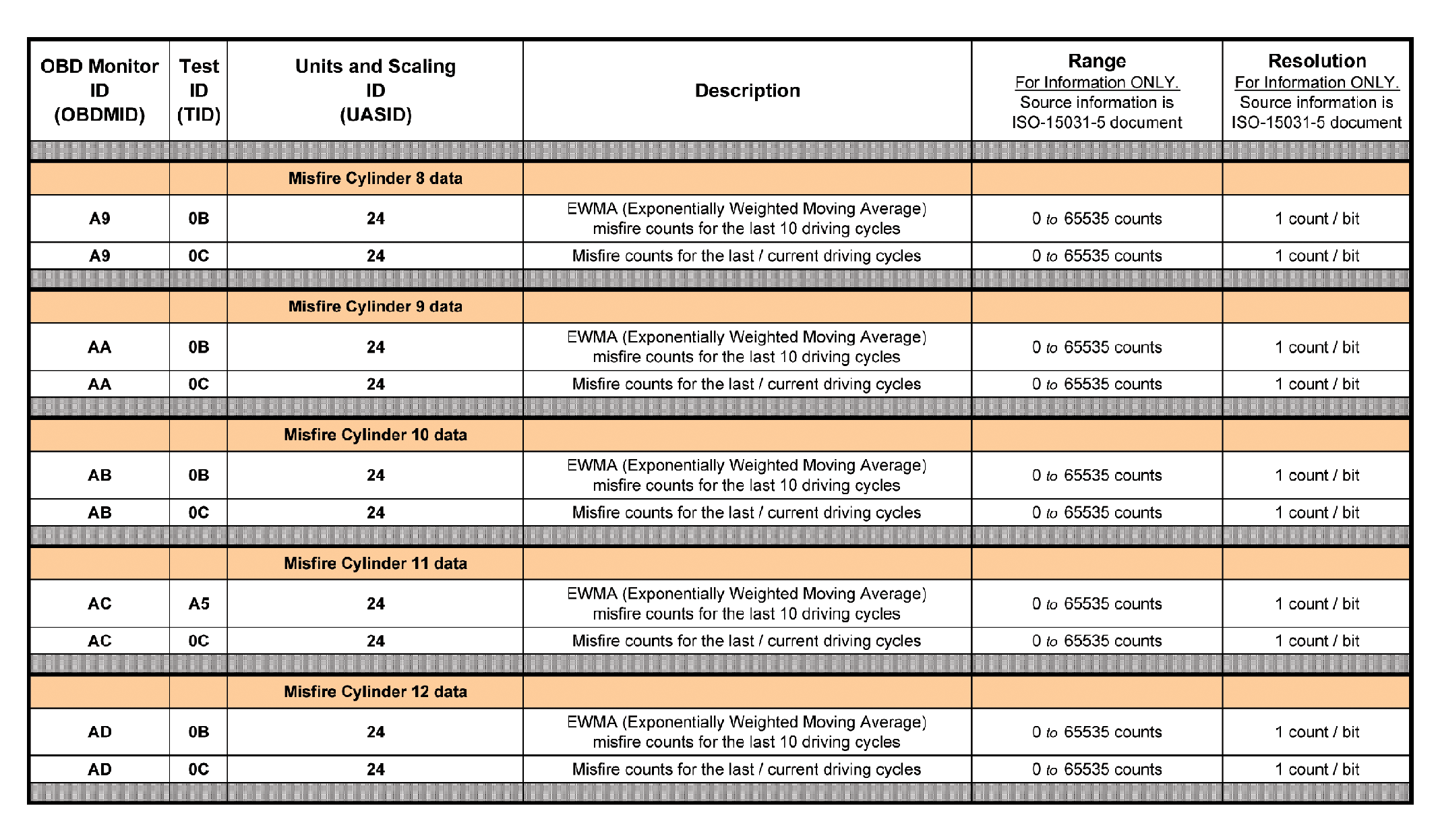

Fig 9: Mode $06 Data Definitions Using GMLAN Diagnostic Data Link (9 Of 9)

Courtesy of GENERAL MOTORS CORP.

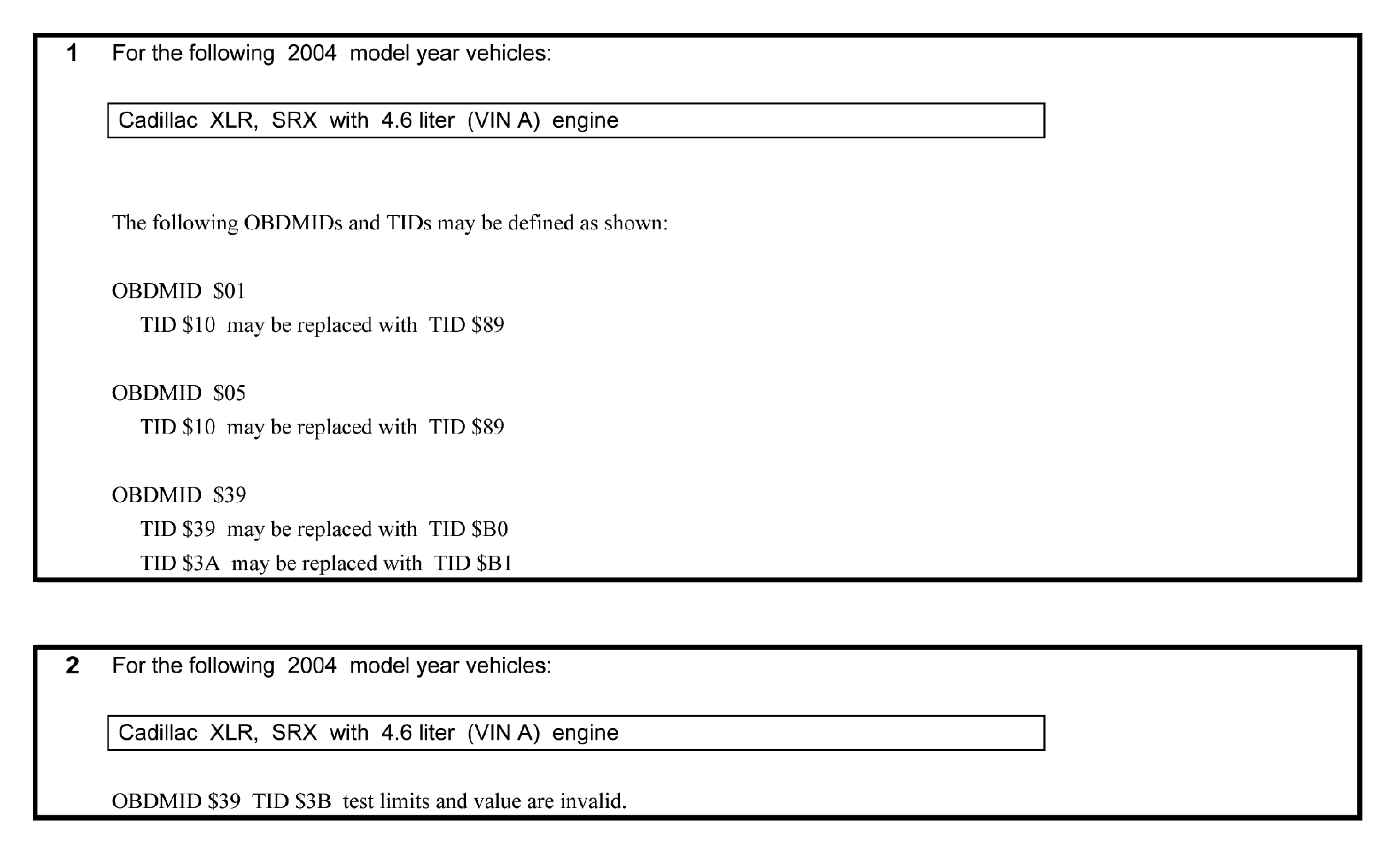

Fig 10: GMLAN Footnotes 1 & 2

Courtesy of GENERAL MOTORS CORP.

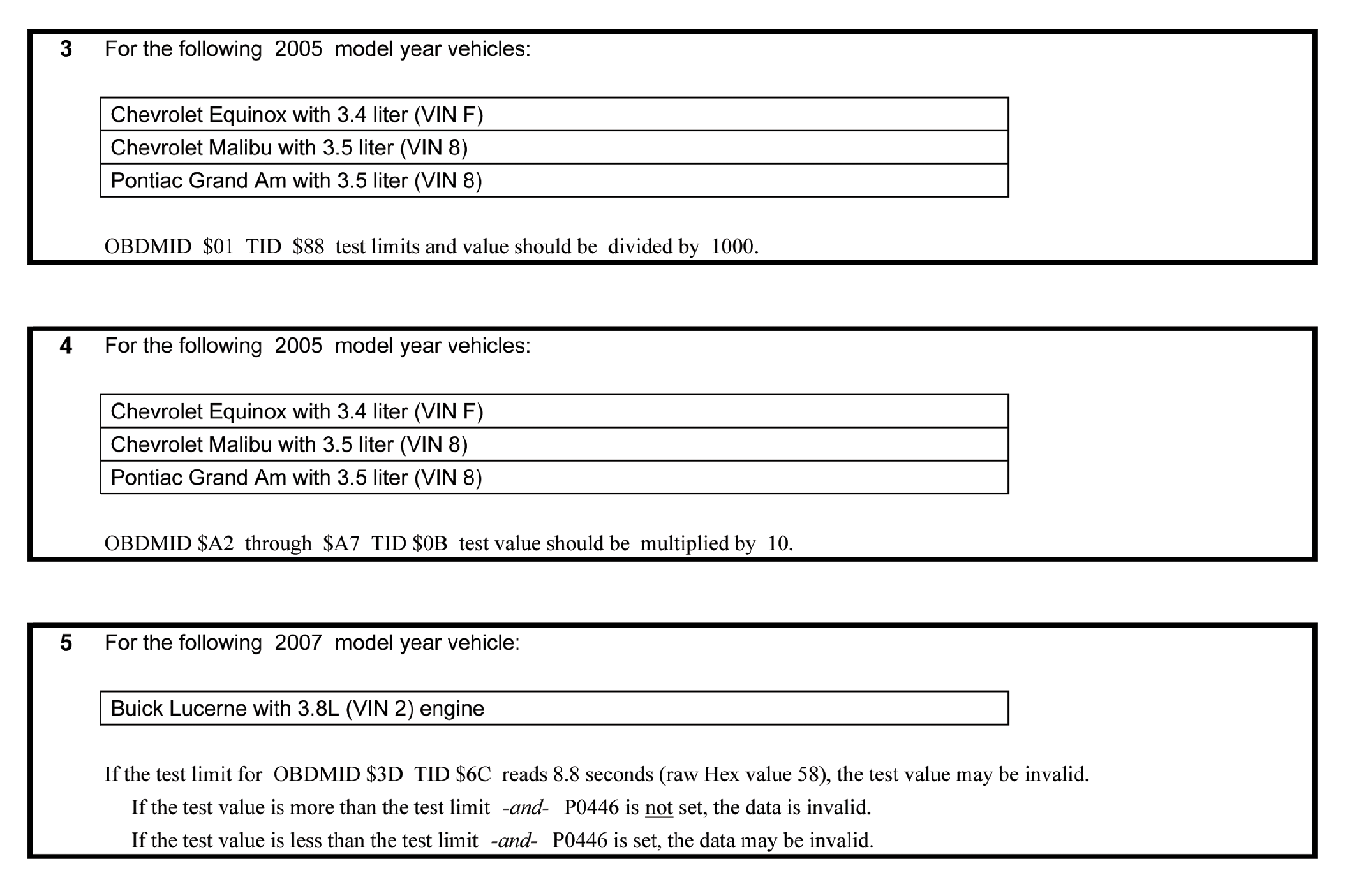

Fig 11: GMLAN Footnotes 3-5

Courtesy of GENERAL MOTORS CORP.

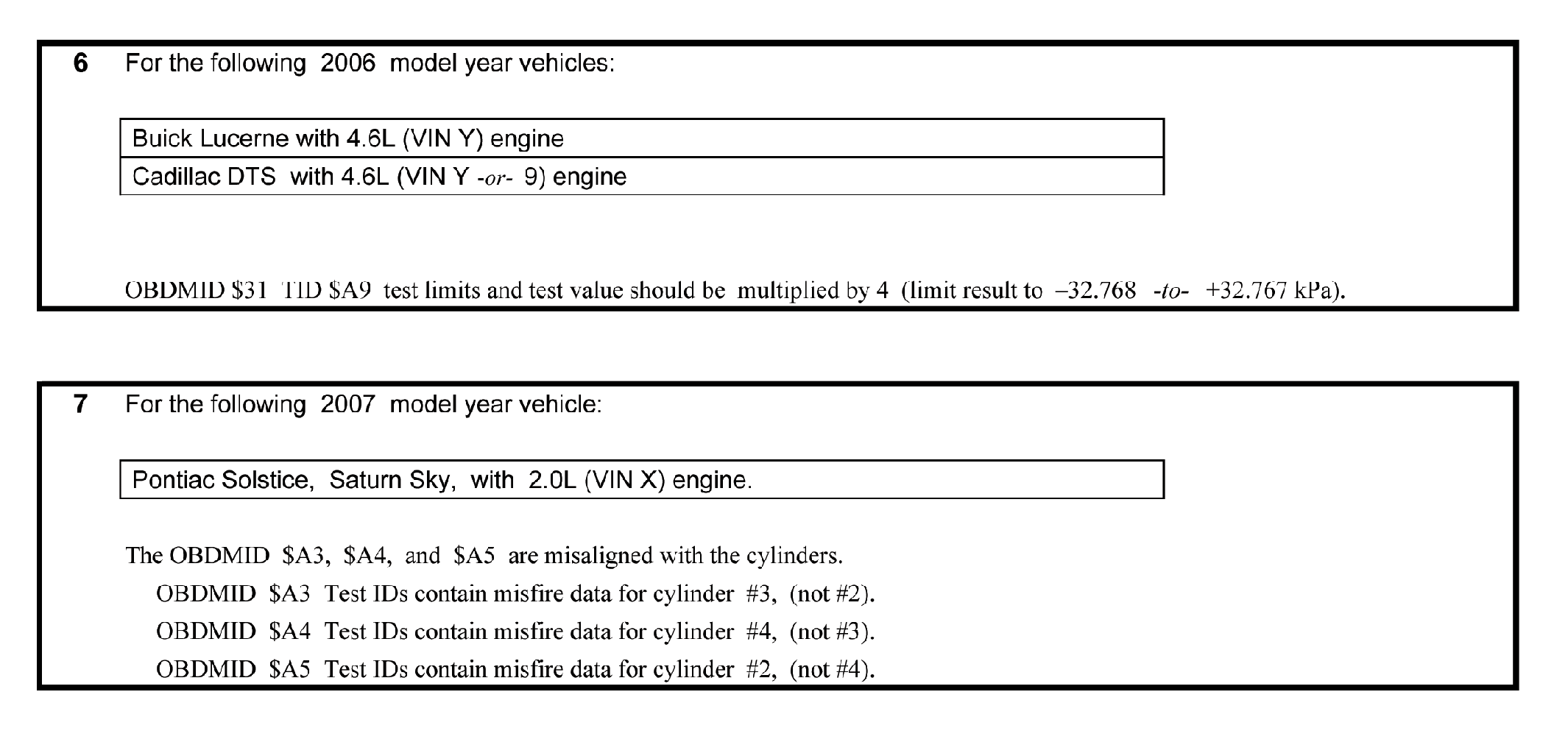

Fig 12: GMLAN Footnotes 6 & 7

Courtesy of GENERAL MOTORS CORP.
