Removal And Installation General Service Information: Console: Removal

Disable SIR system. For 2000 models, see DISABLING & ACTIVATING AIR BAG SYSTEM . For 2001 models, see DISABLING & ACTIVATING AIR BAG SYSTEM . For 2002 models, see DISABLING & ACTIVATING AIR BAG SYSTEM .
Apply parking brake lever.
Remove window mirror switch (if equipped).
1. Exert pressure on rear of window mirror switch with hand.
2. Pry up with blunt tool at rear retainer assembly tabs.

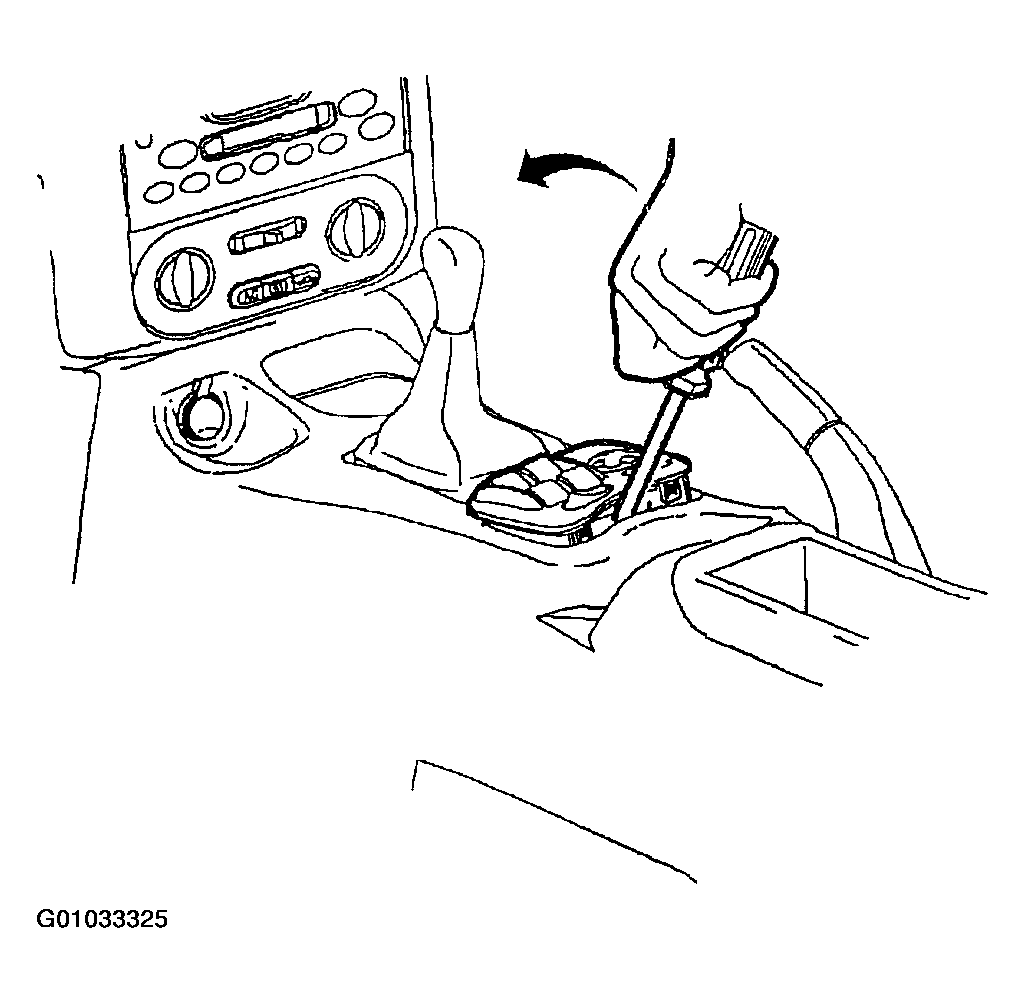

  Fig 1: Prying Up On Rear Of Power Window Switch
  Courtesy of GENERAL MOTORS CORP.
3. Lift window mirror switch up and out.
4. Disconnect electrical connector by locating retention tabs and disengaging connectors.

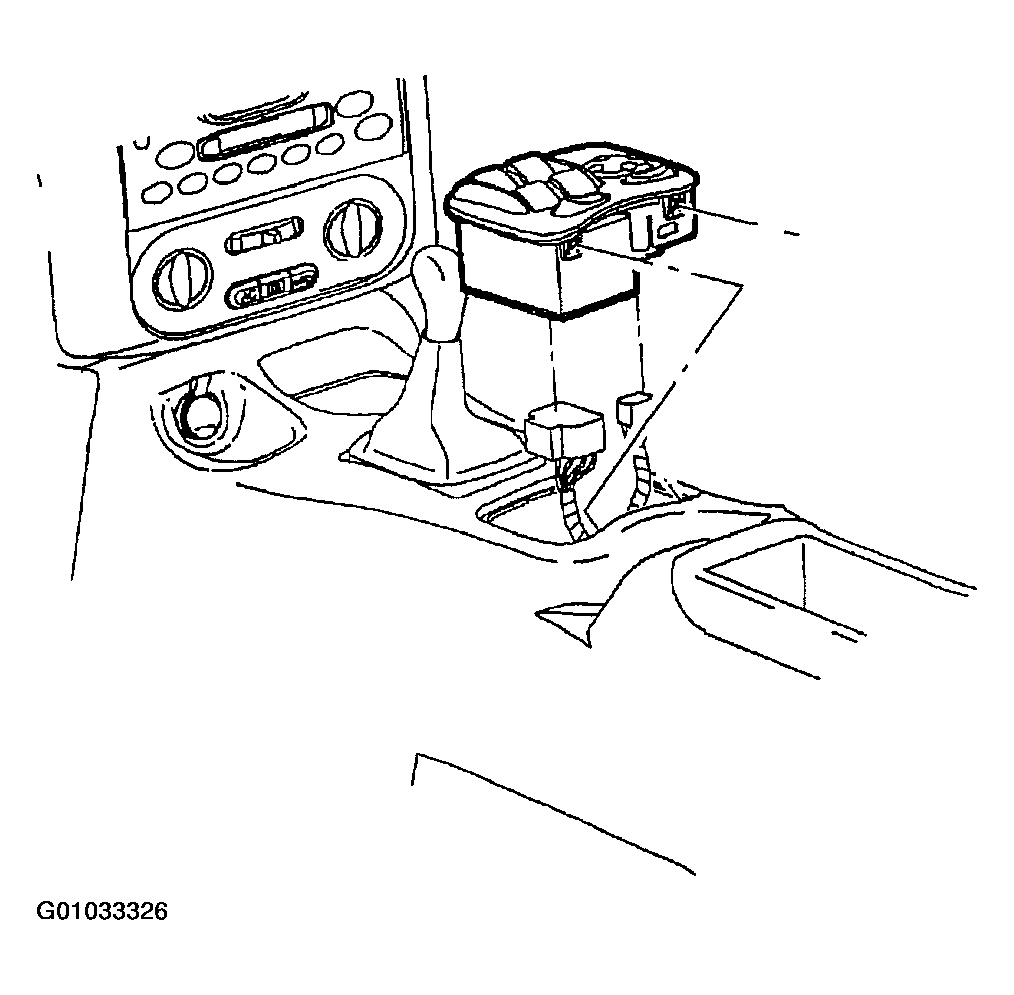

Fig 2: Removing Power Window Switch
Courtesy of GENERAL MOTORS CORP.
Adjust front seats to most forward position.
Remove rear console screws.

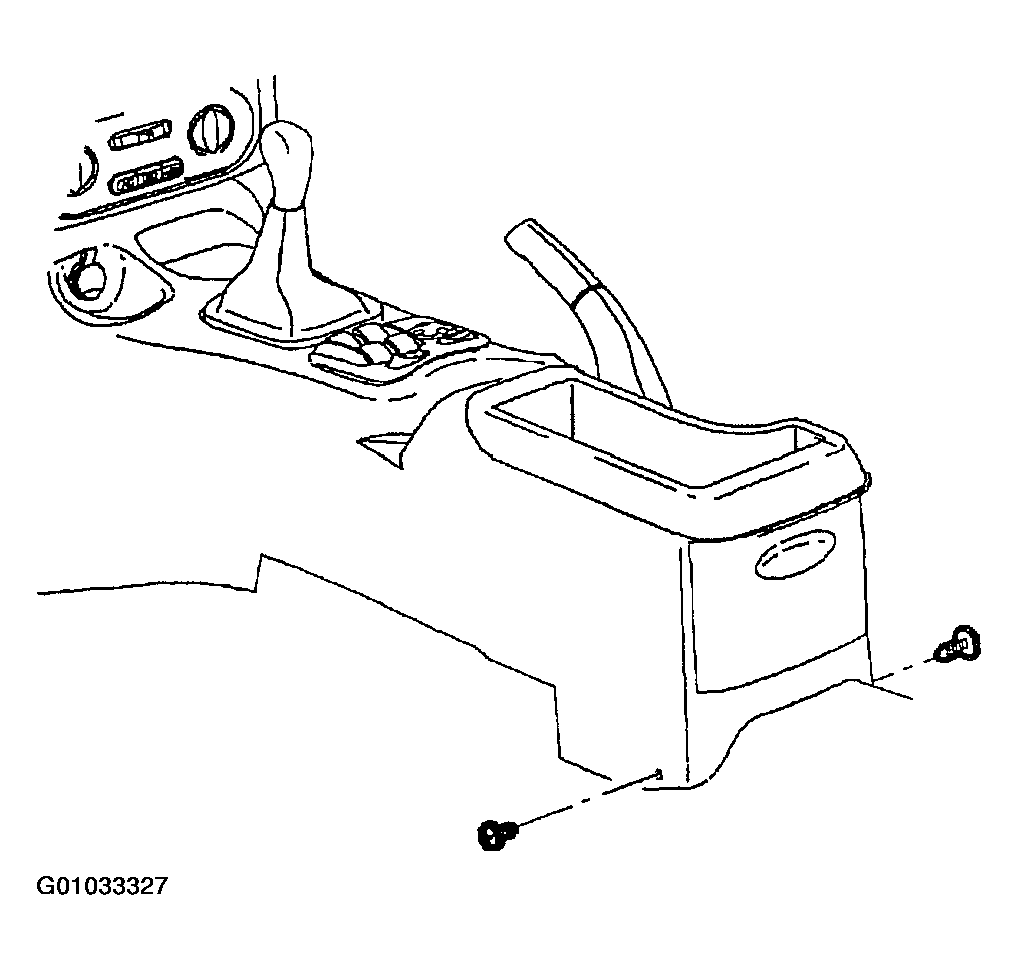

Fig 3: identifying Rear Console Screws
Courtesy of GENERAL MOTORS CORP.
Adjust front seats to most rearward position.
Remove left and right lower trim panel extensions by pulling outward at dual lock locations.
Rotate panels outward to disengage hinges from console.

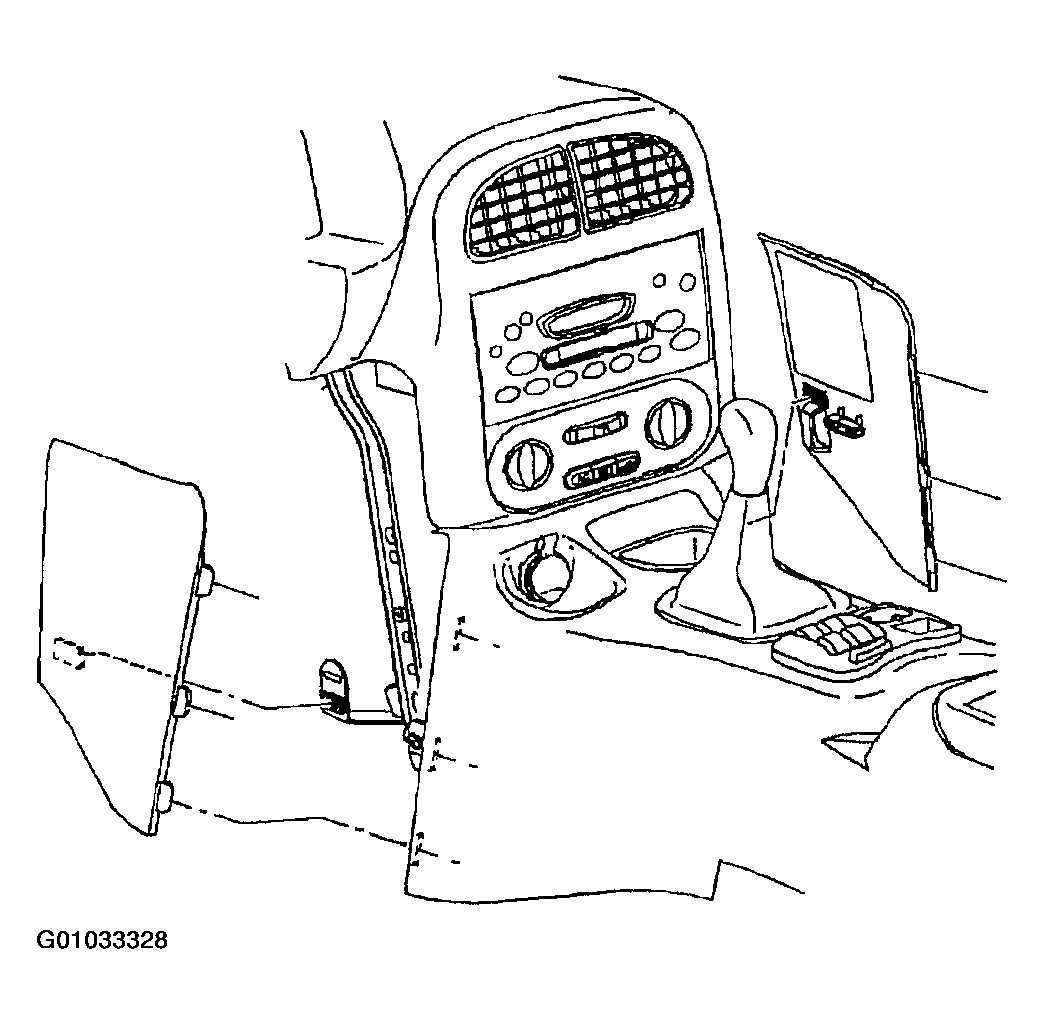

Fig 4: Removing Left & Right Lower Trim Panel Extensions
Courtesy of GENERAL MOTORS CORP.
Remove front console screws.
Move console rearward.
Disengage retaining tabs and disconnect power outlet connector.

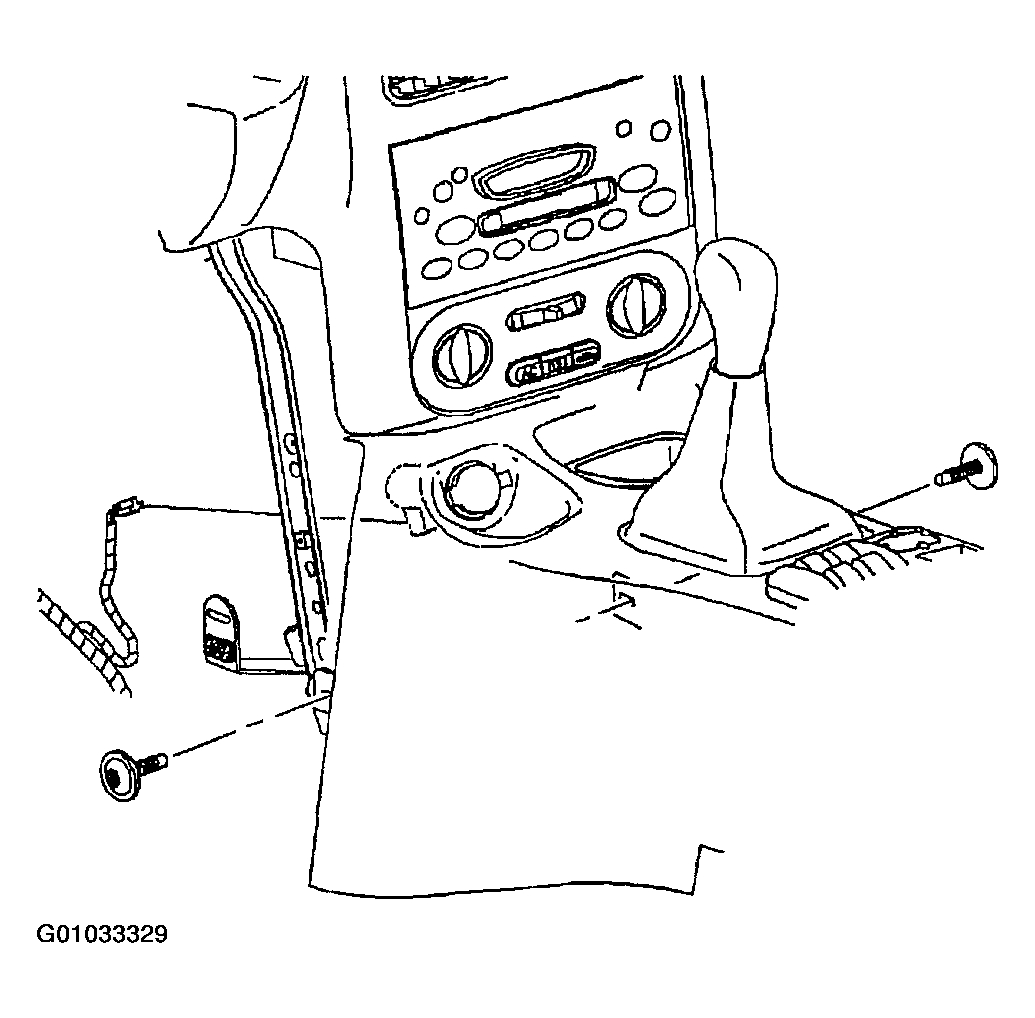

Fig 5: Identifying Front Console Screws
Courtesy of GENERAL MOTORS CORP.
Maneuver console beyond gear selector and parking brake by lifting rear of console.
Remove console from vehicle.

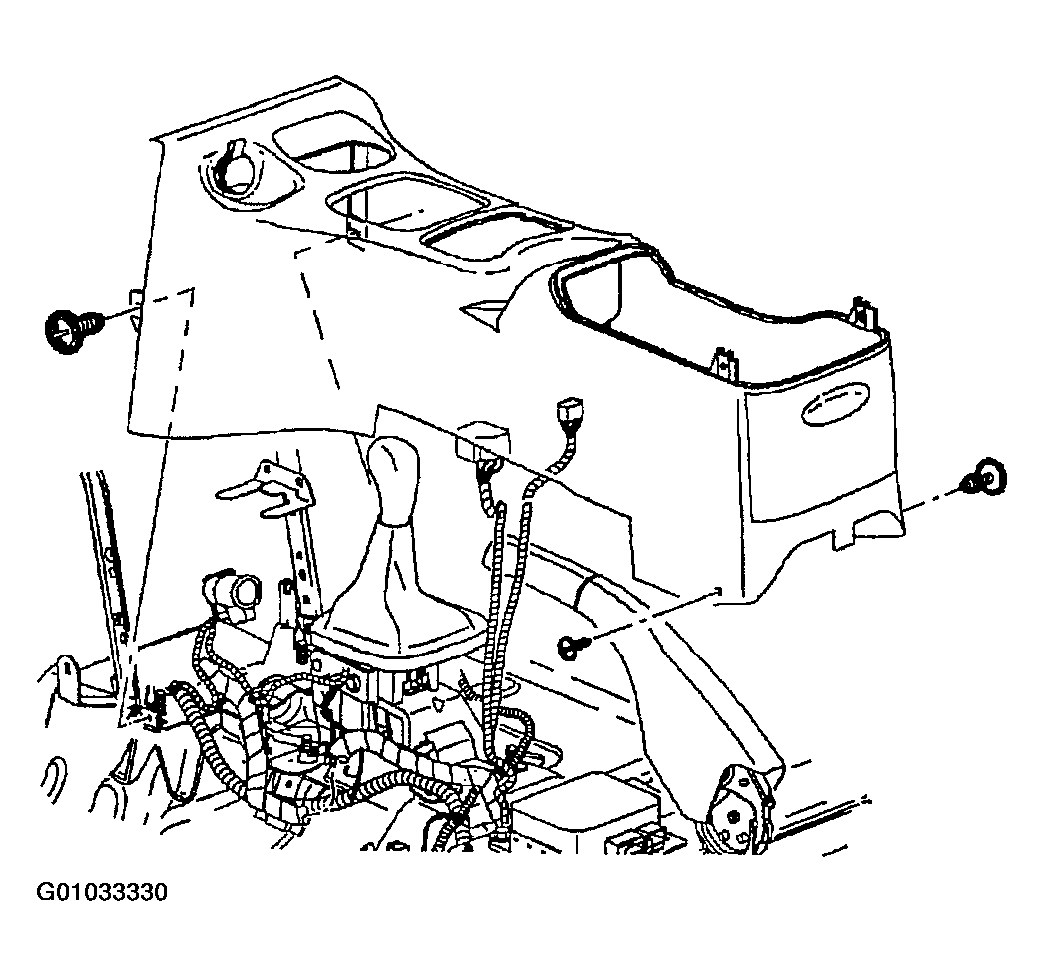

Fig 6: Removing Console
Courtesy of GENERAL MOTORS CORP.
