Control Lever Boot Assembly (On-Vehicle): Removal

Disable SIR system. For 2000 models, see DISABLING & ACTIVATING AIR BAG SYSTEM . For 2001 models, see DISABLING & ACTIVATING AIR BAG SYSTEM . For 2002 models, see DISABLING & ACTIVATING AIR BAG SYSTEM .
Remove console. Refer to CONSOLE .
Unclip the boot assembly from the plastic retainer in the rear of the shifter control assembly by pulling rearward and upward on the boot.

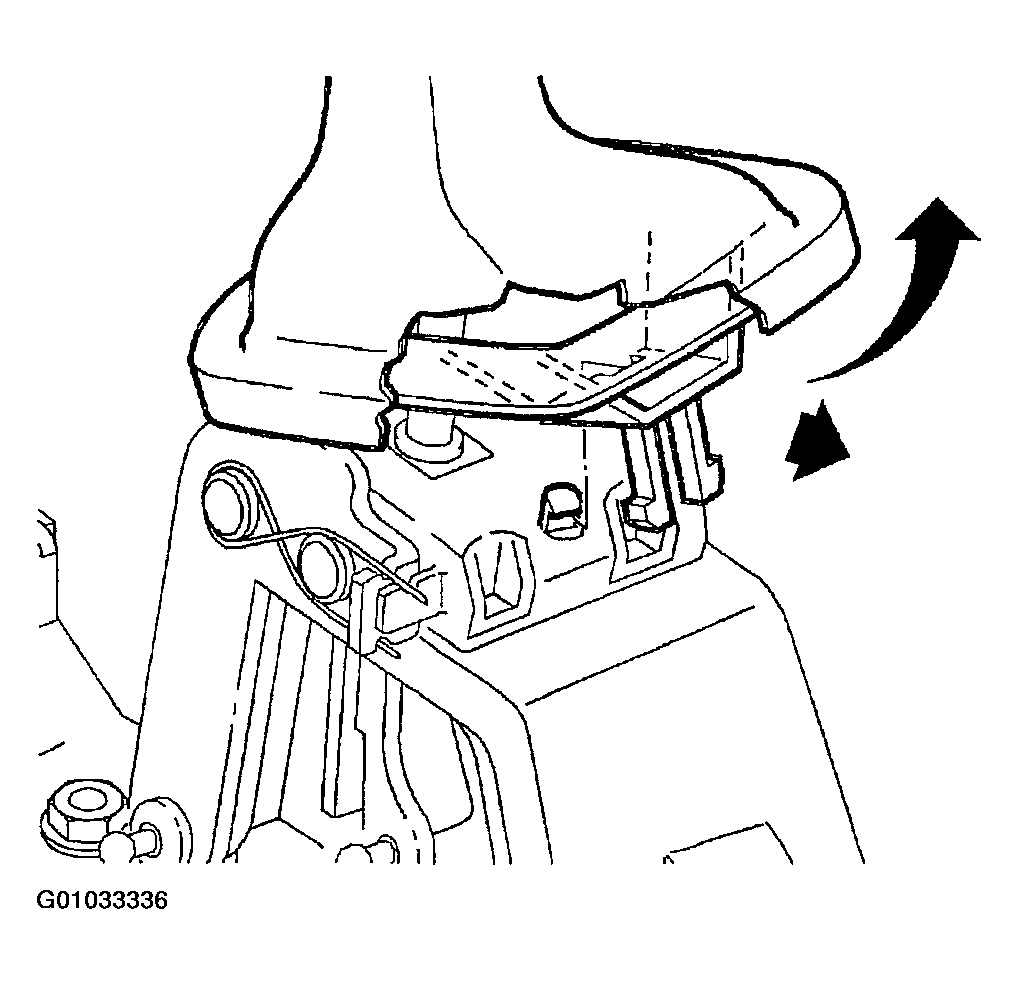

Fig 1: Removing Control Lever Boot Assembly
Courtesy of GENERAL MOTORS CORP.
Unclip the boot assembly from the plastic retainer in the front of the shifter control assembly and remove the boot.
