Test E: Left Or Right Rear Window Does Not Operate At Individual Switch

  1. Verify rear windows are not locked out by lock-out switch on power window master switch.
  2. Connect test light between terminal "E" (left) or terminal "F" (right) (Purple wire) of window master switch and ground. See Figure. If test light is on, go to next step. If test light is off, replace power window master switch. See WINDOW MASTER SWITCH  under REMOVAL & INSTALLATION.

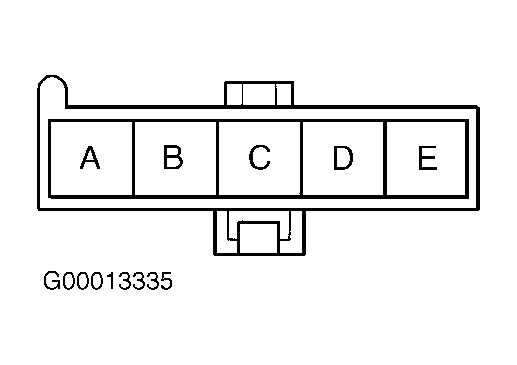

  3. Connect a test light between terminal "C" of inoperative rear door switch and ground. If test light is on, replace rear door switch. See DOOR WINDOW SWITCH  under REMOVAL & INSTALLATION. If test light is off, repair open in Purple wire between power window master switch connector and rear door switch connector. See WIRING DIAGRAMS .
