Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Body Control Module (BCM) | At center of dash, under dash cover. See Figure. |
| Cruise Control Module | Attached to steering column. See Figure. |
| Electronic Brake/Traction Control Module (EBTCM) | At left rear of engine compartment. |
| Electronic Ignition (EI) System Module (DOHC) | On left front side of transaxle housing. See Figure. |

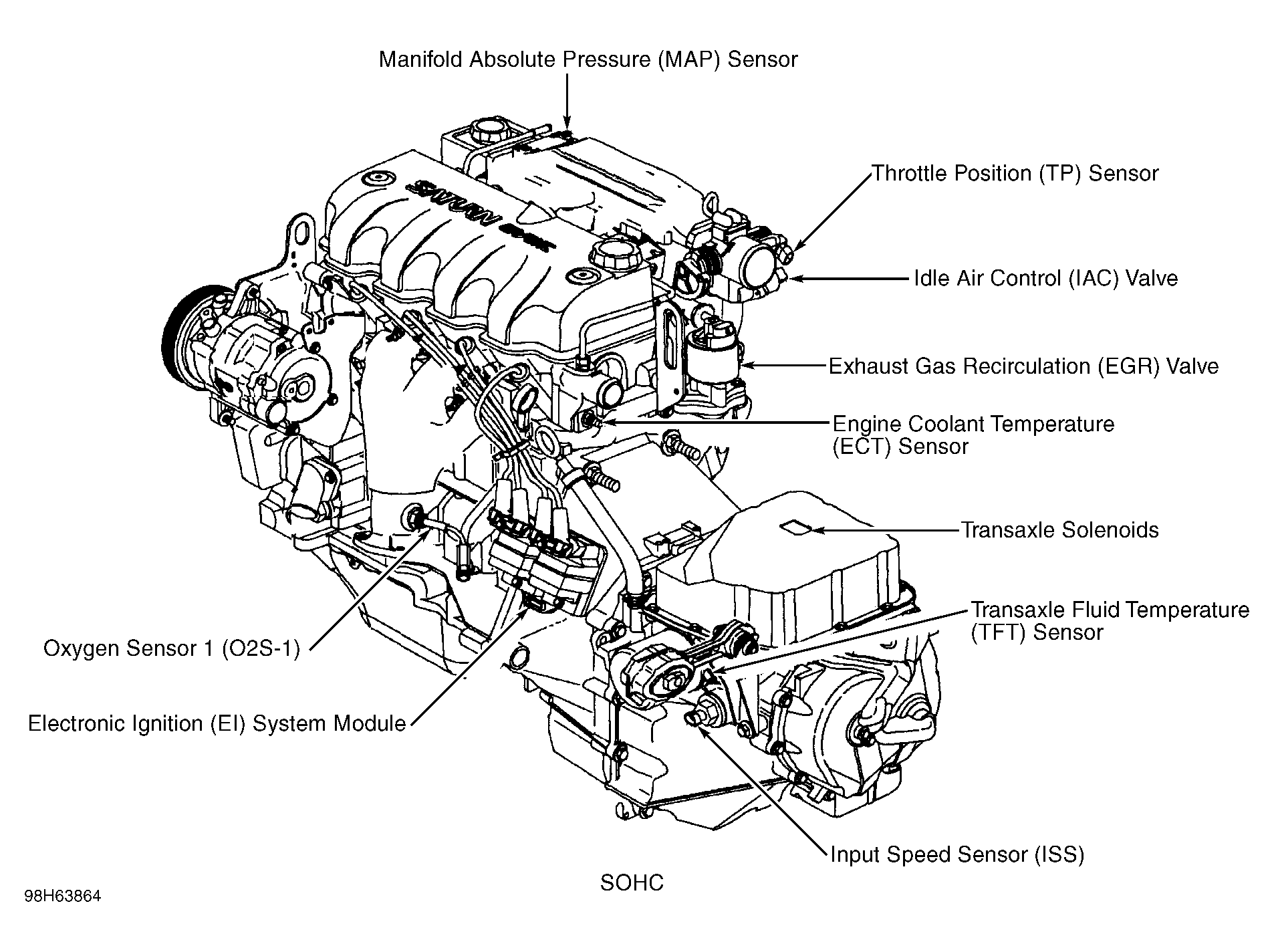

| Electronic Ignition (EI) System Module (SOHC) | On left front side of transaxle housing. See Figure. |
| Powertrain Control Module (PCM) | Between battery & power brake booster. See Figure. |
| Sensing & Diagnostic Module | Under center floor console. |
