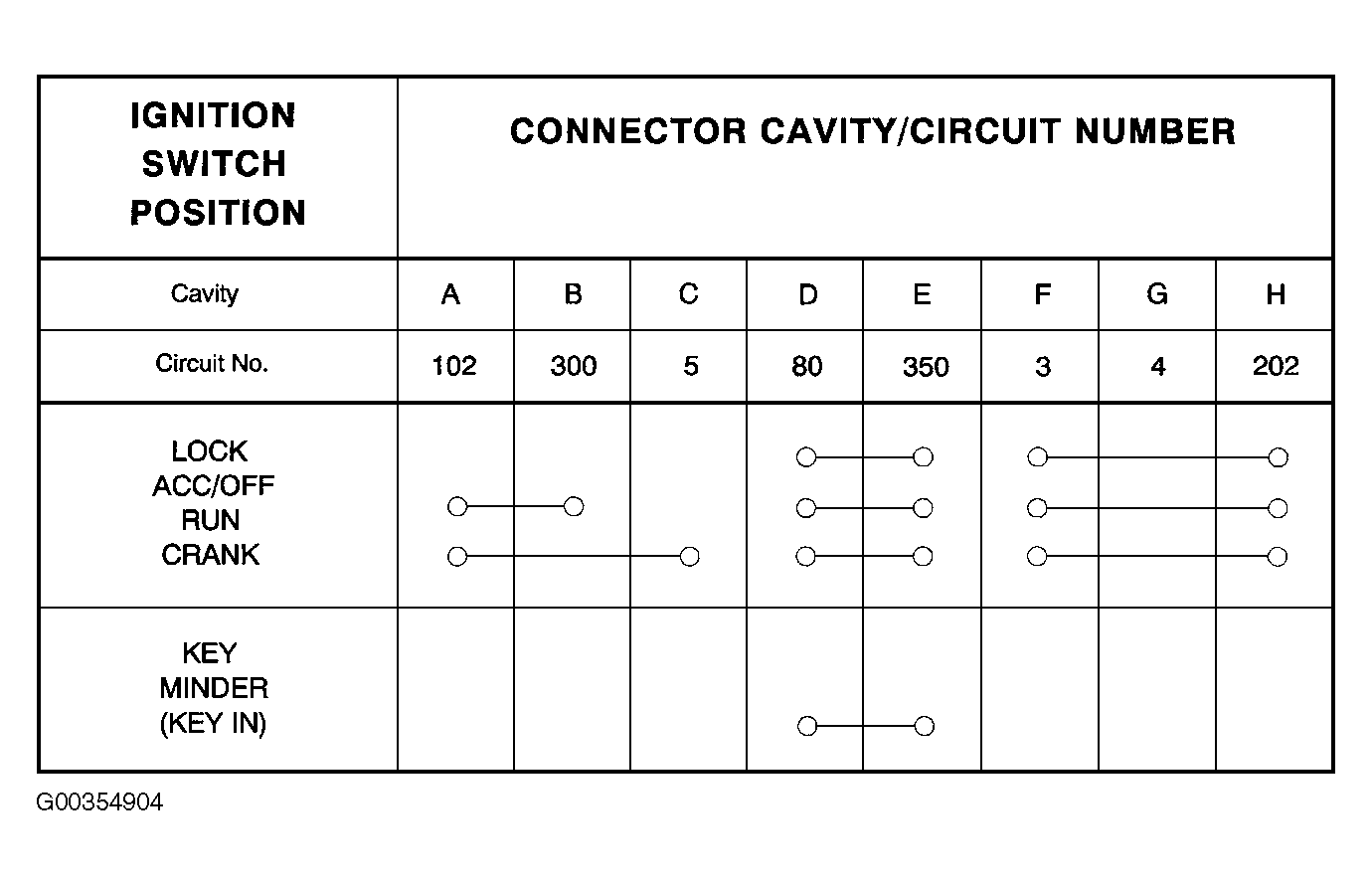

General Diagnostic Information - Ignition Switch Continuity
Courtesy of GENERAL MOTORS CORP.
NOTE:
The key minder circuit is open until the ignition switch is cycled.
This symbol indicates that the pins referenced are connected, less than 1 ohm resistance, when the switch is in the position indicated.
