EVAP Emission Canister: Installation

Place the EVAP emissions canister in the pocket on the top fuel tank. Make sure that the canister vent hose is positioned towards the middle of the fuel tank.
NOTE: If a replacement canister is being installed, make sure that the vent hose is installed on the canister prior to installation on the fuel tank. Orient the molded vent hose on the canister so that when it is installed on the fuel tank the "S" bend will be pointing down.
Install the canister retainer clip to the fuel tank, assuring that the clip is over the lower flange of the canister before "snapping" the clip into the locked position.

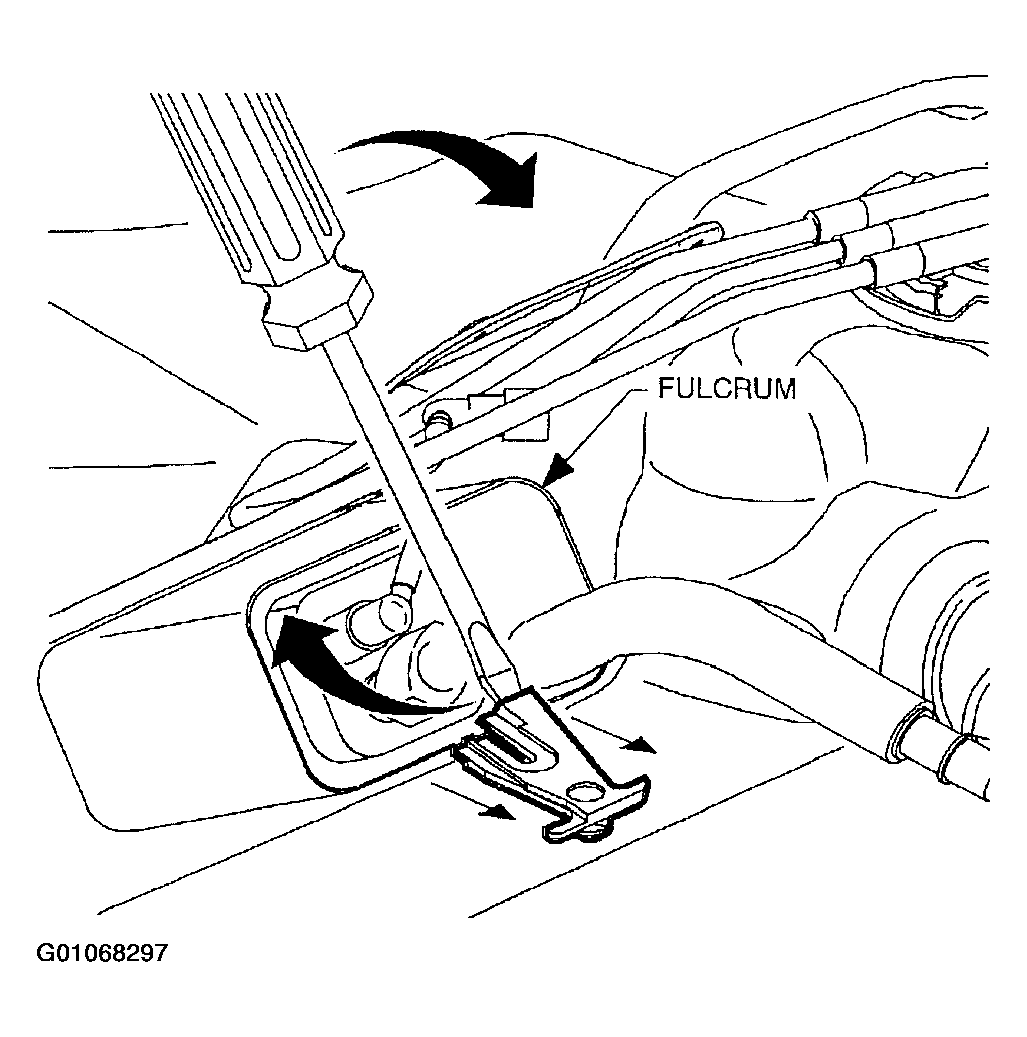

Fig 1: Installing Canister
Courtesy of GENERAL MOTORS CORP.

NOTE: Install the retainer for the purge fitting quick connect into the female portion of the connector. Care must be taken to assure that the locking tab is centered in the window of the female connector.

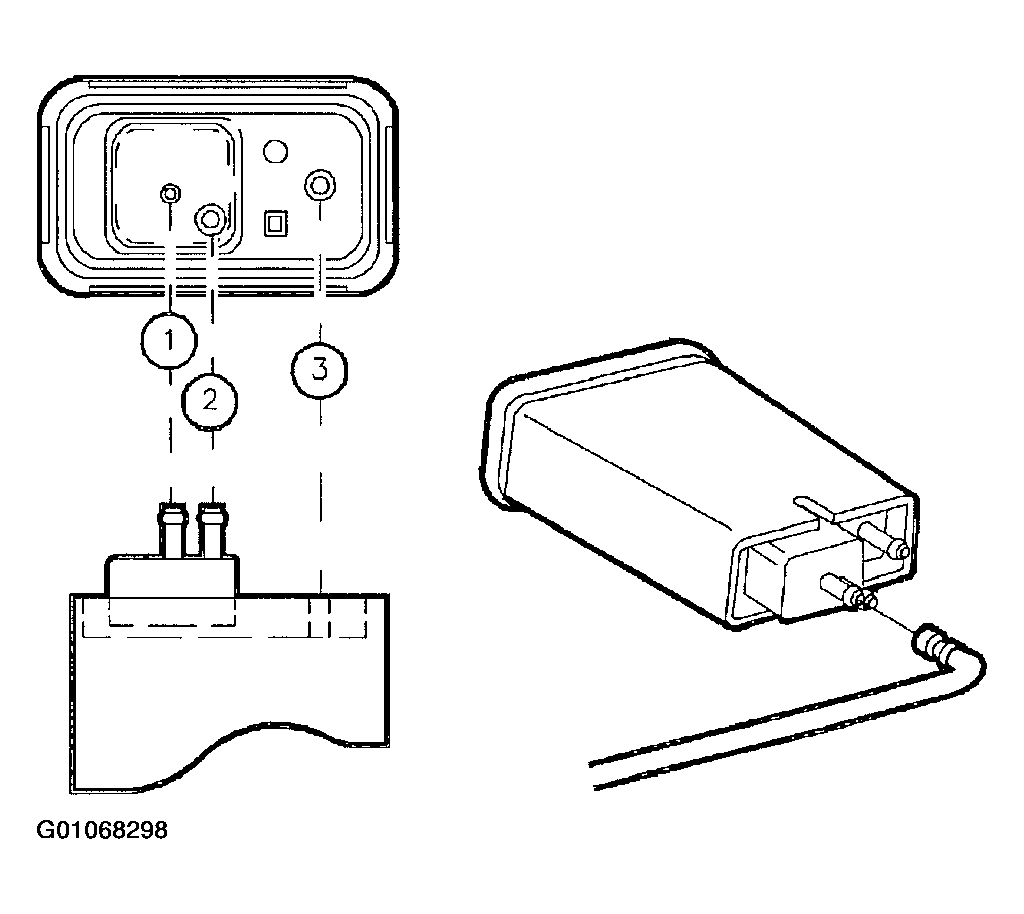

1. Canister Purge
2. Vapor
3. Vent

  Fig 2: Canister Purge Components
  Courtesy of GENERAL MOTORS CORP.
Install the 90° 5/16" purge line fitting to the purge port on the canister.
Install the 90° 5/8" vapor line fitting to the tank port on the canister.
Install fuel tank and fuel filler pipe. Refer to FUEL TANK .
Perform the "Service Bay Diagnostic Test" for the evaporative emission system using the Tech-2 7000081-SAT3. This test will verify the integrity of the vapor handling areas of the fuel system.
