| Body Control Module (BCM) |
Behind Carpet In Right Footwell, Mounted To Floor Board |
| Brake Transmission Shift Interlock (BTSI) Solenoid |
In Center Console, Integral With Gearshift Lever |
| Data Link Connector (DLC) |
Behind Left Side Of Instrument Panel, Below Steering Column |
| Daytime Running Light (DRL) Control Module |
Behind Instrument Cluster |
| Door Ajar Indicator Switch |
Rear Of Door, Integral With Latch |
| Door Control Module (DCM) |
Behind Bottom Front Of Door Trim Panel |
| Traction Control/Suspension Switch |
In Center Console, Between Gearshift Lever & Storage Box |

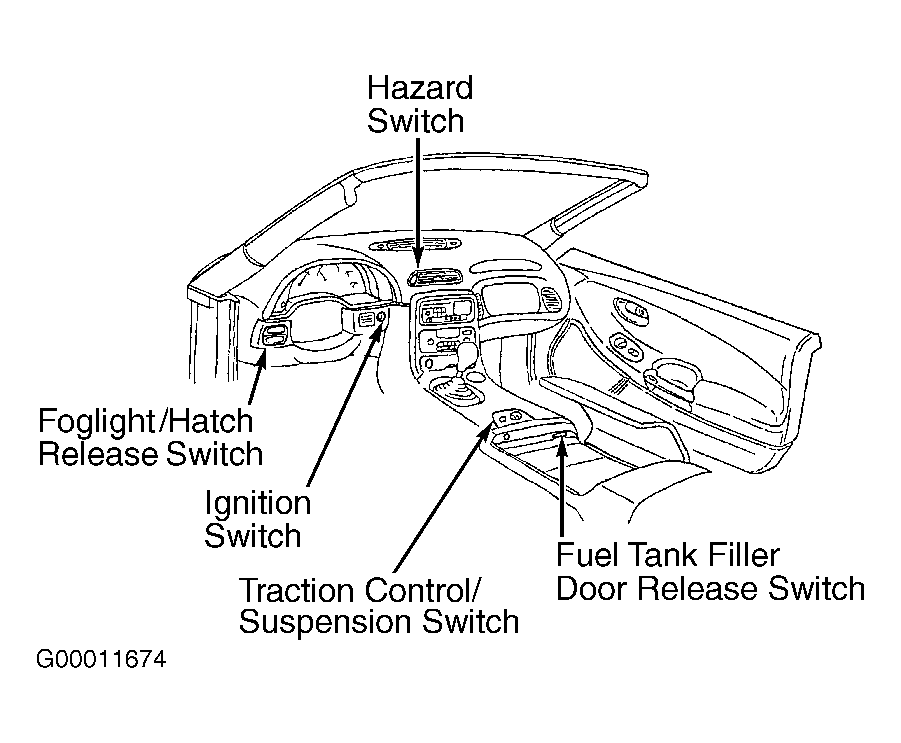

| Foglight/Hatch Release Switch |
In Instrument Panel, Left Of Steering Column |
| Hood Ajar Switch |
Engine Compartment Support Bracket |
| HVAC Control Head |
Center Of Instrument Panel, Under Radio |
| Ignition Switch |
Left Side Of Instrument Panel, Between Radio & Steering Column |

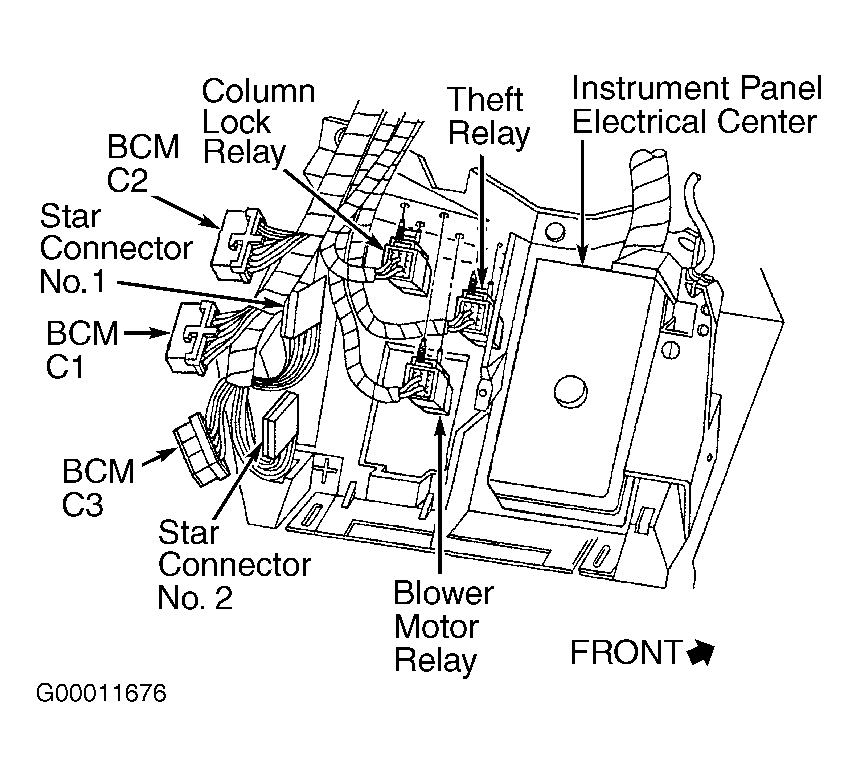

| Instrument Panel Electrical Center |
Behind Carpet In Right Footwell, Mounted To Floor Board |

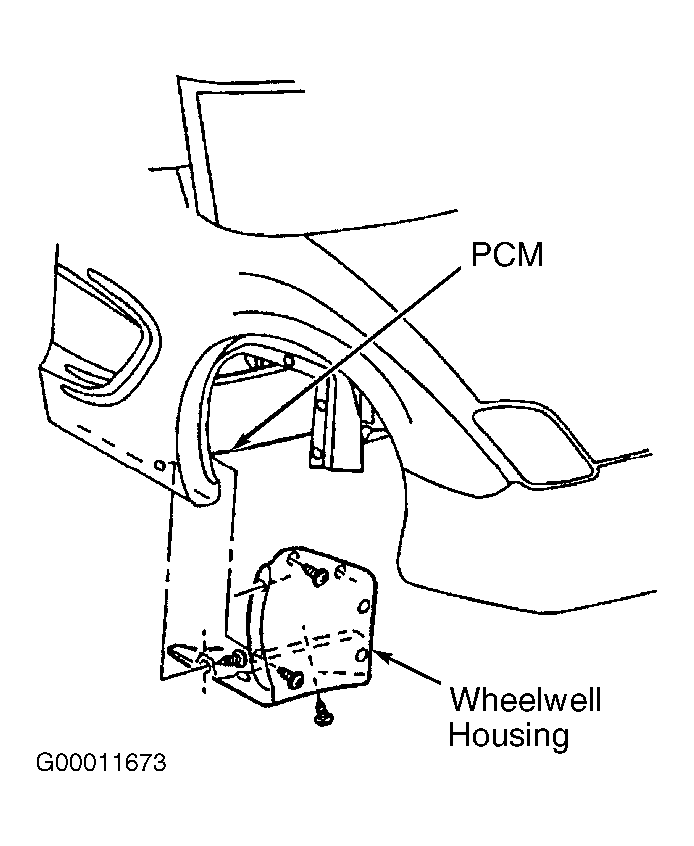

| Powertrain Control Module (PCM) |
Behind Right Wheel Housing, Under Battery |
| Rear Defogger Relay |
Instrument Panel Electrical Center |
| Right Rear Compartment Lid Lock Release Solenoid |
Right Side Of Rear Compartment, On Right Compartment Latch |
| Star Connectors No. 1 & 2 |
Behind Carpet In Right Footwell, In Instrument Panel Harness |
| Steering Wheel Lock |
Mounted To Right Side Of Steering Column, Behind Instrument Panel |
| Underhood Electrical Center |
Right Rear Corner Of Engine Compartment, Above PCM, Between Battery & Coolant Reservoir |
