BCM Connector End Views

WARNING: This page is about a different car, the 2000 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

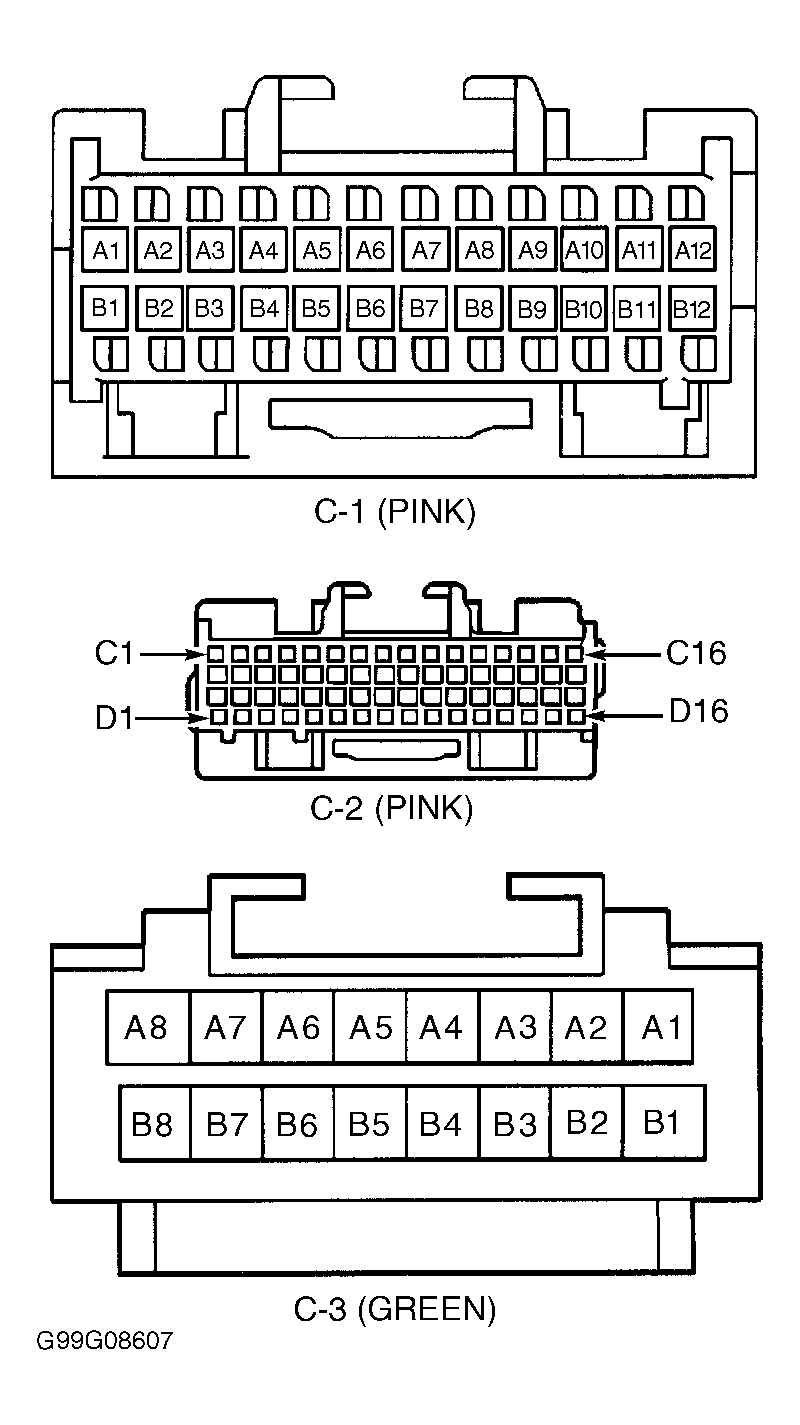

Fig 1: Identifying BCM Connector Terminals (C1, C2 & C3)
G99G08607Courtesy of GENERAL MOTORS CORP.
