Floor Console: Installation
- Apply park brake. Adjust front seats to most rearward position. Recline driver's and passenger's seat backs as far down as possible.

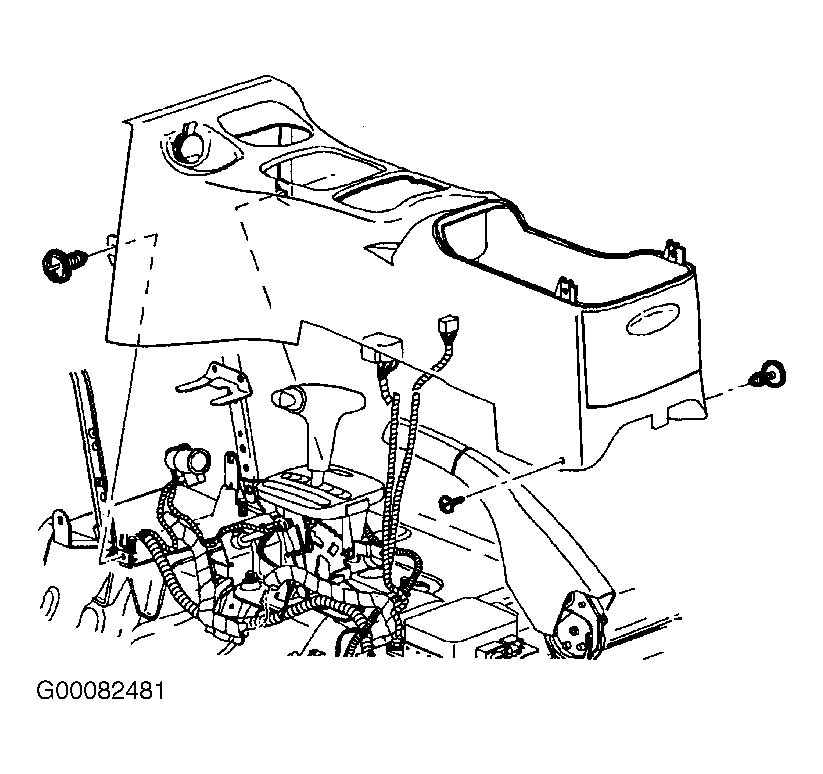

- Hold front end of console down and rear end up. Position all harnesses so they can be accessed. See Fig 6
.
- Maneuver console over gear selector lever and past brake lever.

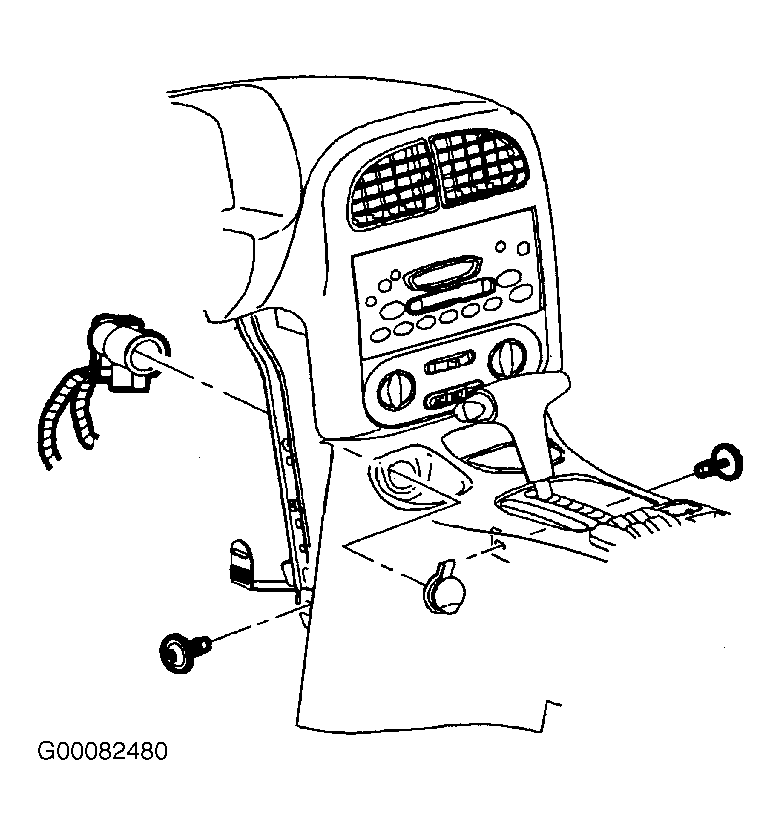

- Connect power outlet electrical connector. Remove tape from gear selector. Install rear console screws and tighten to 19 INCH lbs. (2.2 N.m). See Fig 3
.

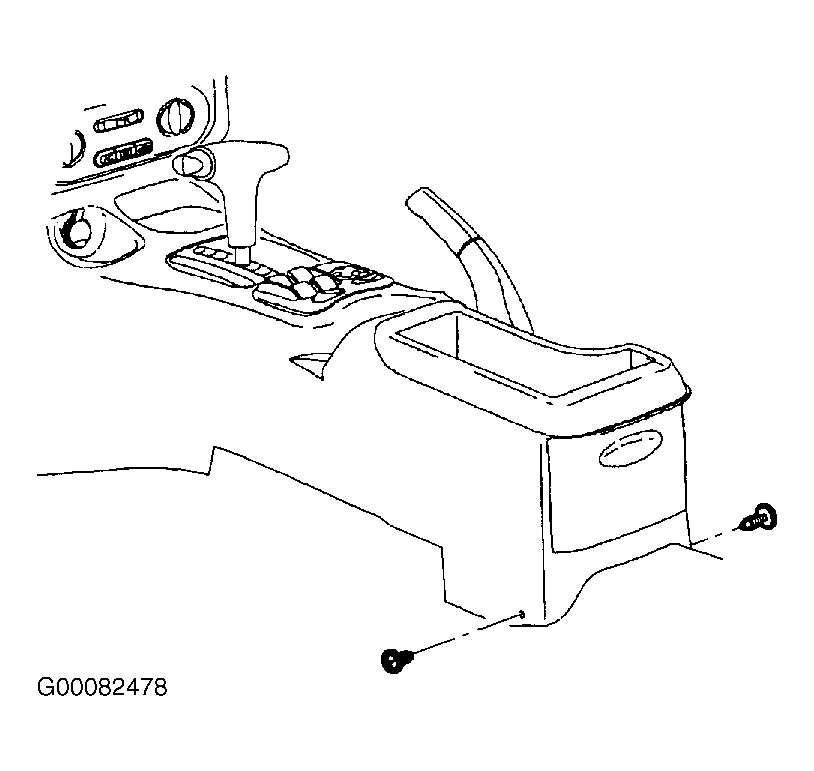

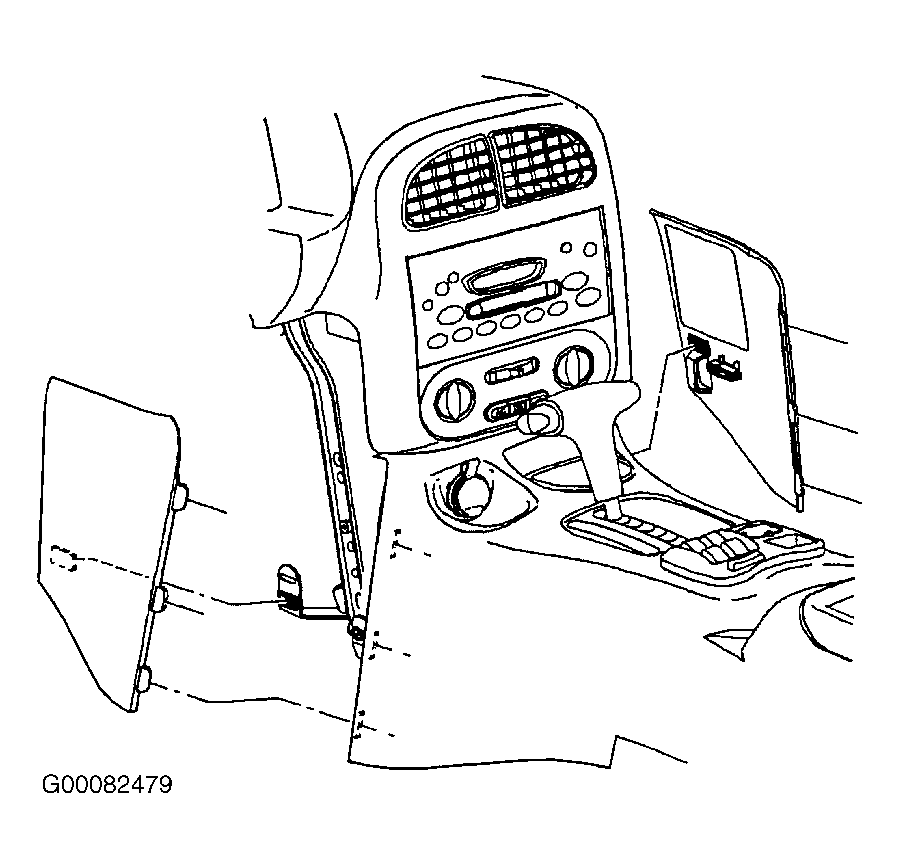

- Install front console screws and tighten to 19 INCH lbs. (2.2 N.m). Install left and right extension panels by inserting hinges into console. See Fig 4
.

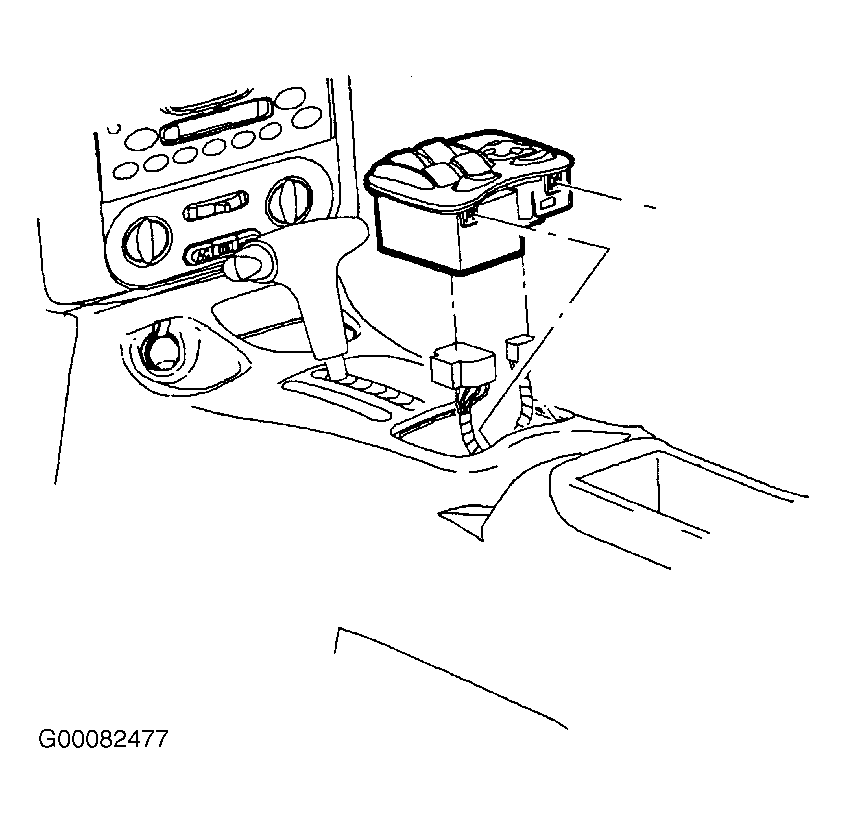

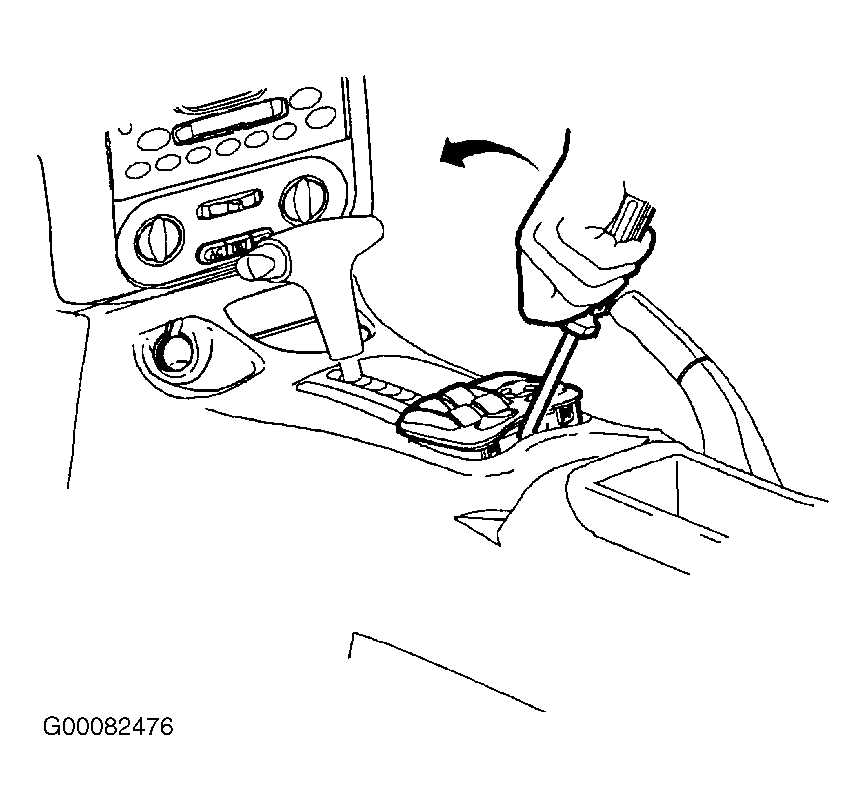

- Rotate closed and push in at dual lock locations. Install window/mirror switch. Enable SIR system. See AIR BAG DEACTIVATION PROCEDURES article in GENERAL INFORMATION.
