Removal And Installation General Service Information: Console: Installation

Apply park brake.
Adjust front seats to most rearward position.
Recline driver's and passenger's seat backs as far down as possible.
Select neutral for transaxle gear (on automatic transaxles).
Hold front end of console down and rear end up.
Position all harnesses so they can be accessed.
Maneuver console over gear selector lever and past brake lever.

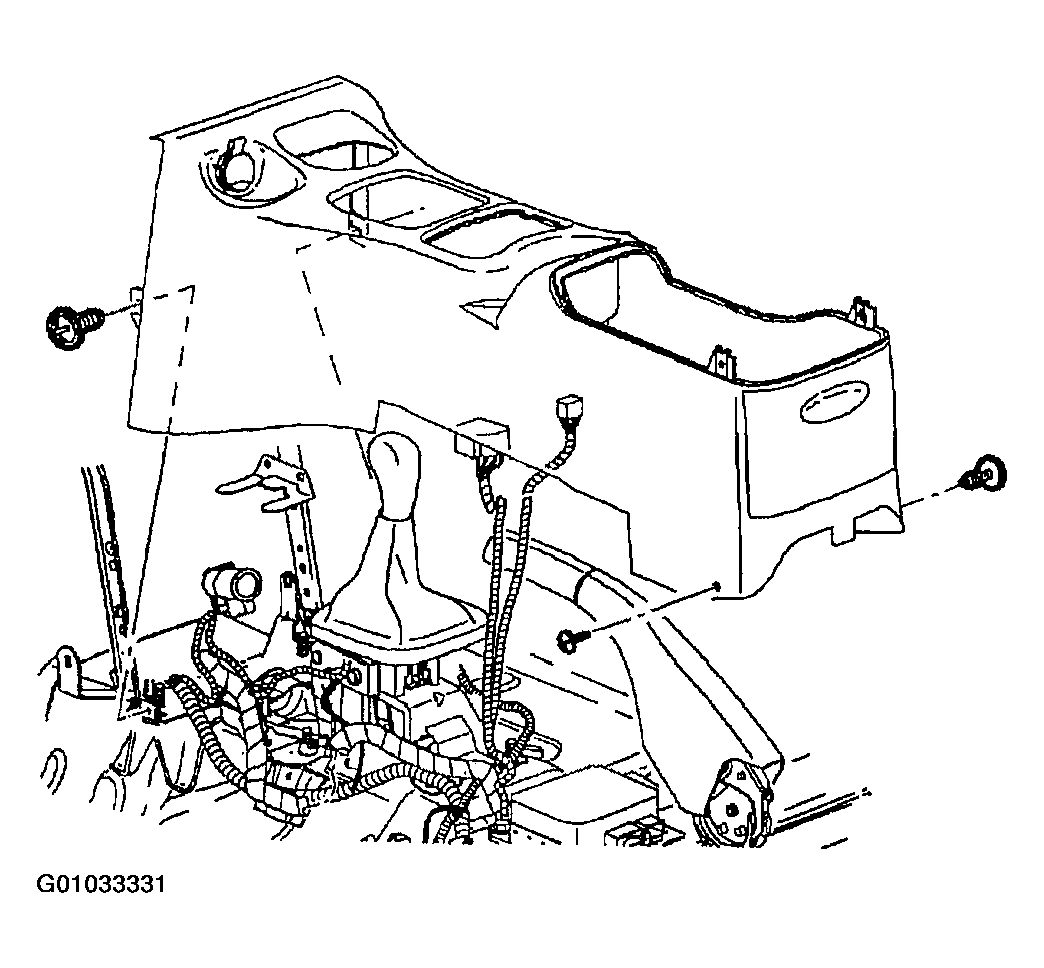

Fig 1: Installing Console
Courtesy of GENERAL MOTORS CORP.
Connect power outlet electrical connector.

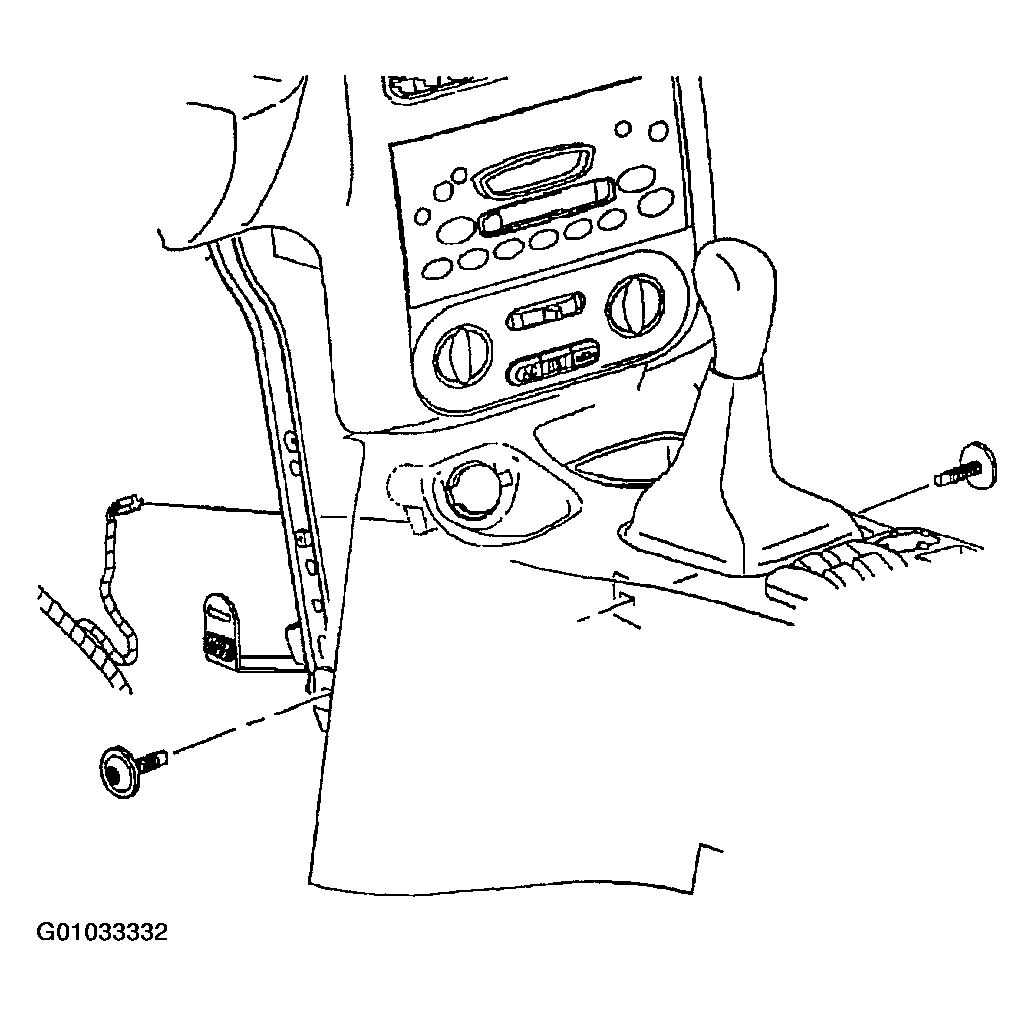

Fig 2: Connecting Power Outlet Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Install rear console screws and tighten.
Torque Rear Console Screw: 2.5 N.m (22 in-lbs)

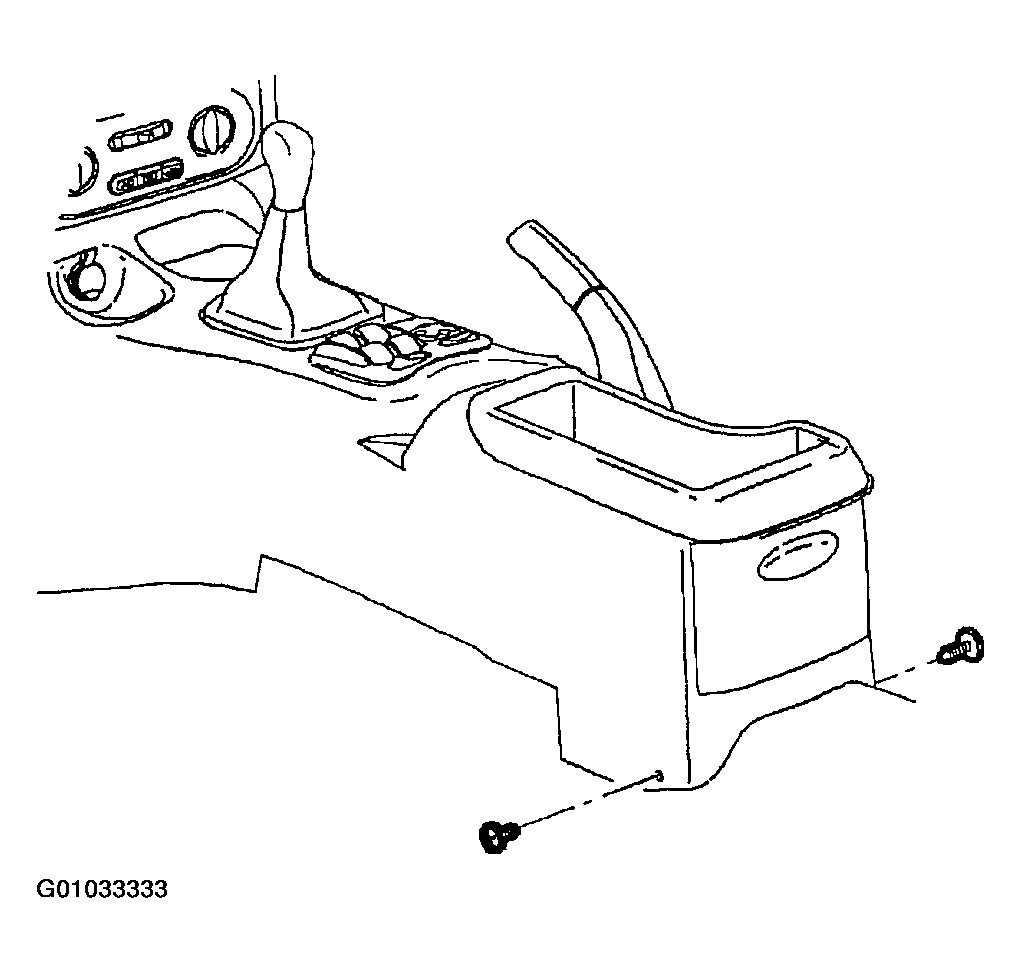

Fig 3: Installing Rear Console Screws
Courtesy of GENERAL MOTORS CORP.
Install front console screws and tighten.
Torque Front Console Screw: 2.5 N.m (22 in-lbs)
Install left and right extension panels by inserting hinges into console.
Rotate close and push in at dual lock locations.

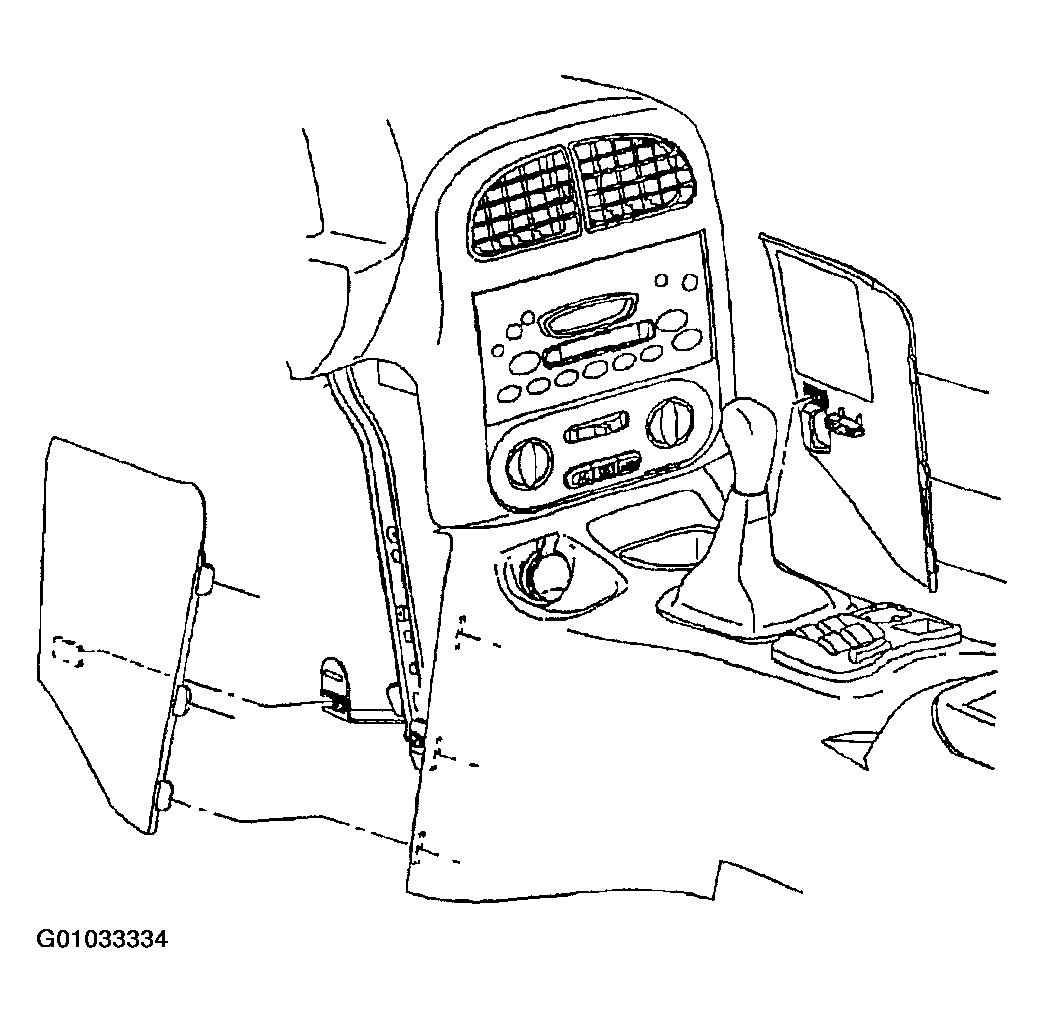

Fig 4: Installing Left & Right Extension Panels
Courtesy of GENERAL MOTORS CORP.
Connect window switch assembly connectors (if equipped).
Install window switch assembly or storage tray (depending on equipment).

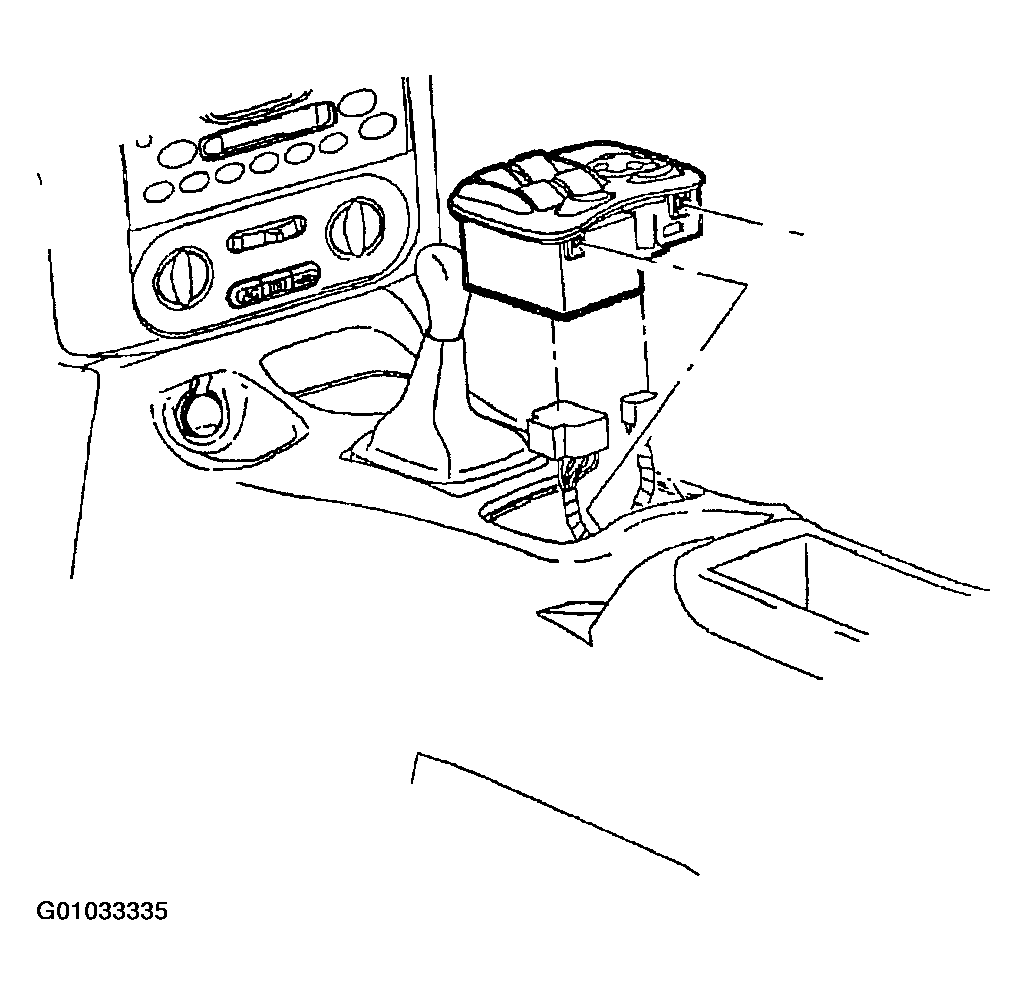

Fig 5: Installing Power Window Switch
Courtesy of GENERAL MOTORS CORP.
Enable SIR system. For 2000 models, see DISABLING & ACTIVATING AIR BAG SYSTEM . For 2001 models, see DISABLING & ACTIVATING AIR BAG SYSTEM . For 2002 models, see DISABLING & ACTIVATING AIR BAG SYSTEM .
