Differential Disassembly

  1. Drive roll pin out of differential housing and discard.
  2. Remove pinion shaft.
  3. Rotate pinion gears out of housing and remove.
  4. Remove side gears.
  5. Remove liner from housing.

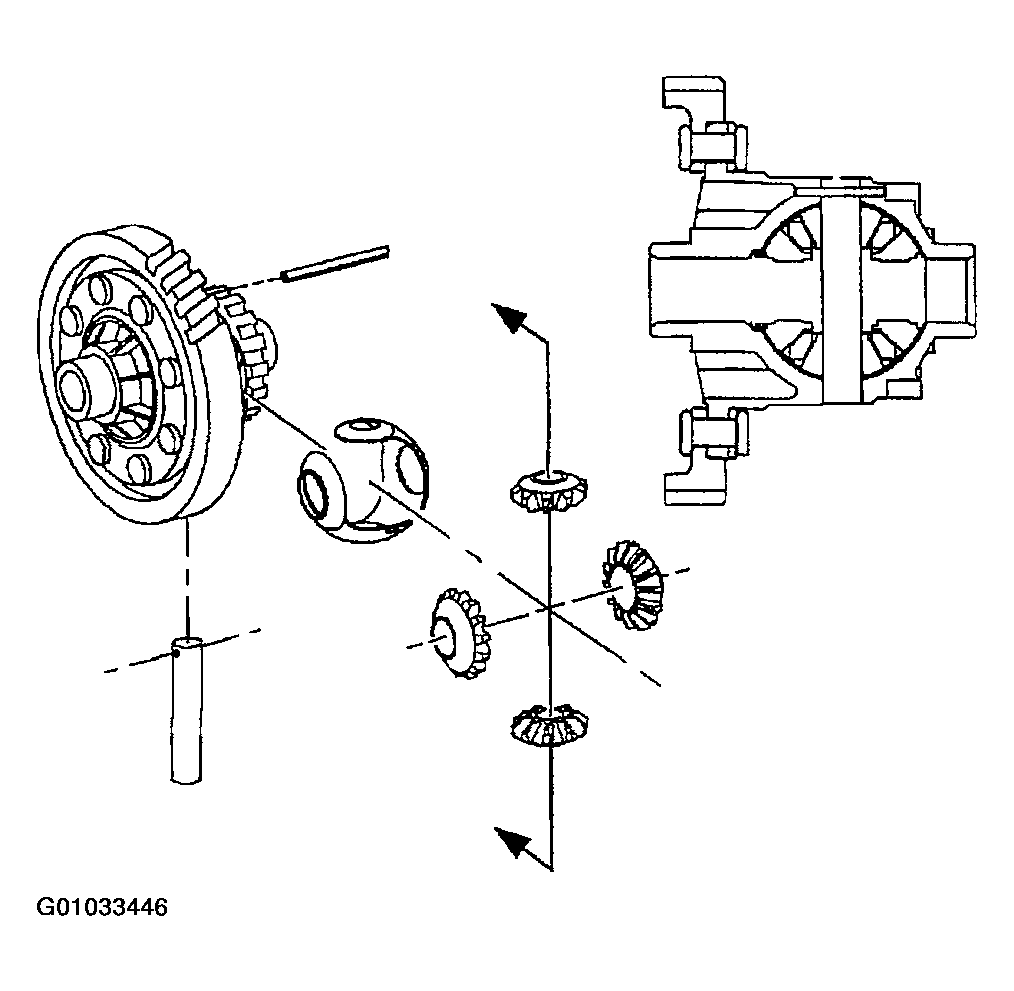

    Fig 1: Disassembling Differential
    G01033446Courtesy of GENERAL MOTORS CORP.
  6. Remove differential side bearings.
    1. To remove the speed sensor side bearing, a bearing puller can be used.
    2. To remove the differential gear side bearing, use a two jaw puller. Place a shield over bearing to provide protection if bearing should break.

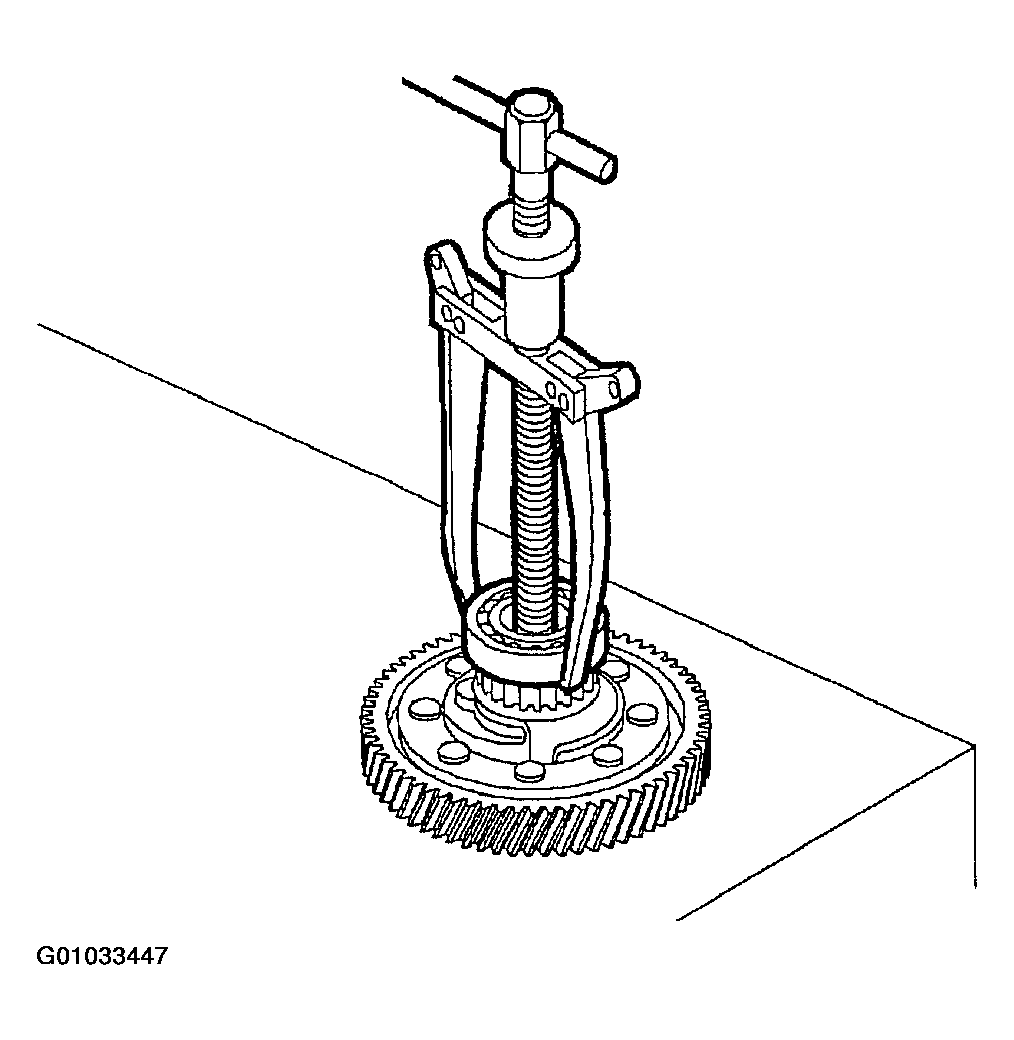

    Fig 2: Removing Differential Side Bearings
    G01033447Courtesy of GENERAL MOTORS CORP.
