Manual Transaxle Special Tools

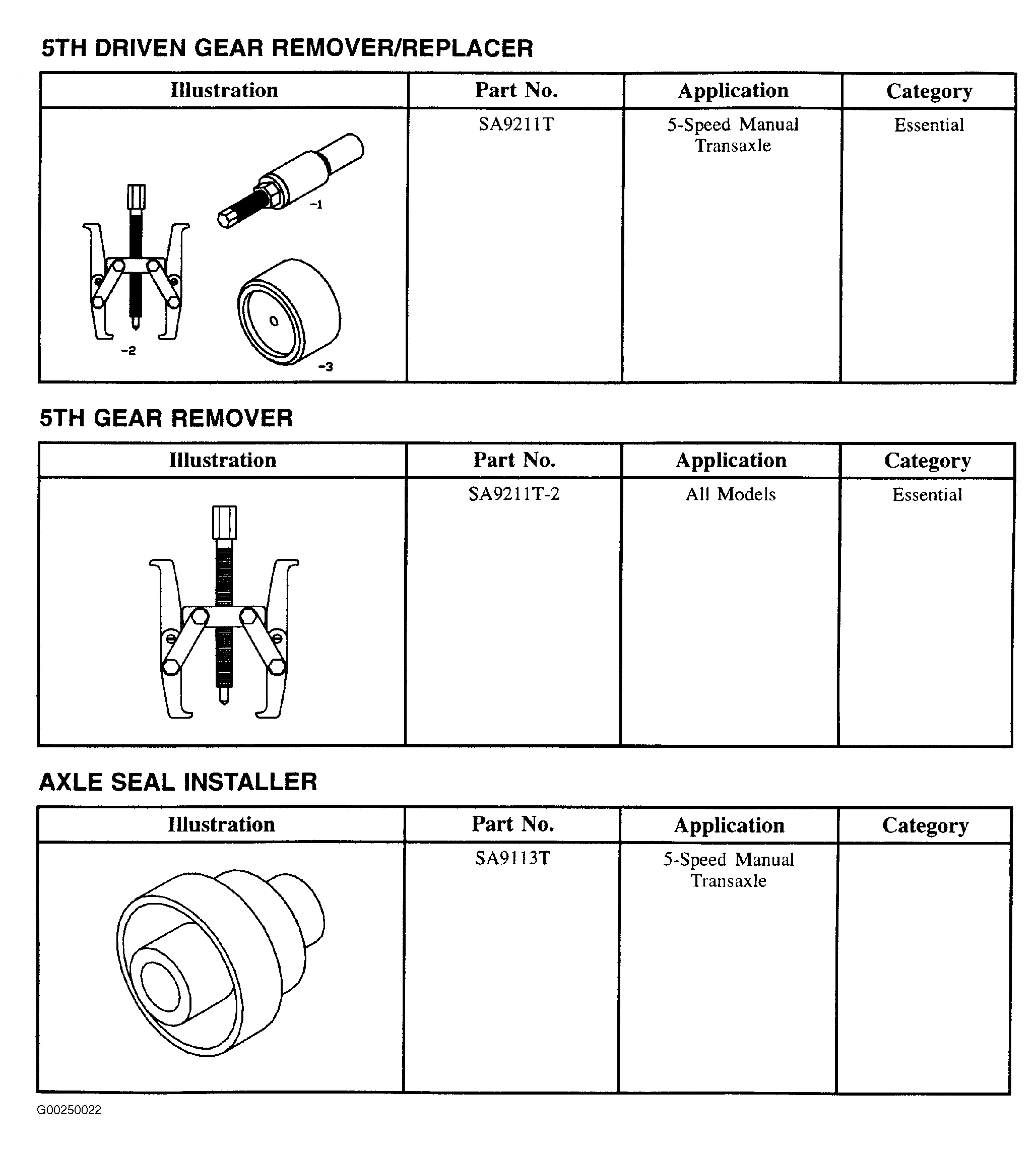

Fig 1: Identifying Special Tools (1 Of 6)
Courtesy of GENERAL MOTORS CORP.

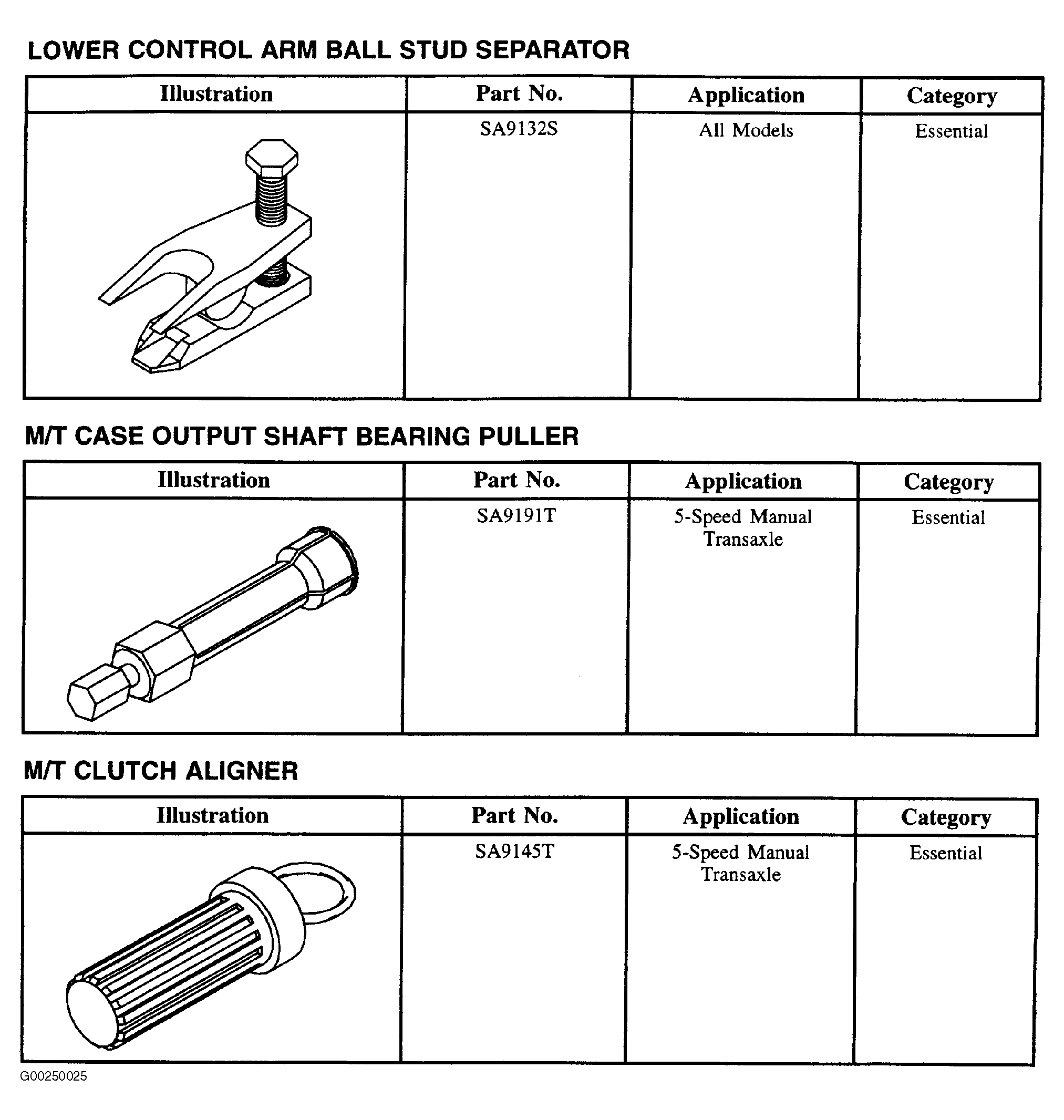

Fig 2: Identifying Special Tools (2 Of 6)
Courtesy of GENERAL MOTORS CORP.

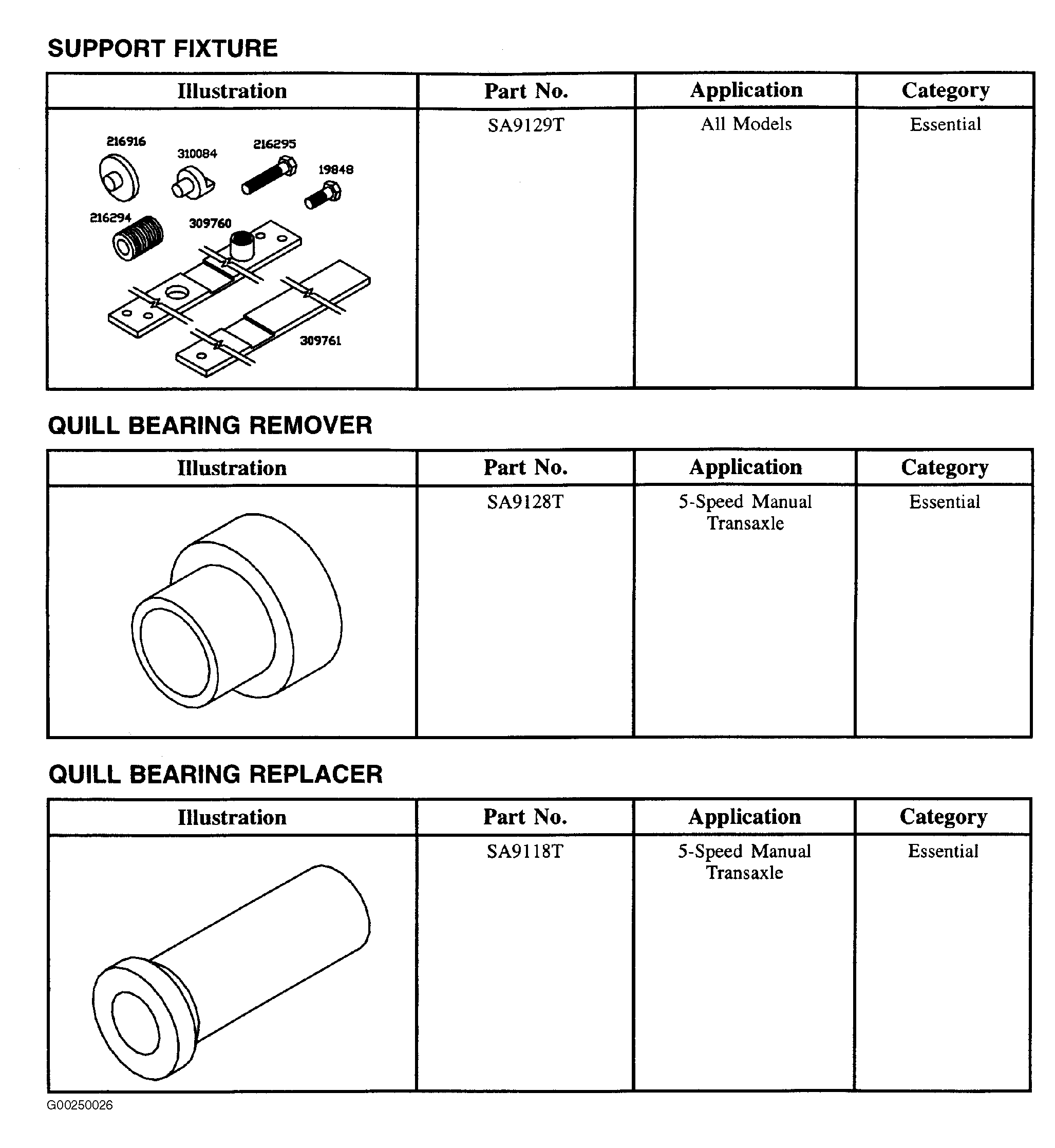

Fig 3: Identifying Special Tools (3 Of 6)
Courtesy of GENERAL MOTORS CORP.

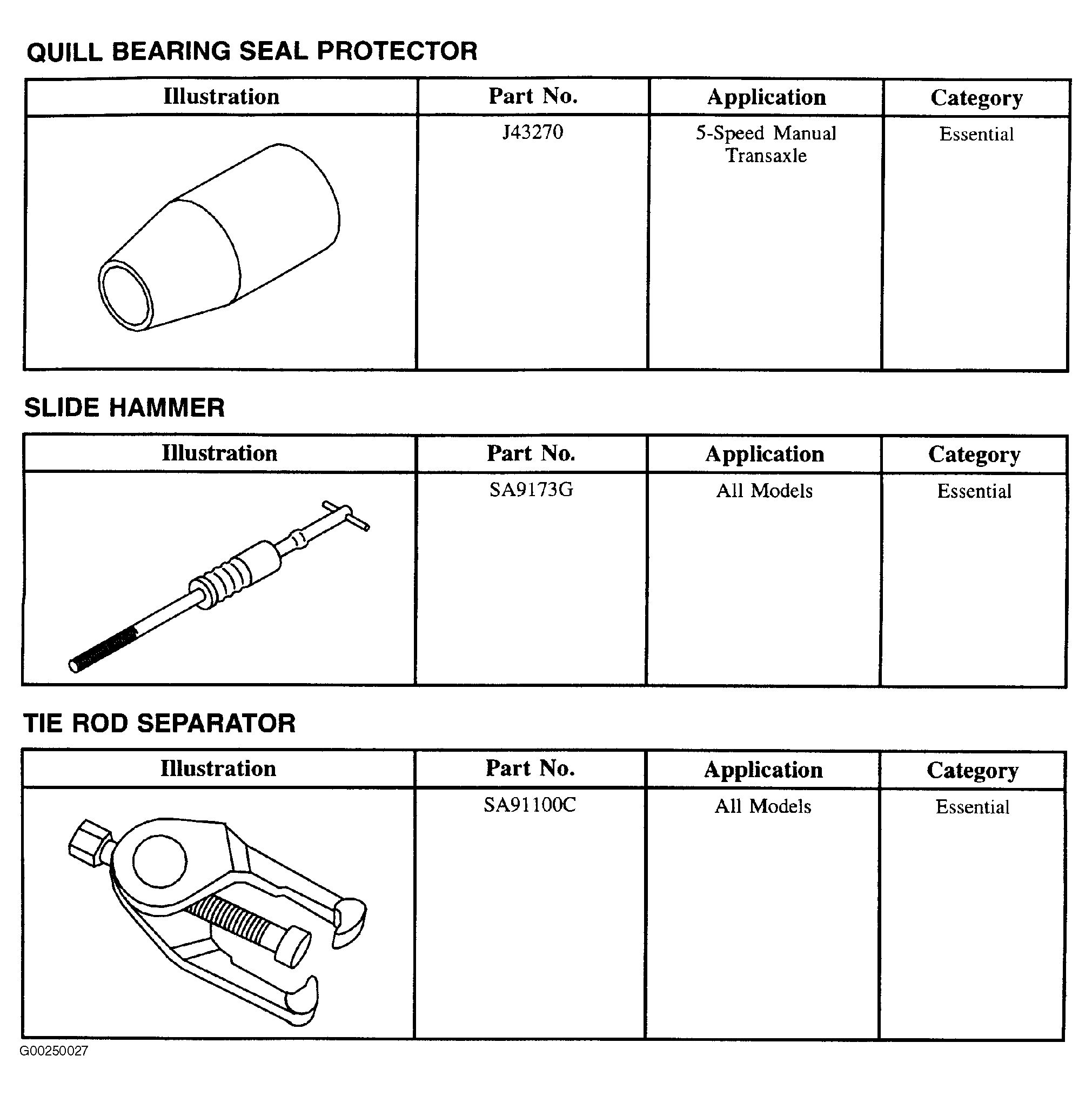

Fig 4: Identifying Special Tools (4 Of 6)
Courtesy of GENERAL MOTORS CORP.

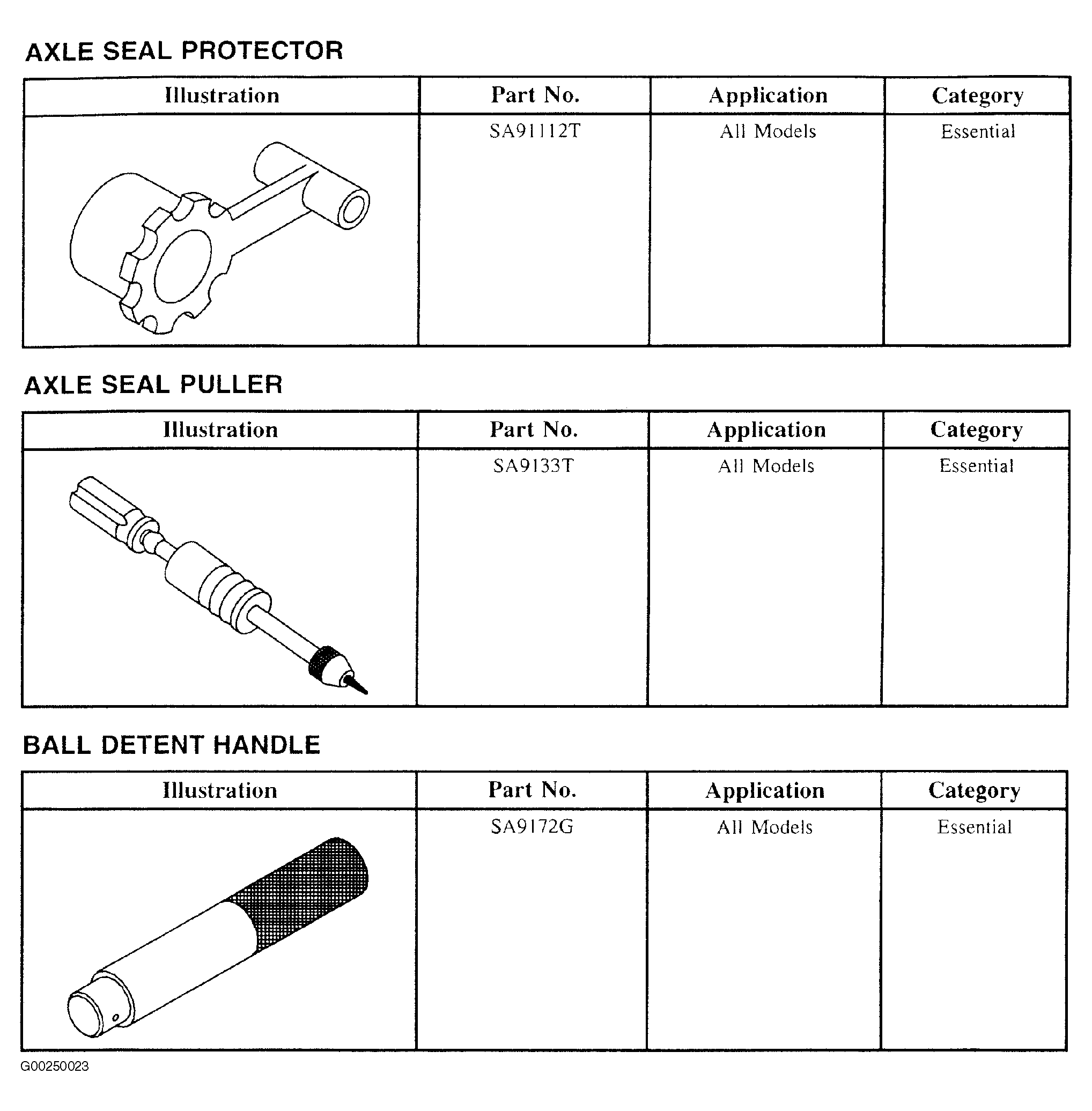

Fig 5: Identifying Special Tools (5 Of 6)
Courtesy of GENERAL MOTORS CORP.

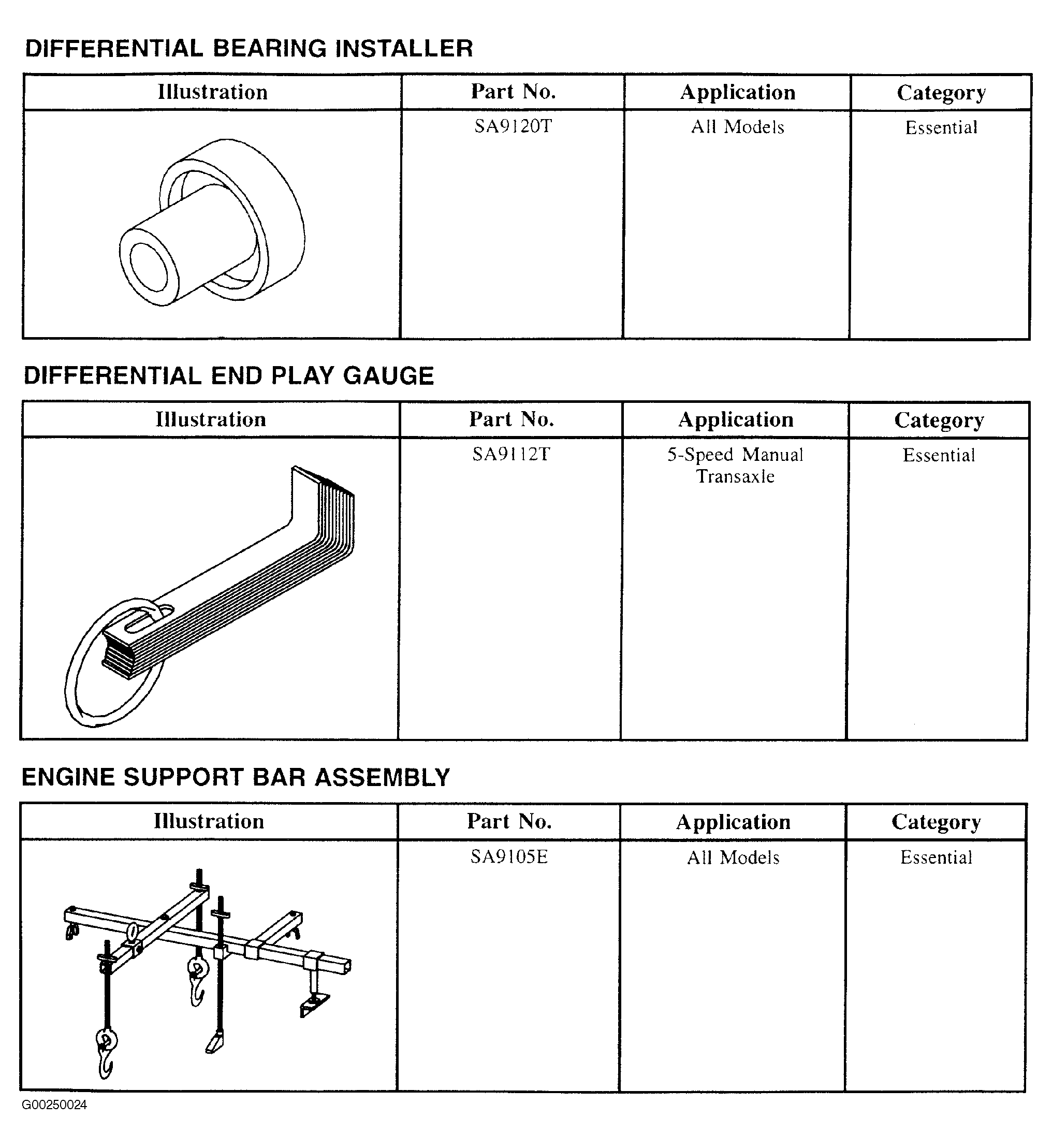

Fig 6: Identifying Special Tools (6 Of 6)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
